The Holybro RemoteID module is an affordable, compact and lightweight module that transmits UAV information during flight via WiFi and Bluetooth. It supports both CAN and serial protocols. It is an FCC and CE certified module.
This product runs on open-source firmware (ArduRemoteID) and provides a standard Remote ID solution, primarily targeted at drone manufacturers and system integrators.
If you need customization or have a special request, please feel free to contact us by email.
Specifications:
Radio Module:
- Module: Espressif ESP-C3
- Bluetooth and WiFi 2.4 GHz (ERP): + 20 dBm (100 mW)
- Certification: FCC and CE
Firmware:
- ArduRemoteID (link to GitHub)
- Supports firmware update via web interface ("OTA")
- Supported in PX4 and ArduPilot
Protocol:
- CAN and Serial

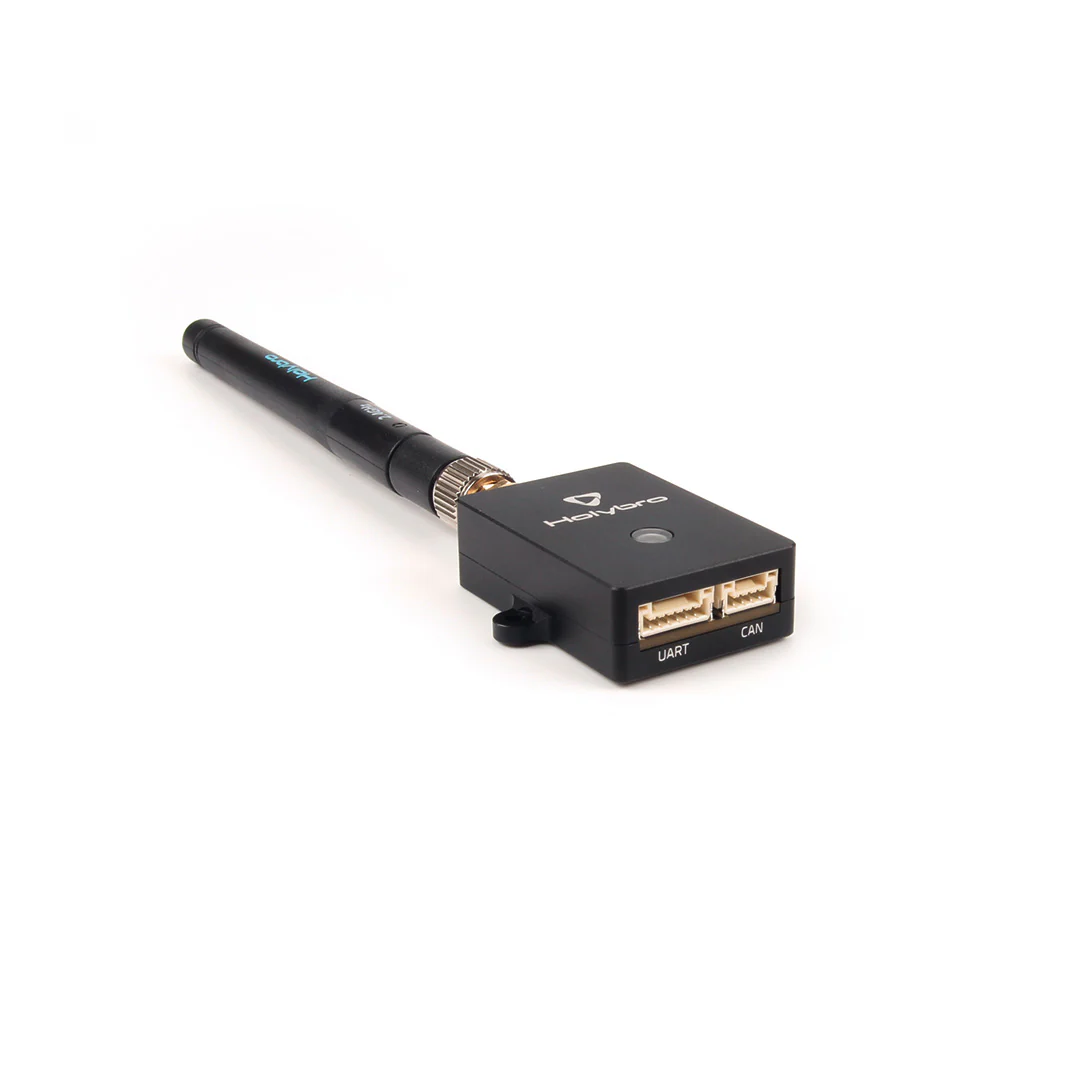

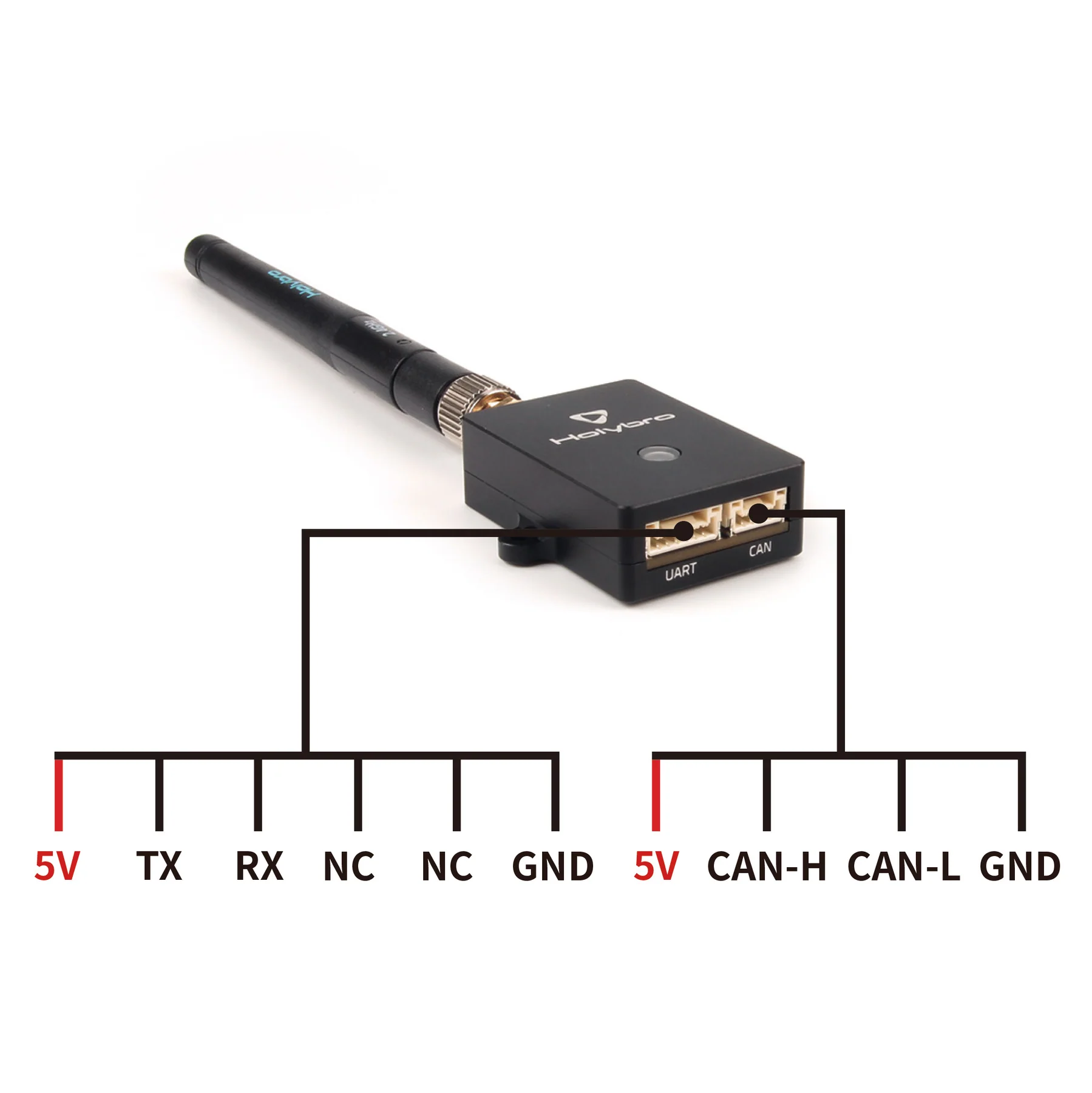

Interface:
- 1x JST GH 4-pin CAN (CAN) port
- 1x JST GH 6-pin TELEM (UART) port

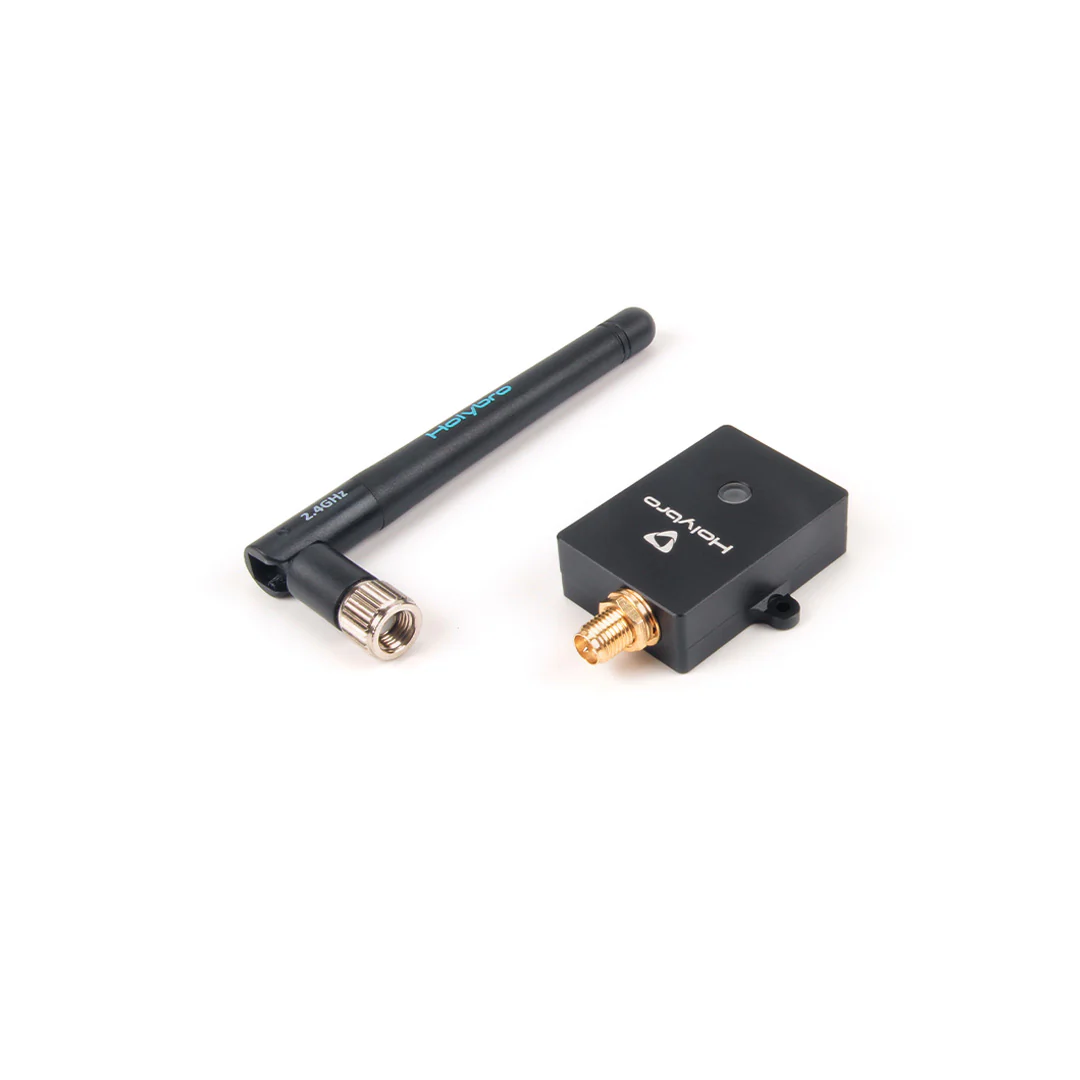

Antenna connector type:
- On the CNC cover: SMA connector
- On PCB: IPEX connector
Reach:
-
5 km detection range*
Power:
- 5V from TELEM or CAN port
LEDs:
- Bright RGB status LED
Dimensions:
- Without cover: 35.3 x 23.5 mm (without antenna)
- With CNC cover: 38 x 26.5 x 11.5 mm (without antenna)
Assembly:
- M2 screws
Operating temperature:
- -40°C to +85°C
Weight:
- PCB only: 4g

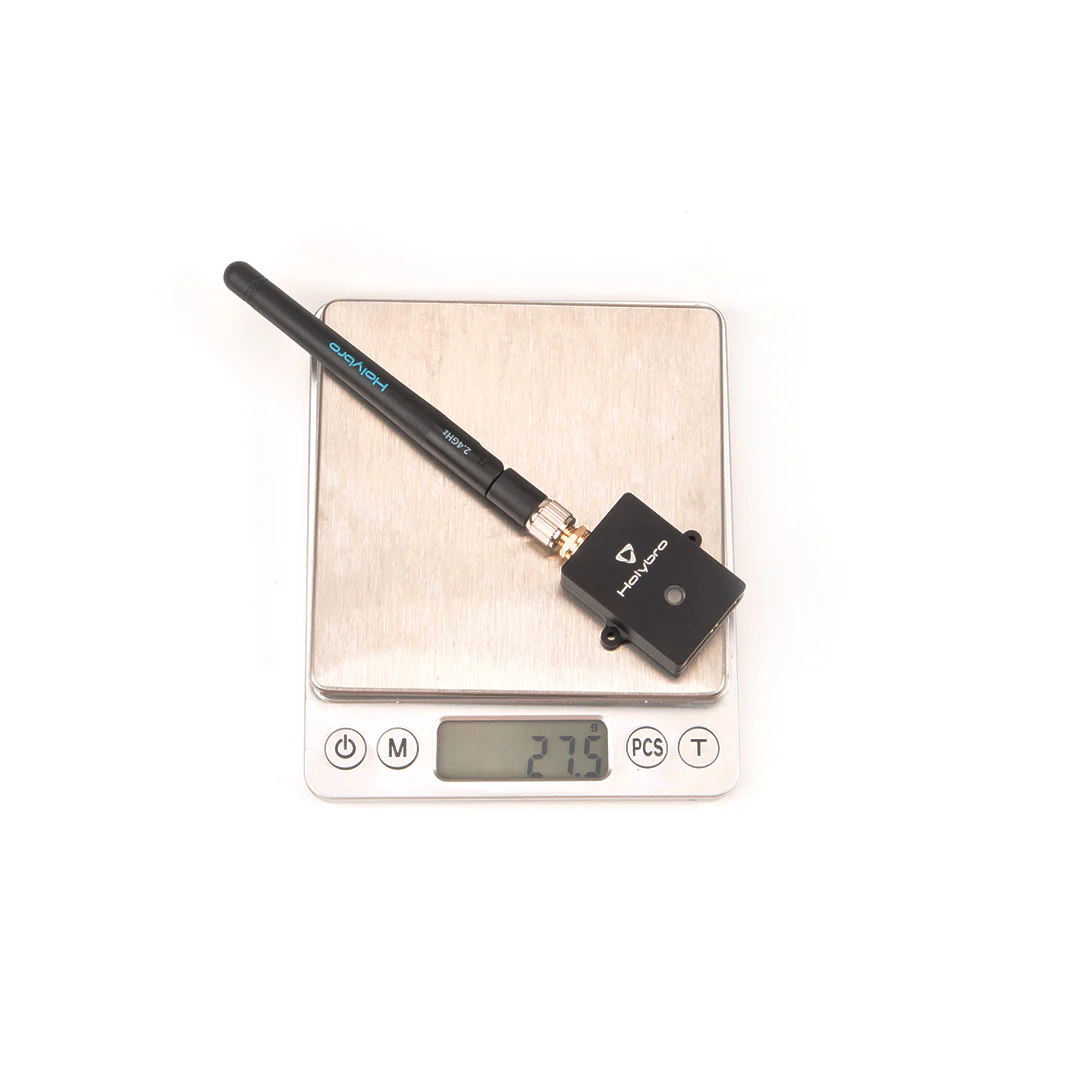

- With CNC cover and antenna: 27.5 g
- Without cover and antenna: 16.5 g (cable 20 cm)
Certification:
- FCC and CE

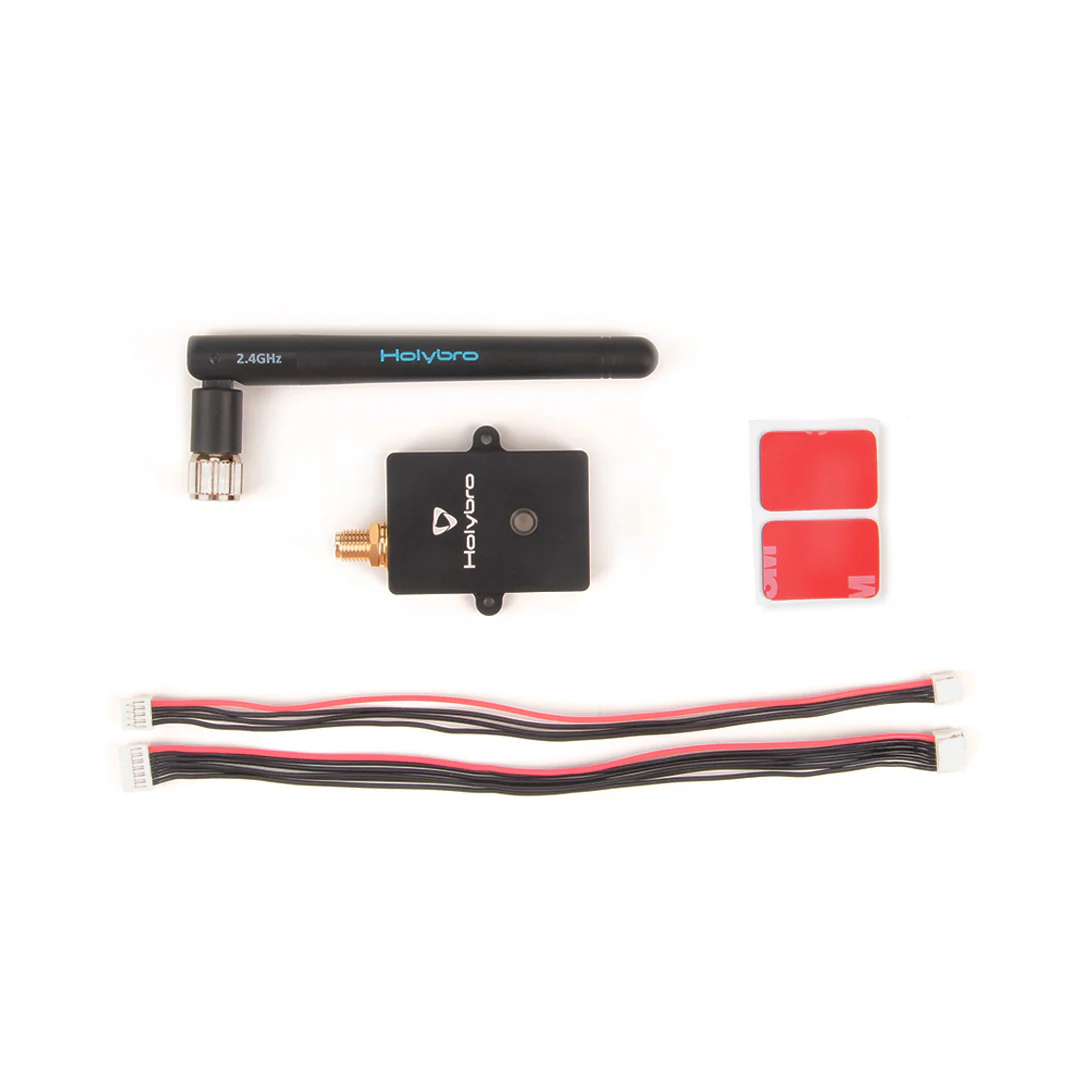

Package contents:
- 1x Remote ID module
- 1x Antenna
- 1x JST GH 6pin 150mm cable
- 1x JST GH 4pin 150mm cable
