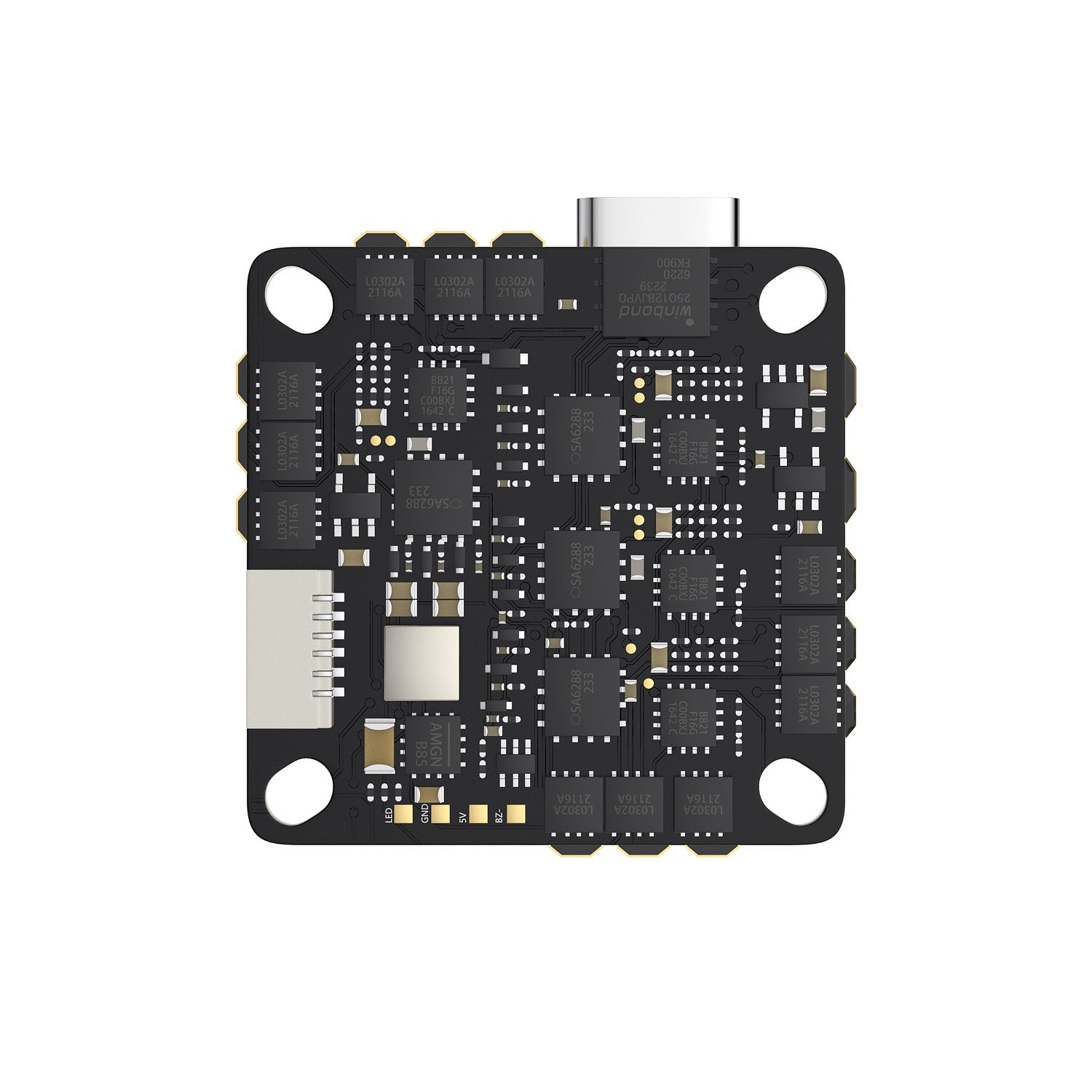

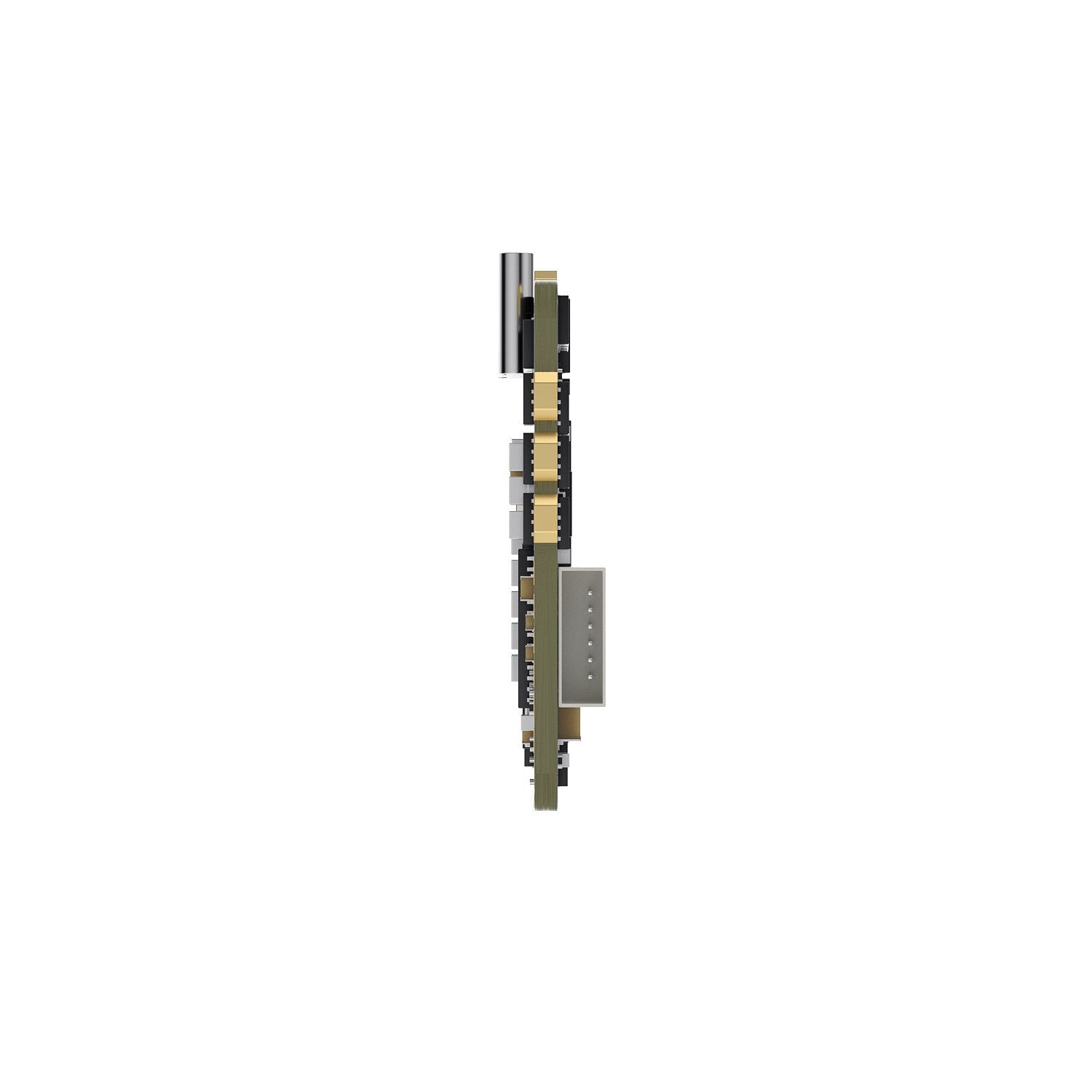

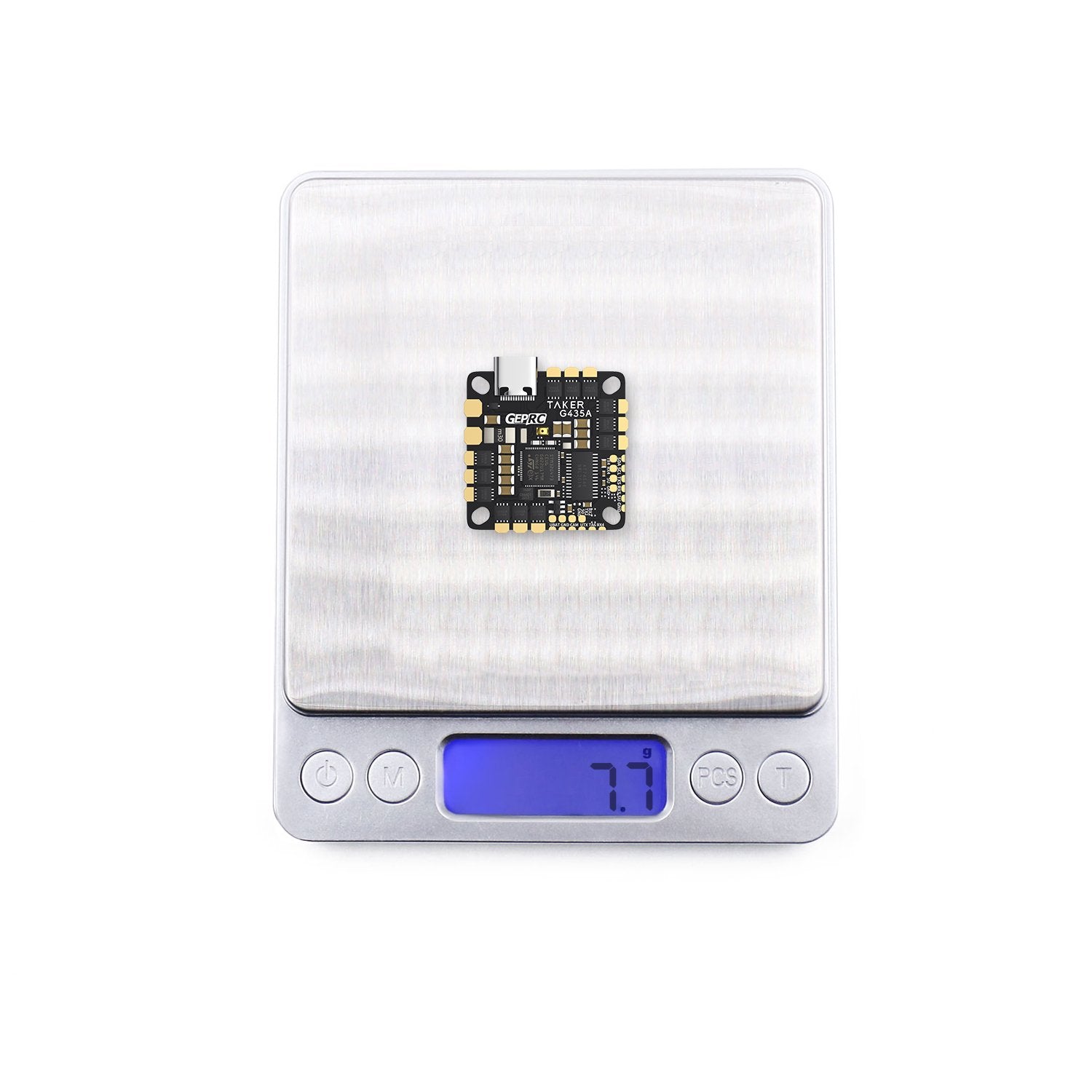

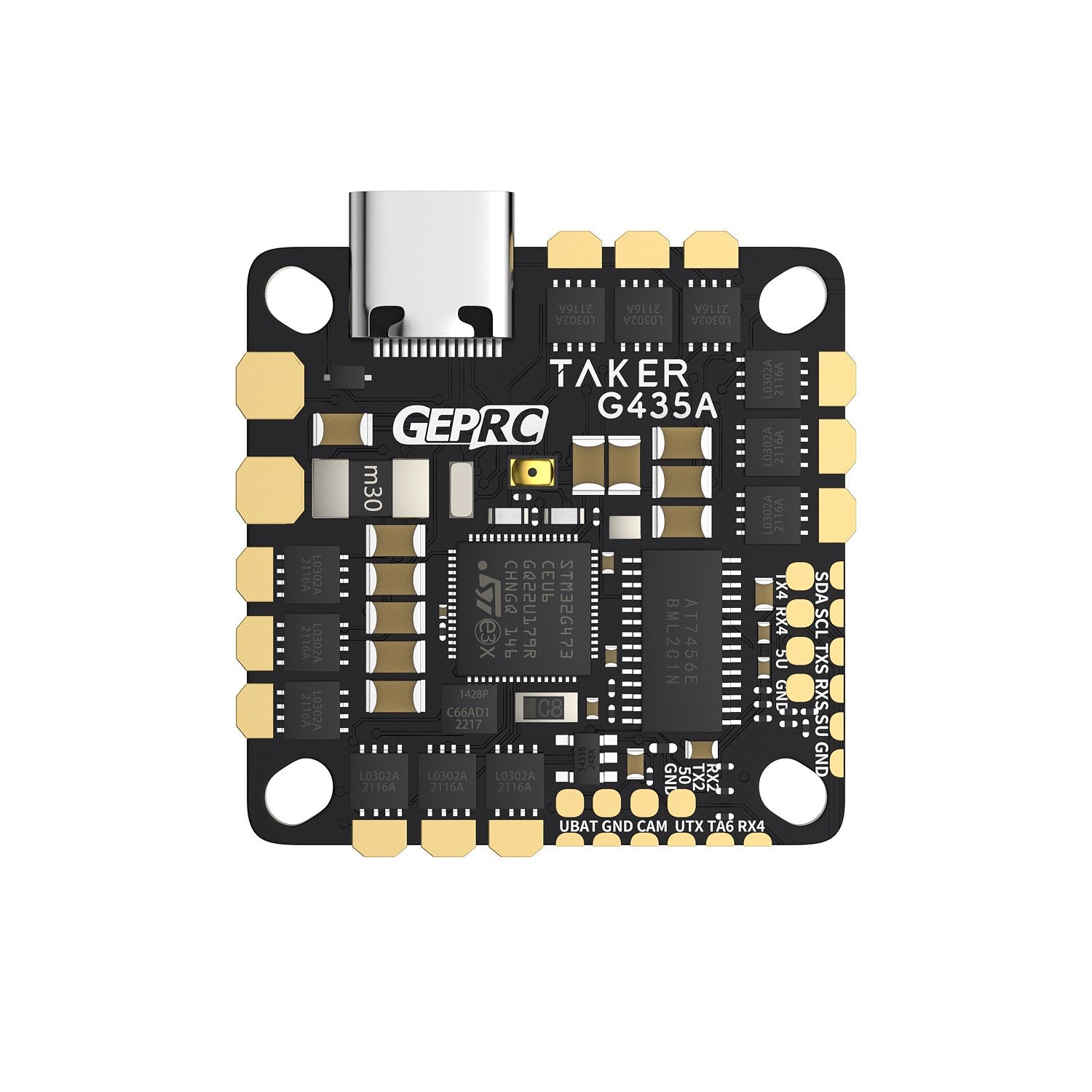

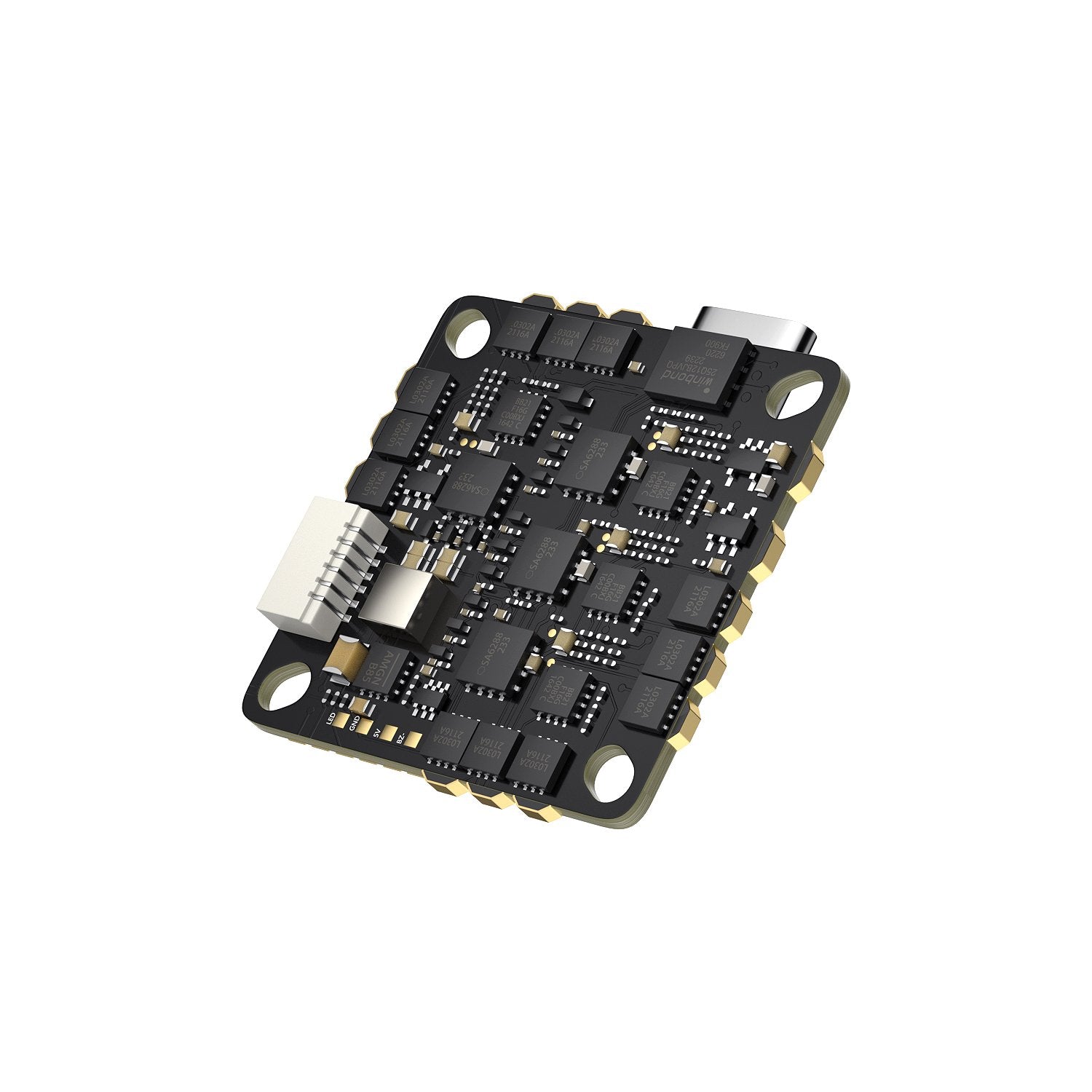

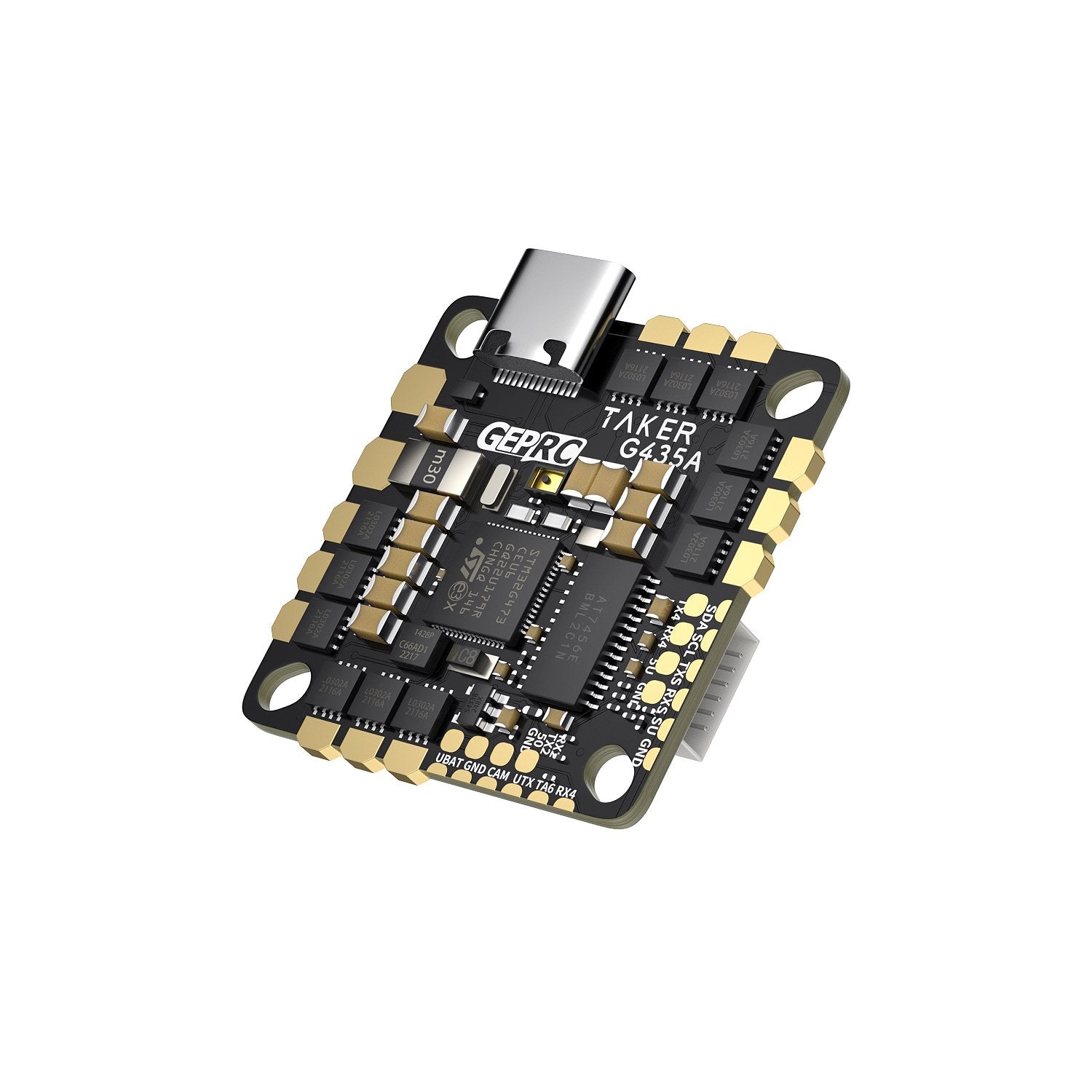

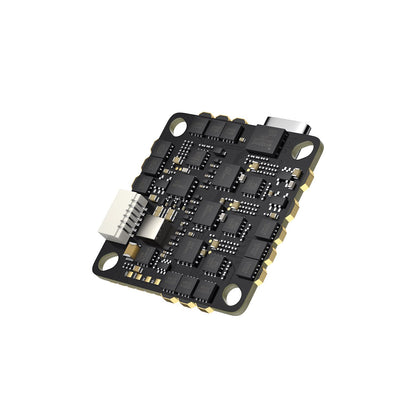

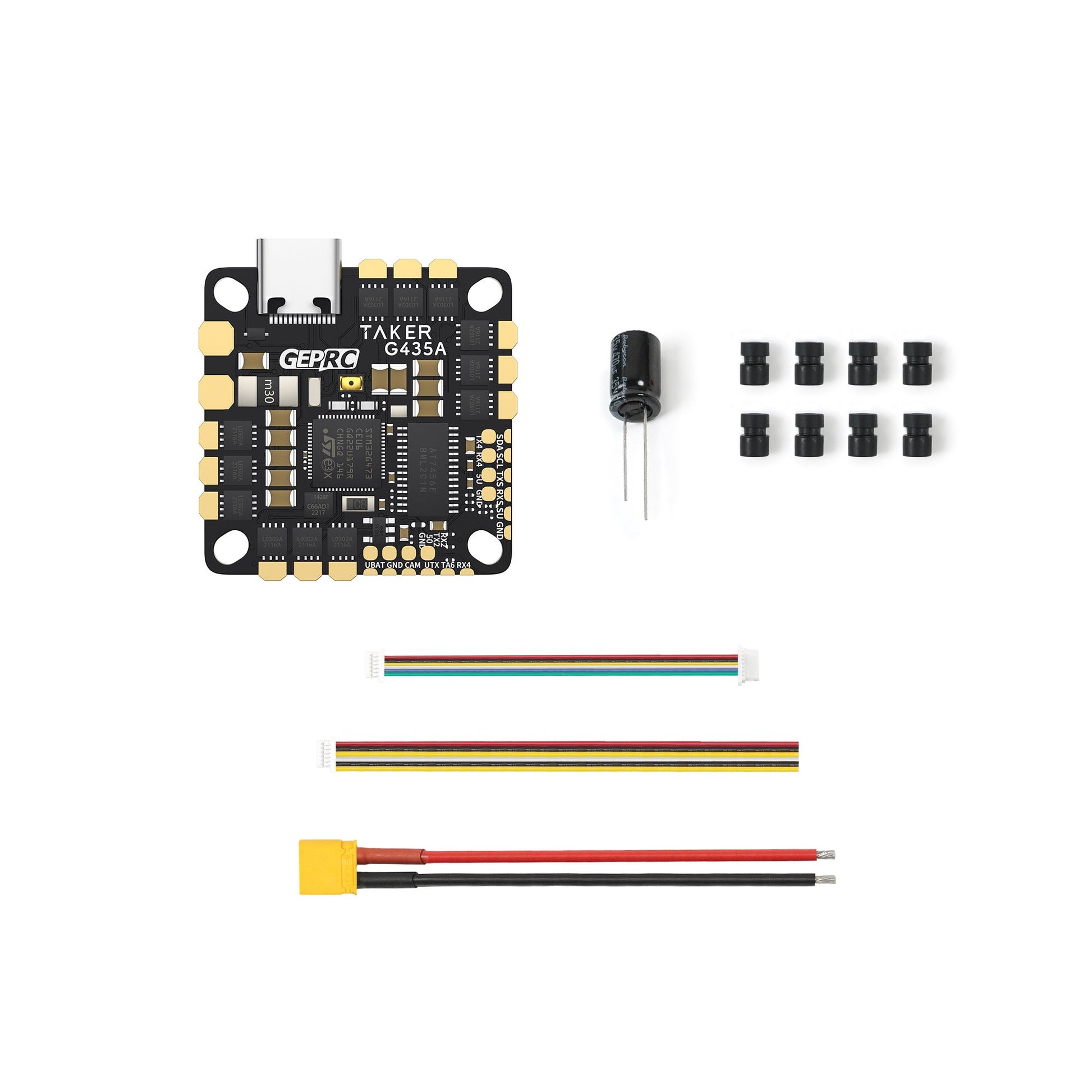

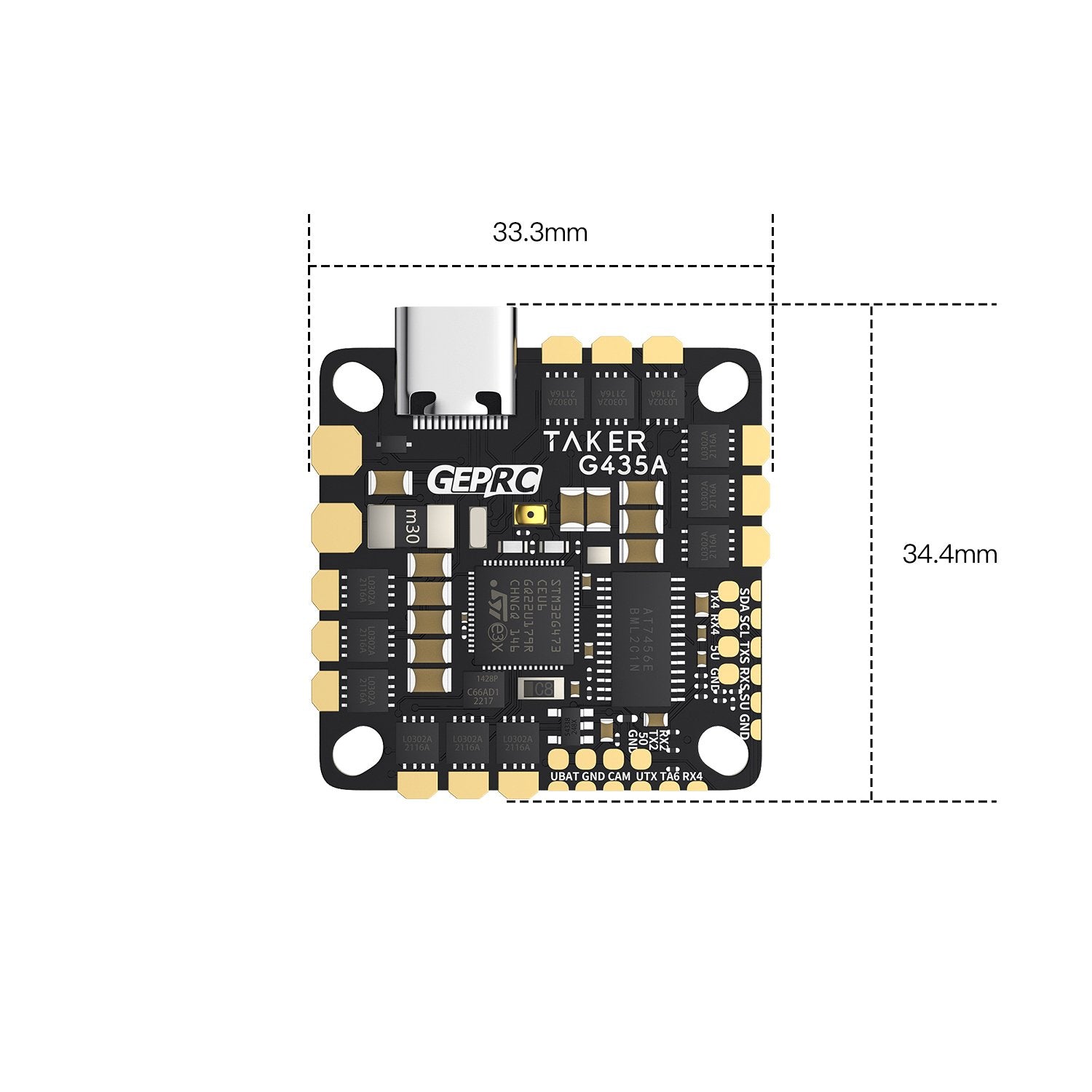

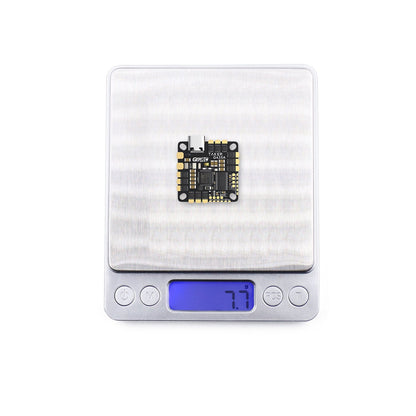

AIO FC GEPRC GEP-TAKER G4 35A AIO TAKER G4 35A is a newly developed AIO flight control from GEPRC. It adopts G473 main control and has more redundant computing power. In response to market demand, the TYPE-C interface has been improved, and the power supply pad and motor wire pad have been optimized for easier welding. It is compatible with two 25.5-26.5mm mounting holes and can be compatible with multiple frames. Features: - Compact size and compatible mounting holes make installation easy. - Low weight of only 7.7 g. - G473 main control, 170MHz working frequency, rich computing power. - Upgraded USB Type-c for better versatility. Specifications: Model Name: TAKER G4 35A AIO MCU: STM32G473CEU6 IMU: ICM 42688-P Target firmware: TAKERG4AIO OSD: Betaflight OSD with AT7456Ev Uart: R1 T1 / R2 T2 / R4 T4 / R5 T5 Buzzer: YES LED: YES USB: USB type c BEC output: 5V@3A ESC MCU: BB21F16G Continuous current: 35A Explosive current: 45A (5″) Input voltage: 2-4S (LIPO battery) Supports: Dshot600, Oneshot, Multishot Current meter: YES Destination: J-H-15 Plate size: 33.4 × 34.4 mm Installation hole: 25.5-26.5mm, Φ3.05mm Weight: 7.7g The package includes: 1 x GEP-TAKER G4 35A AIO 1 x set of cables
