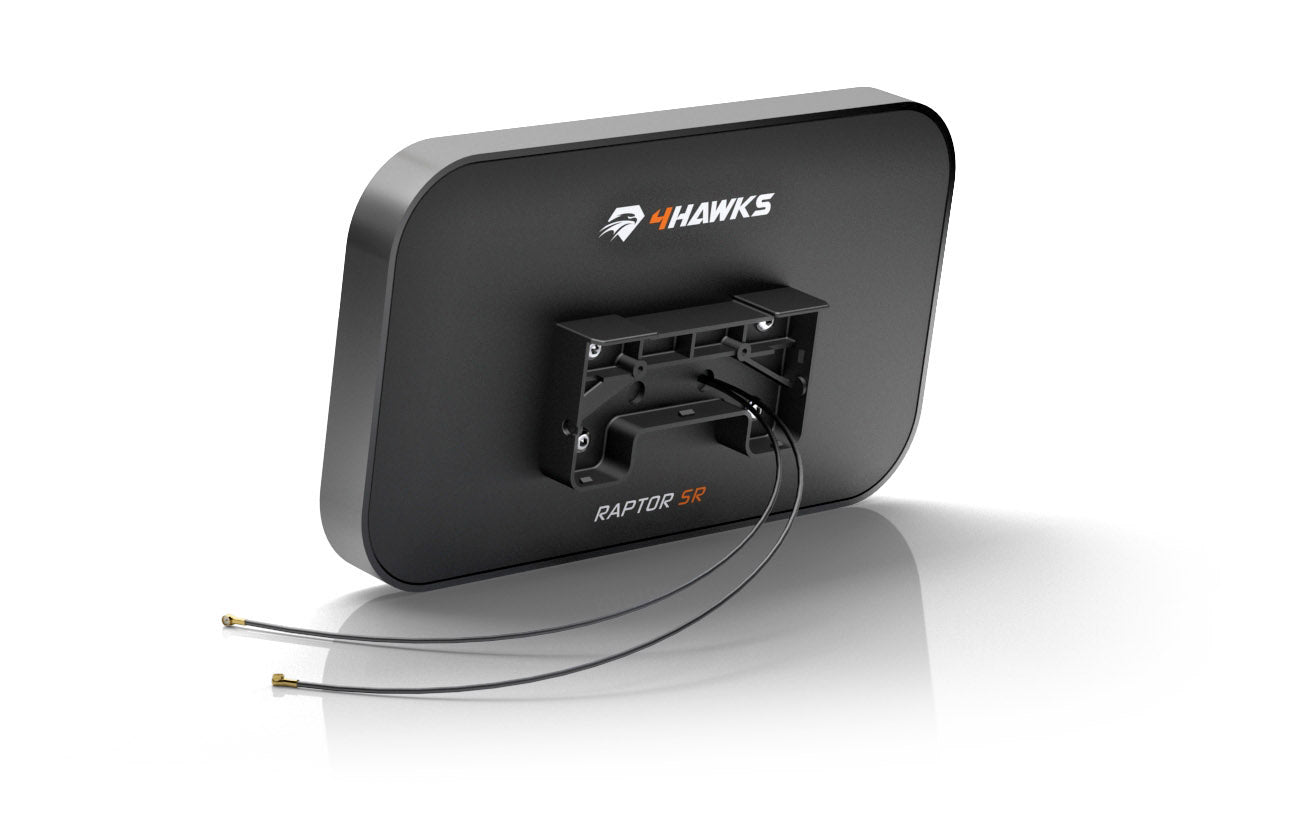

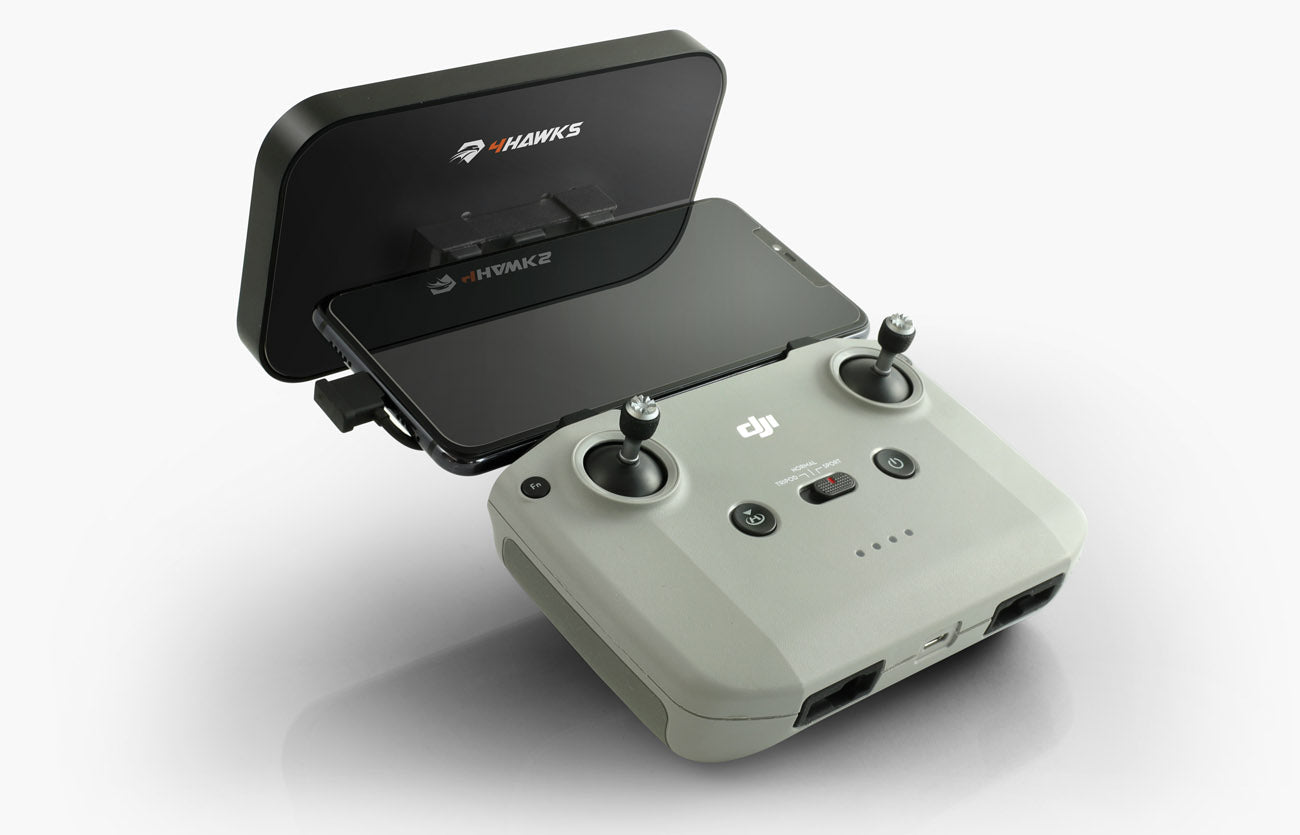

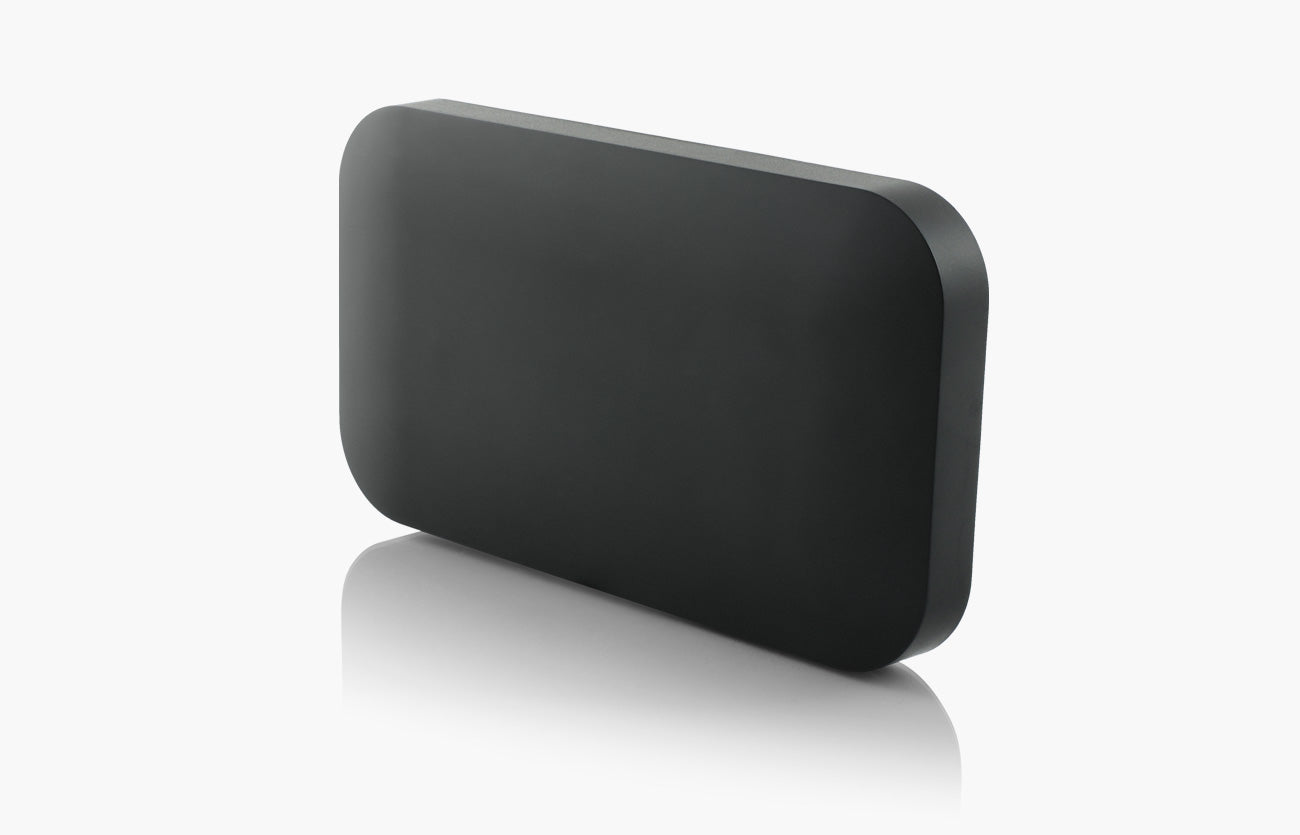

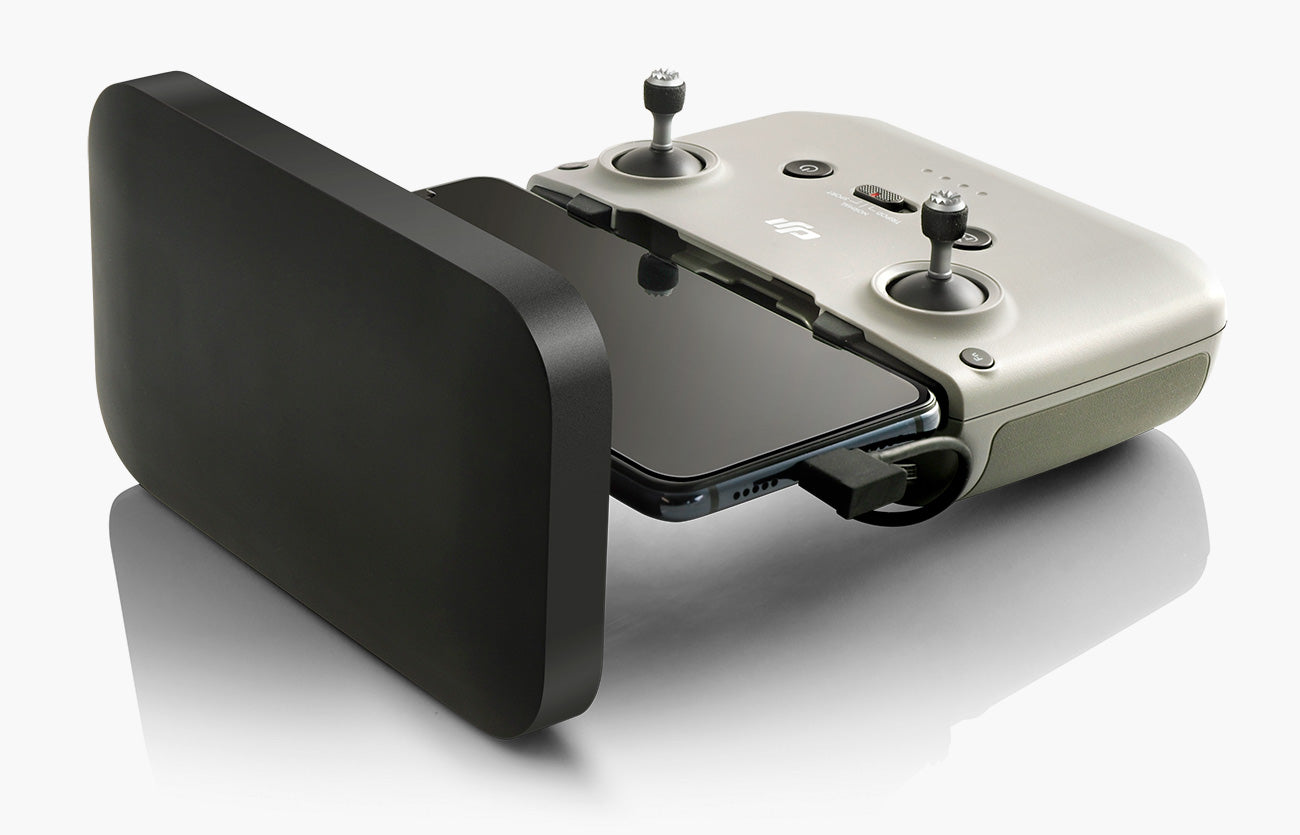

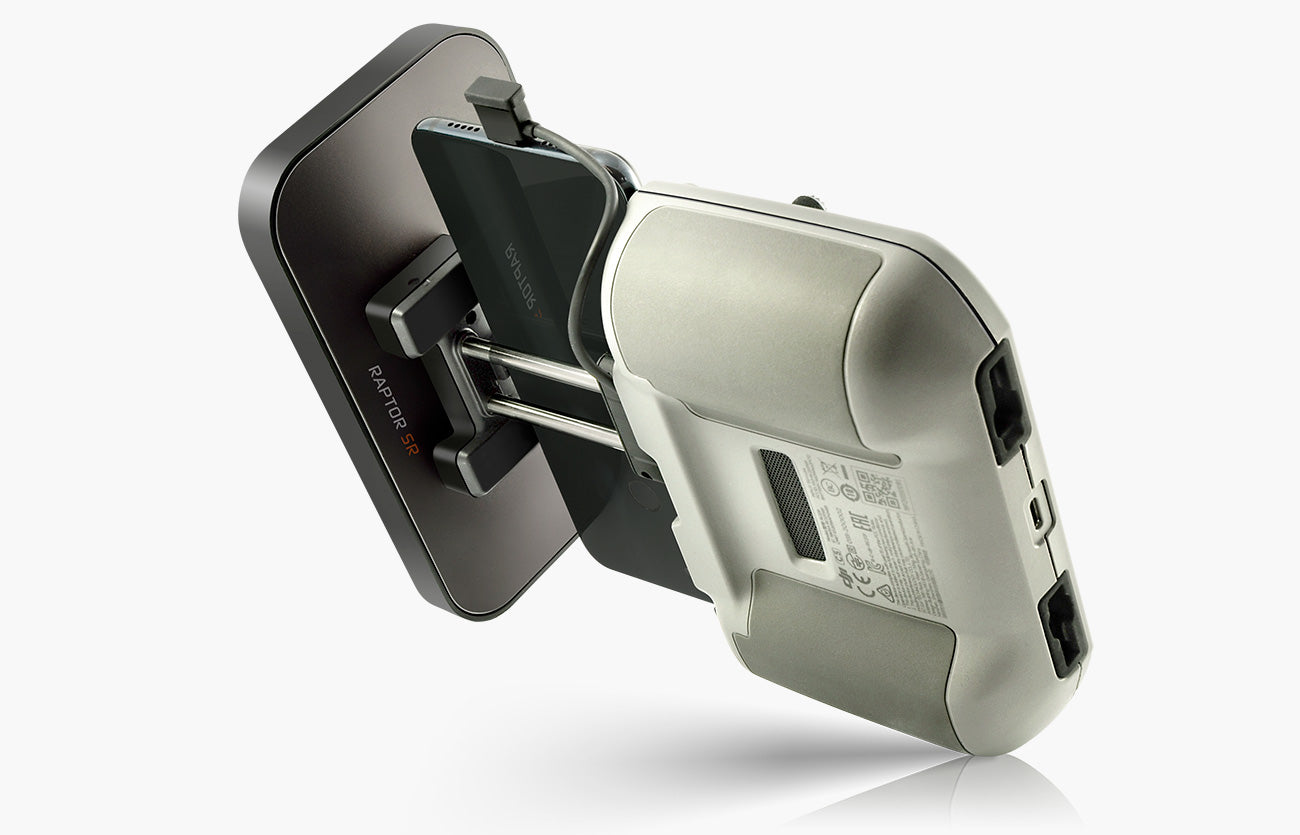

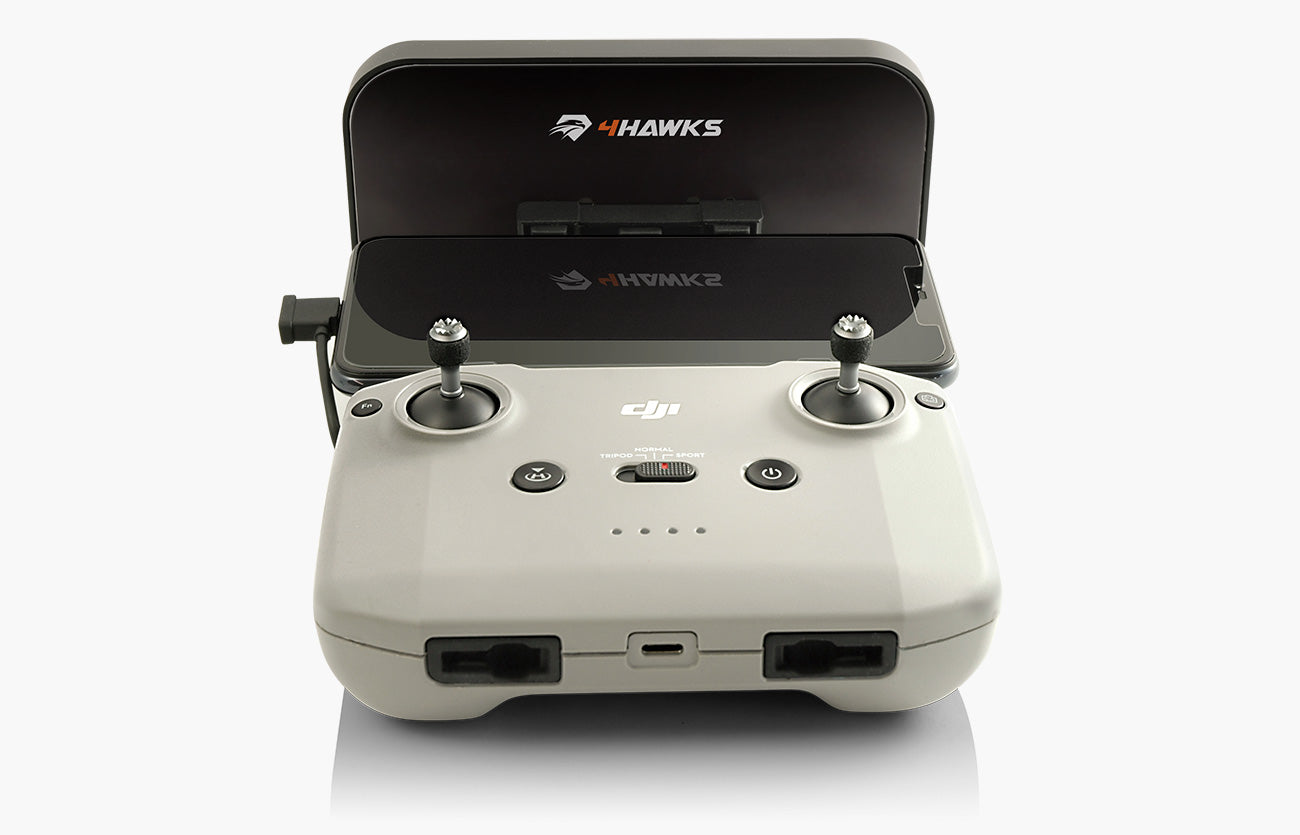

Raptor SR for DJI Mavic Air 2S

The 4Hawks antenna for the DJI Mavic model is highly advanced, working on both 2.4 GHz and 5 GHz frequencies. The entire structure is 100% protected against UV radiation to ensure a long life of the device. In addition, part of the structure is made of aluminum to make the entire structure as light as possible. Changing the direction of the antenna should not cause any problems, as the system has been designed to allow a quick change of position with a single click. So you can be sure that you won't lose connection with your drone.

Specifications

Electrical parameters:
Frequency
Port 1: 2.40-2.50 GHz and 5.00-5.80 GHz
Port 2: 2.40-2.50 GHz and 5.00-5.80 GHz
Gain
Port 1: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)
Port 2: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)
VSWR
Port 1: < 1.50 (max. < 2.15)
Port 2: < 1.50 (max. < 2.15)
Beam width
Port 1: 90°/65° & 55°/55°
Port 1: 90°/65° & 55°/55°
Polarization
Port 1: Vertical
Port 2: Vertical
Impedance
Port 1: 50 Ω
Port 2: 50 Ω

Mechanical parameters:
Material Antenna: Samsung ABS, polyurethane, aluminum, stainless steel, nylon, FR4 PCB
Material Assembly: Stainless steel + paint
Weight: 180g (110g Antenna + 70g Mounting)
Dimensions: 16.1 x 9.1 x 1.7 cm
Connection: RP-SMA female
Tilt adjustment: fixed OnClick system
Mounting type: For SMA connectors (Permanent)
