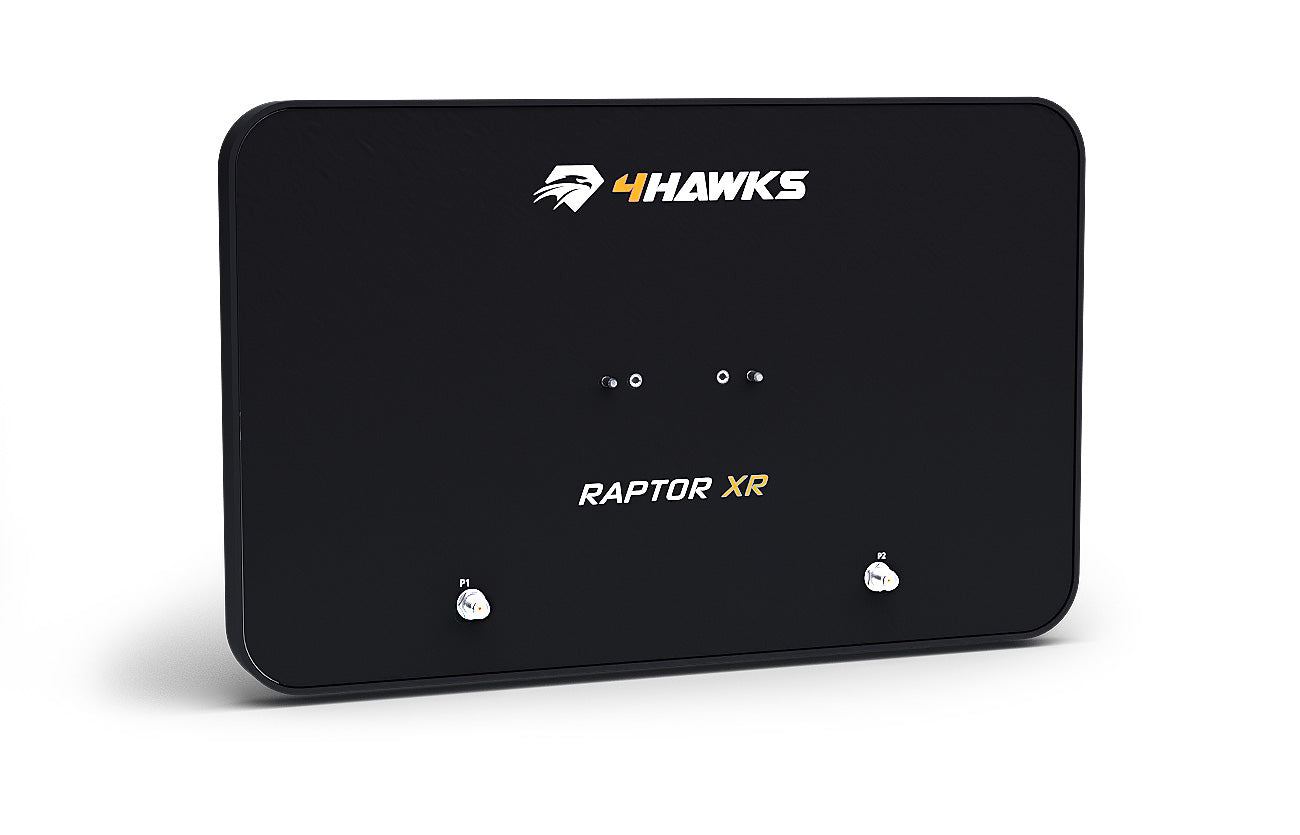

Raptor XR for DJI Matrix (+Raptor Link)

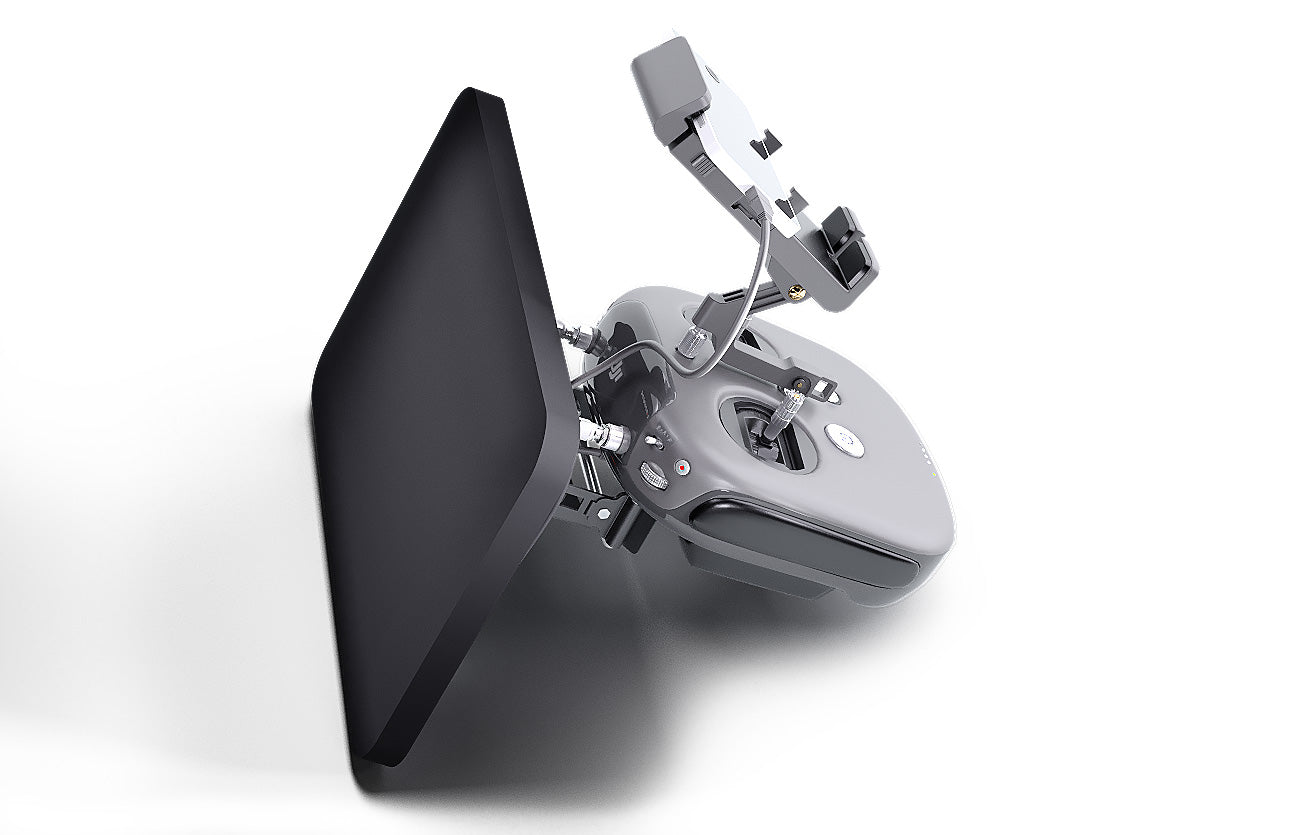

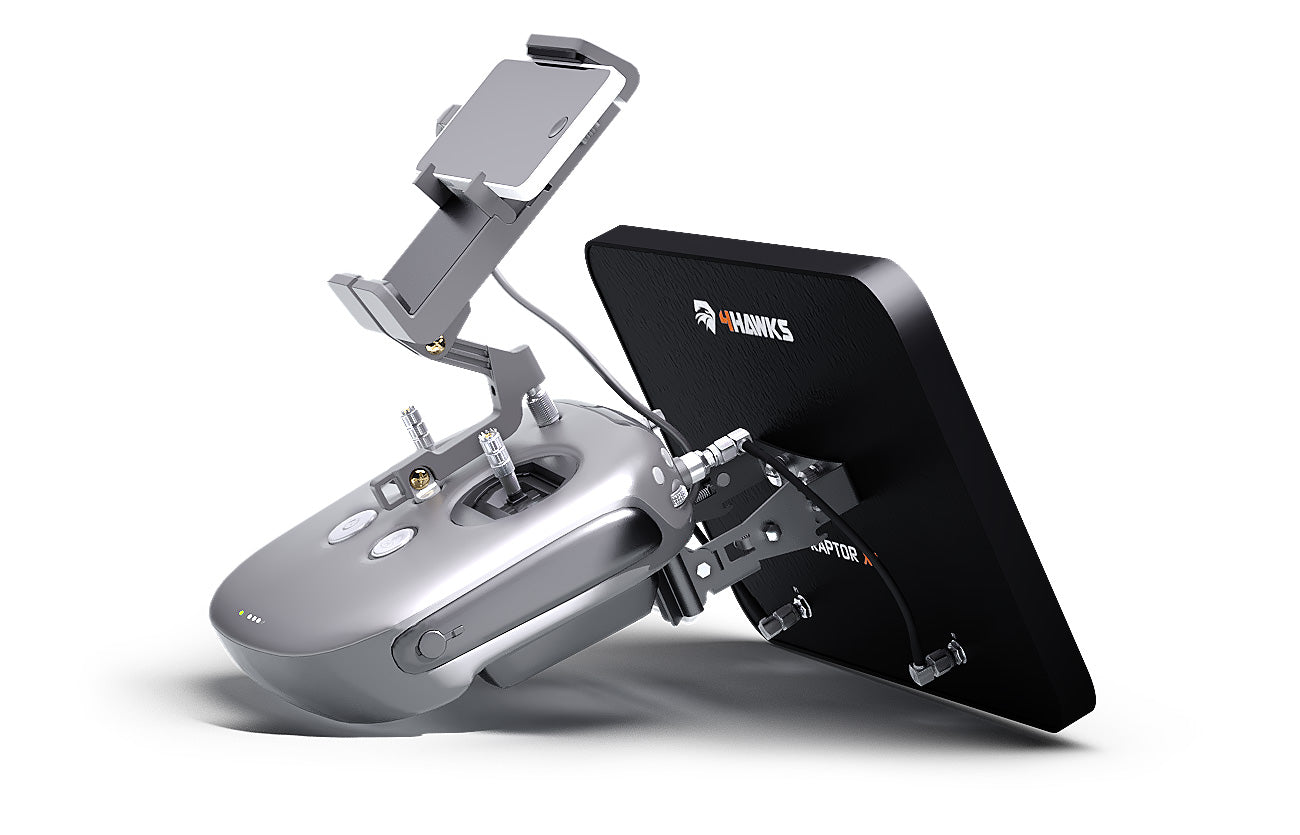

The 4Hawks antenna for Dji Matrice model works in 2.4GHz band with 14dBi gain & 5.8GHz with 14dBi gain with an additional antenna installed inside the controller working at 5GHz frequency which allows the drone to be operated with 2 controllers. The entire structure is 100% UV protected to ensure the long life of the device. In addition, part of the structure is made of aluminum to make the entire structure as light as possible. The holder is made of stainless steel for solid stability.

Specifications:

Frequency
Port 1: 2.40-2.50 GHz and 5.00-5.80 GHz
Port 2: 2.40-2.50 GHz and 5.00-5.80 GHz
Gain
Port 1: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
VSWR
Port 1: < 1.20 (max. < 1.40)
Port 2: < 1.20 (max. < 1.40)
Beam width
Port 1: 70°/40° & 40°/25°
Port 1: 70°/40° & 40°/25°
Polarization
Port 1: Vertical
Port 2: Vertical
Impedance
Port 1: 50 Ω
Port 2: 50 Ω

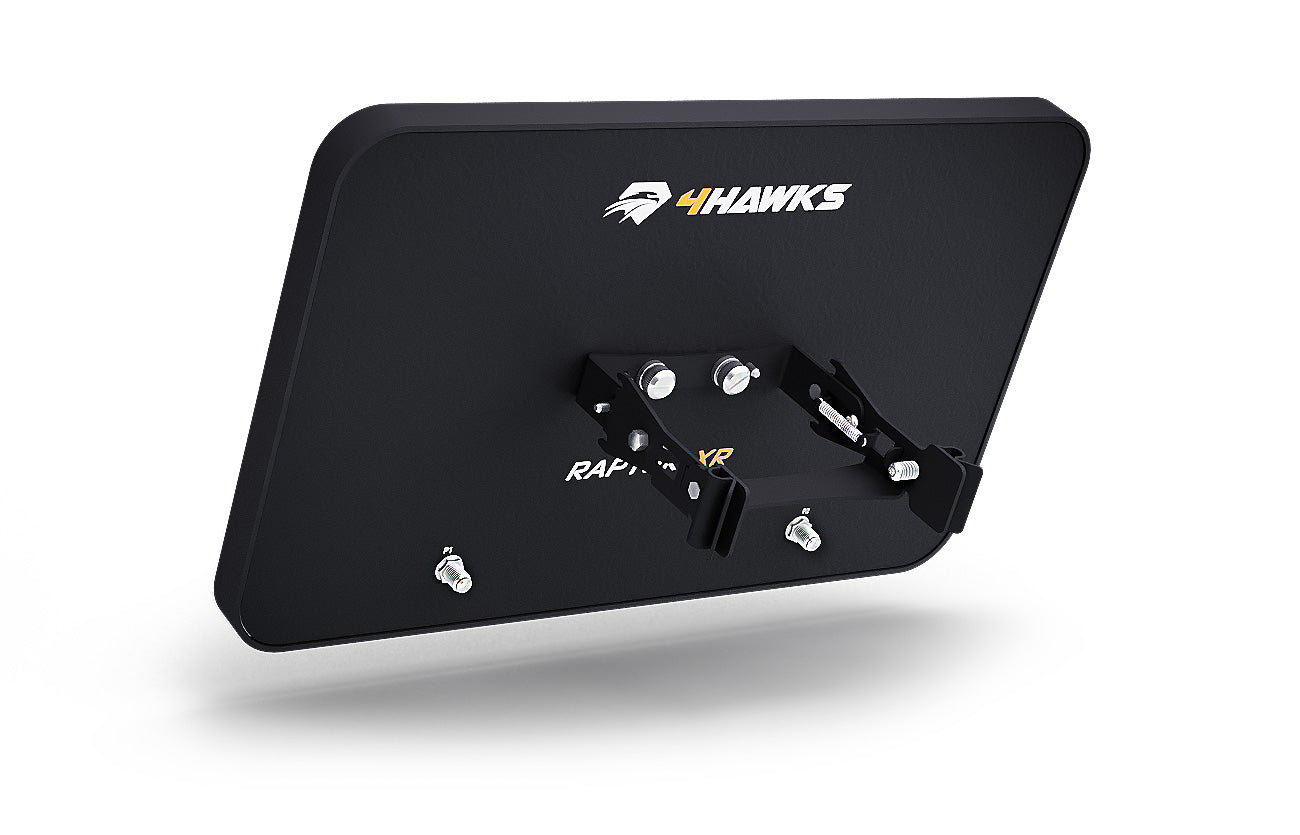

Mechanical parameters:
Material Antenna: Samsung ABS, polyurethane, aluminum, stainless steel, nylon, PTFE PCB
Material Assembly: Stainless steel + paint
Weight: 540g (450g Antenna + 90g Mounting)
Dimensions: 29.2 x 18.2 x 2.1 cm
Connection: RP-SMA female
Tilt adjustment: 5 tilt positions, OnClick system
Fastening type: QuickAttach

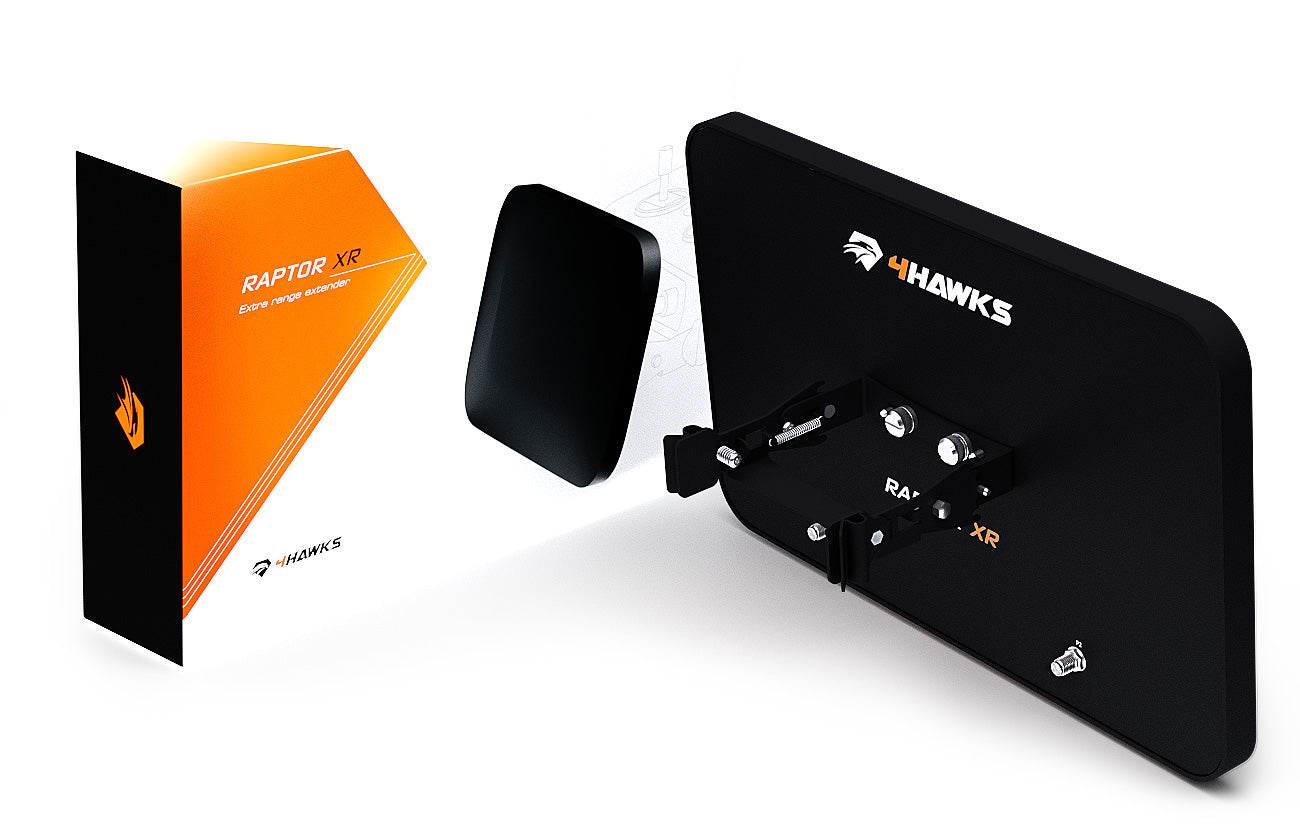

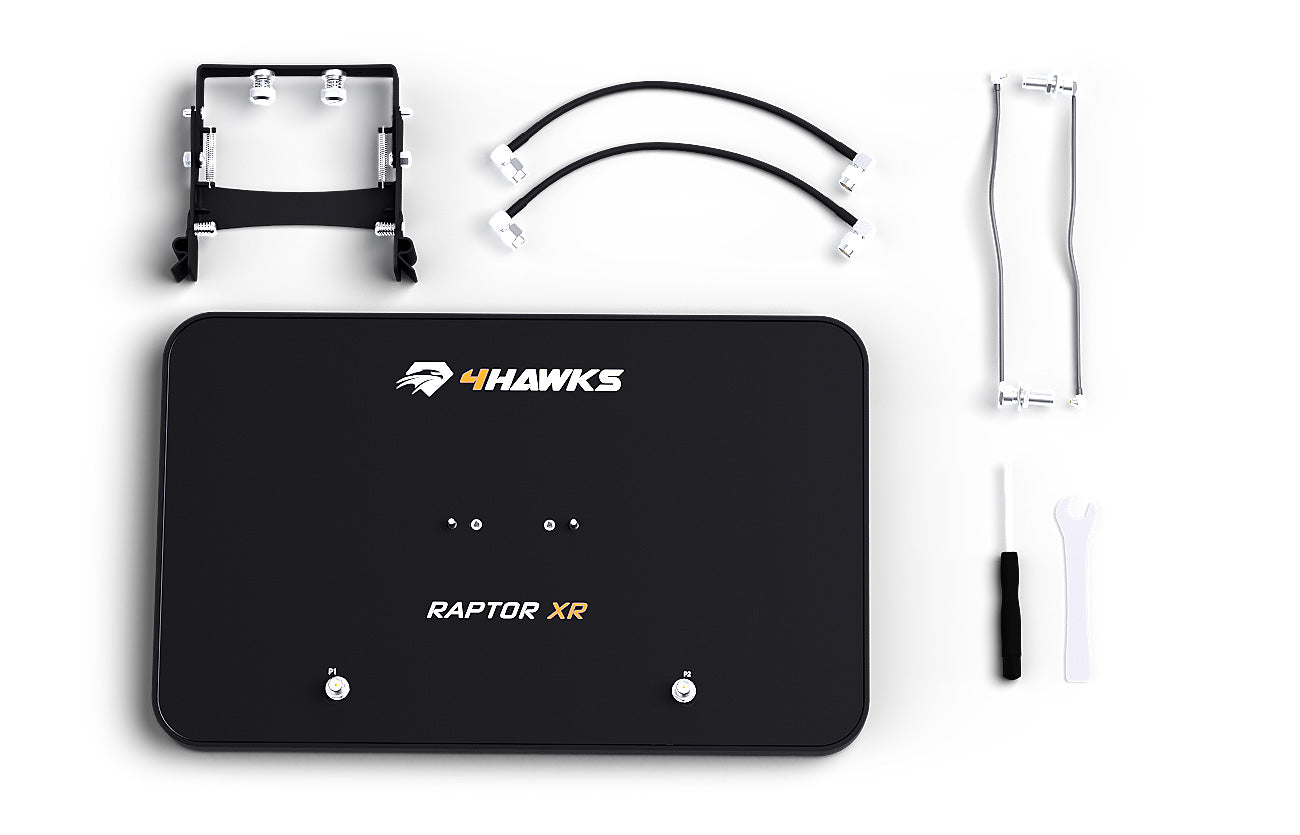

The package includes:
1x antenna for extending the range
1x stainless steel mounting kit
2x RP-SMA male RG316 black pigtails
2x Designed for Matrix MMCX pigtails
1x screwdriver (Philips) + 8mm key + 1.5mm Allen key
