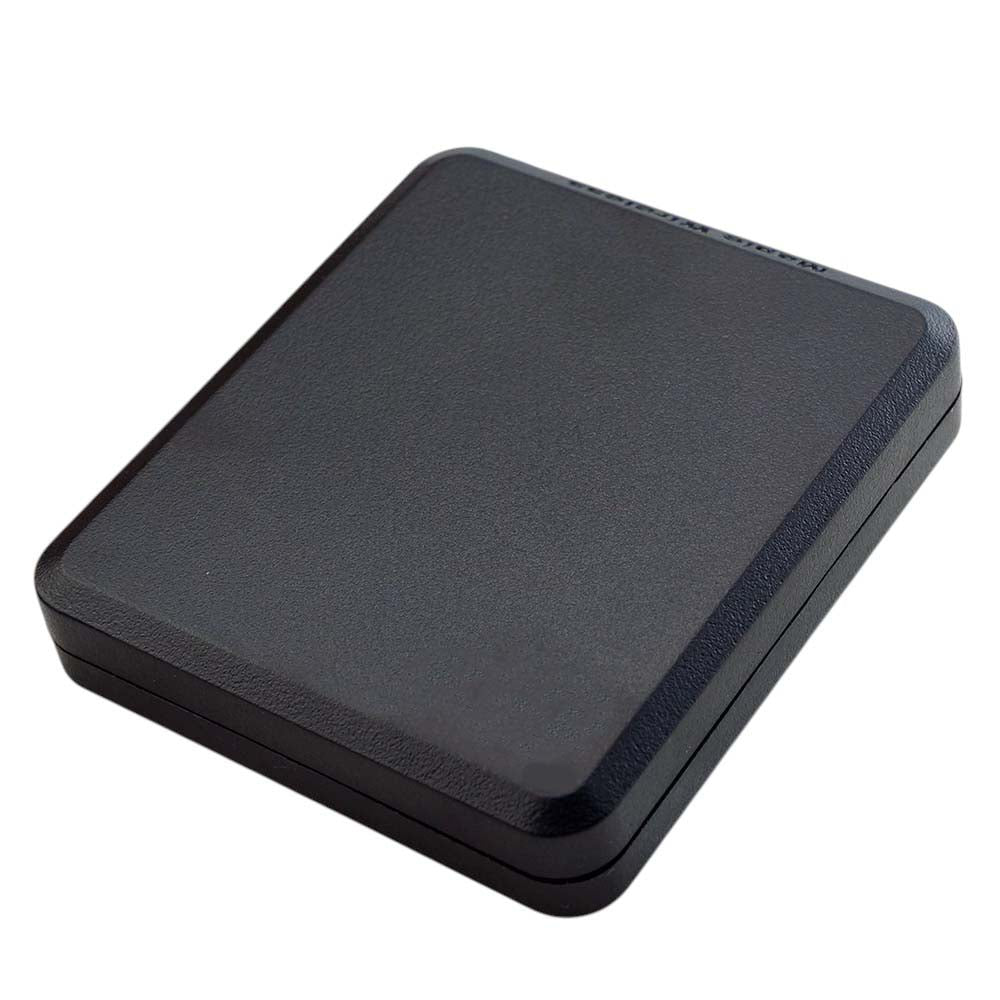

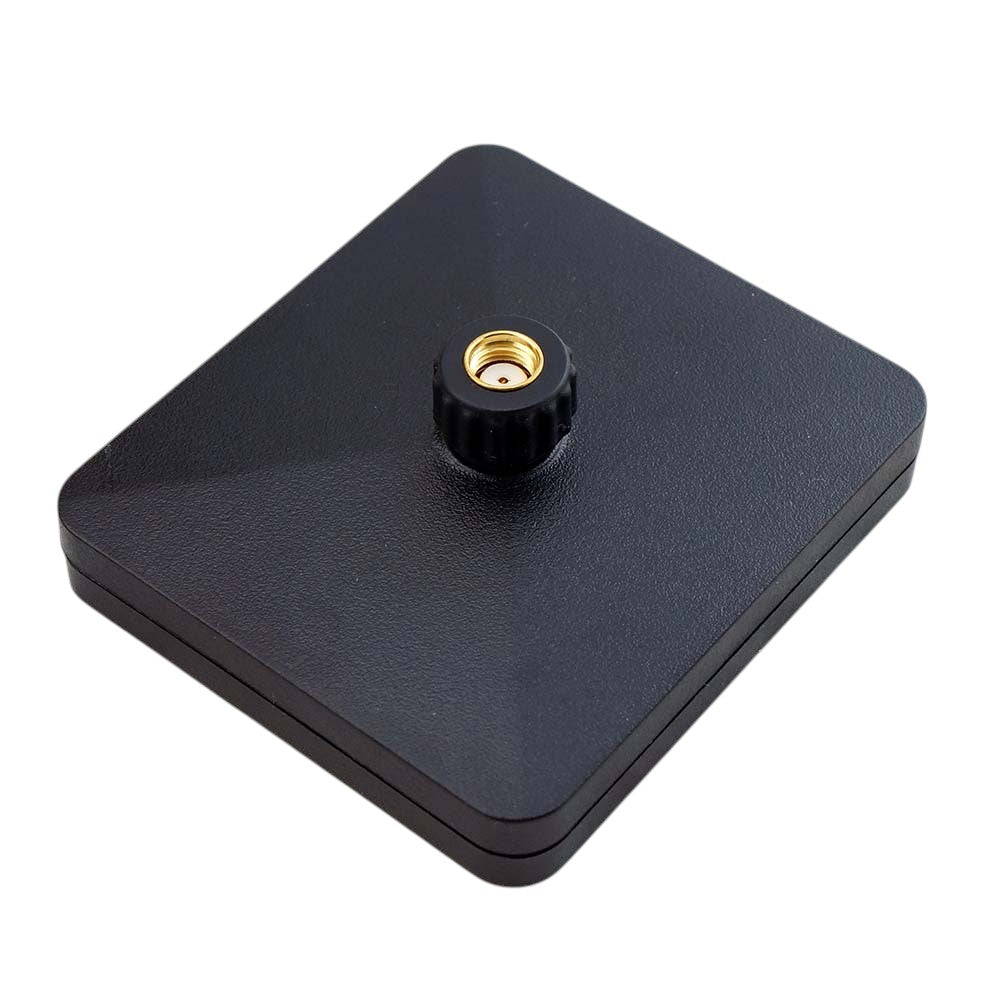

Maple Wireless 5.8 G 14 dB SMA-MALE Antenna
The Maple Wireless 5.8 GHz directional antenna is designed to improve the range and stability of video transmission for drones and 5GHz Wi-Fi systems. With 14 dBi gain and a narrow beamwidth, it provides a focused signal for long-distance digital video links. The antenna uses linear polarization, making it ideal for systems such as OpenIPC or SIYI. The package includes a 45° adapter for easy connection to SMA interfaces.
Specifications:
Frequency range: 4.7–5.9 GHz
SWR: <2
Gain: 14 dBi
Beamwidth: 40° in the horizontal plane, 38° in the vertical plane
Polarization: linear
Connector: RP-SMA
Dimensions: 68 × 60 × 25 mm
Weight: 36 g

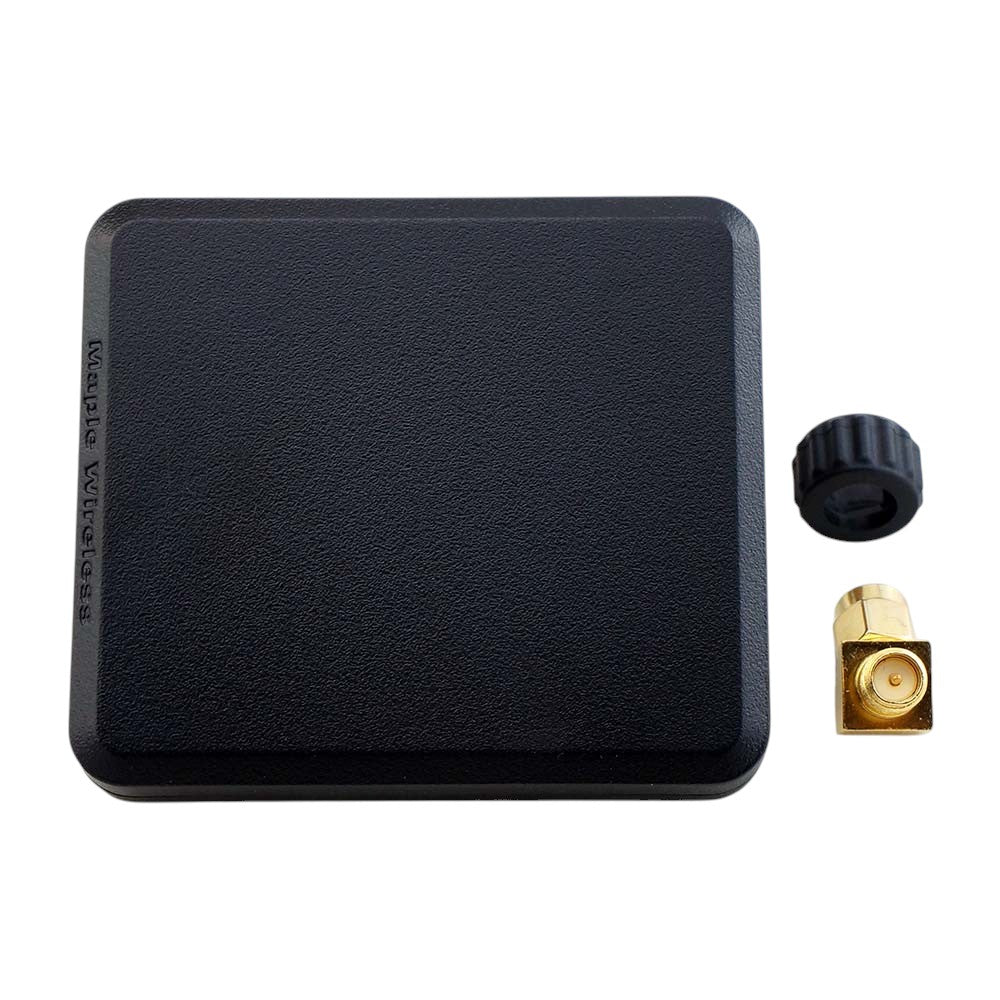

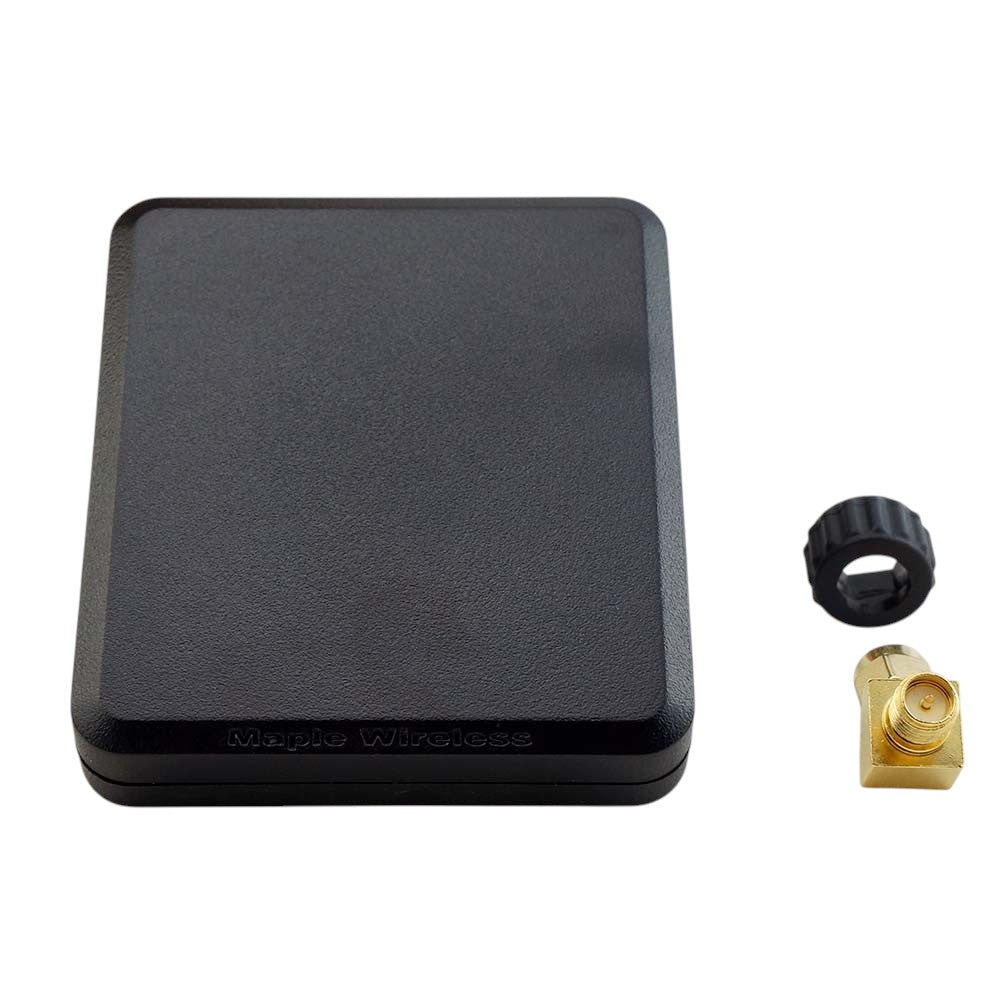

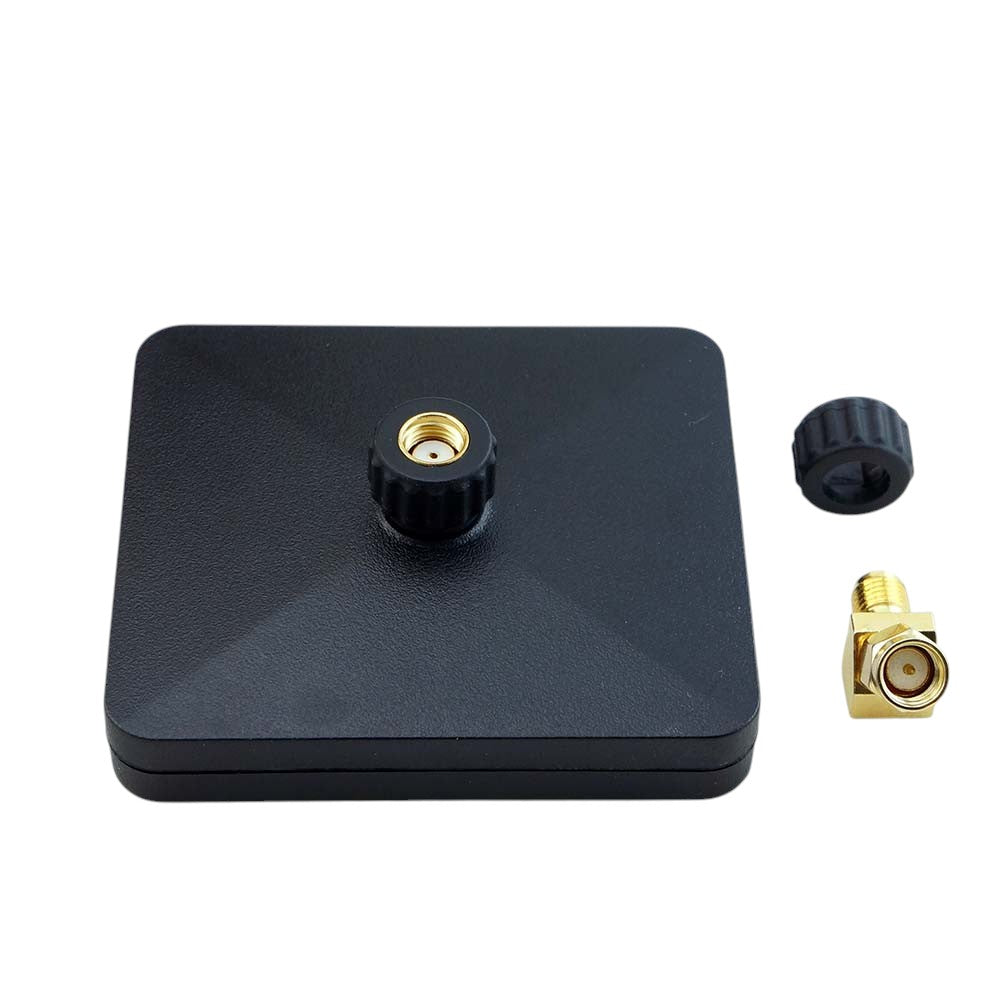

Package includes:
1× antenna
1× 45° SMA connector
