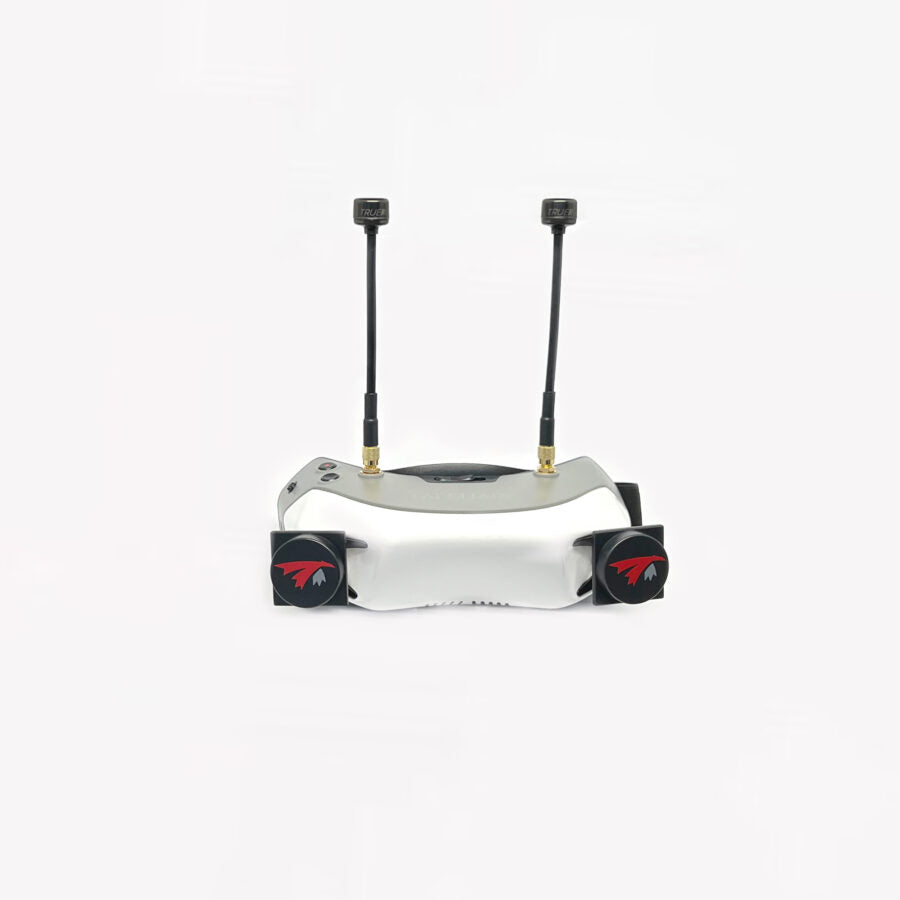

X-AIR 5.8 MK II pair for Walksnail LHCP Combo CORE Highly efficient X-AIR MK II with direct RP-SMA connectors for installation on Walksnail avatar or Fat Shark dominator HD FPV goggles. Function: - Circularly polarized - Connect directly to Walksnail avatar or Fat Shark dominator - Compact low profile design, easy to store and transport - High 10dBic for long reach and signal penetration - Large bandwidth of SWR and axial ratio, works even outside the 5.8 GHz band - Super wide 120 degree beam - Custom knurled RP-SMA connectors Specifications: Bandwidth: 5.1GHz-6.7GHz Gain: 9.5-10.5dBic Polarization: LHCP Beam width*: 120 degrees Beamwidth @-3dB**: 68 degrees. Connector: RP-SMA male Dimension: 32 x 32 x 16 mm *Individual antenna coverage where reception is at least equivalent to an omnidirectional antenna. **Individual antenna coverage where at least 70% of maximum range is achieved. Includes: Two X-air MKII antennas Two cores 120 mm
