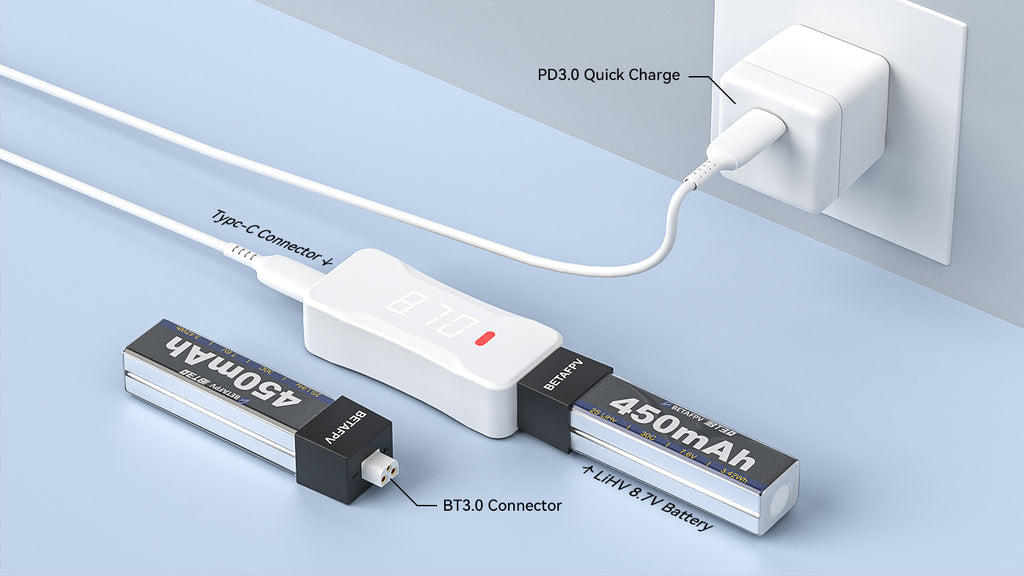

2S BT3.0 battery charger

BETAFPV offers 2 versions of the 2S charger and voltage tester, each with different ports - BT3.0 and XH2.54 - capable of charging both LiHV 8.7V and LiPo 8.4V batteries. It not only has a digital display function, but also a 2S battery voltage monitoring function. In addition, it supports PD3.0 fast charging protocol. Fully functional and user-friendly, this compact and portable charger meets the charging needs of 2S quadcopter enthusiasts and allows them to recharge their batteries anytime, anywhere.

This charger is designed to charge 2S LiHV batteries (8.7V) with a BT3.0 battery port. Please note that attempting to charge 2S LiPo batteries (8.4V) may present a risk of overcharging. To ensure safe and optimal charging, we recommend using it with the BETAFPV BT3.0 450mAh 2S LiHV battery. If the digital display shows a voltage higher than 8.7V (eg 9V) during charging, immediately disconnect the power and check if there is a problem with the battery or charger.

Note: LiHV (8.7V) means high voltage 2S lithium polymer batteries and LiPo (8.4V) means normal lithium polymer batteries.

Specifications

Battery type: BT3.0-LiHV (charging voltage: 8.7V)
Product color: White
Input interface: USB Type-C
Input voltage range: 5-12V
Input power: maximum 15W
Maximum input current: 2.5A
Charging protocol: PD3.0

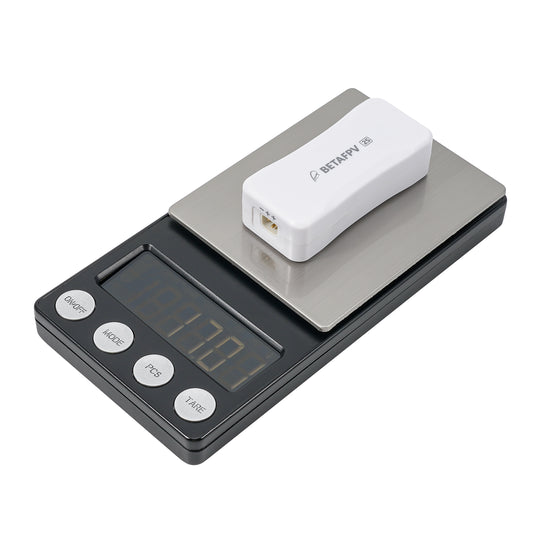

Weight (per charger): 17.0±1.0g
Dimensions (L×W×H): 61*25*17mm
Battery capacity display: The digital LED display shows the total voltage and the voltage of the individual cells of the 2S battery.

Notes for use:
- Pay attention to the polarity marking on the device and do not connect the charger with reversed polarity.
- The 2S charger and voltage tester only supports charging 2S batteries, not 1S batteries.
- The charger can only charge one battery at a time and is not designed to charge two or more batteries at the same time.

The package includes:
1 * 2S battery charger and BT3.0 voltage tester
1 * 70 * 50mm Manual in Chinese and English
1 * 100 * 150 mm Anti-static bag
1 * Service Card/Preliminary>
