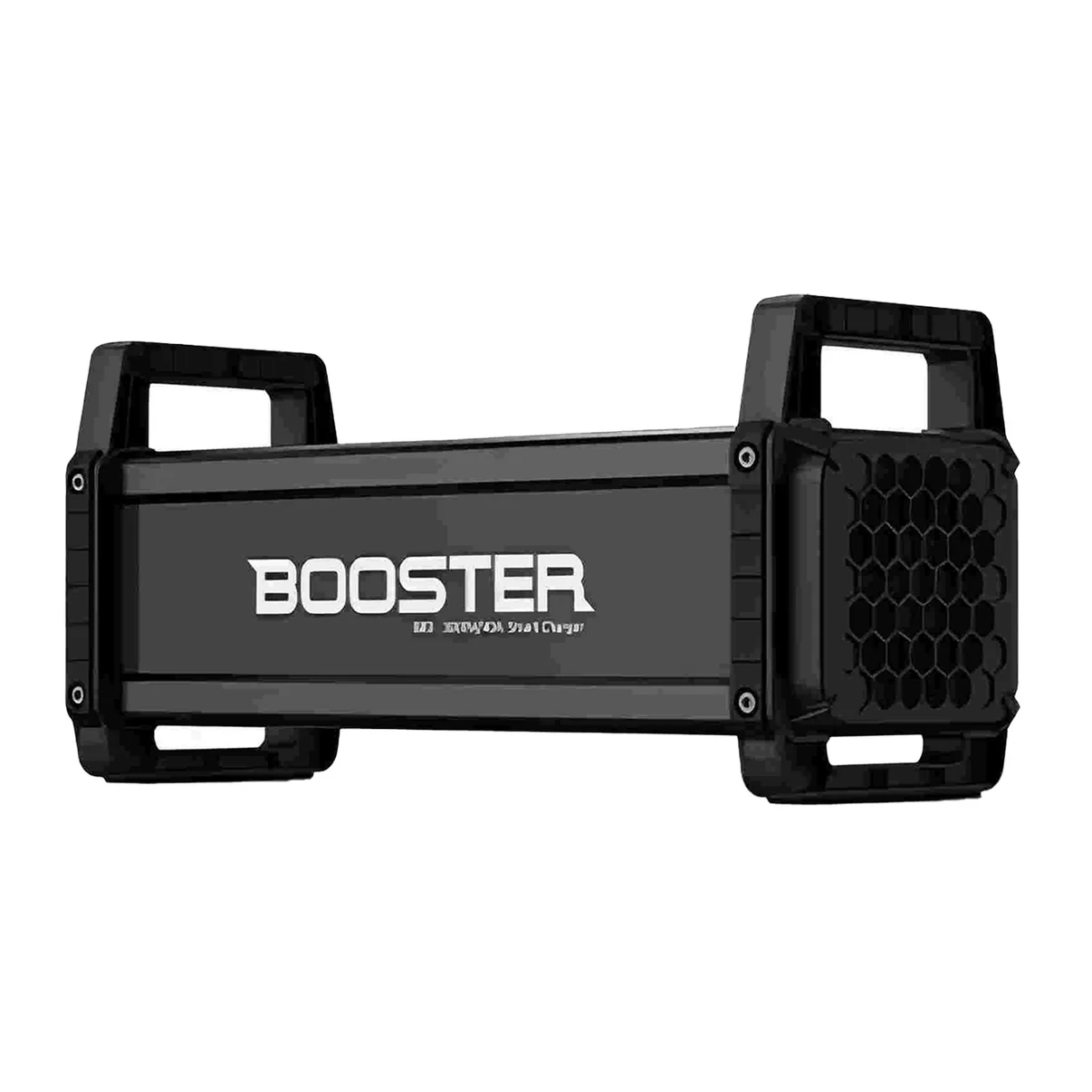

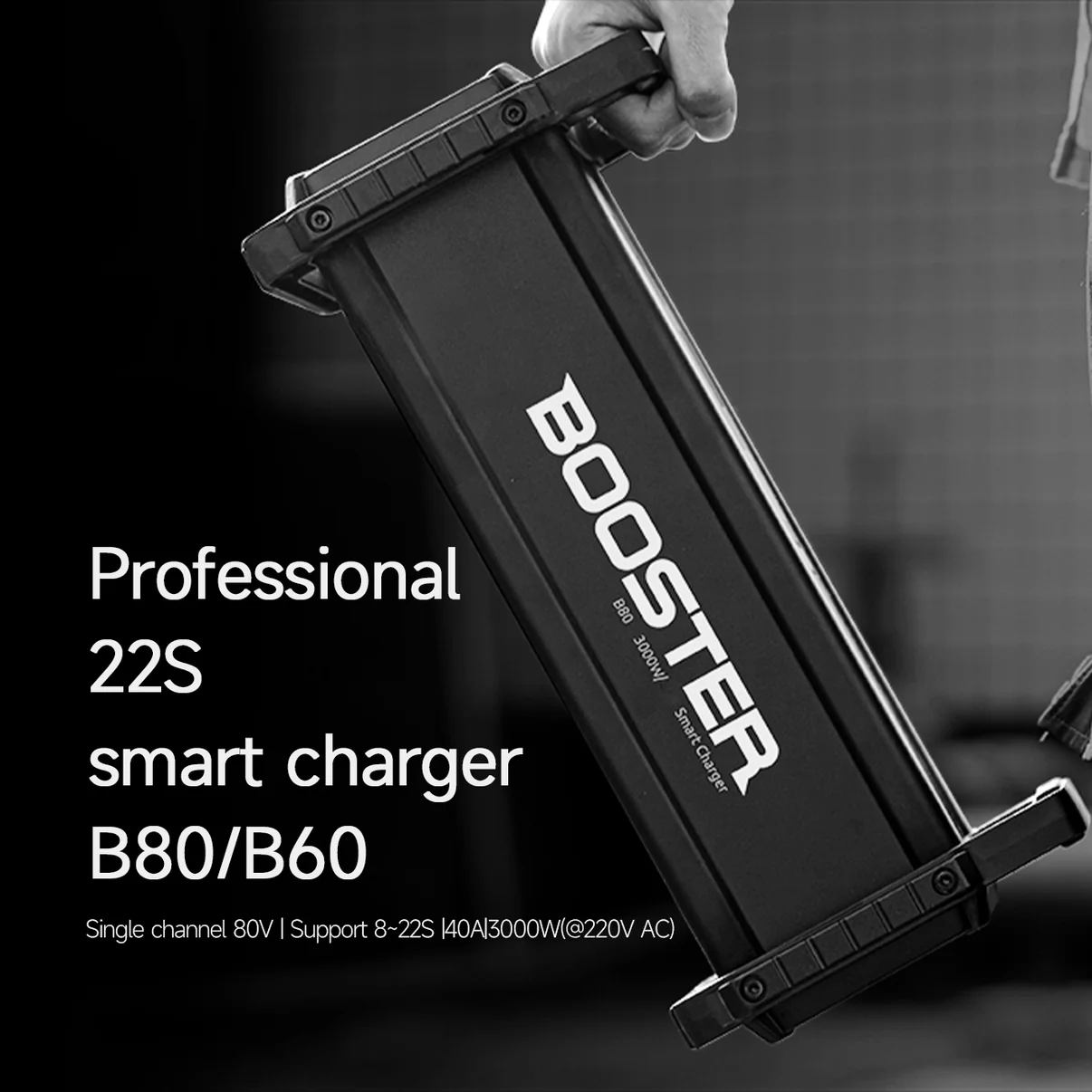

B80 charger:

This charger appears to be a high performance and versatile solution for charging large batteries. Here is a summary of its key features:

Key Features

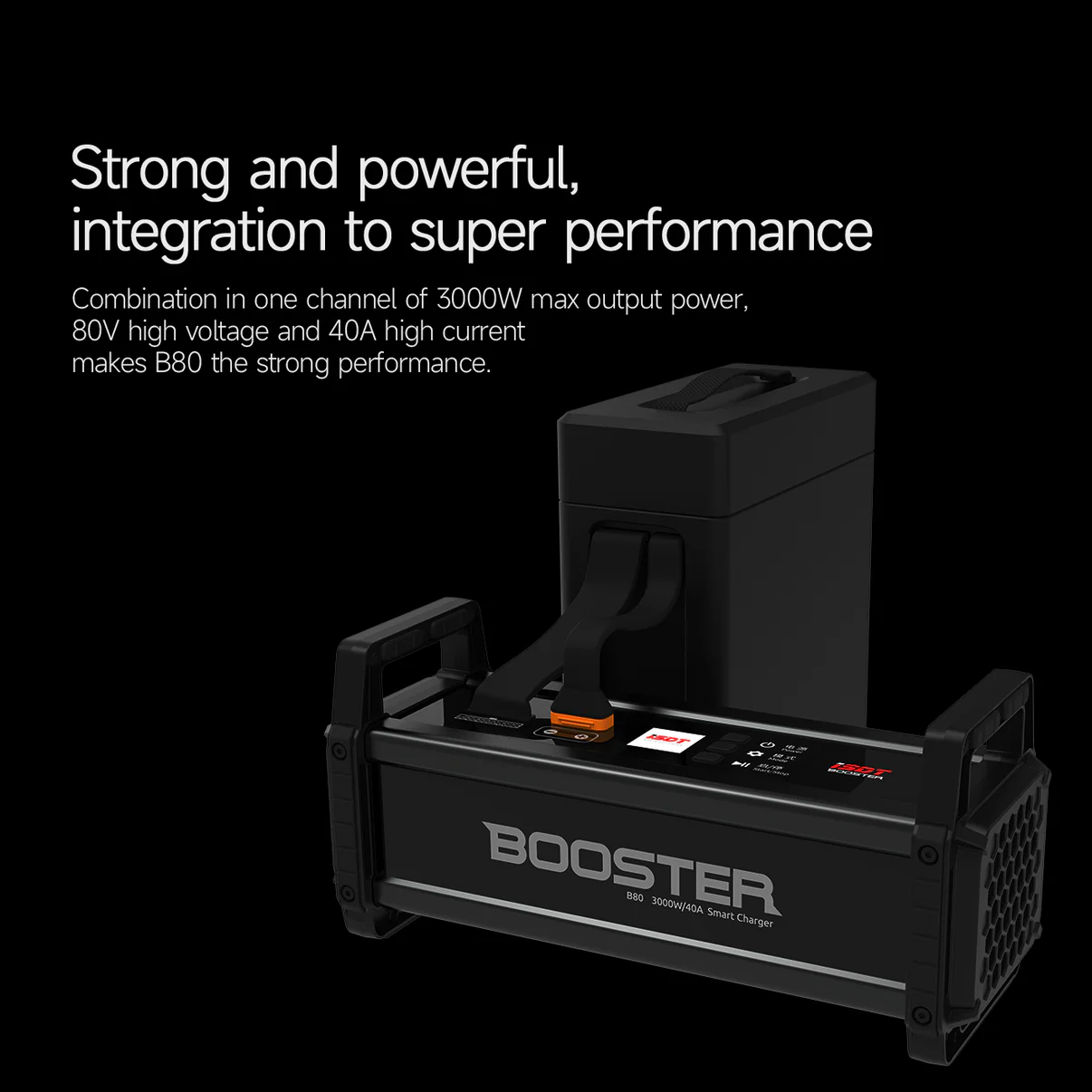

Strong performance:

It provides a maximum power of 3000W with a voltage of up to 80V and a current of 40A, which enables robust charging of large battery packs.

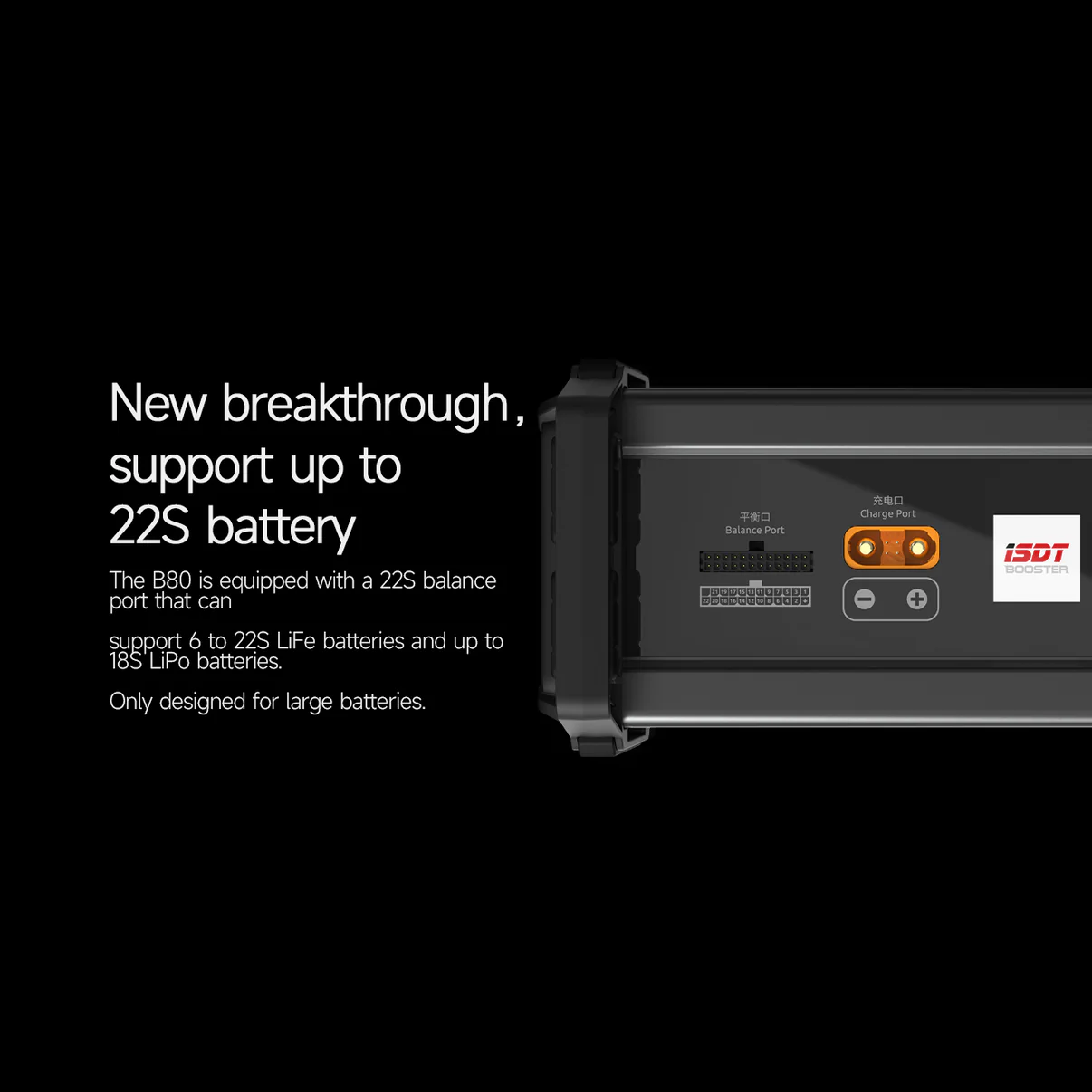

Extensive battery support:

Equipped with a 22S buffer port, it supports LiFe (8-22S) and LiPo (6-18S) batteries, making it ideal for handling high voltage and high capacity battery systems.

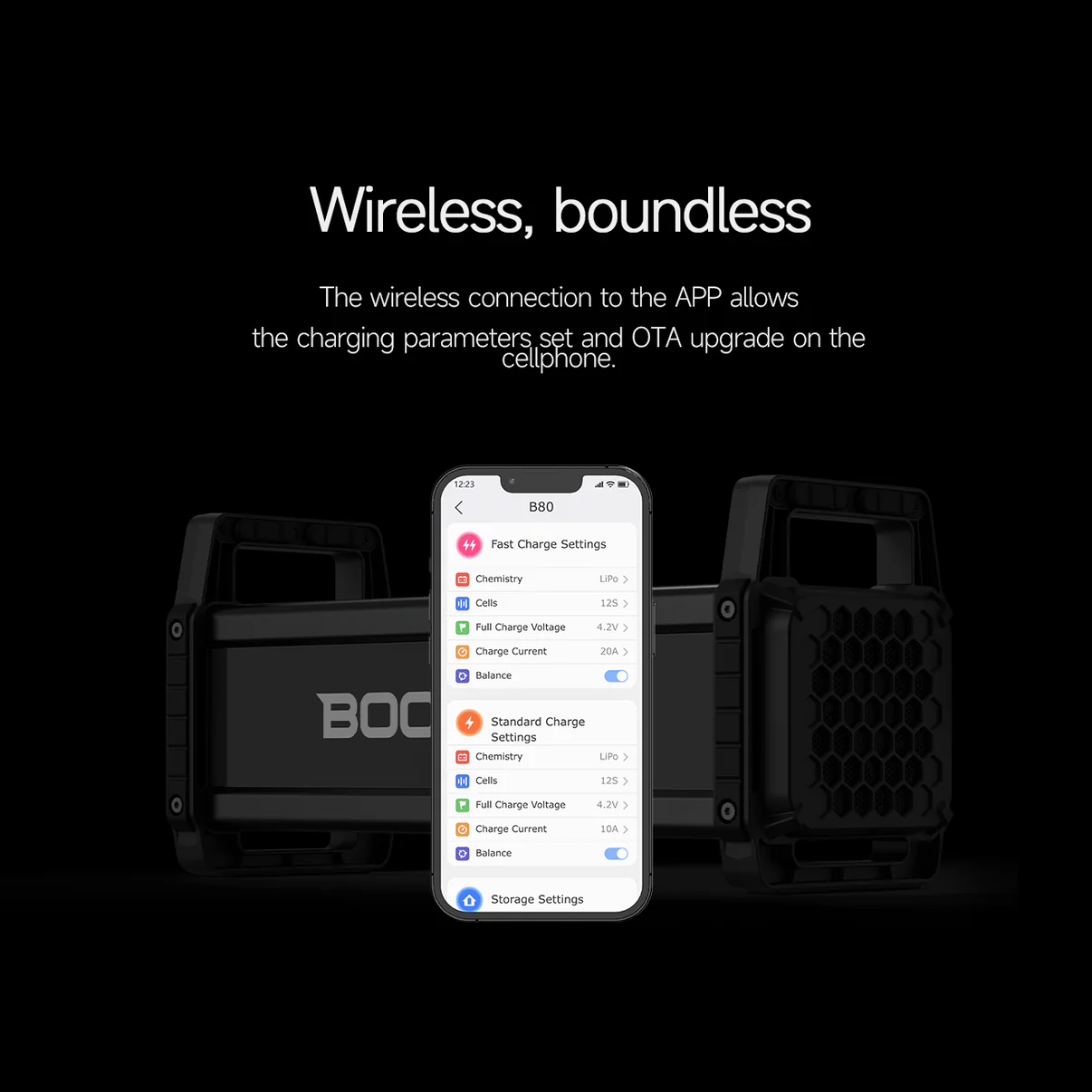

Wireless connectivity:

Offers wireless connection to an app that allows users to set charging parameters and perform OTA (over-the-air) firmware updates via smartphone, increasing convenience and usability.

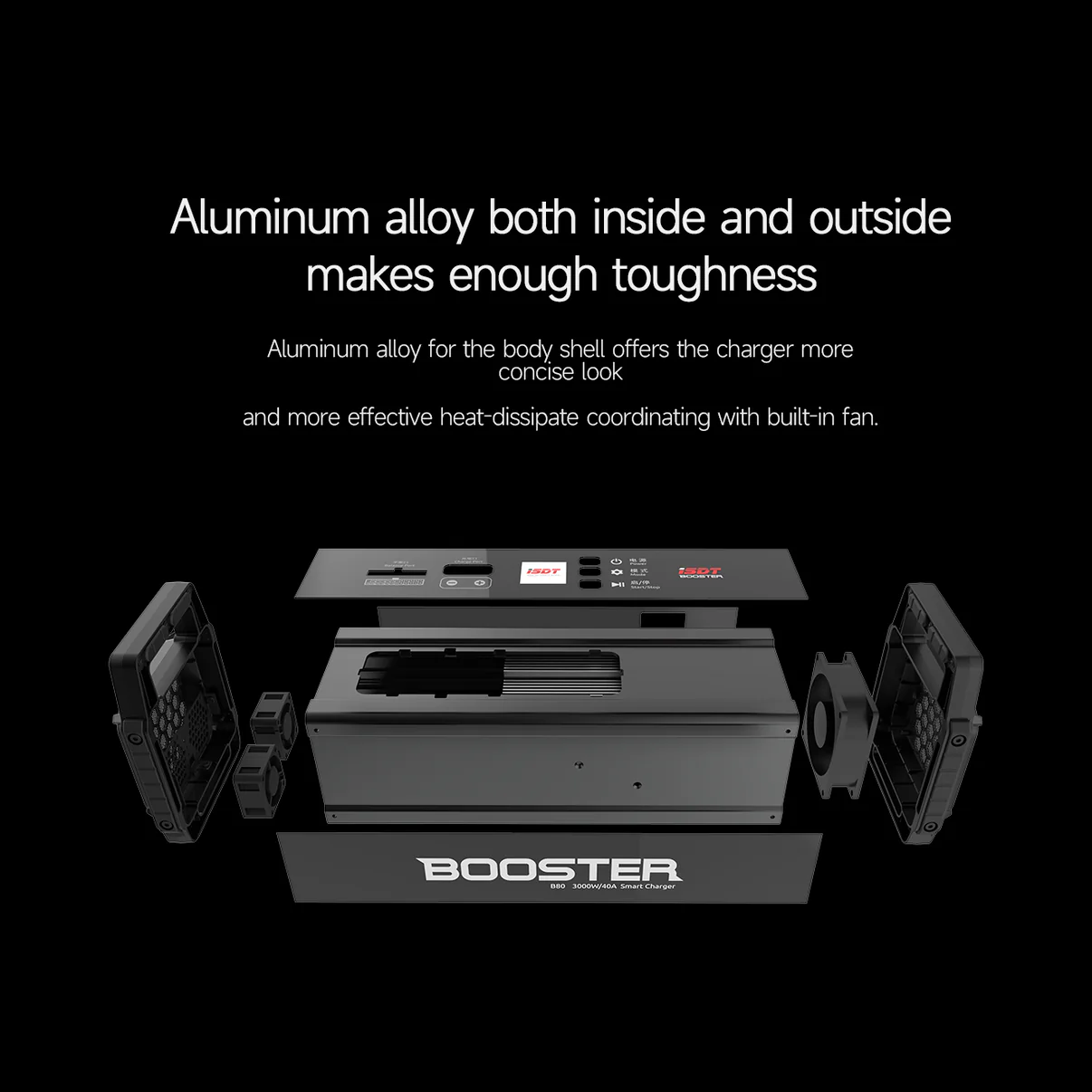

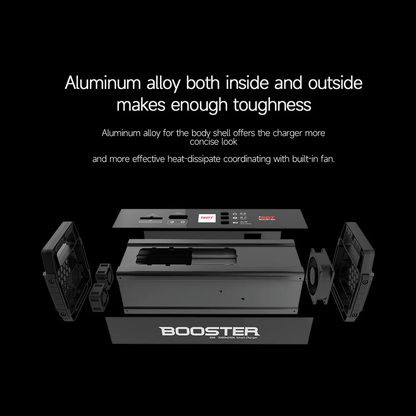

Durable and heat-resistant design:

Made of aluminum alloy for internal components and outer shell, which ensures durability and efficient heat dissipation. It is supplemented with a built-in fan for cooling during high-performance operation.

Technical specifications

Input voltage: AC 100-240V
Output voltage: DC 20-80V
Maximum input current: 16A (AC)
Maximum charging power:
- 3000W at 220V AC
- 1500W at 110V AC
- 1400W at 100V AC
Maximum discharge power: 200W
Supported batteries:
- LiFe: 8-22S
- LiPo: 6-18S
- LiHv: 6-18S
- ULiHv: 6-18S
Charging current: 1.0-40.0A
Discharge current: 0.5-5.0A
Balance current: 2A per cell
Alarms: Includes alarms for abnormal voltage and incorrectly set number of cells.
Working temperature: 0-40°C
Storage temperature: -20-60°C
Dimensions: 356 x 136.8 x 164.1 mm
Weight: About 3973g
