ISDT K4 charger:
The ISDT K4 charger is a versatile, high-performance charging solution designed for a wide range of battery types and applications. Here is a detailed overview of its features and specifications:
Key Features

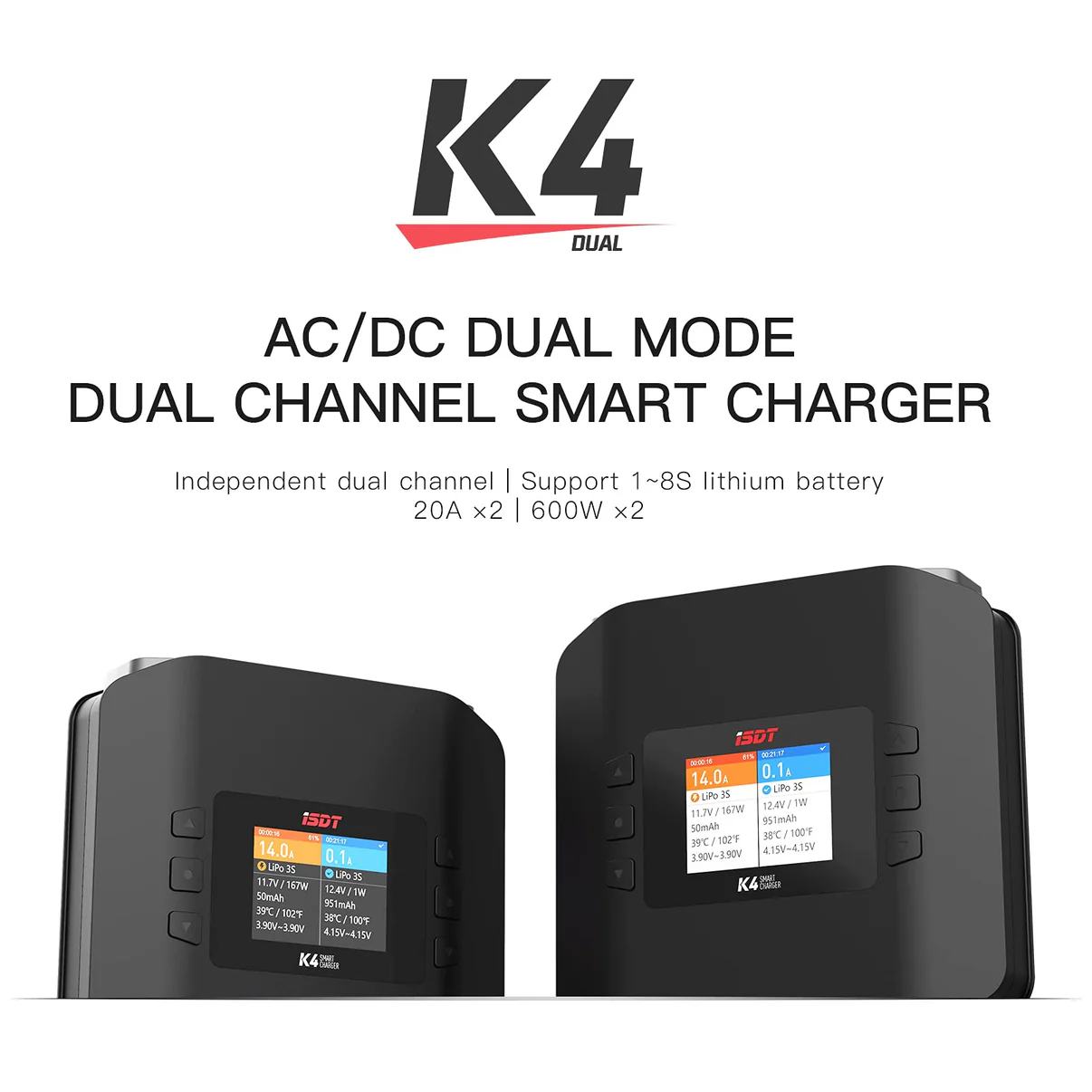

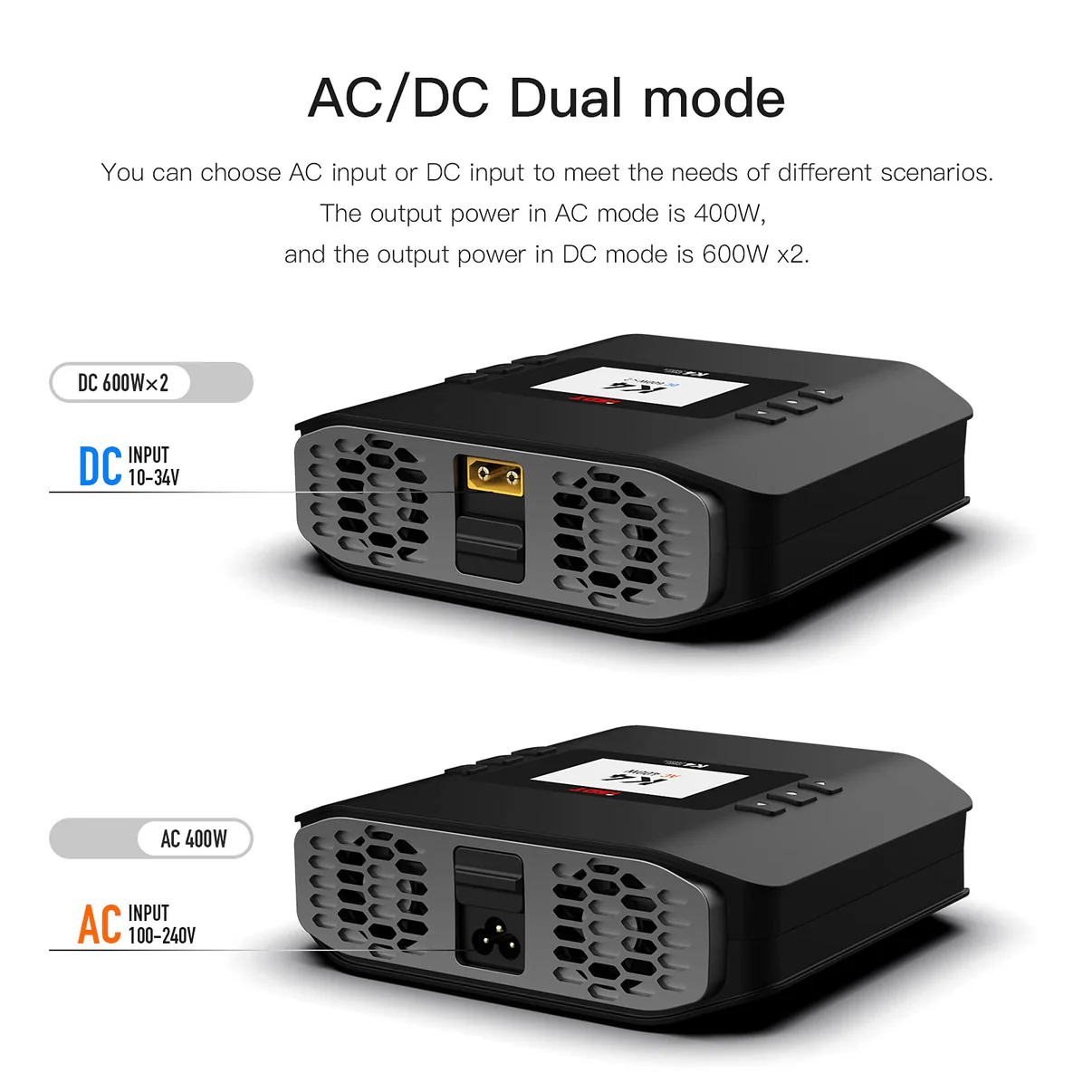

Dual input modes:

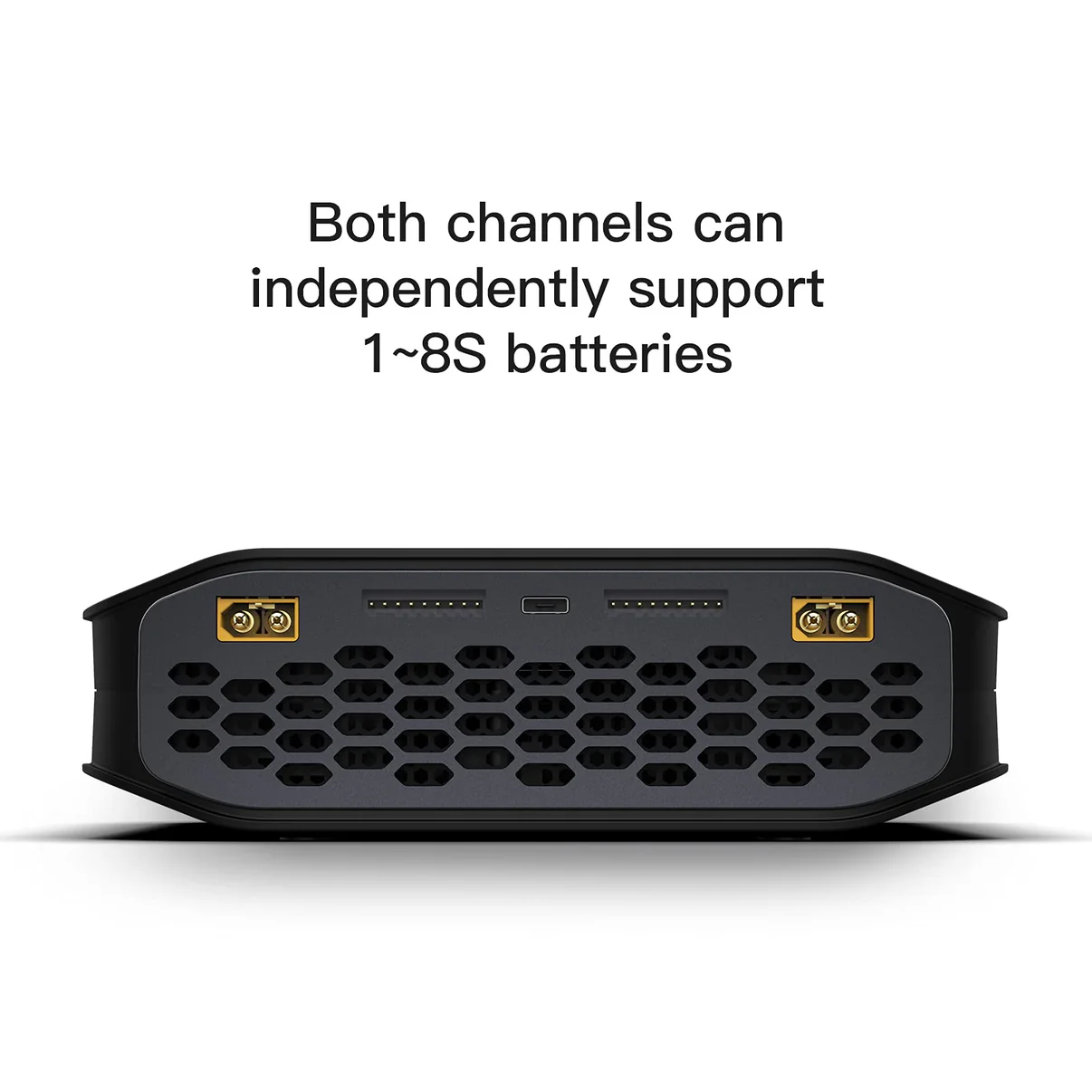

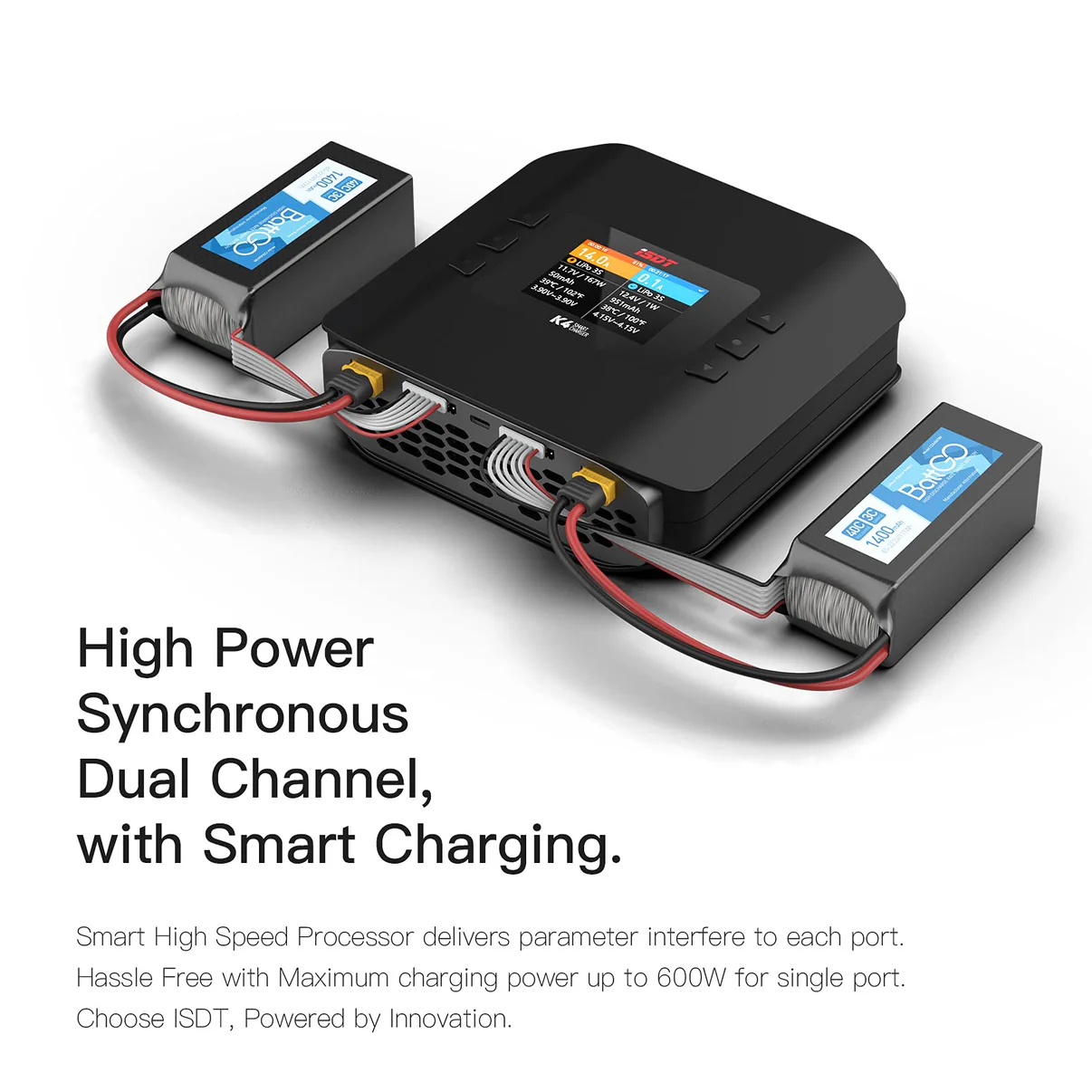

- Supports AC (400W) and DC (600W) charging with independent dual channels, enabling efficient charging of multiple batteries at the same time.
- Maximum input current 60A and charging current 30A per channel.

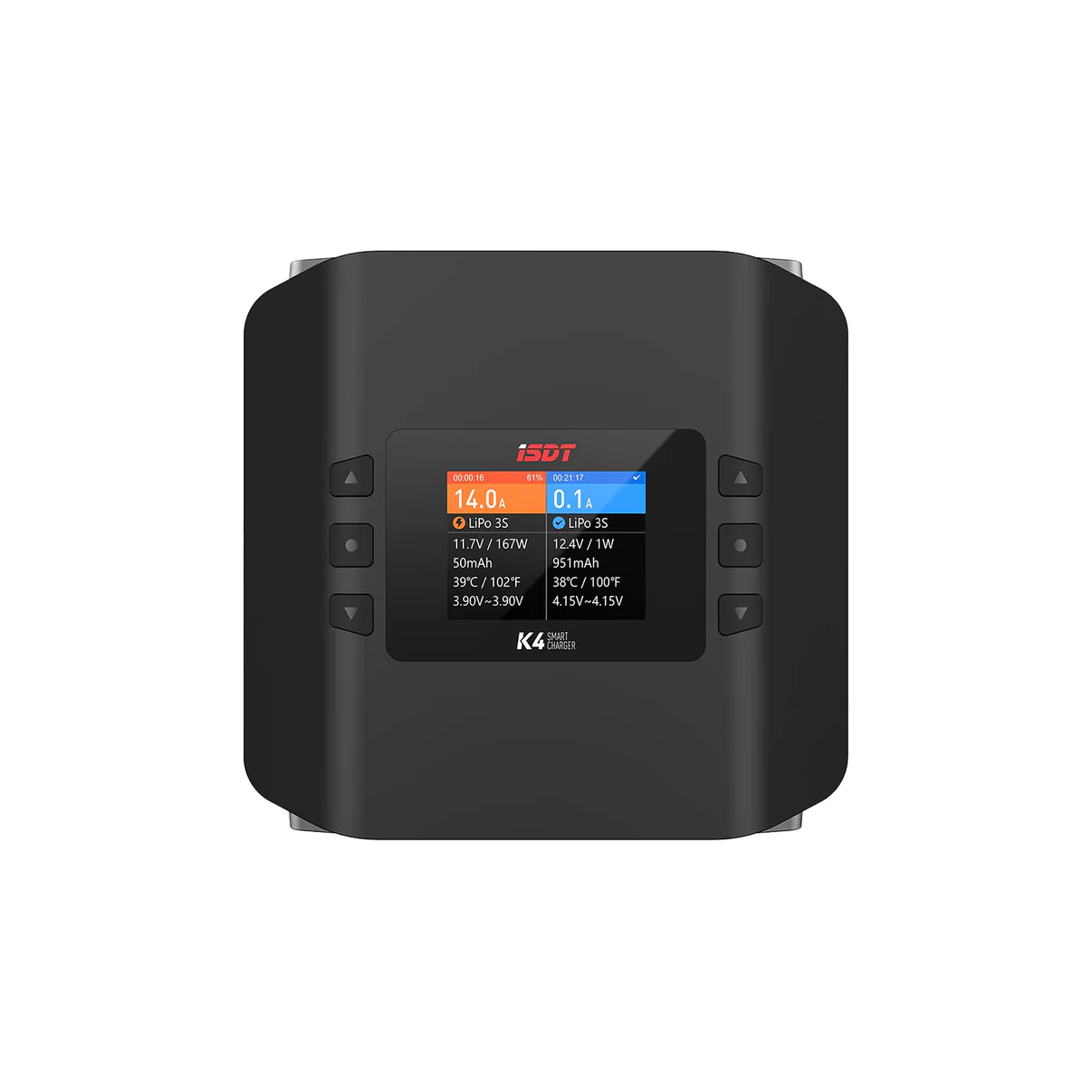

Smart display:
- It has a color LCD touch panel that displays current charging information including voltage, current, charging time, battery type, internal resistance and charged capacity.
- User-friendly interface allows easy setup and manual control.
Multifunctionality:

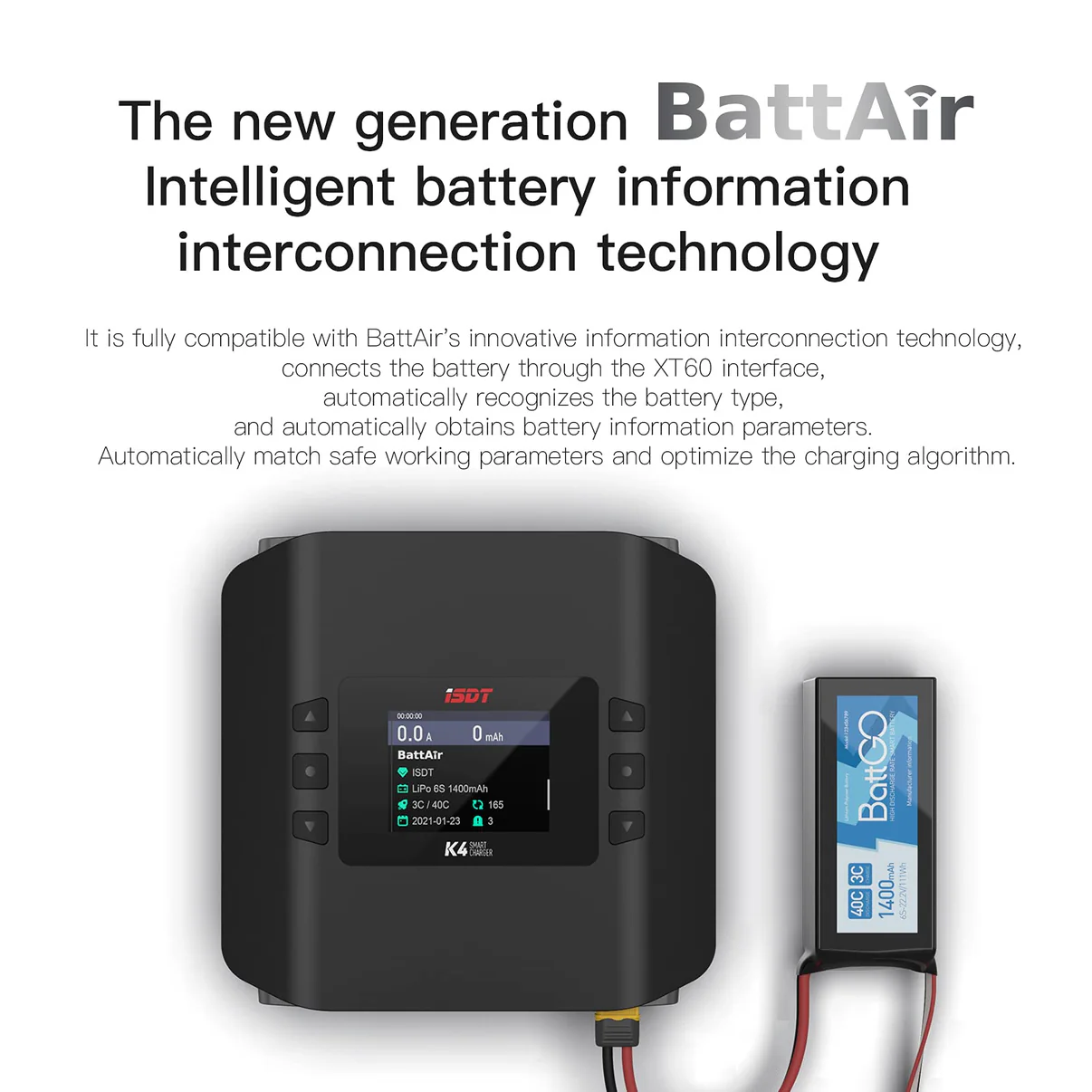

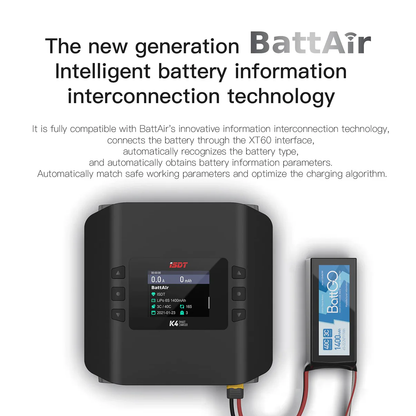

- Supports BattAir Bluetooth connection for mobile control via ISD Link app.
- Features include Li-ion and LiPo balancing, fast charging, data storage, cycle charging and discharging.
- Automatically stops charging when the battery is fully charged, for safety.

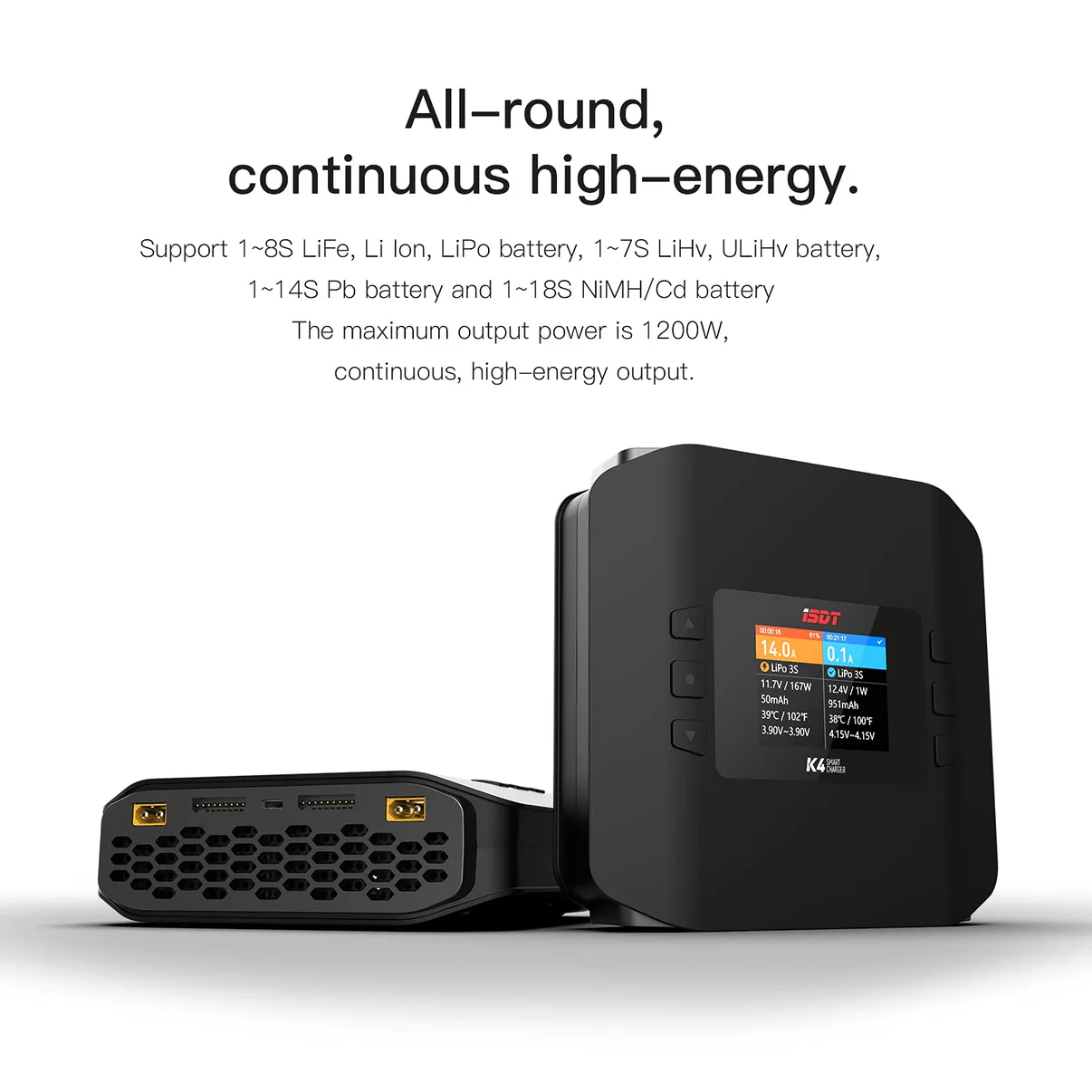

Wide battery compatibility:
- Compatible with a variety of battery types, including:
- LiFe, LiIon, LiPo (1-8S)
- LiHv, ULiHv (1-7S)
- Tide acid (Pb, 1-14S)
- NiMH/NiCd (1-18S)
- Automatic battery type recognition function with intelligent charging algorithm.
Robust design:
- Made with aluminum alloy that ensures durability and attractive appearance.
- Advanced cooling air channel increases heat dissipation and ensures optimal performance during operation.
Security features:
- Includes alarms for abnormal voltage and incorrect cell count settings, ensuring safe operation.
- Automatic adjustment of charging parameters and automatic safety shutdown to extend battery life.
Technical specifications
- Input voltage: AC 100-240V / DC 10-30V
- Output voltage: DC 1-30V
- Maximum input current: DC 35A
- Charging current: 0.2-20A per channel
- Discharge current: 0.2-3A per channel
- Balance current: 1.5A per cell (max)
- Maximum discharge power: 30W per channel
-
Maximum charging power:
- AC: 400W
- DC: 600W per channel
- Parallel charging power/current: 800W / 35A
- Parallel discharge power/current: 30W / 3A
- Working temperature: 0-40°C
- Storage temperature: -20 to 60°C
- Dimensions: 142 x 135 x 64 mm
- Weight: About 700g
Package contains
- 1x ISDT K4 charger
