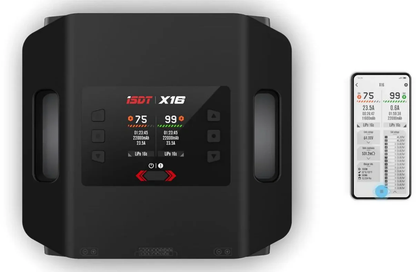

ISDT X16 Lipo Charger:
Key Features
Powerful multi-functional charger:
- Support for 2-16S LiFe, LiPo, LiHv and ULiHv batteries, including ultra high voltage lithium-ion batteries (up to 4.45V per cell).
- Dual parallel charging with a total output power of over 2200W.
- Support charge and discharge cycles with a maximum discharge power of 50W per channel and a balancing current of 1.5A per cell to extend battery life.

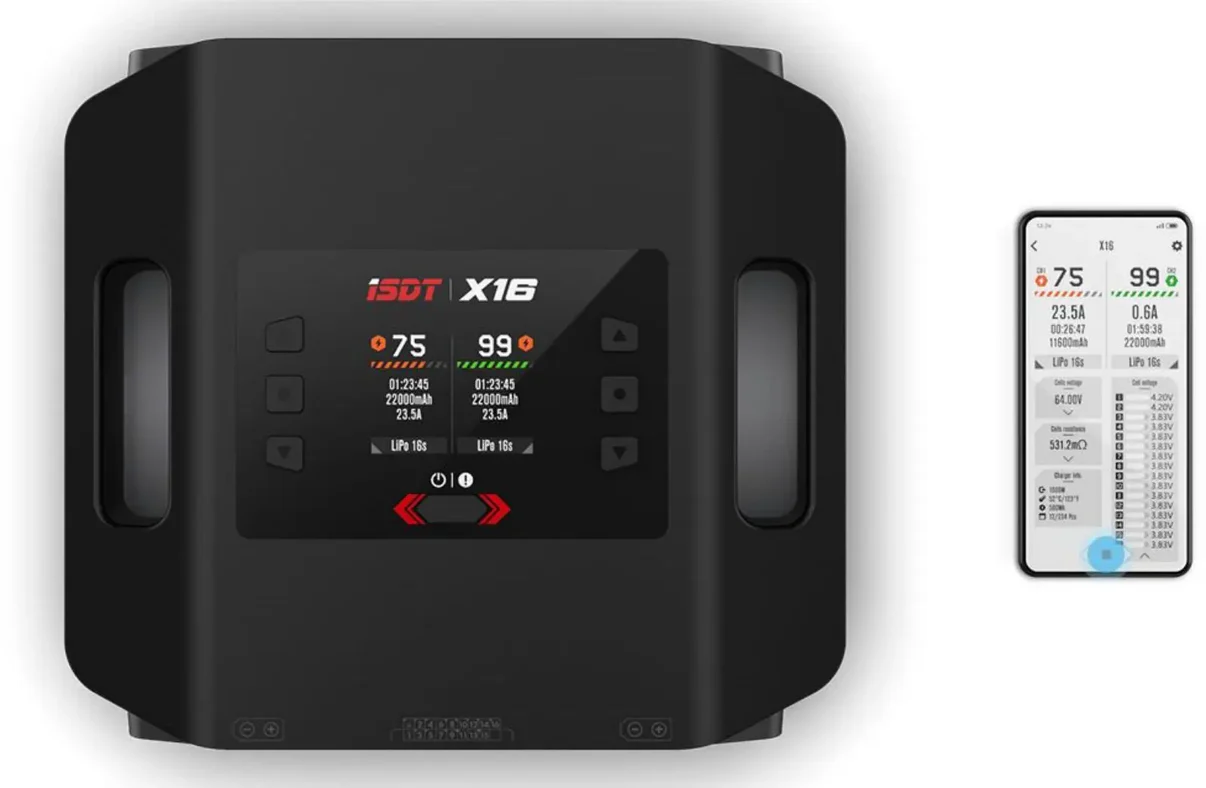

Bluetooth connectivity:
- Connect to mobile devices via Bluetooth for control and monitoring.
- Using the "ISD Link" app, you can view detailed parameters for each channel and preset charging tasks for one-click operations. OTA update support for easy upgrades.
Security features:

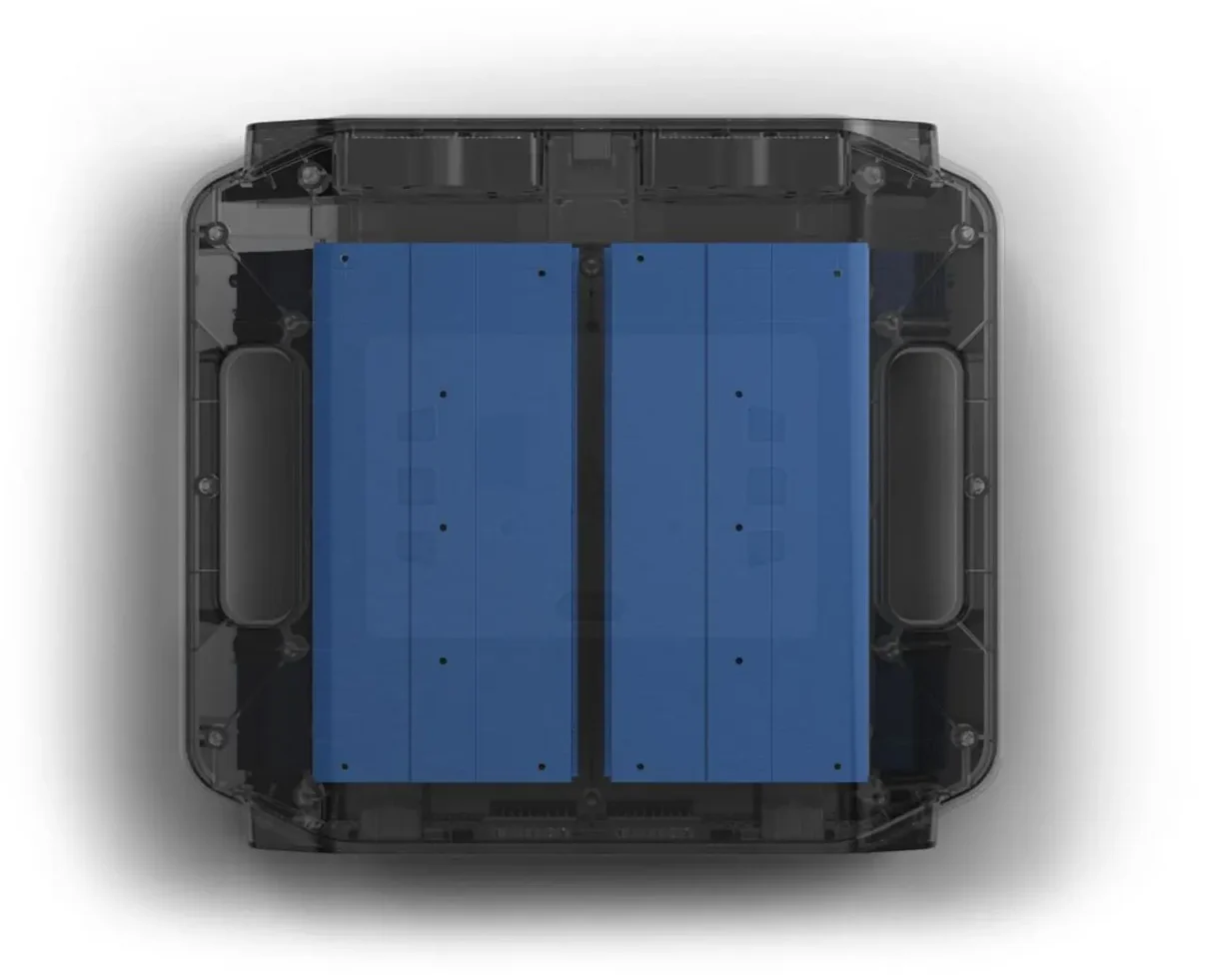

- Built-in 1200W independent dual power supply with multiple protections: short circuit, overload, undervoltage, overvoltage and overheat protection.
- Compatible with AC 120V and AC 220V power supply. Both channels can work independently or together for stable performance.
Synchronous parallel charging:
- High-speed processor for synchronous buffer charging.
- Maximum parallel charging power up to 1800W (@220V AC) with charging current ranging from 21A to 35A for fast charging.

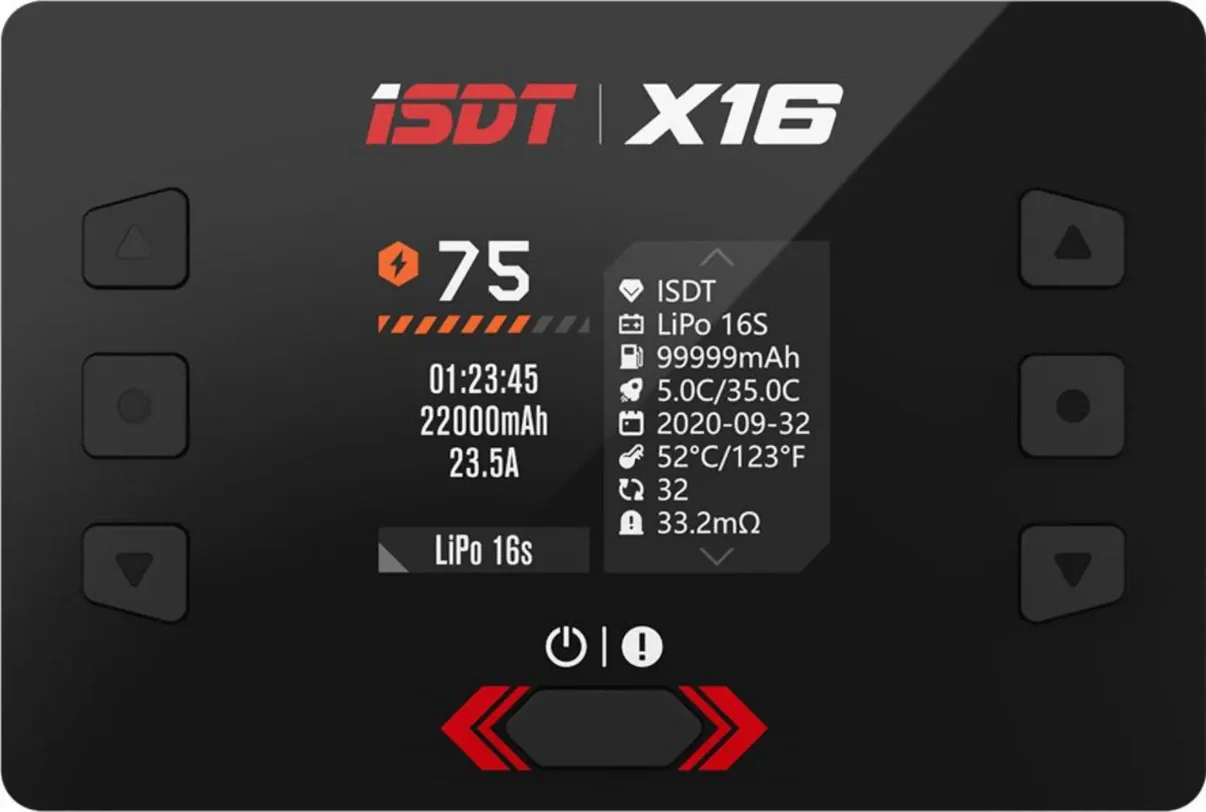

User-friendly display:
- 2.8-inch IPS LCD display with automatic brightness adjustment and 178° viewing angle for clear visibility in various lighting conditions, including bright sunlight.
Specifications
- Input voltage: AC 100-240V
- Output voltage: DC 10-72V
- Charging current: 1.0-20.0A per channel (×2)
- Discharge current: 0.5-3.0A per channel (×2)
- Maximum charging power: 1100W per channel (@220V AC) / 800W per channel (@110V AC)
- Maximum discharge power: 50W per channel
- Balance current: 1.5A per cell
-
Supported battery types:
- LiIon, LiFe, LiPo, LiHv, ULiHv (2-16S)
- Alarm function: Alarms for abnormal voltage and incorrectly set number of cells
- Operating temperature: 0°C to 40°C
- Storage temperature: -20°C to 60°C
- Dimensions: 276 x 246 x 82 mm
- Weight: Approximately 4.5 kg
- Type of connector: XT90i
Package contents
- 1x ISDT X16 Lipo Charger
