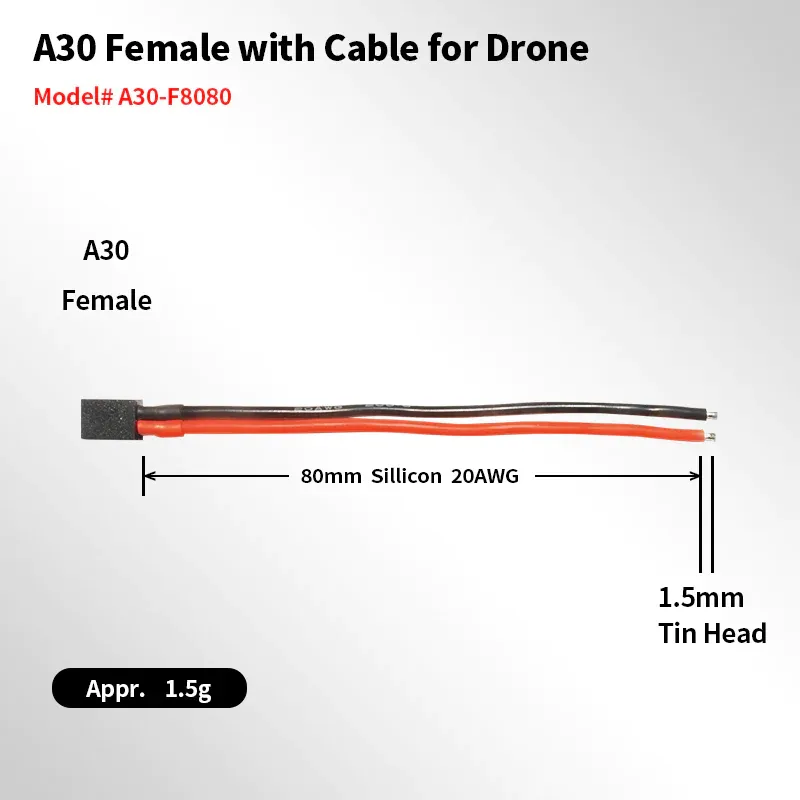

FLYWOO A30-F 80mm 20AWG PIGTAIL connector (5 pcs) Upgrade your 1S micro drone with FLYWOO A30-F high current connectors, designed to replace PH2.0 for better performance. Each pigtail features a 20AWG 80mm silicone wire pre-soldered to a rugged A30 connector that supports up to 15A continuous current and up to 30A peak current. With lower contact resistance and higher discharge capacity, the A30 provides better throttle response, longer flight time and minimal voltage drop under load. The connectors are made of non-flammable material PA66 and gold-plated brass contacts, are rated for up to 500 V and operate in a temperature range of -20 °C to 120 °C. Ideal for upgrading ESCs, chargers and heavy duty battery systems. Specifications: Model: A30 Wire gauge: 20AWG silicone wire Wire length: 80 mm Standard current: 15A Peak discharge current: 30A Contact impedance: 1.6 mΩ Voltage resistance: DC 500V Connector color: Black Contact material: Gold-plated brass Insulation material: PA66 Inflammability class: UL94 V0 Operating temperature: -20 °C to 120 °C Uses: ESC, chargers, batteries (1S drones) The package contains: 5 × FLYWOO A30-F pigtail connectors 80mm (20AWG)
