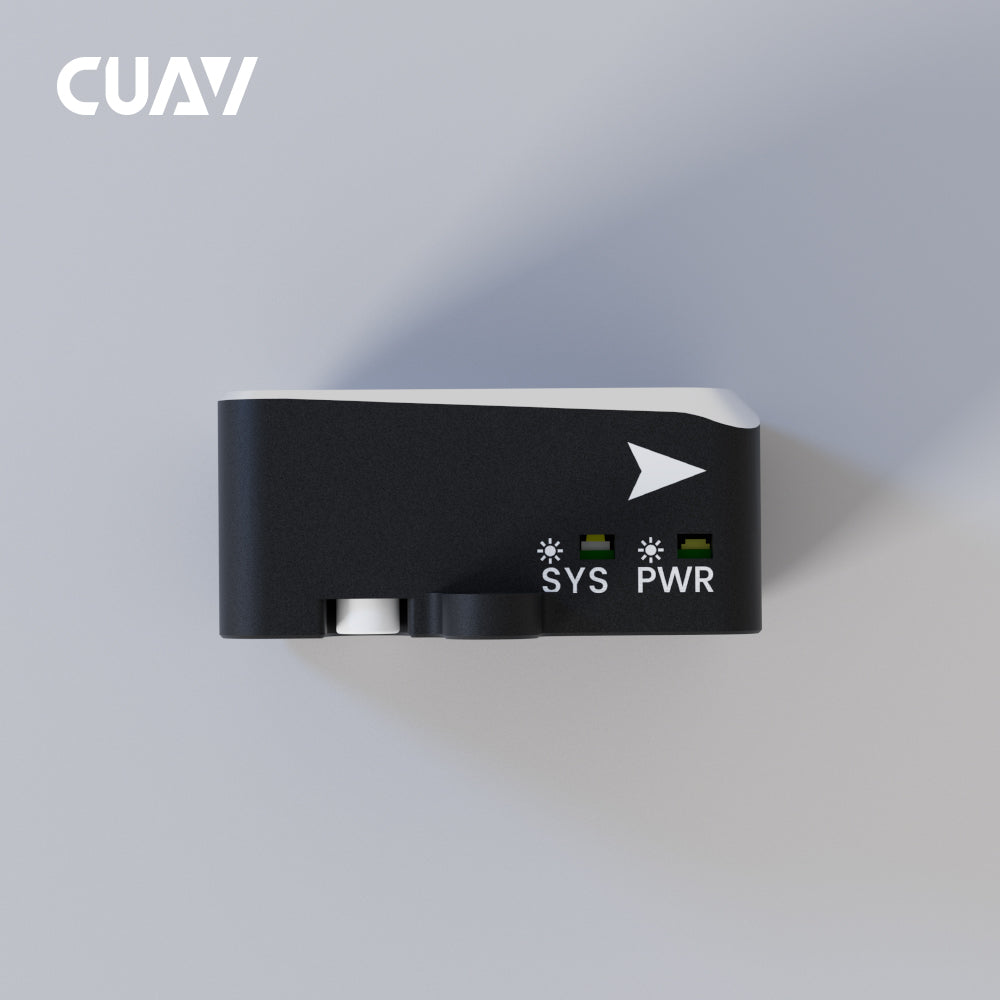

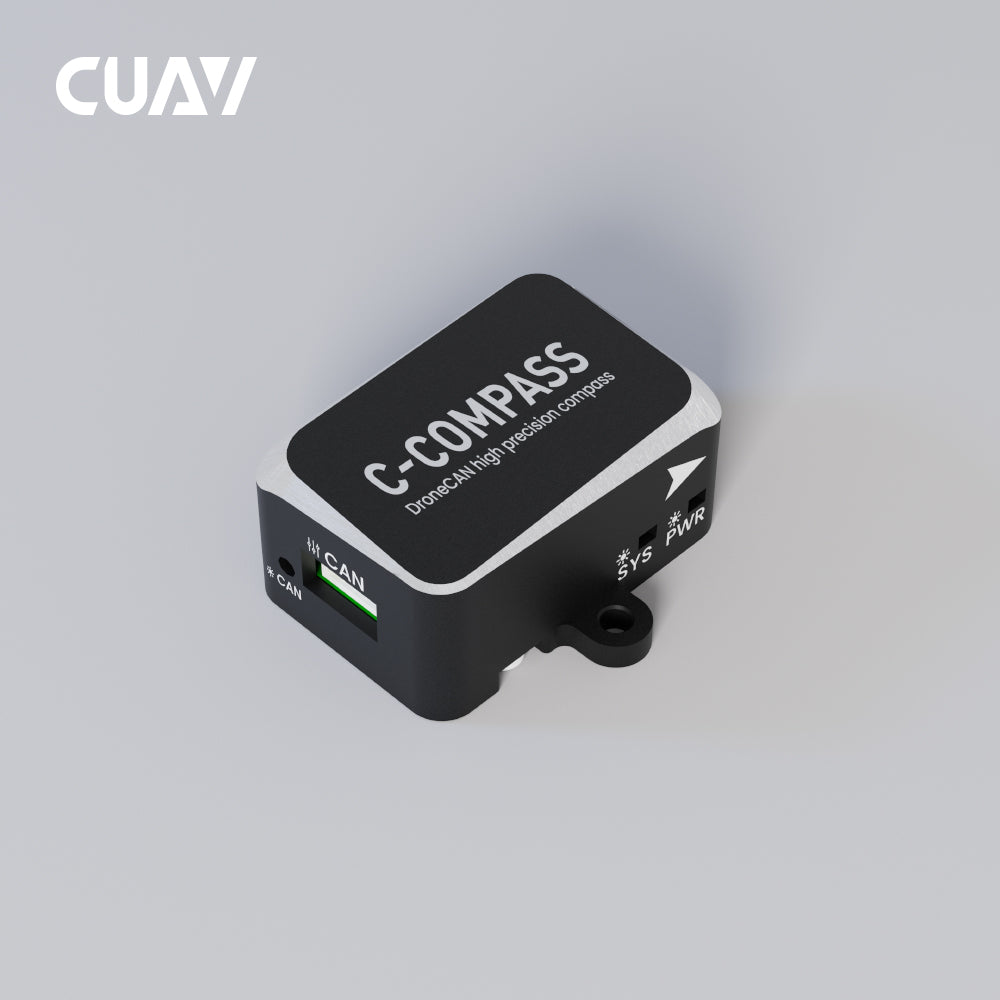

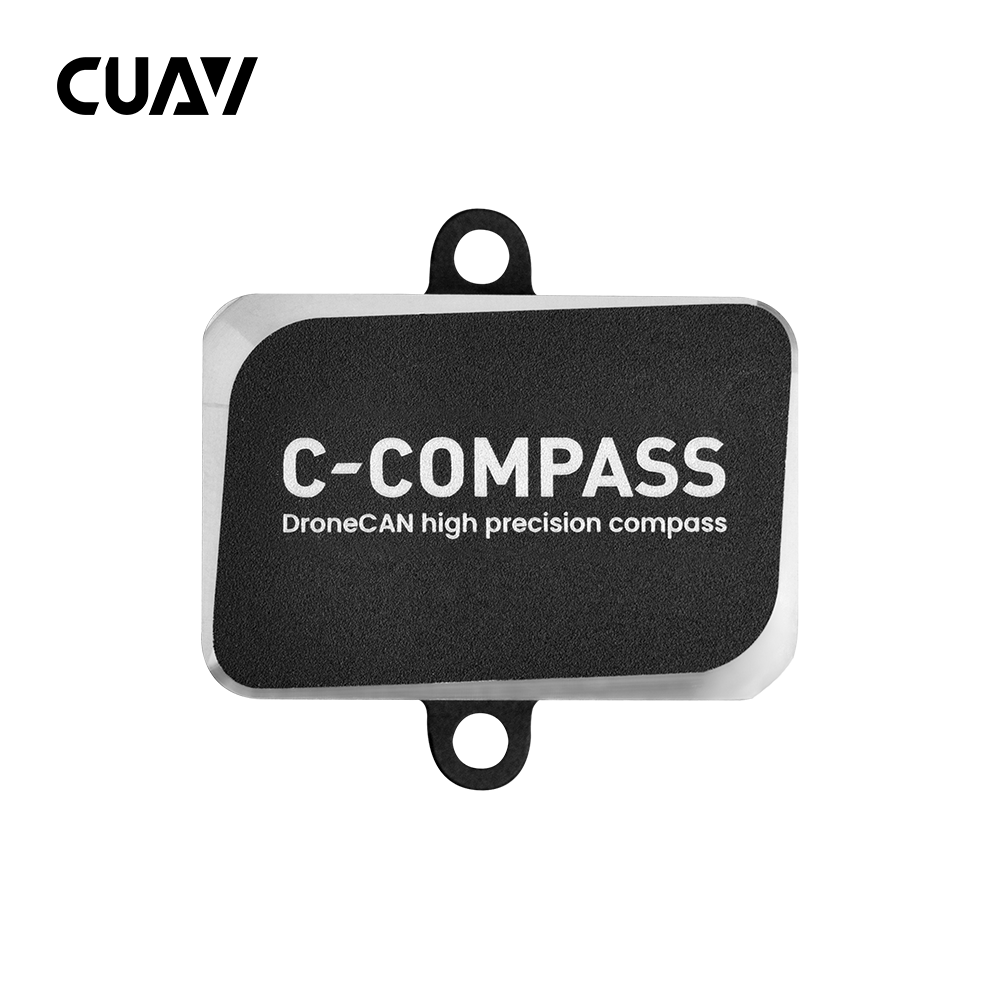

CUAV Magnetometer C-compass
CUAV C-Compass is a high precision compass and magnetometer designed for professional use. It features the industrial-grade RM3100 magnetometer, a revolutionary sensor that has revolutionized magnetic field measurement with its exceptional resolution and minimal noise.
CUAV C-Compass Specifications:
- Processor: STM32F4 100MHz
- Magnetometer: RM3100
- Communication protocol: DroneCAN/UAVCAN
- Communication speed: 2Mb
- Refresh rate: 80Hz
- Noise: 15nT
- Accuracy: 0.25° (effective value)
- Inclination angle accuracy: 0.05°
- Resolution: 0.01°
- Sensitivity: 13nT
- Measuring range: -800μT to +800μT
- Compatible control types: PX4/ArduPilot (CUAV/Pixhawk etc.)

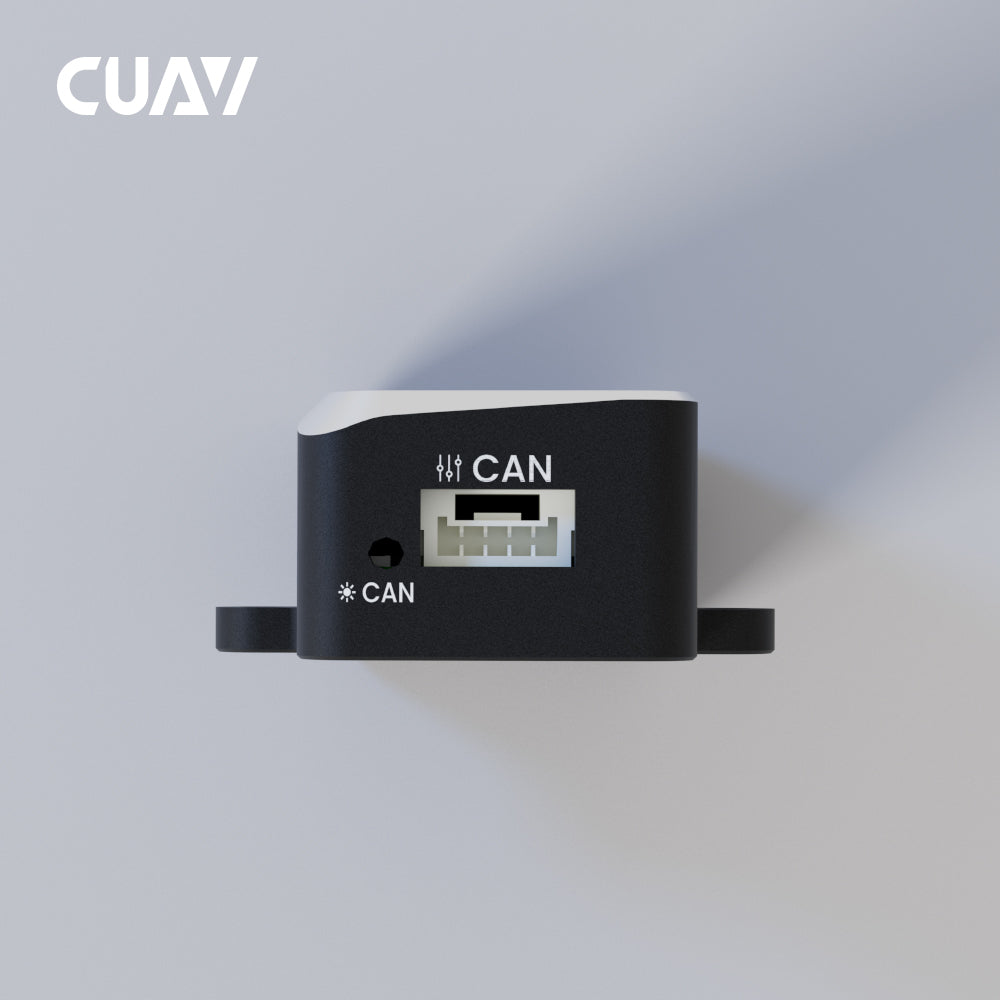

- Type of connector: GHR-04V-S
- Operating voltage: 4.75-5.3V
- Operating temperature: -20°C to 85°C
- Operating humidity: 5%-95% (non-condensing)
- Case Material: Alloy
- Weight: 13g
