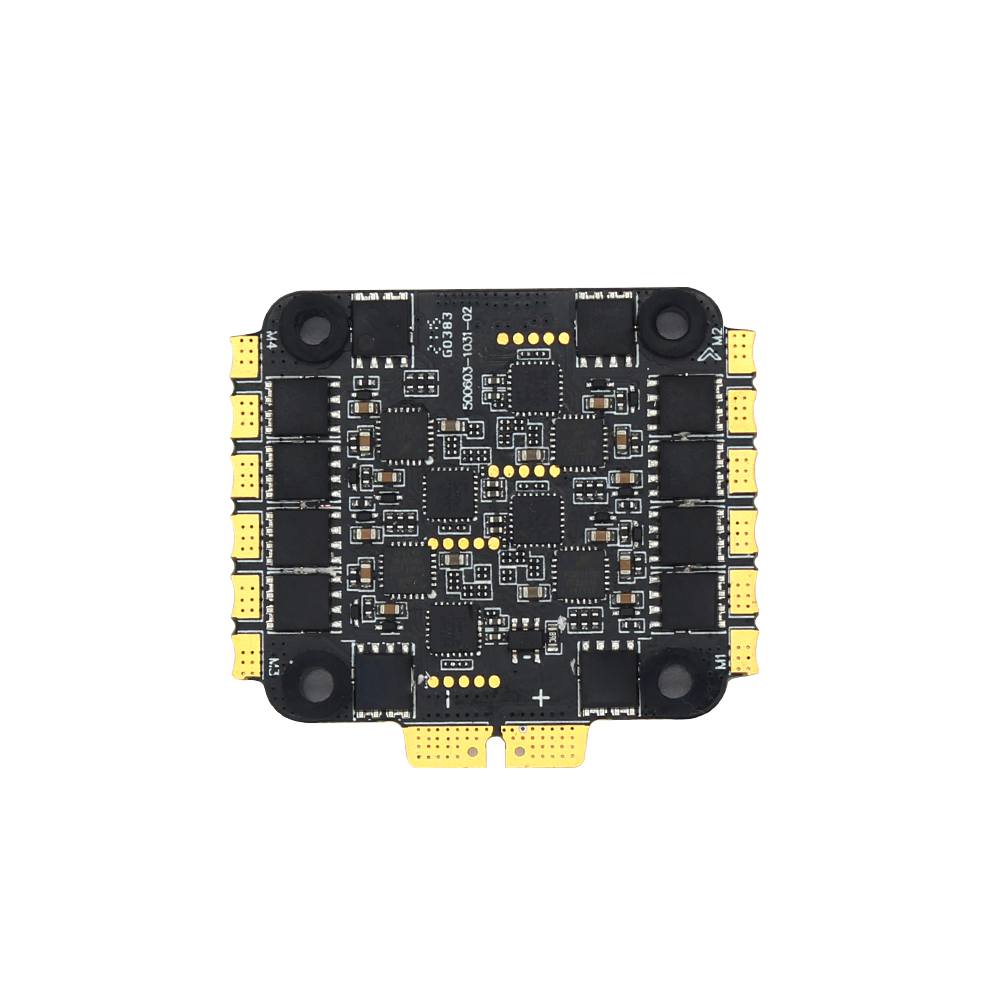

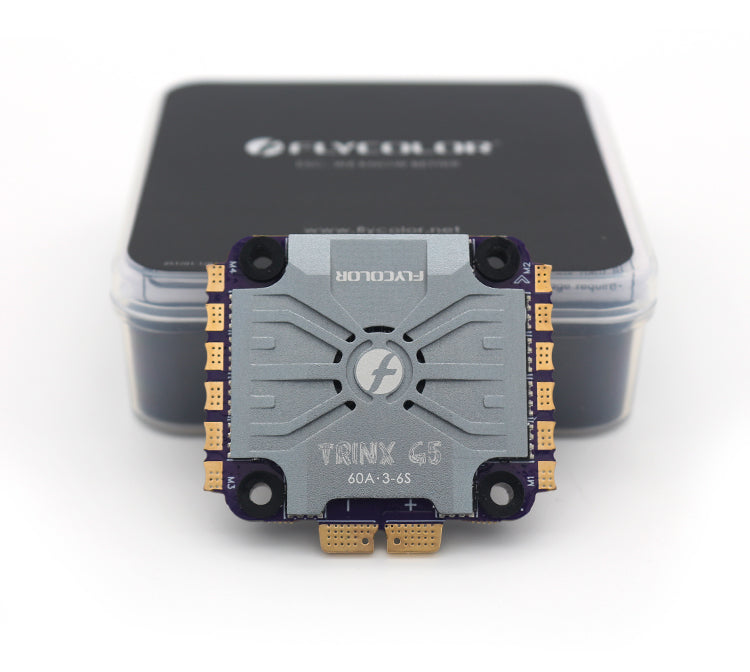

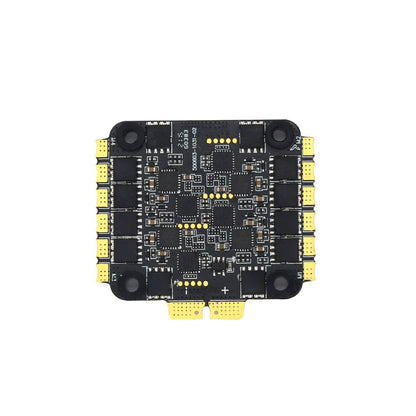

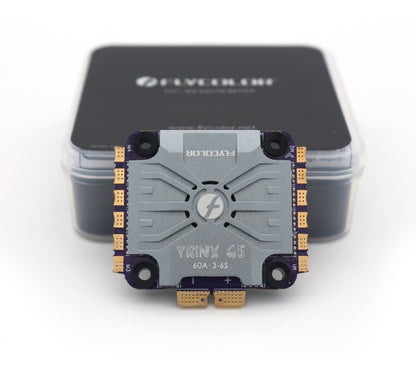

ESC Flycolor Trinx G5 60A 4-in-1

The Flycolor Trinx G5 60A 4-in-1 ESC is a high-performance electronic speed controller designed for demanding quadcopter setups. It supports 60A continuous current and 70A surge current, making it ideal for power-hungry drones. The ESC runs on 3-6S LiPo batteries and is equipped with BLHeli32 firmware, which ensures fast response and minimal latency. With a compact design weighing only 19.6g, it is suitable for various drone configurations

Function:
- PWM frequency up to 128K.
- More protocols.
- Built-in 4in1 ESC current sensor and VBAT output.
- Longer and better performance thanks to the large surface area of the aluminum radiator.
- Damping design to reduce the effect of vibration on the flight controller.
- Supports higher power loads.
- Large soldering tabs.

Specifications:
Model: Trinx G5 4in1
Con. Current: 60A
Explosive current (10S): 70A
BEC: NO
LiPo cells: 3-6S
Weight: 19.6 g (with cooler)
Dimensions: 45 x 41 x 8.3 mm
Mounting: 30.5x30.5 (M3)
Configurator: BLHeliSuite32
Firmware: Flycolor_Raptor_5
All D-shot, Pro-shot
MCU: STM32G07

The package includes:
1x Trinx G5 4in1- 60A ESC
