ESC Flycolor X-Cross HV3 120A 5-12S

Name: ESC Flycolor X-Cross HV3 120A 5-12S
Brand: Baltic Drones
SKU: X-FW120012-D1D1-01
Price: 131.77 EUR
Availability: InStock

ESC Flycolor X-Cross HV3 120A 5-12S

Brand: Flycolor

€131,77

~~€131,77~~ €131,77

-0% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

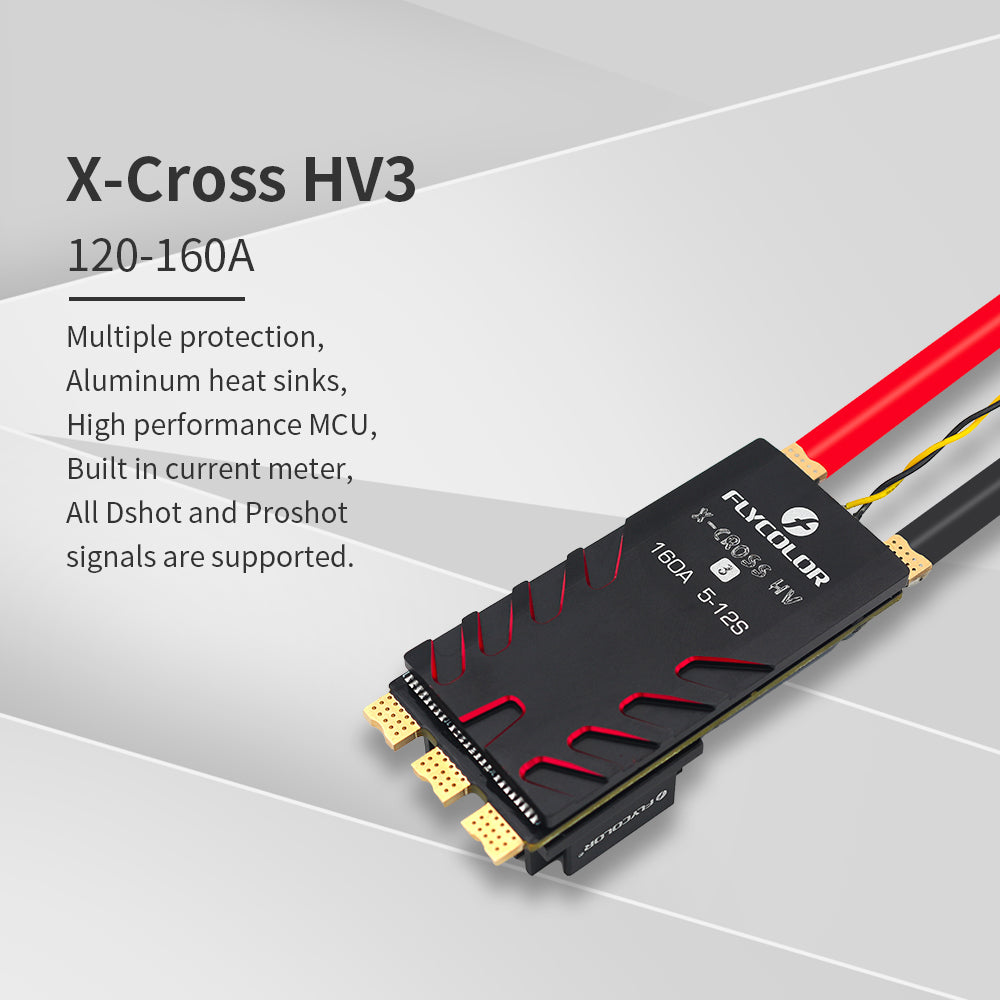

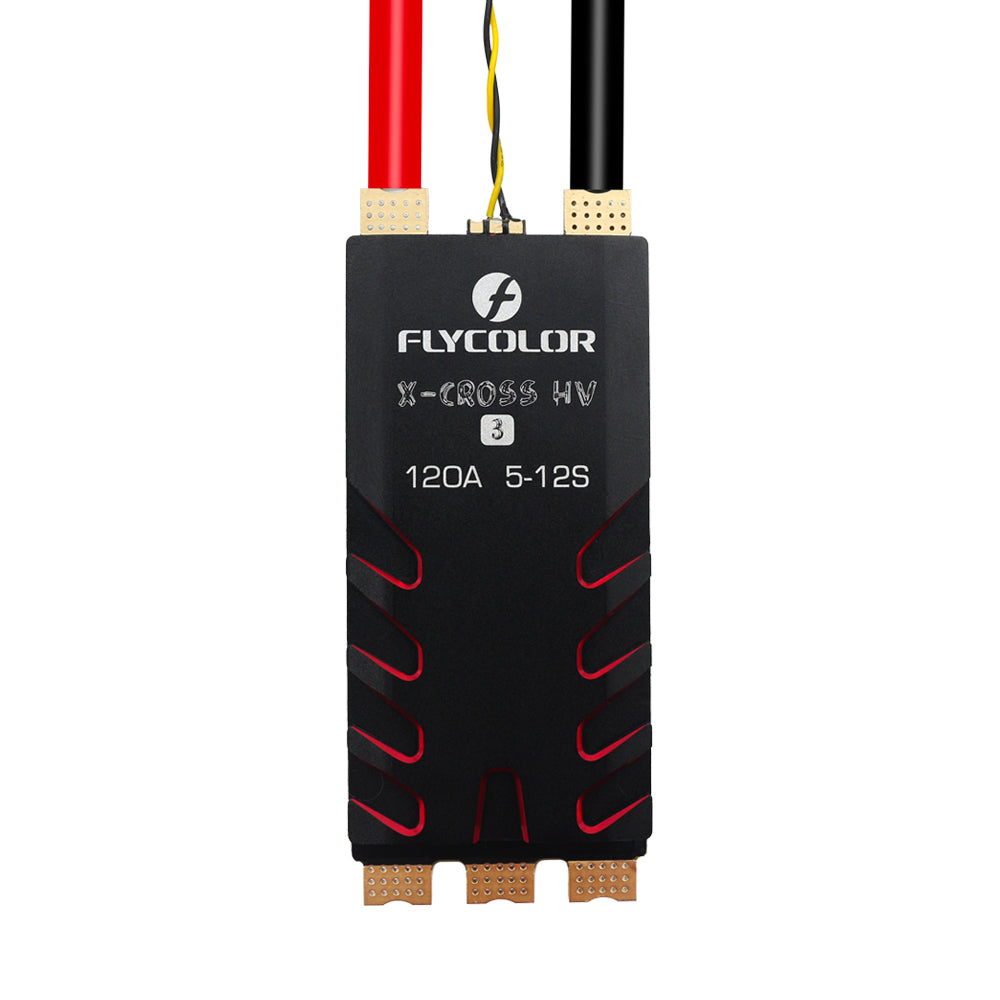

ESC Flycolor X-Cross HV3 120A 5-12S

Flycolor's X-Cross HV3 120A 5-12S ESC includes quality MOSFETs, BLHeli_32 firmware, ARM 32-bit Cortex MCU, telemetry and more!

Function:

- ARM 32-bit Cortex MCU, frequency up to 48MHz
- International well-known MOSFET brand with high power and low ESR, not afraid of large current
- BL Heli_32 firmware, u0 to 12S Lipo, suitable for X-class frame drone
- Supports common 1-2ms pulse width input as well as Oneshot125, Oneshot42 and Multishot.
- The input signal is automatically detected by the ESC after power-up
- Small size, light weight, suitable for drone with narrow arms
- Dimmed light performs regenerative braking, which causes very fast engine deceleration and naturally also active idling
- The silicone twisted pair of the throttle signal cable effectively reduces the crosstalk caused by the signal transmission and makes the flight more stable
- The aluminum heatsink effectively slows down the temperature rise

Specifications:
Model: HV3-120A
Current: 120A
Discharge: 150A
Voltage: 5-12S
BEC: No
Weight: 132g
Dimensions: 82 x 34 x 21.1 mm

The package includes:
1x ESC Flycolor X-Cross HV3 120A 5-12S
