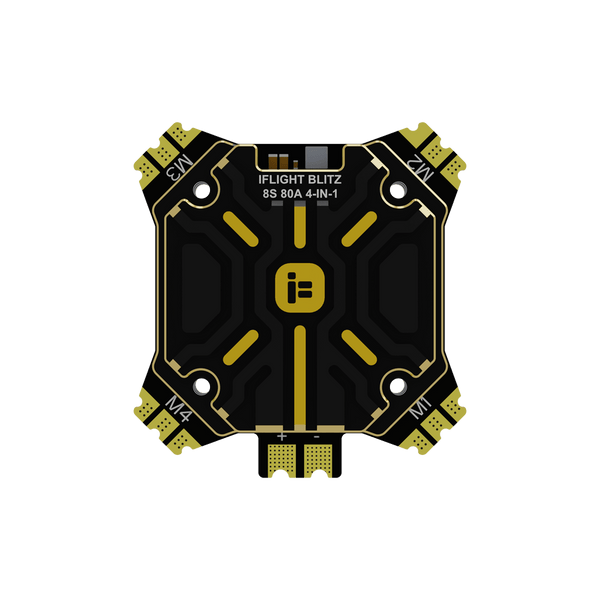

BLITZ E80 4-IN-1 Pro with CNC

The MOSFET used by the BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C with a maximum power dissipation of 198W. The BEC power supply uses a dedicated TI automotive grade synchronous rectifier chip that supports up to 100V. The 1-4 layer power supply circuit board PCB is 4OZ ultra strong copper to ensure continuous performance in high power operation. The STM32F051 main control processor with an operating frequency of up to 48 MHz combined with a three-in-one driver IC achieves a higher operating speed.

Function:
- Rational layout, recessed holes on extended solder pads to ensure PCB layer connection
- G071 MCU, maximum clock speed 48 MHz;
- Ceramic capacitors TDK MLCC Low ESR;
- Top MOSFET PSMN1R0-40YLD;
- 8-layer double-sided PCB

Specifications:
Product name: BLITZ E80 4-IN-1 ESC
Input voltage: 2-8S
Max. Continuous current: 80A
Max. Explosive current: 100A
MCU: G071
BEC: No
Firmware: BLHeli32
Current sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G2
Mounting dimensions: 35x35mm/Φ3mm
Dimensions: 35 x 42 mm
Weight: 65g (±10)
Protocol: Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

The package includes:
1 x BLITZ E80 4-IN-1 Pro ESC (G2)
1 x Wiring Kit
