Code: SKU:4180
ESC Single SUNNYSKY X Series 80A 2-6S
ESC Single SUNNYSKY X Series 80A 2-6S
Brand: SunnySky
Regular price
€66,55
Regular price
€55,54
Sale price
€66,55
Unit price
/
per
Taxes included.
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Payment methods
- Description
- Related Files
- Discussion

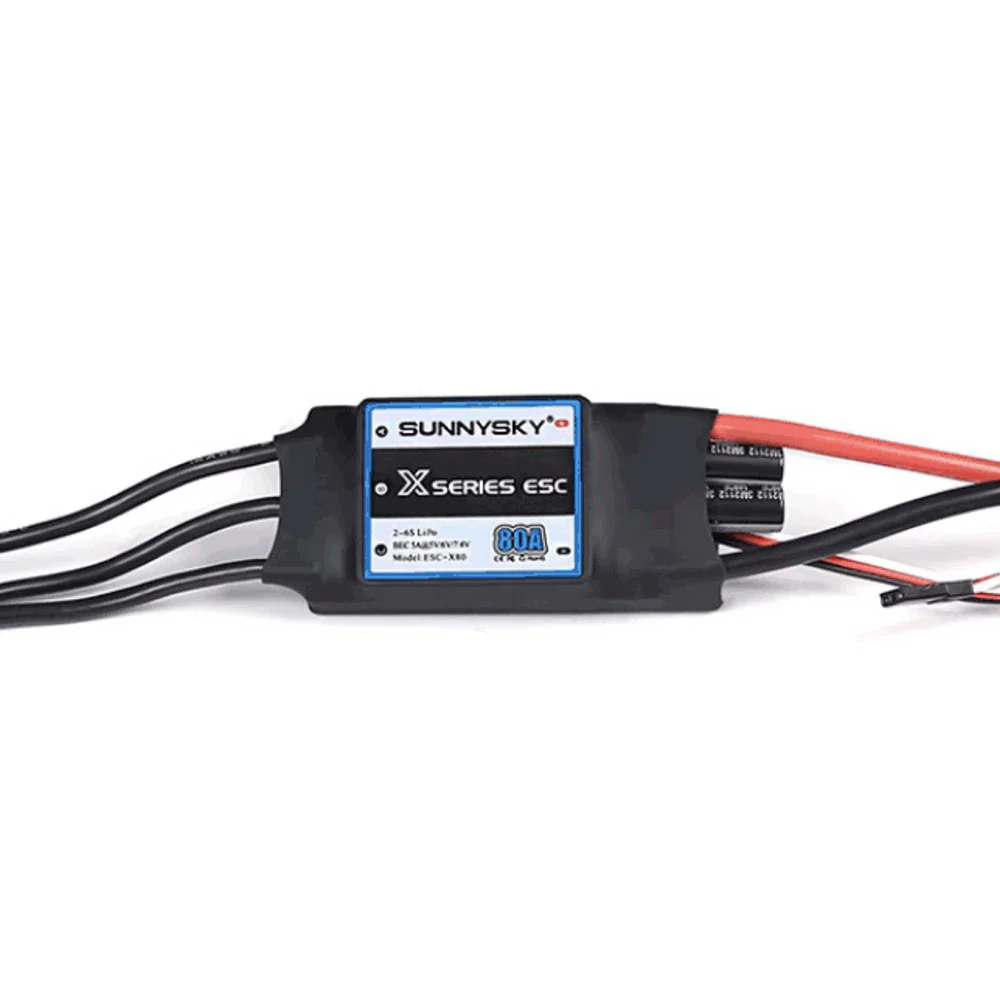

ESC Single SUNNYSKY X Series 80A 2-6S
Features:
- Uses powerful C8051F850 MCU with 8-bit C8051 core.
- Precise circuit design, high resistance to interference.
- The possibility to set the starting mode, fast response to the gas and very smooth linearity of the speed regulation.
- Possibility of setting the low voltage protection threshold.
- Various protection functions: start-up protection, overheat protection, throttle signal loss protection, low battery voltage protection, etc.
- Good start-up safety: the engine does not start immediately, regardless of the position of the throttle on the remote control.
- Sound signaling for checking the working status after switching on.
- Users can set the functions according to their needs. Cyclic menu for easy operation.
Specifications:
- Brand: SUNNYSKY
- Continuous current: 80A
- Peak current: 100A (≤10s)
- Input voltage: 2-6S LiPo
- BEC output: 5V/6V/7.4V @5A
- Motor connector: 4.0mm banana plug
- Battery connector: XT60
- Dimensions: 82×36×18mm (without cables)
- Weight: 114g
Notes:
- Make sure all solder joints are insulated with heat shrink tubing where needed.
- The default BEC voltage is 5V. Make sure the BEC voltage is correct before connecting.
The package contains:
- 1x SUNNYSKY X Series 80A ESC
- 1x User Manual
