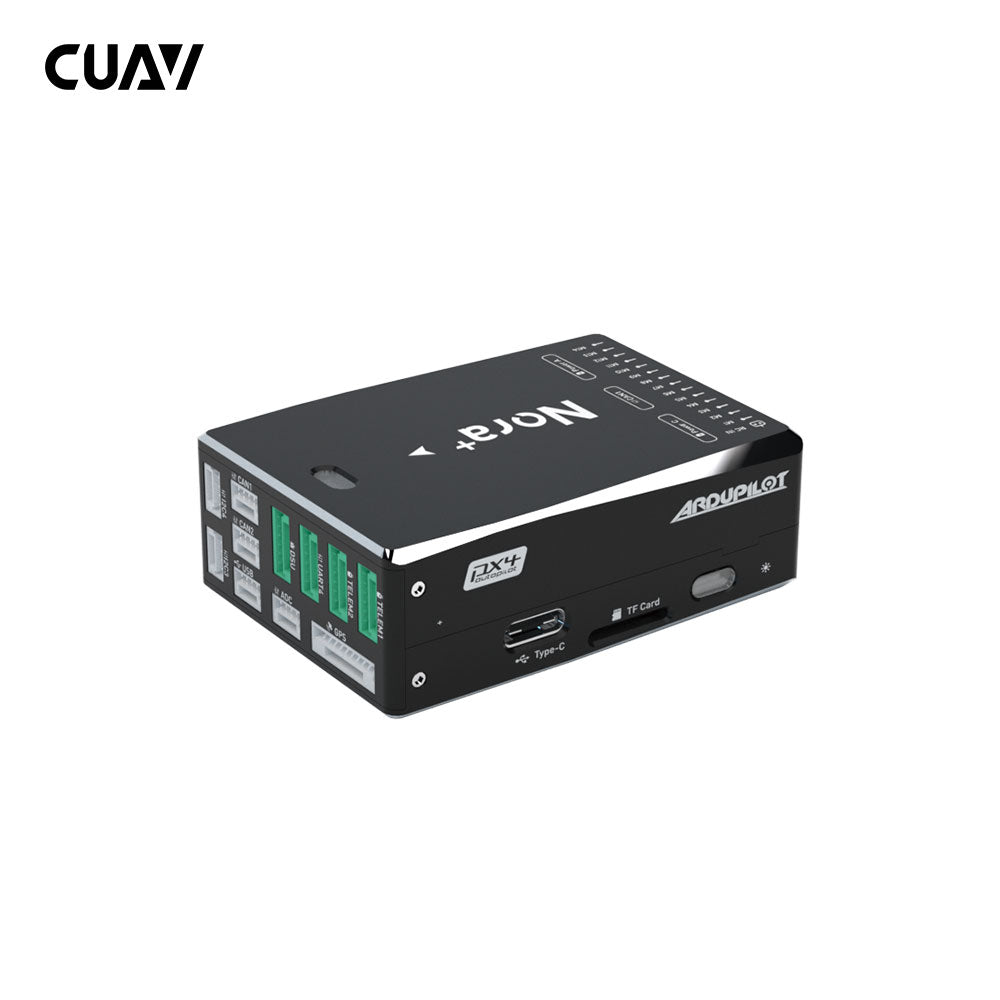

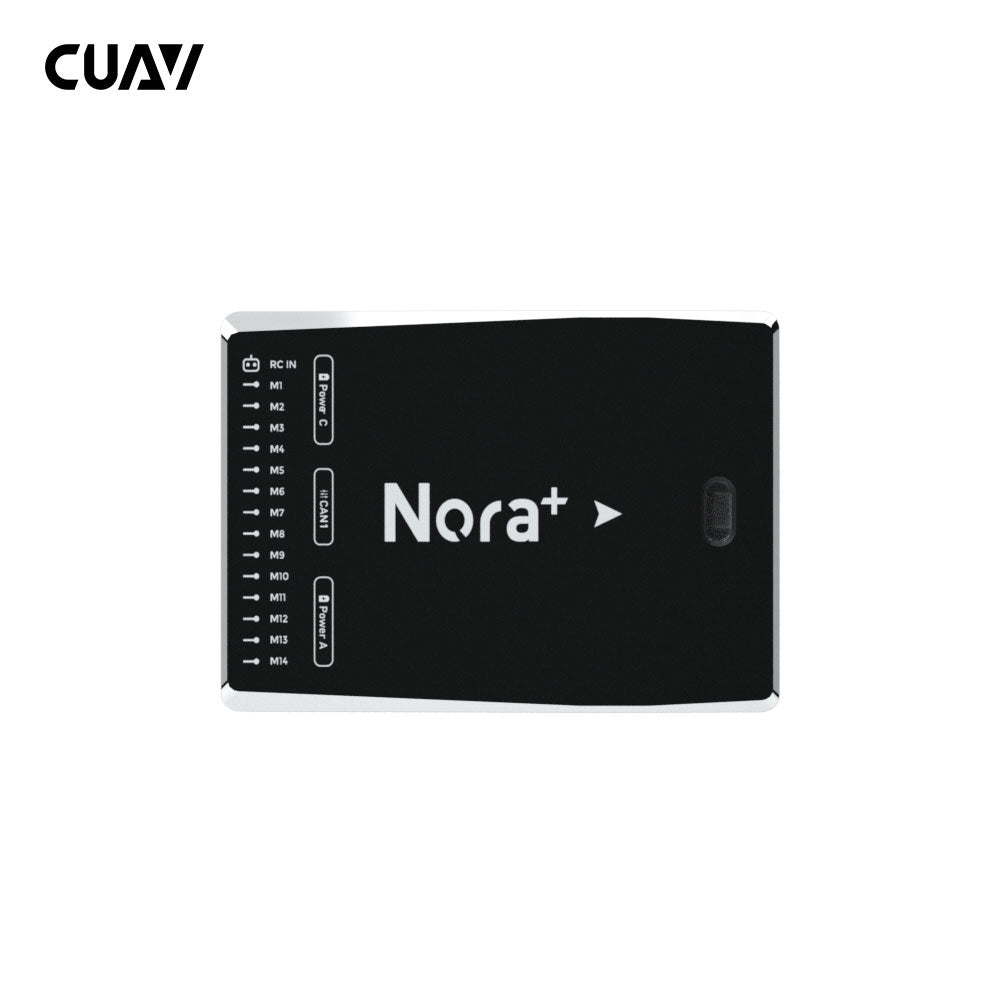

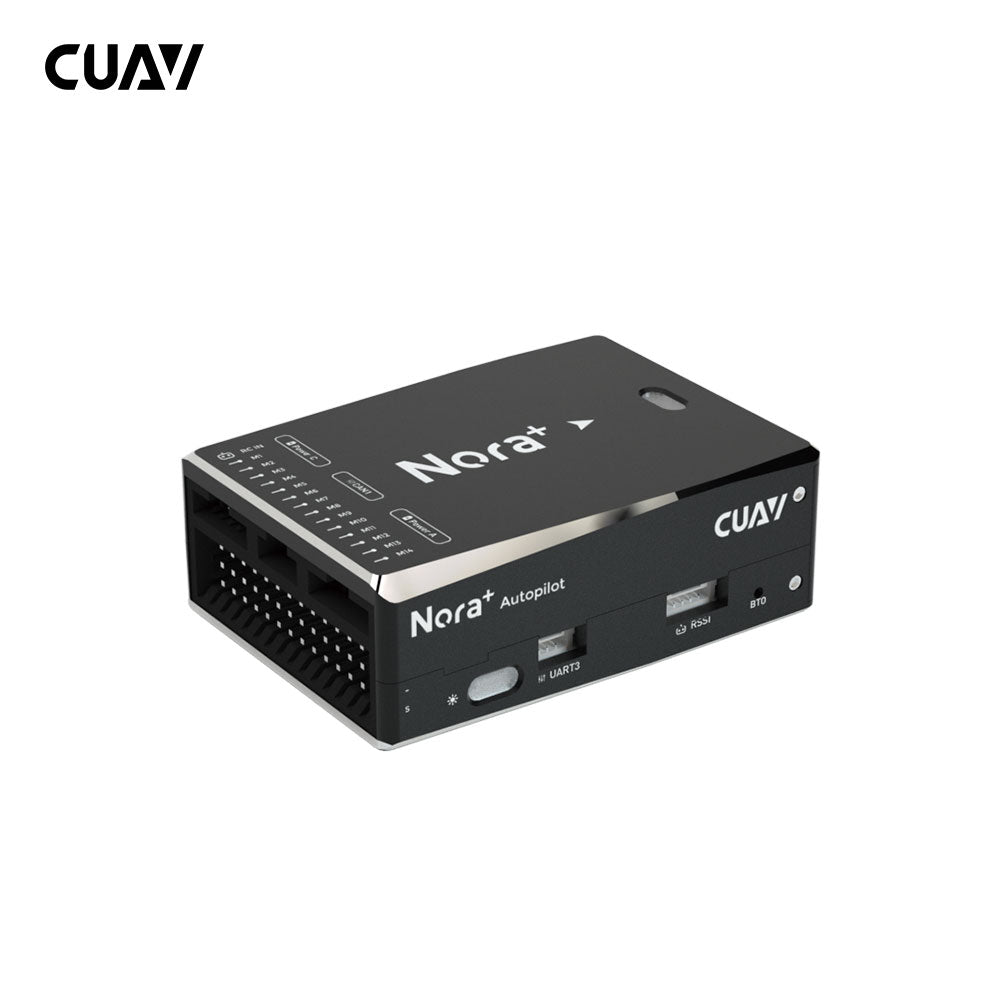

FC CUAV NORA+
Nora® is an advanced controller developed by the independent company CUAV®. It uses a more powerful STM32H7 processor and combines industrial sensors with ultra-low temperature drift. Compared to previous autopilots, it offers better performance and higher reliability. Nora is ideal for academic research and commercial systems integration.
Features:
- High performance driver
- Triple redundancy of inertial navigation
- Industrial grade compass
- Temperature compensation increases sensor accuracy
- Built-in damping system
- Compact design
- Extended operating conditions
Specifications:
- Manufacturer: CUAV
- Main driver: STM32H743
- Operating frequency: 480 MHz
- Firmware memory: 2 MB
- RAM: 1 MB
- Stabilization: ICM-42688-P + ICM-20689 x 2
- Compass: RM3100
- Barometer: MS5611 x 2
- Expansion ports: UART x5; I2C x6; CAN x2; ADC; SPI; RSSI (PWM/0-3.3V)
- PWM outputs: 14 (1-12 with DSHOT)
- Receiver input: 1 (PPM/DSM/S.BUS)
- Power inputs: 2
- Start fuse: yes (in GPS&SAFETY port)
- Buzzer support: yes (in GPS&SAFETY port)
- Debug: yes (UART7)
- JTAG: yes
- USB: Type-C x2
- Flight controller power supply: 4.5 - 5.5 V
- Servo voltage: 0-36 V
- Supported device types: aircraft, helicopter, VTOL, rover and more
- Main firmware: Ardupilot v4.10+/PX4 v1.12.3+

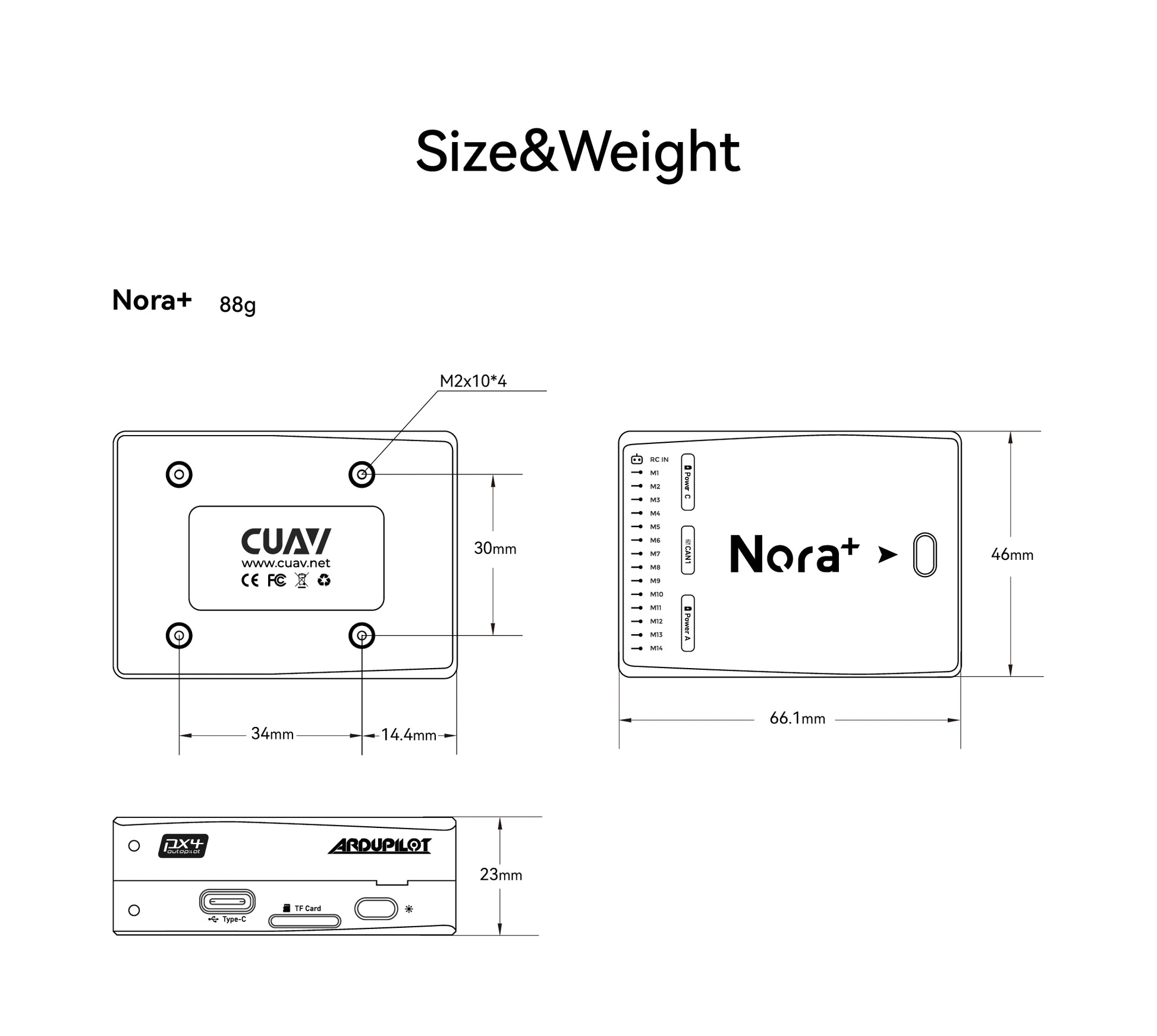

- Dimensions: 46x64x22 mm
- Weight: 90 g

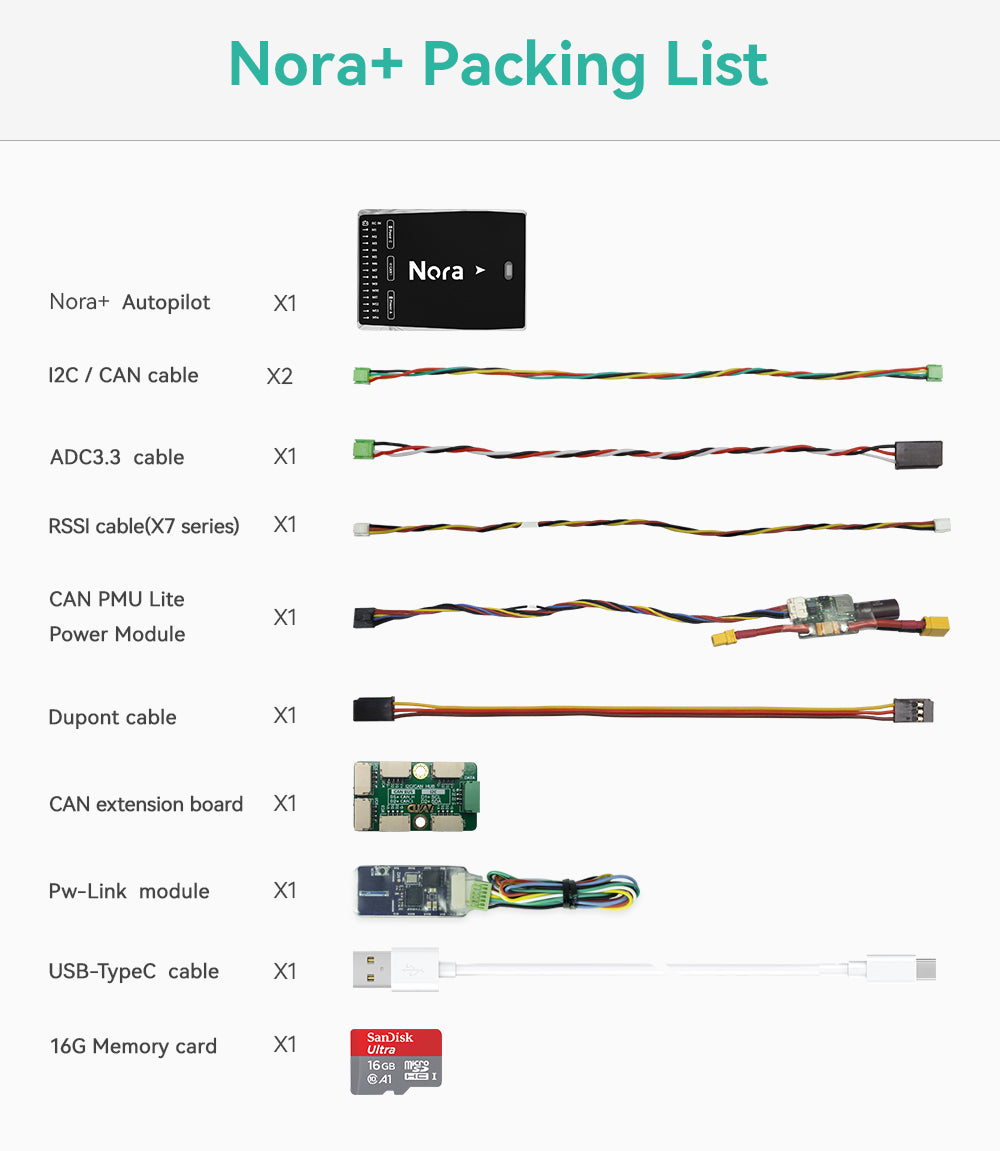

The package contains:
- Flight controller with memory card - 1 pc
- USB Type-C cable – 1 pc
- Accessory set (CAN/I2C distribution board + cable) – 1 pc
- Accessory set (PW-Link board + cable) – 1 pc
- PMU SE power module with cable - 1 pc
- Cable set (I2C/CAN, ADC (with Futaba connector), RSSI) – 1 set.
