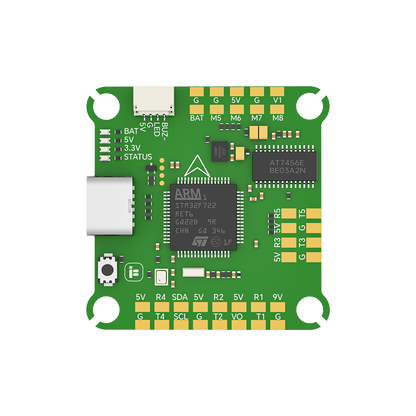

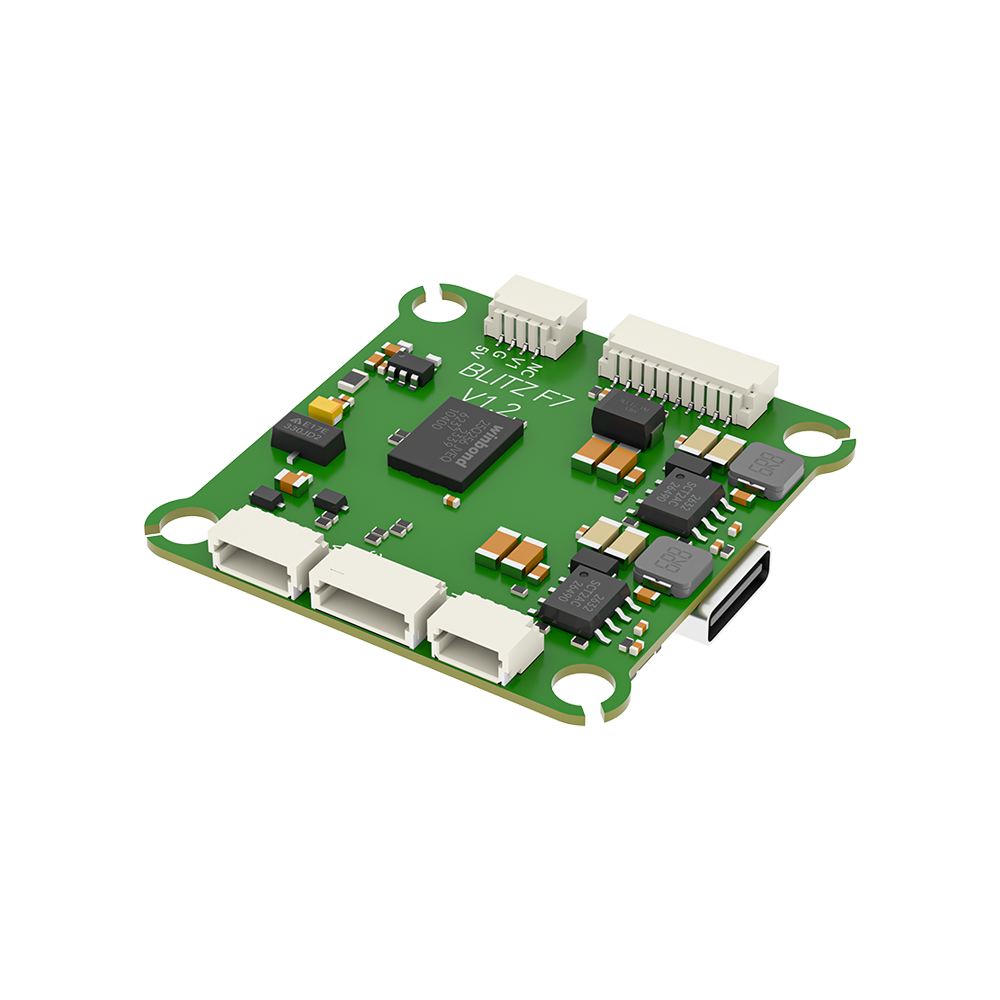

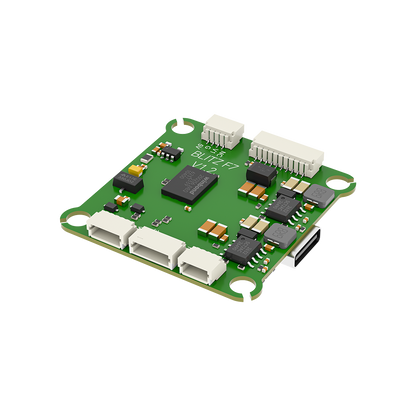

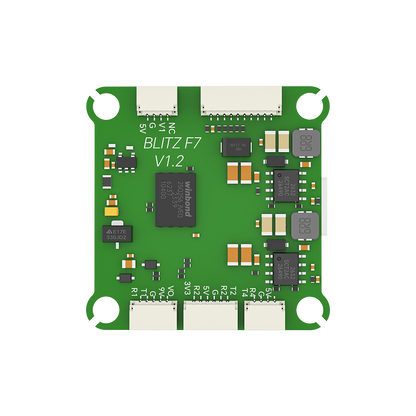

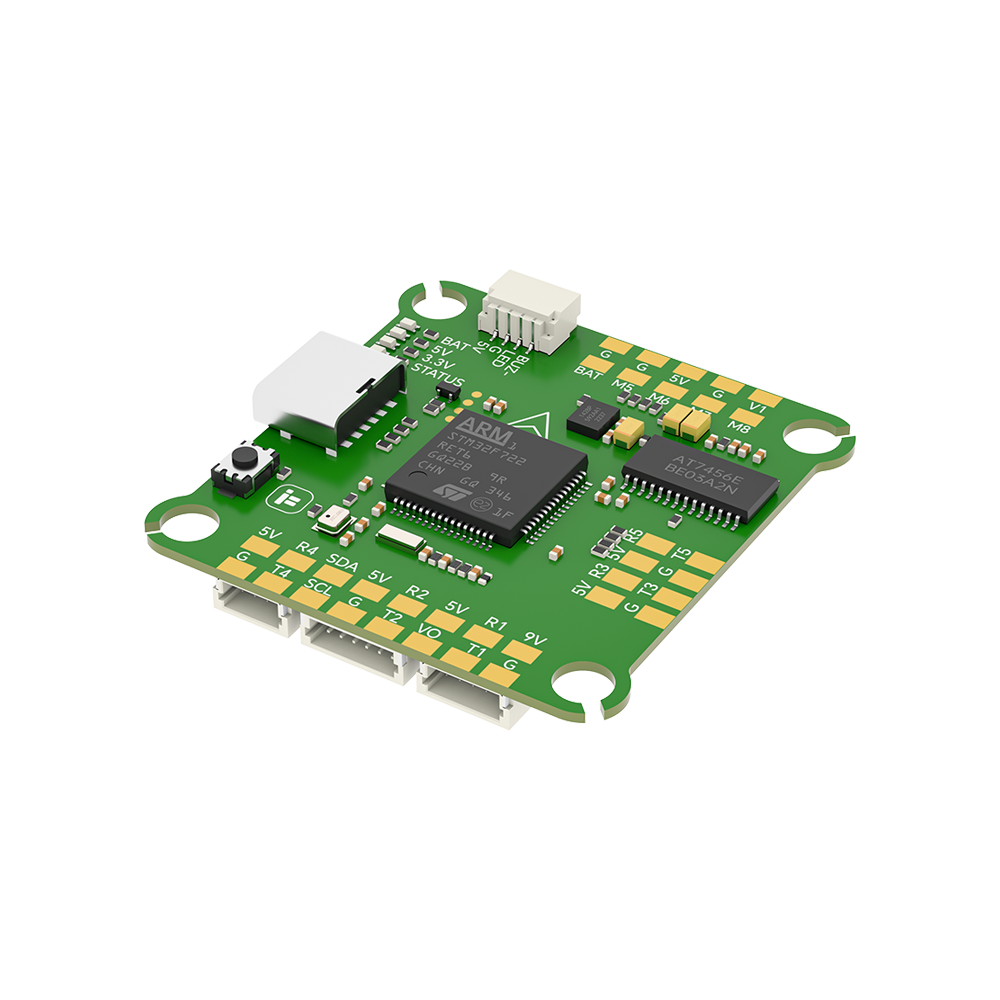

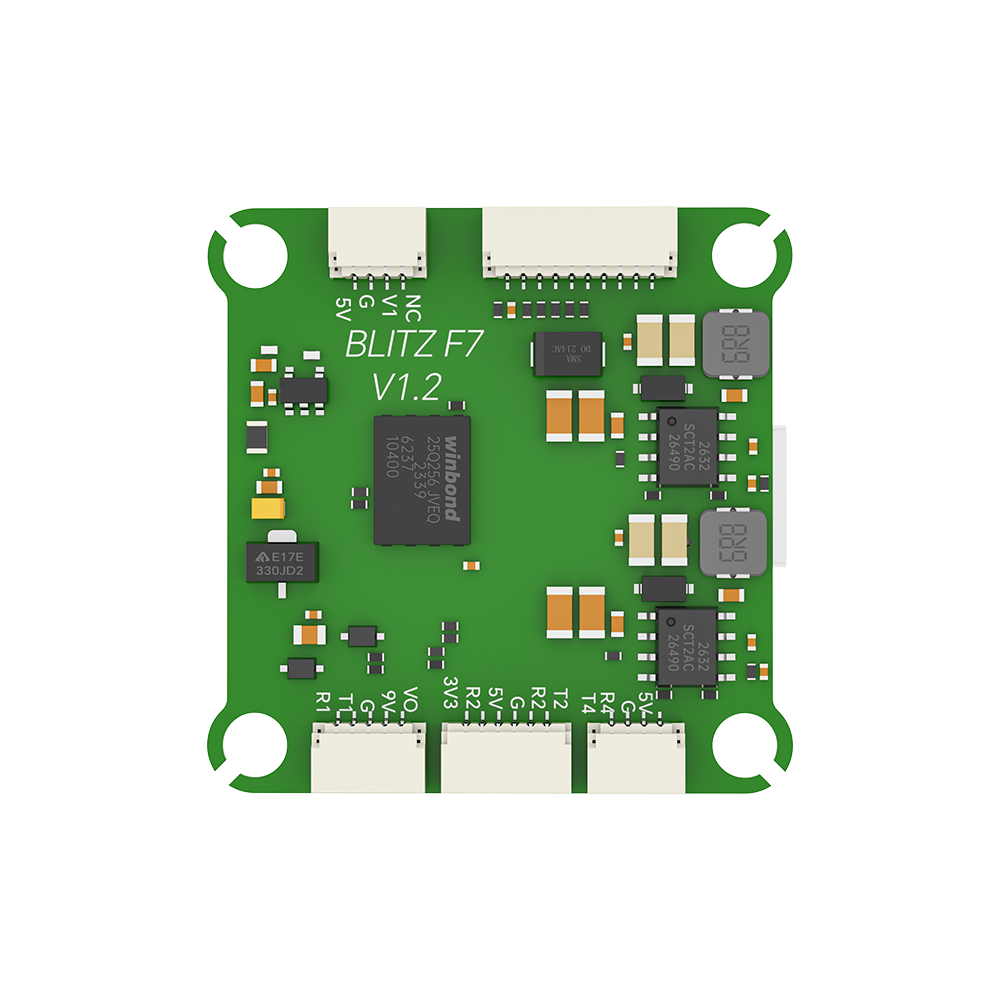

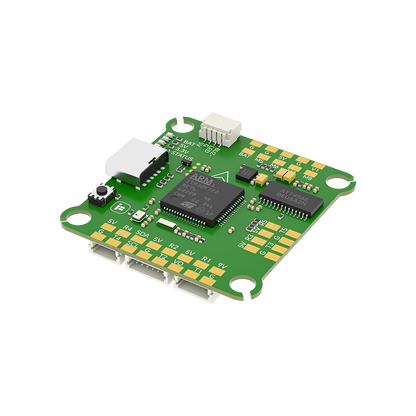

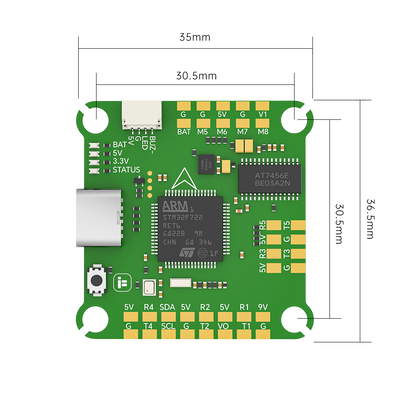

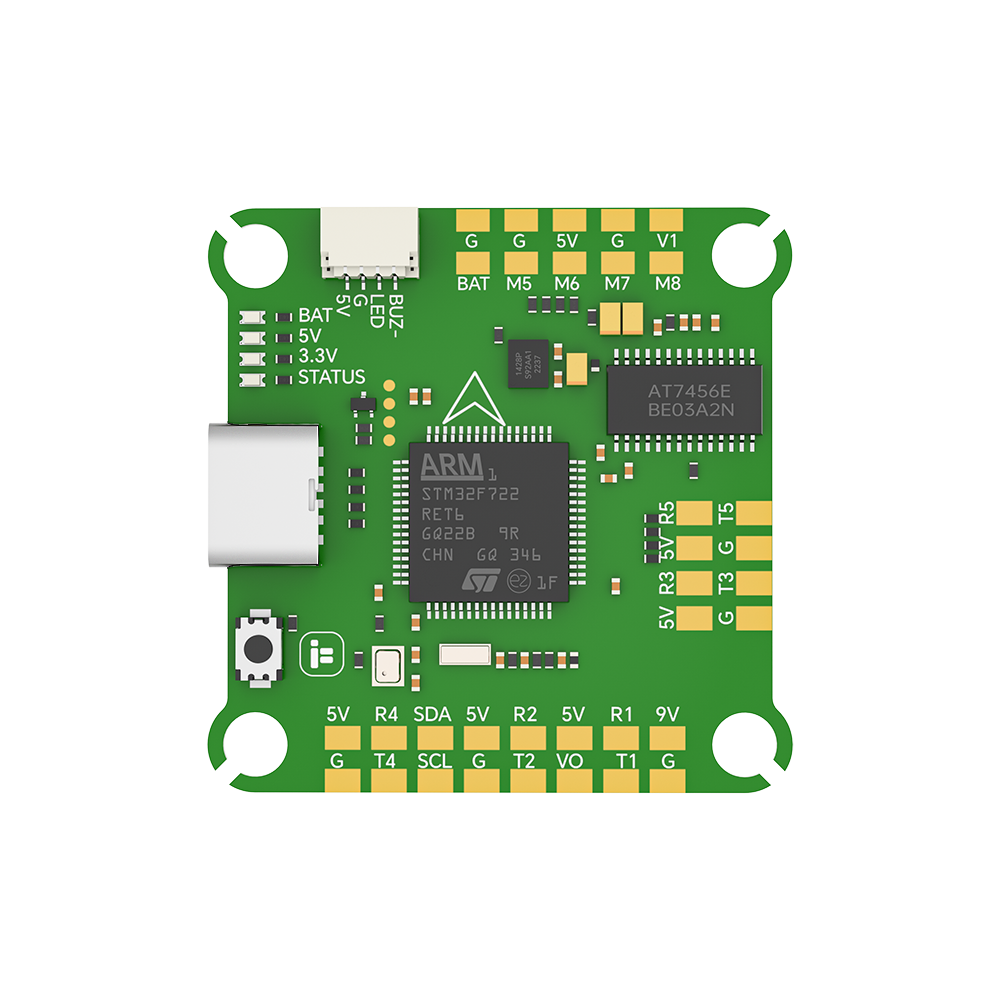

BLITZ F7 V1.2 Flight controller ICM42688 The iFlight BLITZ F7 V1.2 flight controller now has a new gyroscope, improved circuit design, better components and lower noise level. Function: - (January 2024) Version updated to V1.2 / Gyro changed to ICM42688. - Improved circuit design, better components and lower electrical noise! - DJI HD VTX connector (Plug-and-Play / no soldering required) - FC indicator LED for visual tuning - With LC filter Specifications: Mounting pattern: 30.5 * 30.5mm / 4mm PCB hole diameter Model: BLITZ F722 V1.2 FLIGHT CONTROLLER Tramp VTX SmartAudio / IRC protocol supported Target firmware: IFRC-IFLIGHT_BLITZ_F722 Motor outputs: 4x (SH1.0 connector) Flash: 32 MB (Blackbox flash) I2C serial: SDA / SLA pads Dimensions: 36.5*35 mm OSD chip: AT7456E Barometer: DPS310 MCU: STM32 F722 LED driver: Yes Buzzer: Yes Gyroscope: ICM42688 Weight: 7.8g UARTS: 6 BEC: 5V 2.5A / 9V 2A Wiring design: UART 1 for VTX HD / Analog UART 2 for receiver UART 3/4/5 for GPS or other sensors that require a serial port UART 6 for ESC Telemet The package contains 1 x BLITZ F7 V1.2 Flight Controller 1 x set of FC connectors 1x silicone grommets
