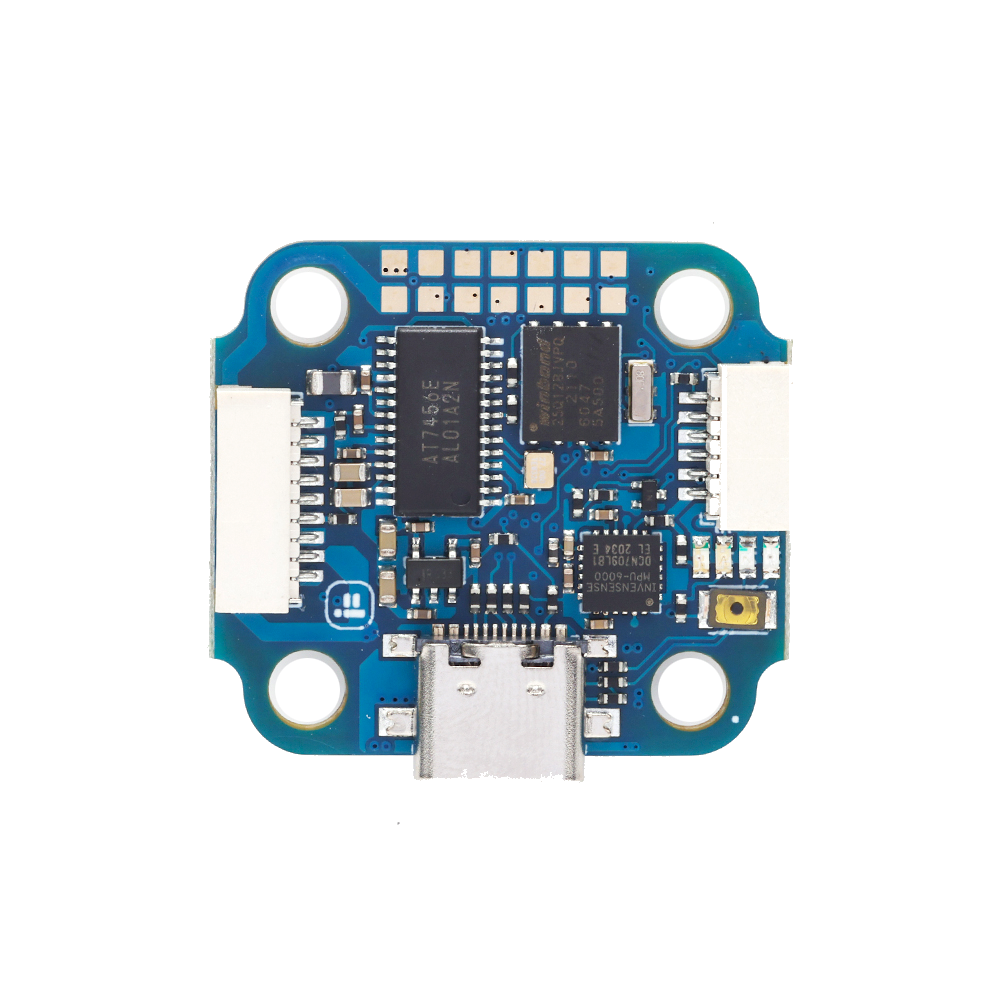

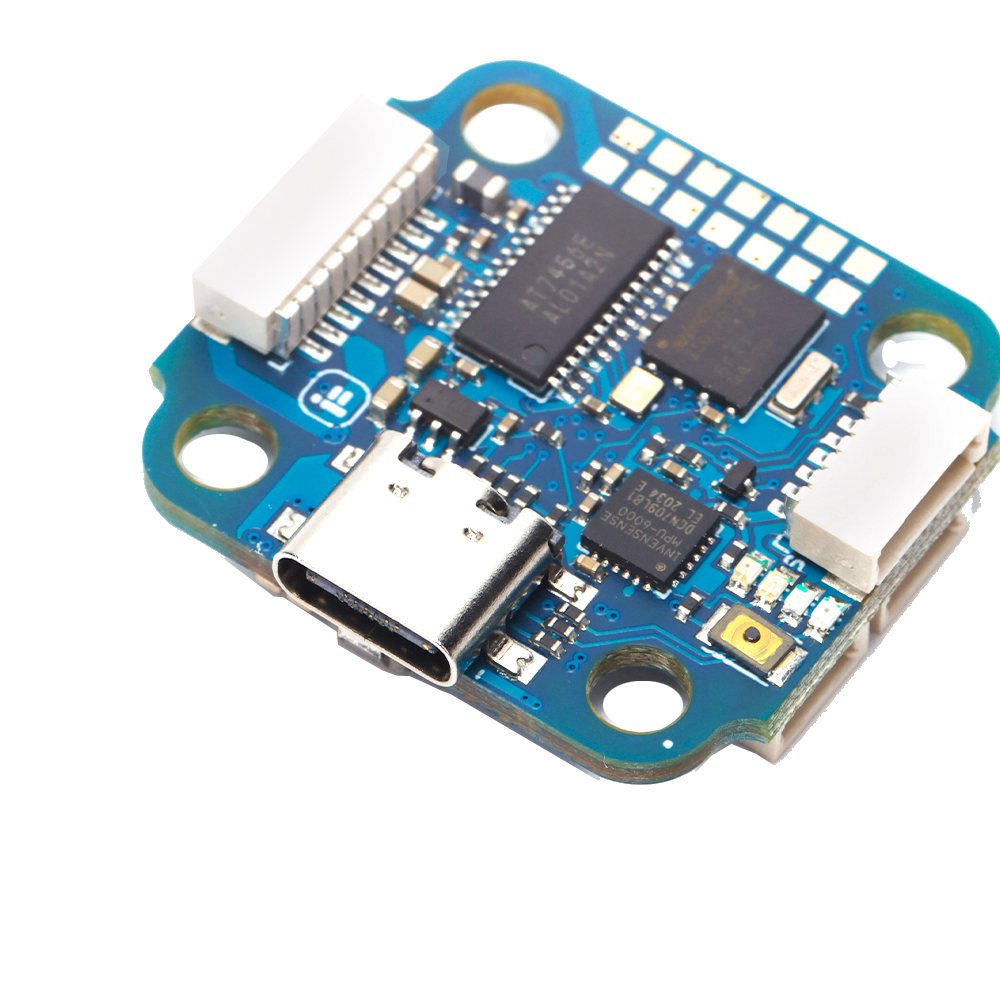

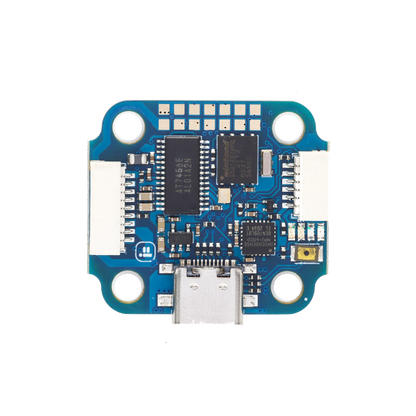

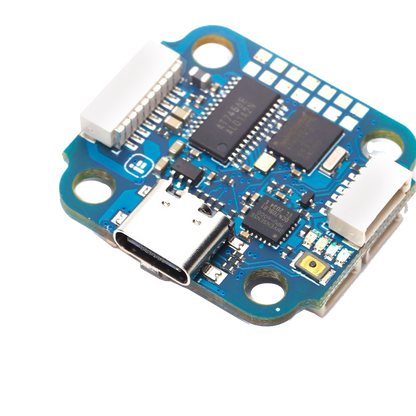

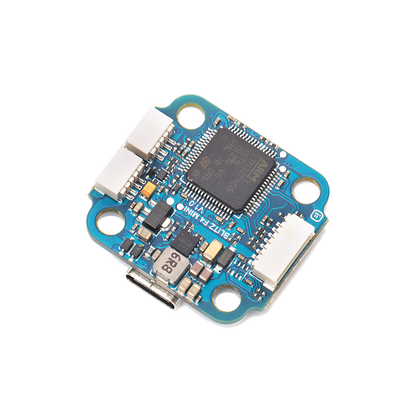

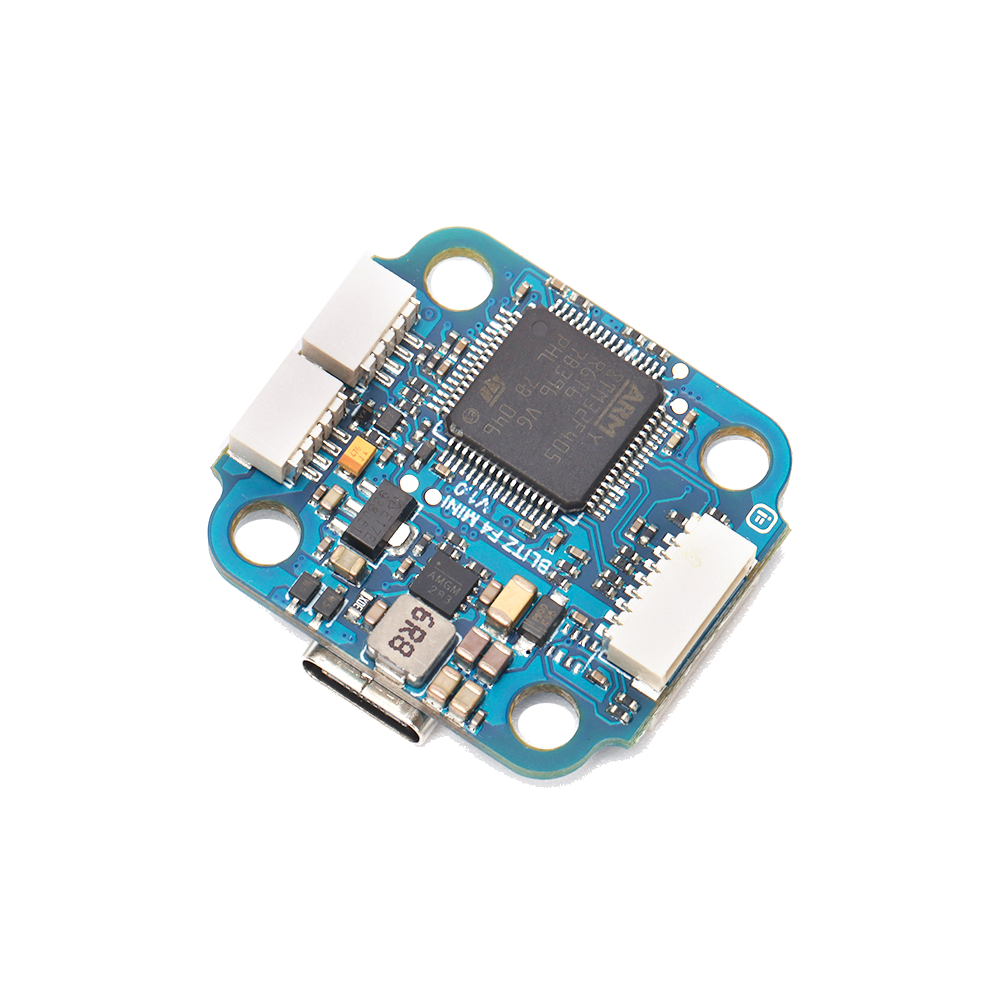

FC iFlight BLITZ Mini F4
FC iFlight BLITZ Mini F4
Brand: iFlight
Regular price
€65,22
Regular price
€65,21
Sale price
€65,22
Unit price
/
per
Taxes included.
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Payment methods
- Description
- Related Files
- Discussion
BLITZ Mini F4 Flight Controller Function: - Improved circuit design, better components and lower electrical noise! - DJI HD VTX connector (Plug-and-Play / no soldering required) - FC indicator LED for visual tuning Specifications: MCU: STM32F405 Gyro: MPU 6000 Baro: NO Betaflight OSD: IFLIGHT OSD (AT7456E) Blackbox: 16 MB UARTS: 6 I2C serial: SDA / SLA pads Smartaudio / IRC Tramp VTX protocol supported LED driver: Yes Buzzer: Yes Target firmware: IFRC-IFLIGHT_BLITZ_F405 Mounting: 20*20mm/φ4 Dimensions: 30.5*27mm Weight: 5.0g Wiring design: UART 1 for VTX HD / Analog UART 2 for receiver UART 3/4 for GPS or other sensors that require a serial port UART 6 for ESC telemetry The package contains 1 x BLITZ Mini F4 Flight Controller 1x FC connectors 1x silicone grommets
