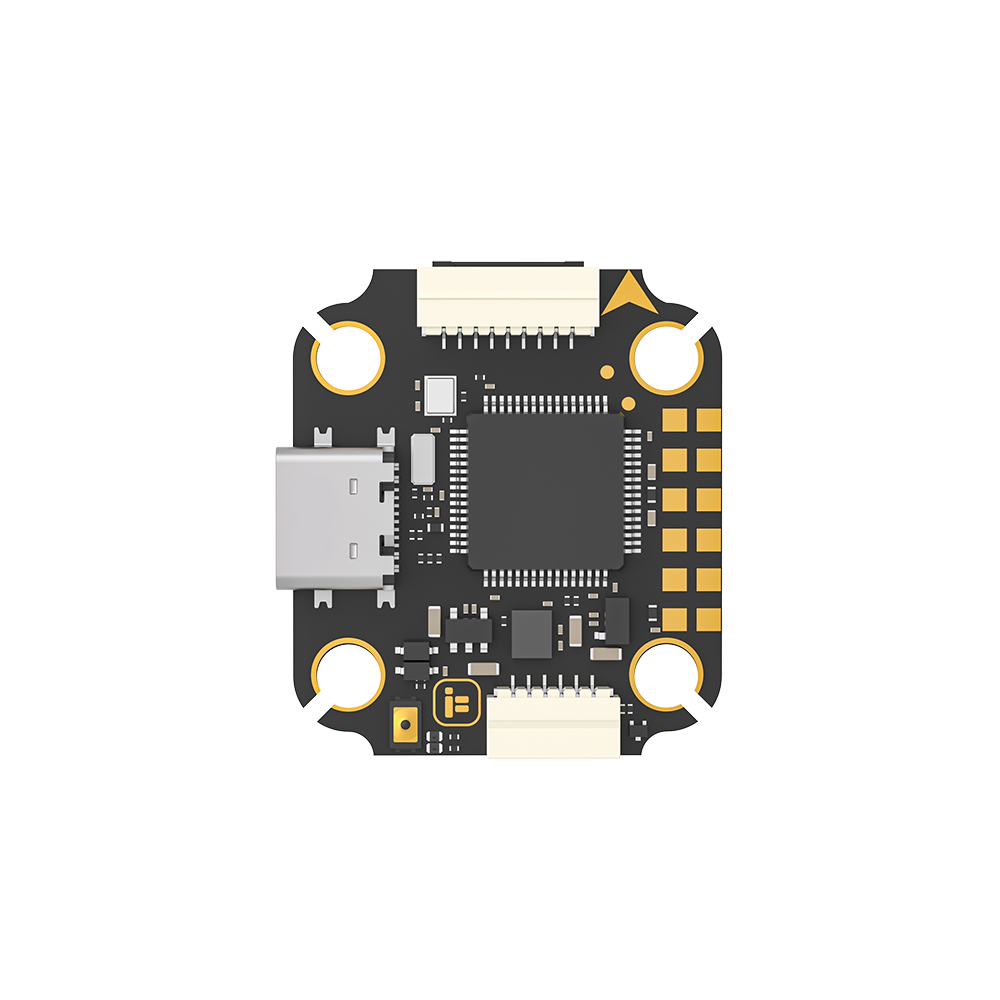

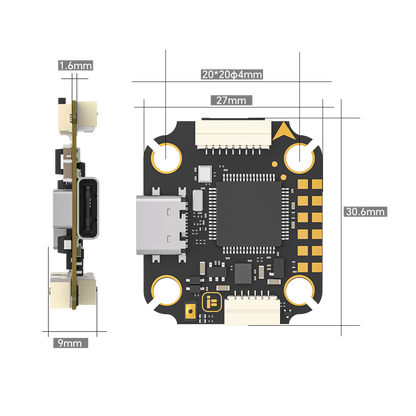

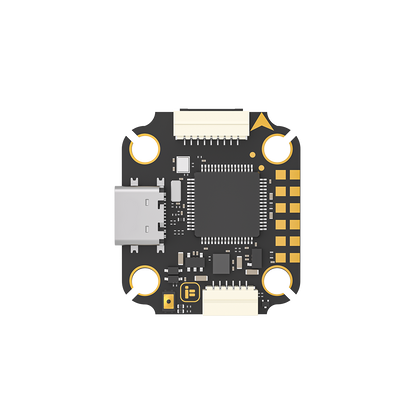

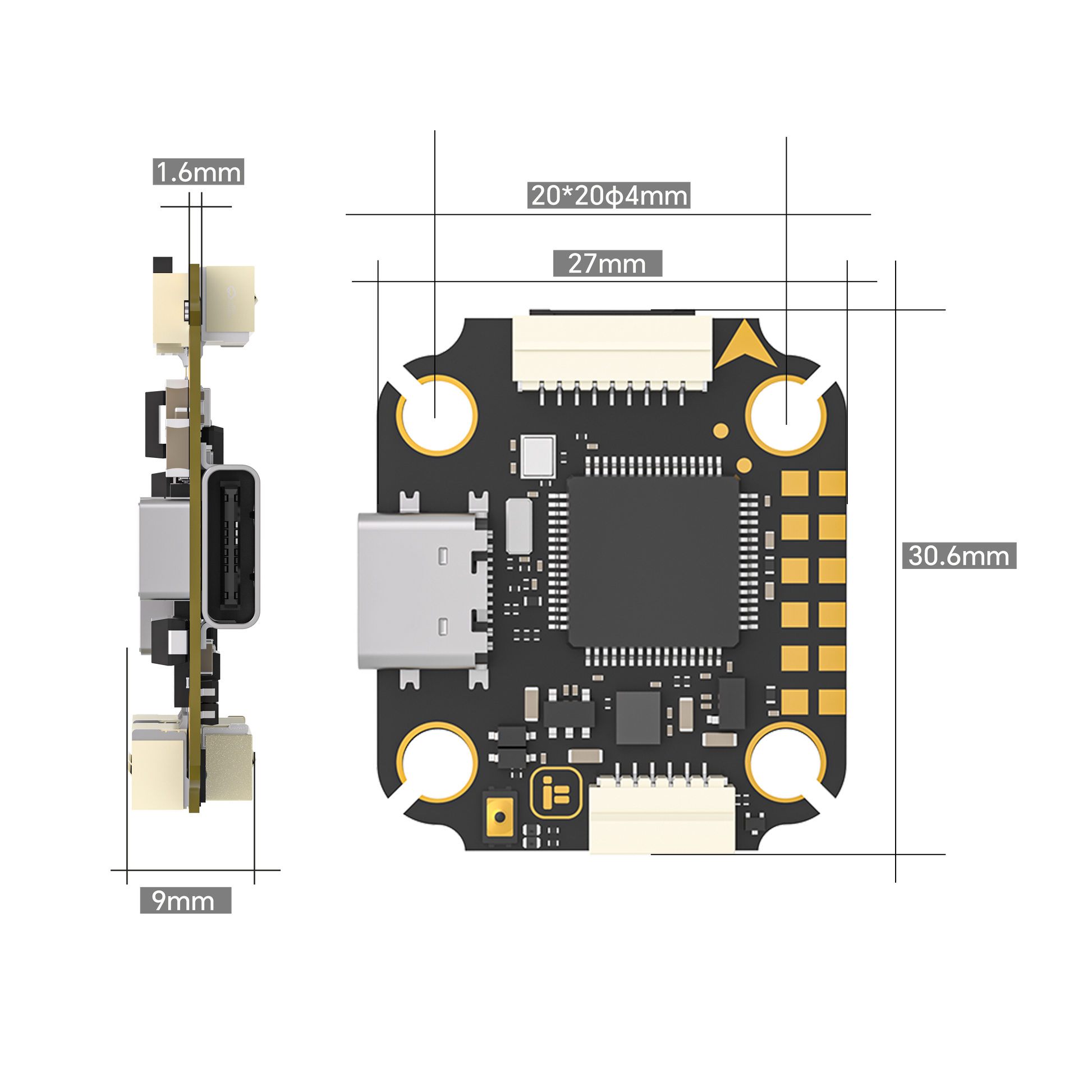

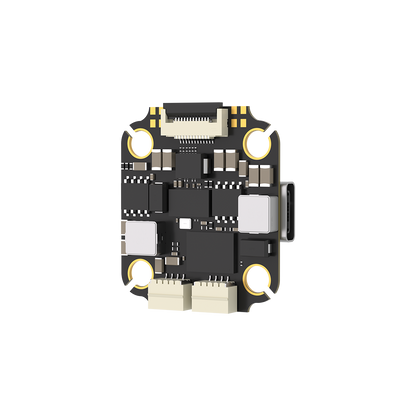

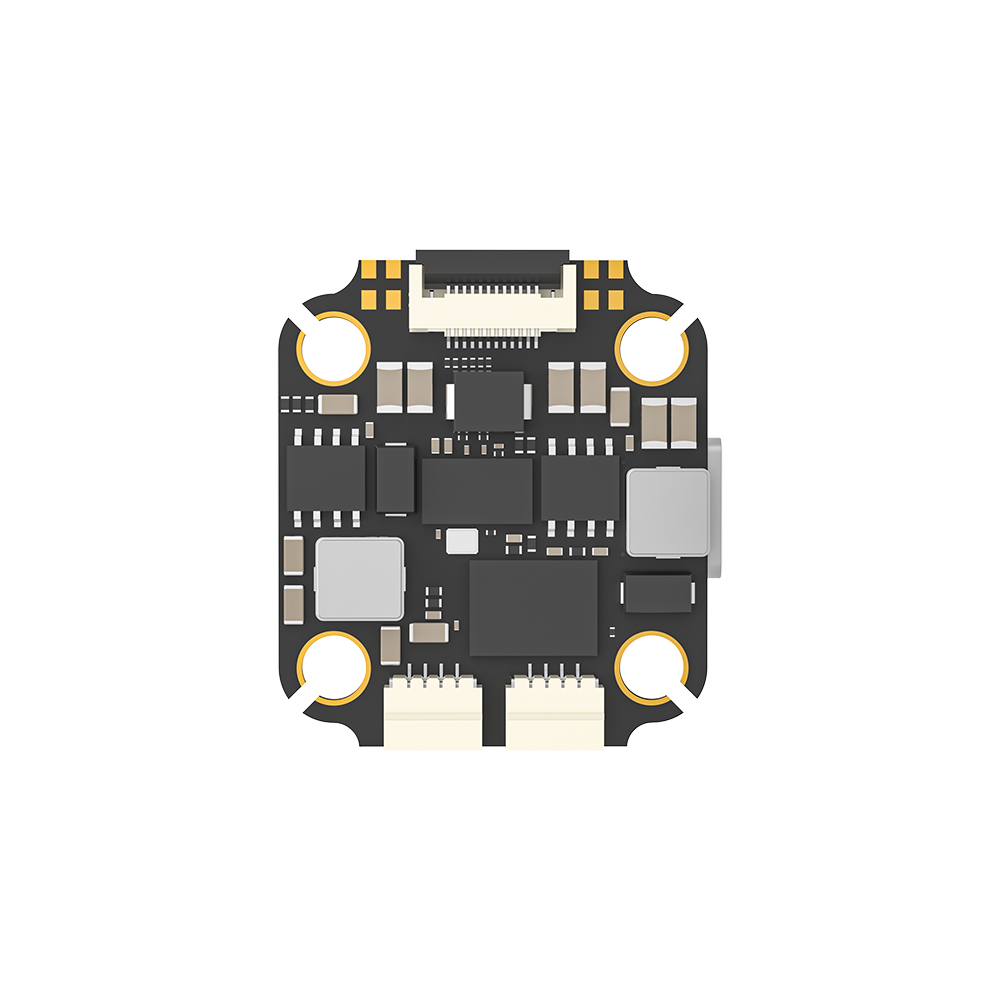

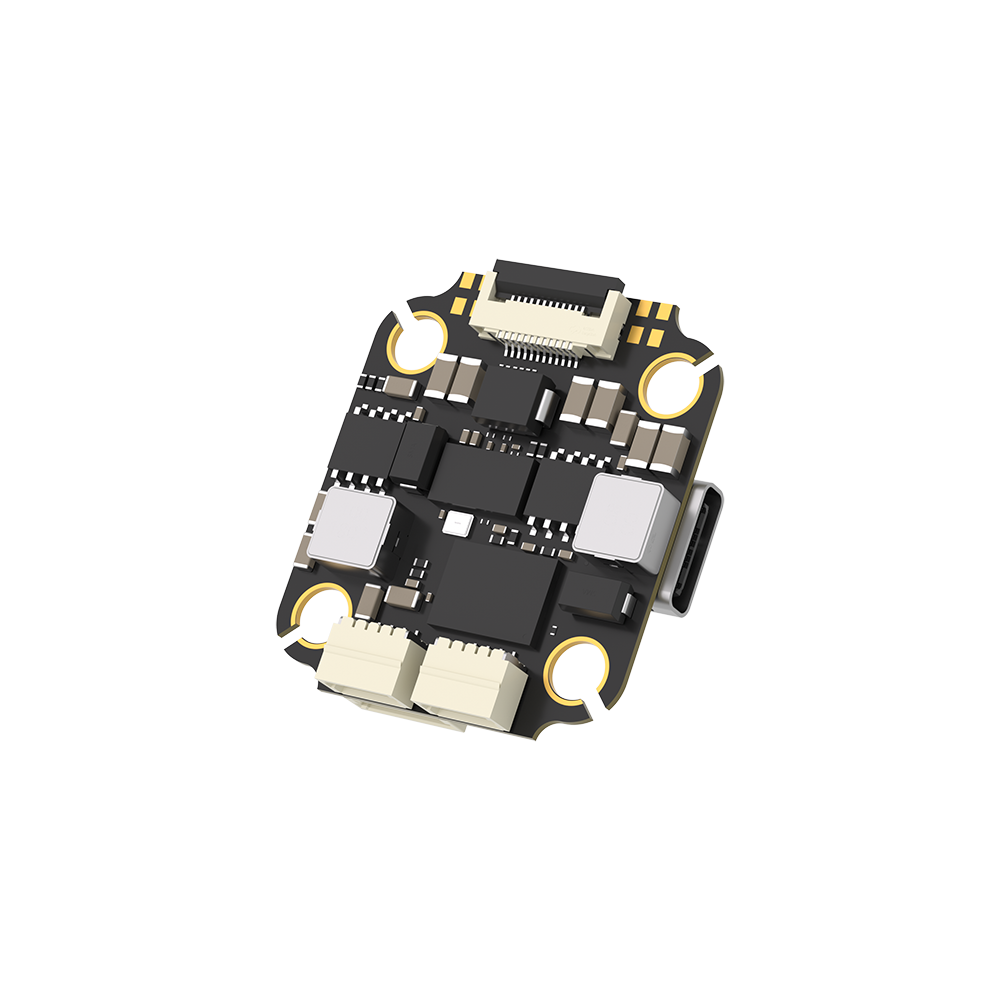

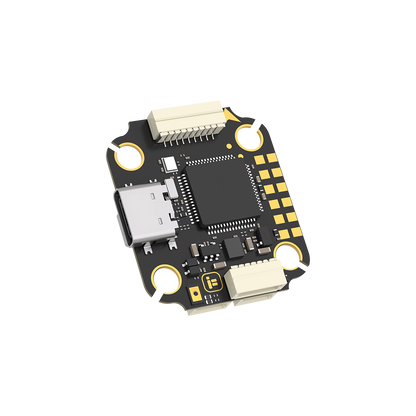

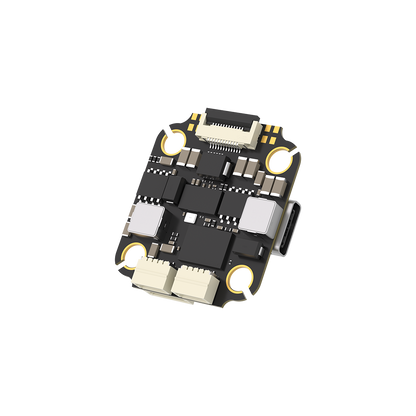

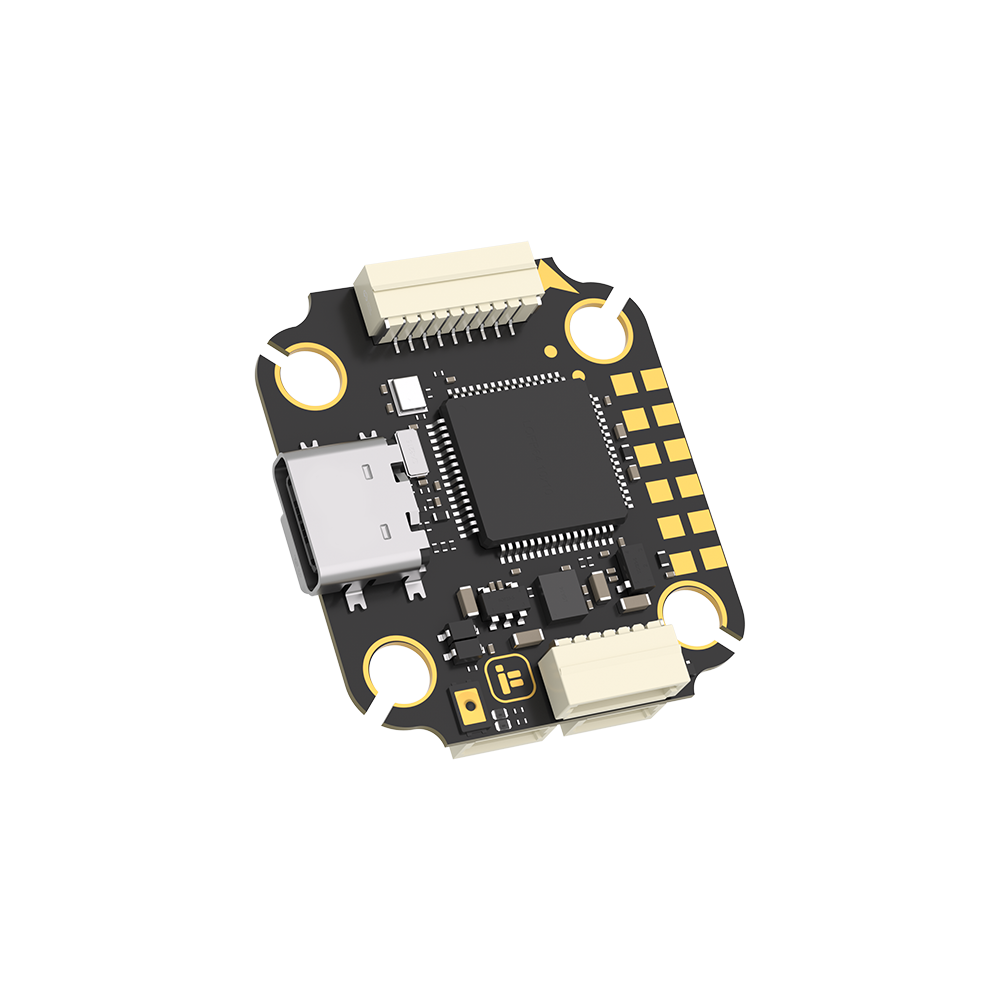

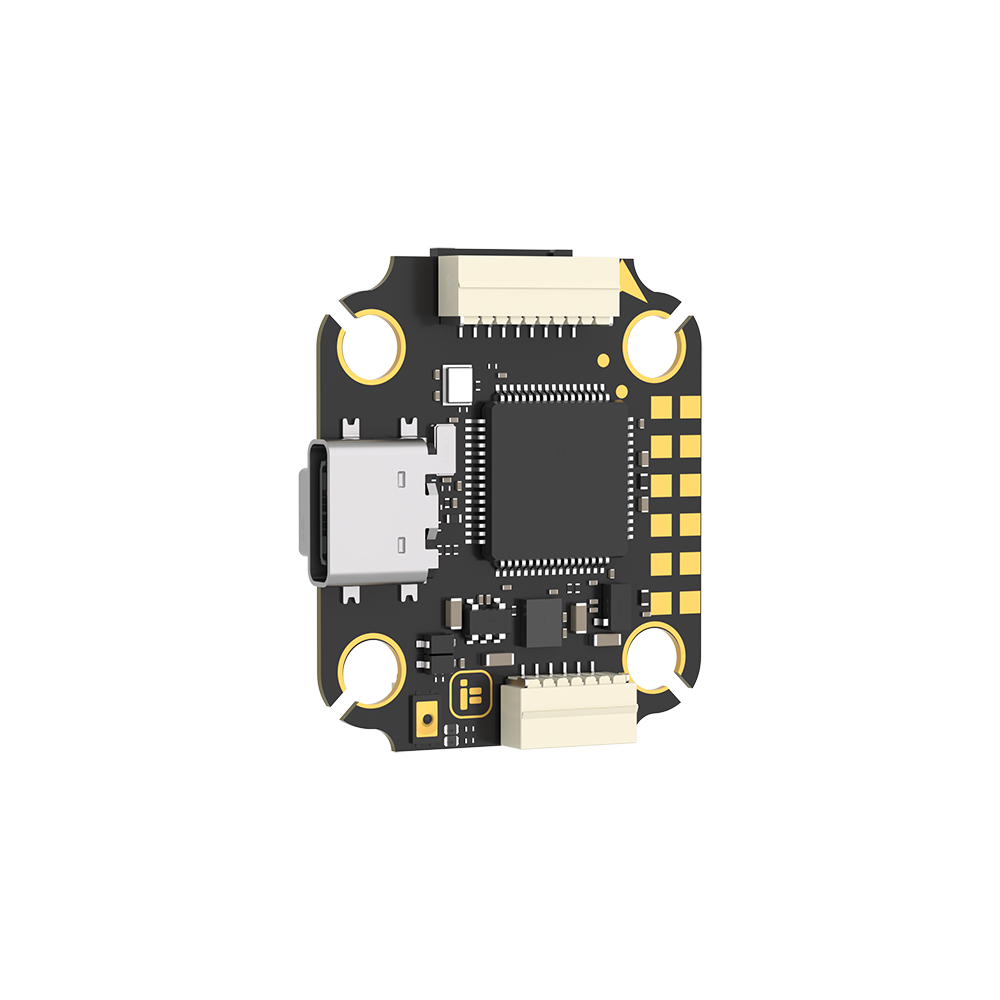

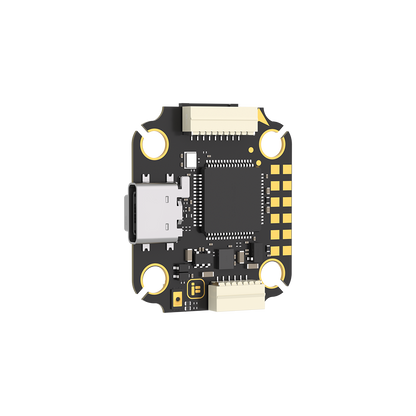

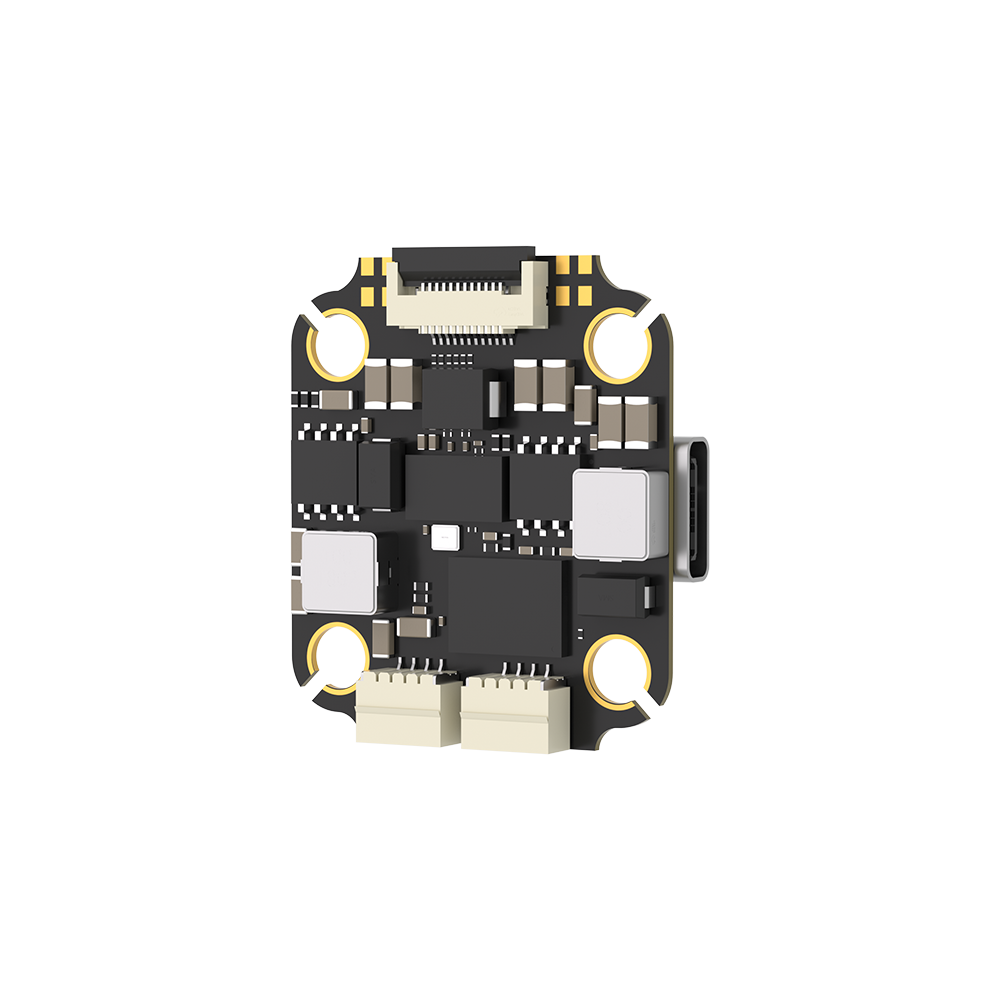

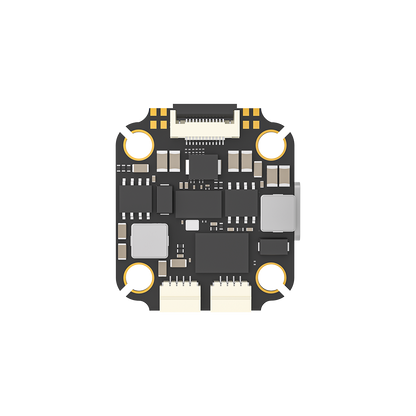

Control unit iFlight Borg F7 Mini The iFlight Borg F7 Mini is a powerful controller designed for racing FPV. Thanks to the powerful STM32F722 processor and ICM42688 gyroscope, it provides sensitive control and accurate flight data. Designed for 4S to 8S LiPo batteries, it includes a 12V BEC with remote VTX switching for stable power supply of video systems. The compact 20x20mm mounting pitch and SH1.0 connectors make installation easy, while the 32MB built-in flash memory enables extensive blackbox recordings. Ideal for racers and freestyle pilots alike, the Borg F7 Mini delivers performance, durability and advanced connectivity in a small package. Specifications: Input voltage: 4-8S; LiHV support MCU: STM32F722RET6 Gyro: ICM42688 Barometer: SPA06-003 OSD chip: AT7456E (LGA) Flash: 32 MB (Blackbox flash) UARTs: 6 Engine outputs: 4 I2C: supported VTX protocol: DJI MSP/Smartaudio/IRCTramp/HDZero LED driver: Yes Beeper pad: Yes Betaflight firmware: IFLIGHT_BLITZ_F722 iNAV firmware: IFLIGHT_BLITZ_F722 Mounting pattern: 20×20 mm, φ4 mm Dimensions: 27×30.6 mm ±1 Weight: 6.8g ±1 BEC: 5V 2.5A, 12V 2A (12V with VTX switch) Package Contents: 1 x Borg F7 Mini Flight Controller 1 x Wiring Kit 5 x silicone grommets
