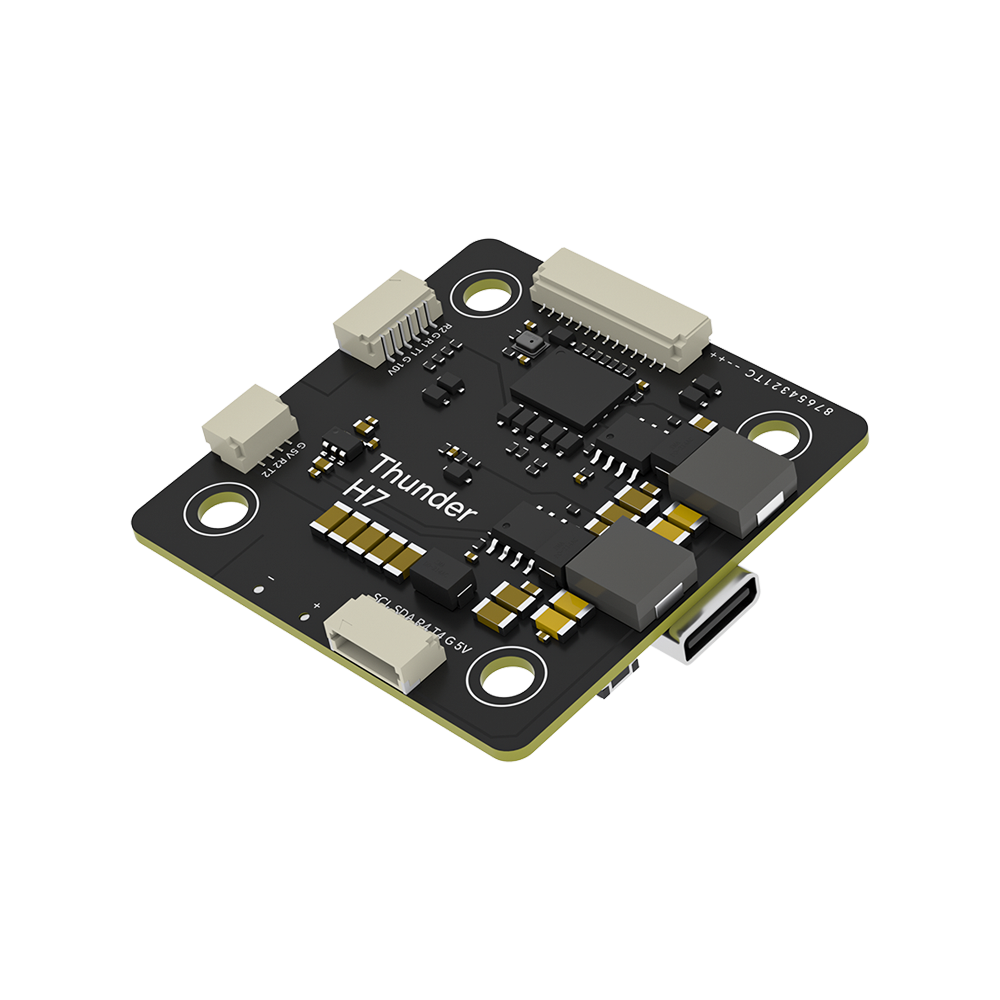

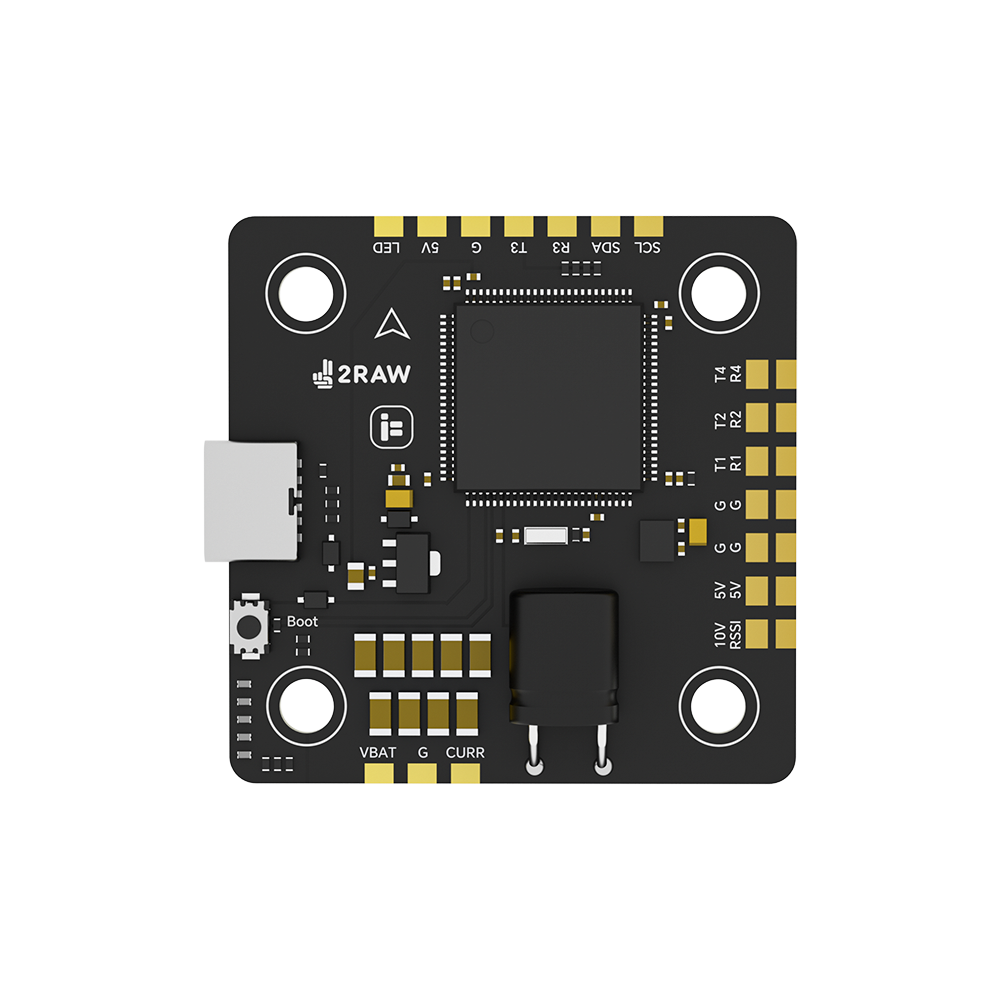

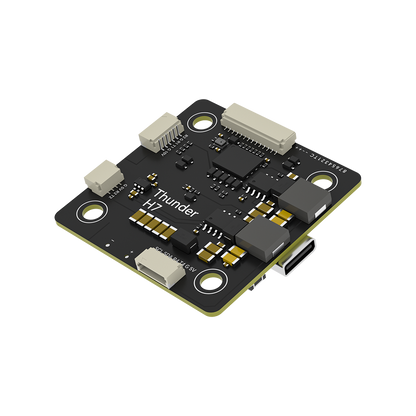

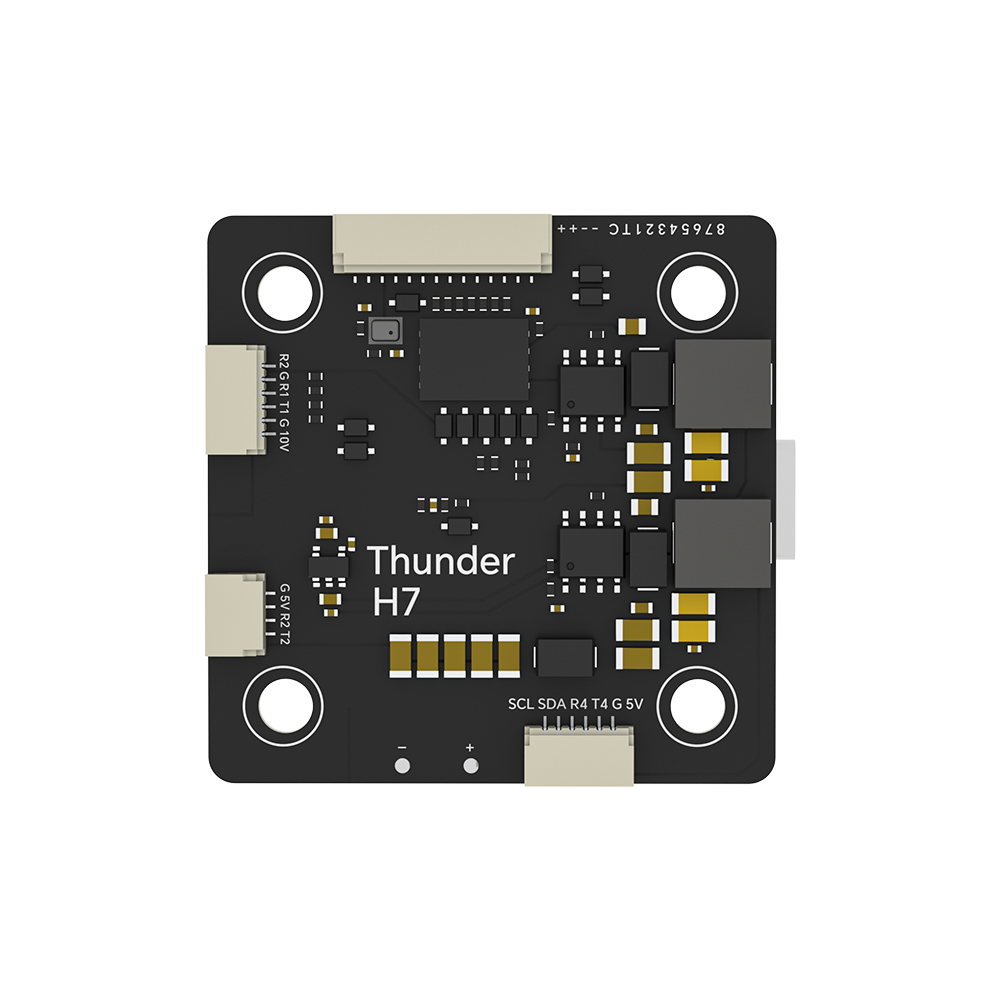

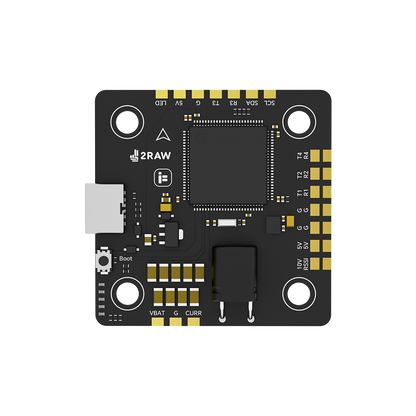

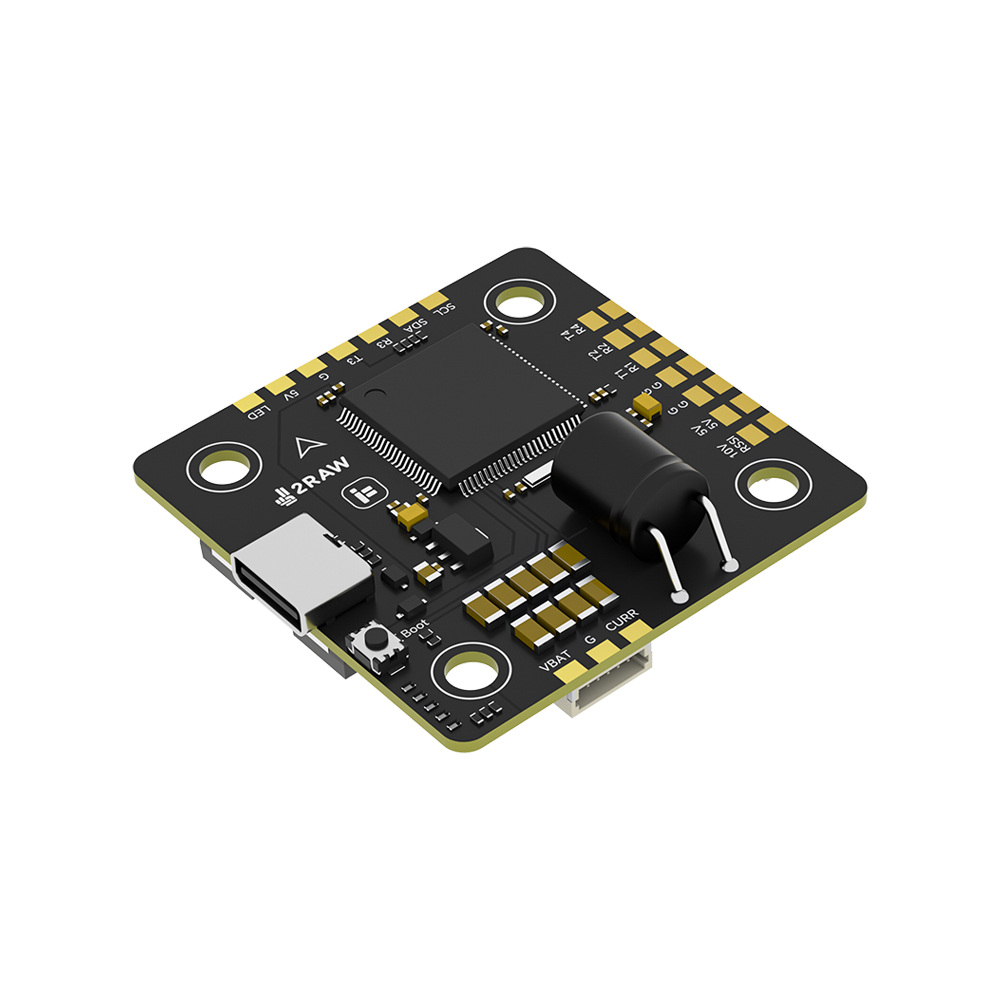

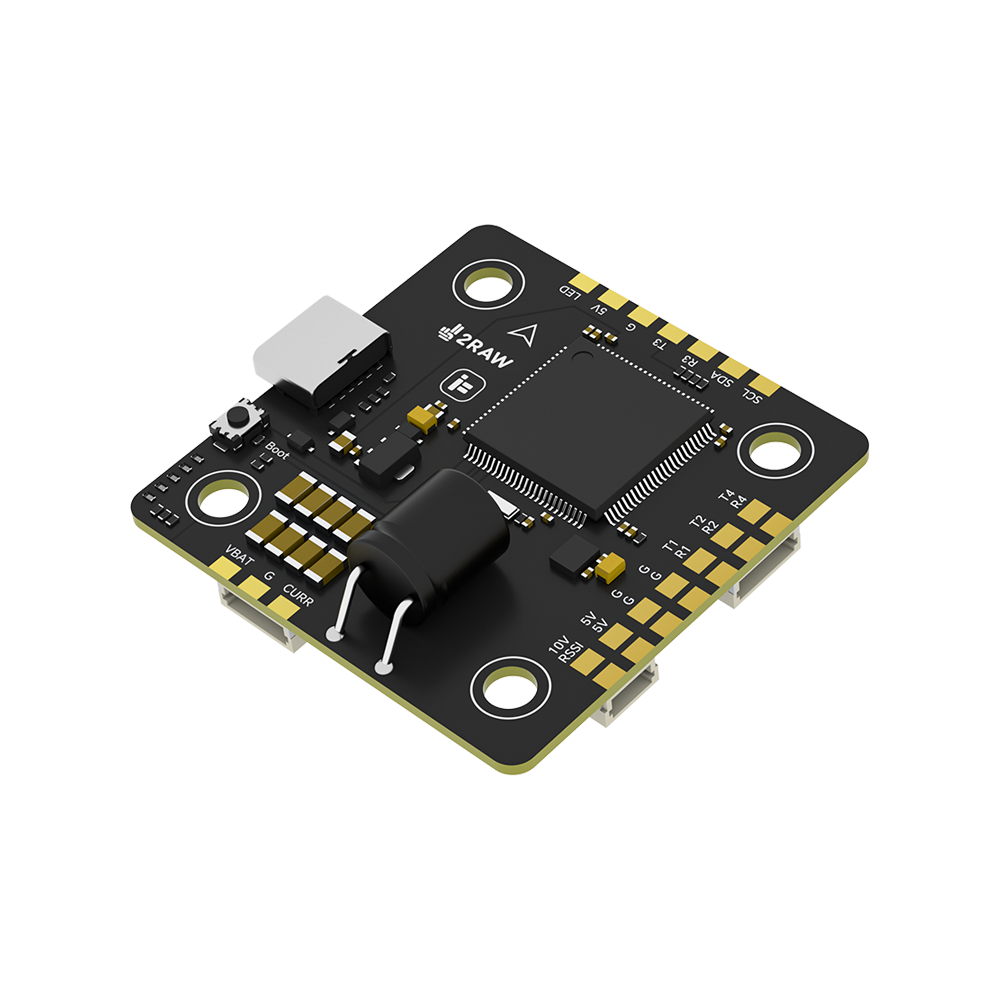

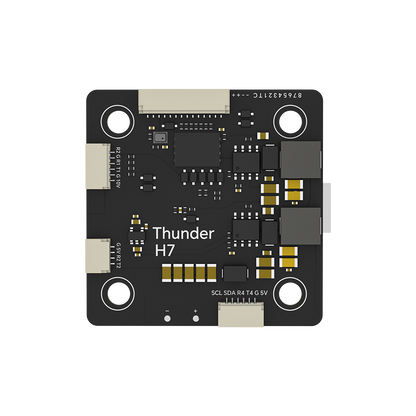

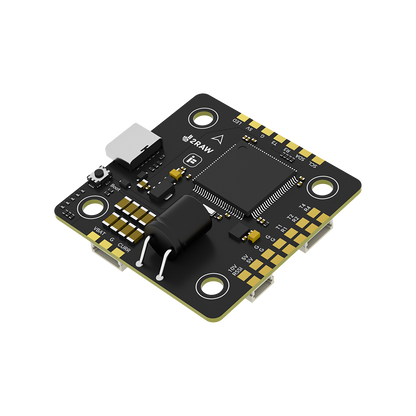

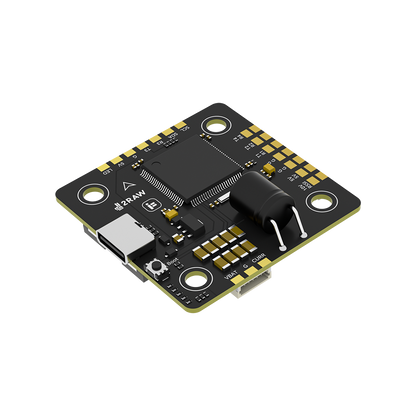

Control unit iFlight Thunder H7 The iFlight Thunder H7 is a next generation controller designed for advanced pilots and high voltage applications. As the first FC designed for direct 12S input, it provides exceptional performance handling without compromising reliability or durability. Equipped with a fast STM32H743 processor and an ICM42688P gyroscope, it provides ultra-precise control and fast response even in demanding 8-motor setups. The modular design supports both plug-and-play and soldered assemblies, while a built-in filter capacitor slot ensures a clean power supply. Ideal for advanced FPV racers and heavy-duty drones, this controller redefines the possibilities in high-end drone systems. Specifications: MCU: STM32H743 Gyro: ICM42688P Barometer: SPL06-001 OSD: Not included Blackbox: 512MB built-in flash UARTs: 6 Motor outputs: 4x SH1.0 connector I2C: SDA/SCL pads LED driver: Yes Beeper pad: Yes BEC output: 5V 1.5A / 10V 1.5A (Burst 2A after 120s) Firmware: Betaflight & iNAV – 2RAW_THUNDER_H7 Mounting: 30.5 × 30.5mm / φ4mm Dimensions: 42 x 42 mm Weight: 14 g Capacitor slot: 63V 100 µF built-in filtering Package Contents: 1 x Thunder H7 Flight Controller 1 × FC connectors as above 1 × Silicone grommets
