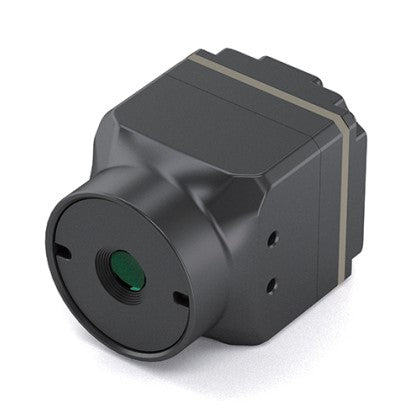

FPV camera CADDXFPV Camera-002 lite

FPV camera CADDXFPV Camera-002 Lite (Eclipse Lite 002) is a high performance imaging camera designed for FPV applications. It is equipped with an uncooled vanadium dioxide detector with a resolution of 256 × 192, which operates in the wavelength range of 8 ~ 14 μm for effective thermal detection. The F1.0 aperture and 4mm focal length provide a 50°(H) × 37.2°(H) × 62.3°(D) field of view, ensuring a wide and clear thermal image. With a frame rate of 50 Hz, the camera provides smooth real-time viewing. It supports PAL video output and works in the supply voltage range of 9V ~ 24V while consuming less than 1.2W of power. Designed for rugged environments, the camera operates effectively in temperatures from -20℃ to 60℃, making it an excellent choice for night vision, search and rescue, and industrial inspection.

Specifications:

Model: Eclipse Lite 002
Detector type: uncooled vanadium dioxide
Resolution: 256×192
Wavelength range: 8~14μm
F.NO: F1.0
Focal length: 4 mm
Field of View (FOV): 50° (H) × 37.2° (H) × 62.3° (D)
Frame rate: 50 Hz
Power consumption: <1.2W
Video interface: PAL
Supply voltage: 9V~24V
Operating temperature: -20℃~60℃

The package contains:
1x FPV camera CADDXFPV Thermal Camera-002 lite
