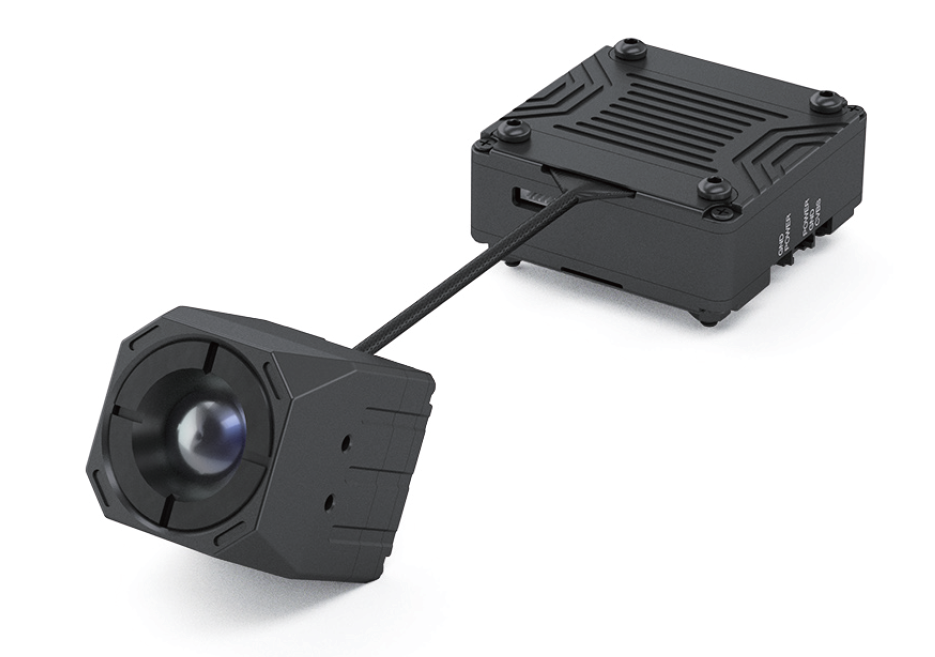

FPV thermal camera CADDXFPV FT483 The CADDXFPV FT483 is a universal thermal camera optimized for FPV drones, inspection drones and mobile surveillance. With an uncooled vanadium oxide sensor with a resolution of 400 x 300 and a 9.1mm F1.0 lens, it provides a sharp thermal image for real-time detection of heat sources and anomalies. A wide horizontal field of view of 48° and a selectable frame rate of 25 or 50 fps ensure adaptability to different operating scenarios, while Allmage Enhancement technology improves contrast and visibility in complex temperature conditions. Thanks to the compact dimensions and CVBS analog output support, integration into FPV setups is very easy. Specifications: Model: FT483 Sensor: uncooled vanadium oxide Resolution: 400x300 LENS: F1.0/9.1mm Field of view: 48°(H)*34°(V)*59°(D) Frame rate: 25/50 fps Power consumption: <1.5W Output: PAL Supply voltage: 9V~24V Temperature: -20°C~60°C Interface: Analog interface: CVBS Latency: Average latency 20ms Image quality: Image enhancement The package contains: 1x CADDXFPV FT483 thermal FPV camera
