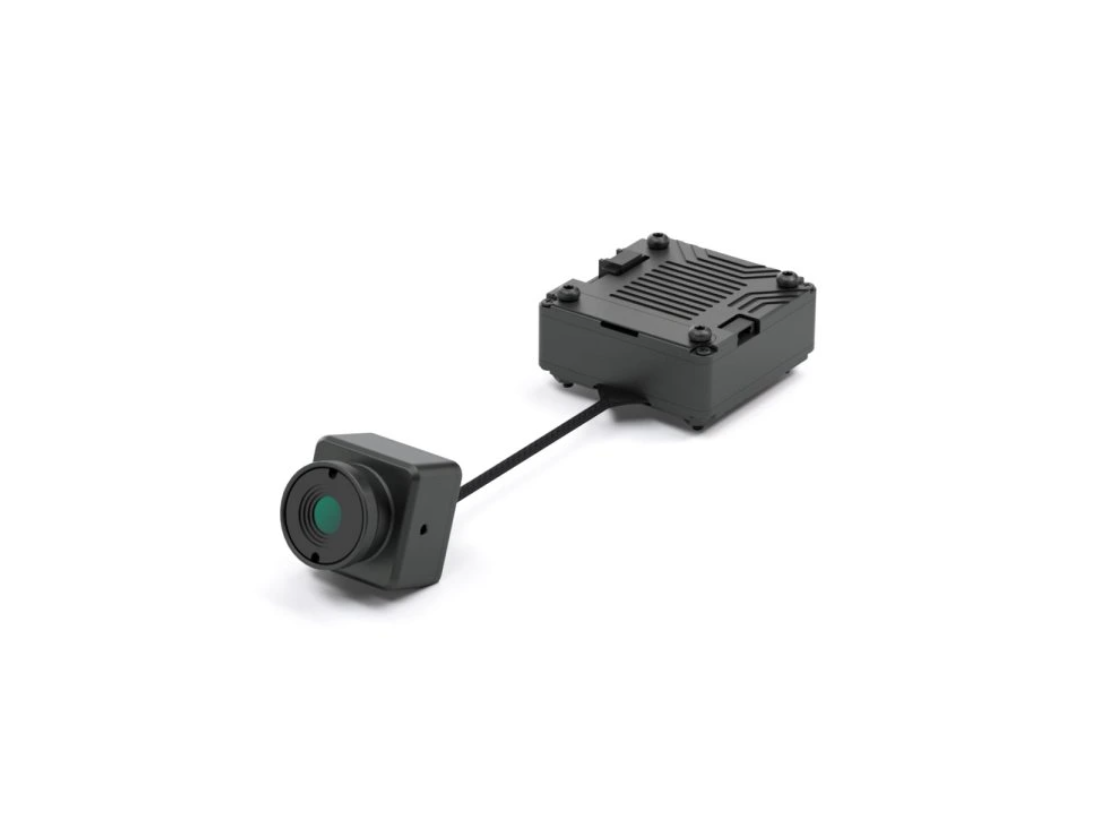

FPV Thermal camera CADDXFPV FT652 The CADDXFPV FT652 is a lightweight and affordable thermal imaging camera designed for FPV drones, mobile surveillance and short-range industrial applications. It is equipped with an uncooled vanadium oxide sensor with a resolution of 256×192, which provides real-time thermal images via a CVBS analog interface. With a 4mm F1.0 lens and a wide horizontal field of view of 50°, this compact unit efficiently captures thermal data in a variety of environments. With an average latency of only 20 ms, a smooth frame rate of 50 fps and Allmage Enhancement processing, the FT652 ensures a clear and responsive image in real time. Specifications: Model: FT652 Sensor: uncooled vanadium oxide Resolution: 256x192 LENS: F1.0/4mm Field of view: 50°(H)*37.2°(V)*62.3°(D) IFOV: 3.43 Frame rate: 50 fps Power consumption: <1.5W Output: PAL Supply voltage: 9V~24V Temperature: -20°C~60°C Interface: Analog interface: CVBS Latency: Average latency 20ms Image quality: Image enhancement The package contains: 1x FPV thermal camera CADDXFPV FT652
