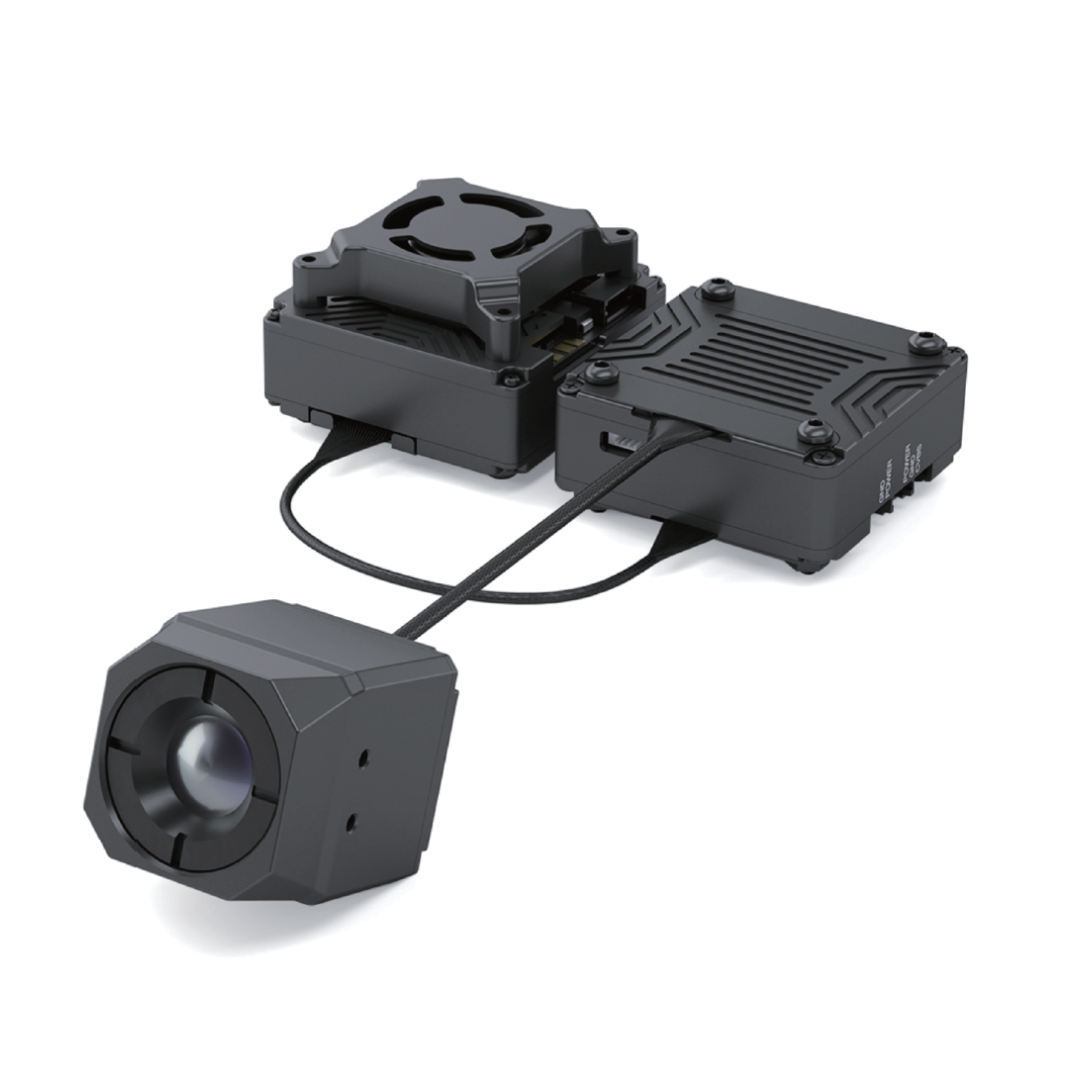

FPV Thermal Camera CaddxFPV HD640
The CaddxFPV HD640 is a cutting-edge thermal FPV camera designed for optimal performance in various conditions. Its high-resolution thermal imaging provides clear and detailed visuals even in low light or complete darkness. It's ideal for FPV pilots who need precise, real-time thermal data during flights. The camera's wide field of view and fast frame rate ensure you capture every moment precisely.
Specifications:
Model: HD640
Sensor: Uncooled Vanadium Oxide
Resolution: 640x512
LENS: F1.0/9.1mm
FOV: 48.3°(H)*38.6°(V)*66°(D)
Frame Rate: 50fps
Power Consumption: <1.5w
Output: PAL
Supply Voltage: 9V~24V
Temperature: -20°C~60°C
Interface: MIPI-CSI(Walksnail Avatar)
Latency: Average Latency 20ms
Image Quality: Allmage Enhancement
Model: Avatar GT VTX
Communication Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP):
- FCC: <30dBm, MAX:33dBm; CE: <14dBm; SRRC: <20dBm;
- MIC: <25dBm
Recording: 1080p/720p
Channels: 8
Wide Power Input: 11.1~25.2V
OSD: Canvas mode
Latency: Average delay 22ms
Antenna: 2(IPEX)
Package Includes:
1x FPV Thermal Camera CaddxFPV HD640
