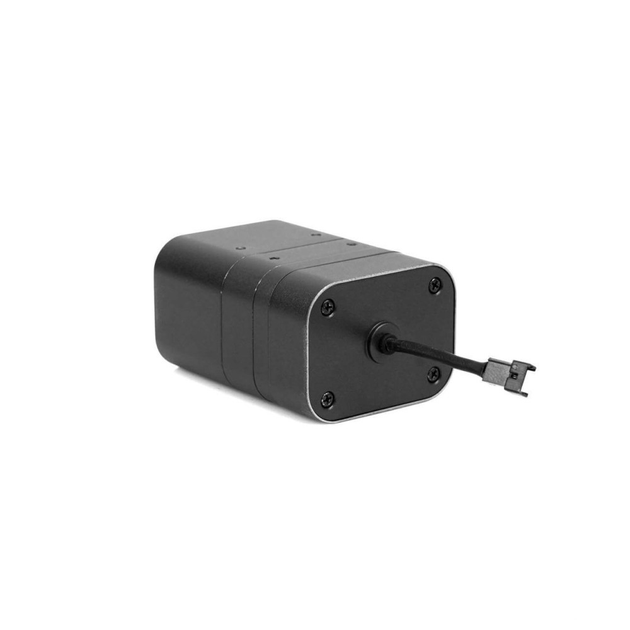

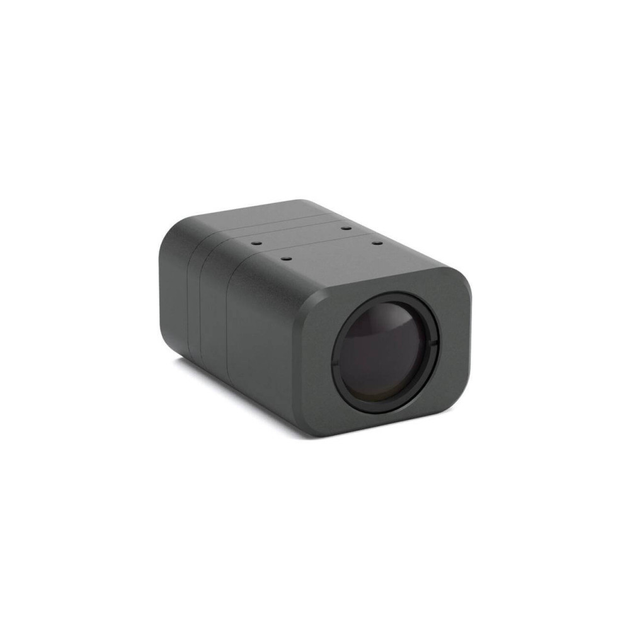

CADDXFPV Thermal IRC-003CA
CADDXFPV Thermal IRC-003CA is a professional FPV camera equipped with an uncooled vanadium oxide infrared detector with a resolution of 384×288. The camera is designed for reliable operation in various environments, supports a wide range of supply voltage and operating temperature from -20℃ to 60℃. Thanks to its compact and durable features, it is ideal for accurate thermal data collection in demanding conditions.
Specifications:
- Model Name: CADDXFPV IRC-003CA
- Type of detector: Uncooled vanadium oxide
- Resolution: 384×288 @ 17μm
- Wavelength range: 8～12μm
- NETD (Noise Equivalent Temperature Difference): ≤40mk @ F125℃
- Lens: F1.0/4mm
- Frame rate: 50Hz
- Power consumption: <1.5W
- Output: PAL format
- Power supply voltage: 9v-24v
- Working temperature: -20℃~60℃
- Dimensions: 27×37×49.8mm
- Weight: 73.5g
The package contains:
- 1x CADDXFPV IRC-003CA FPV thermal camera
