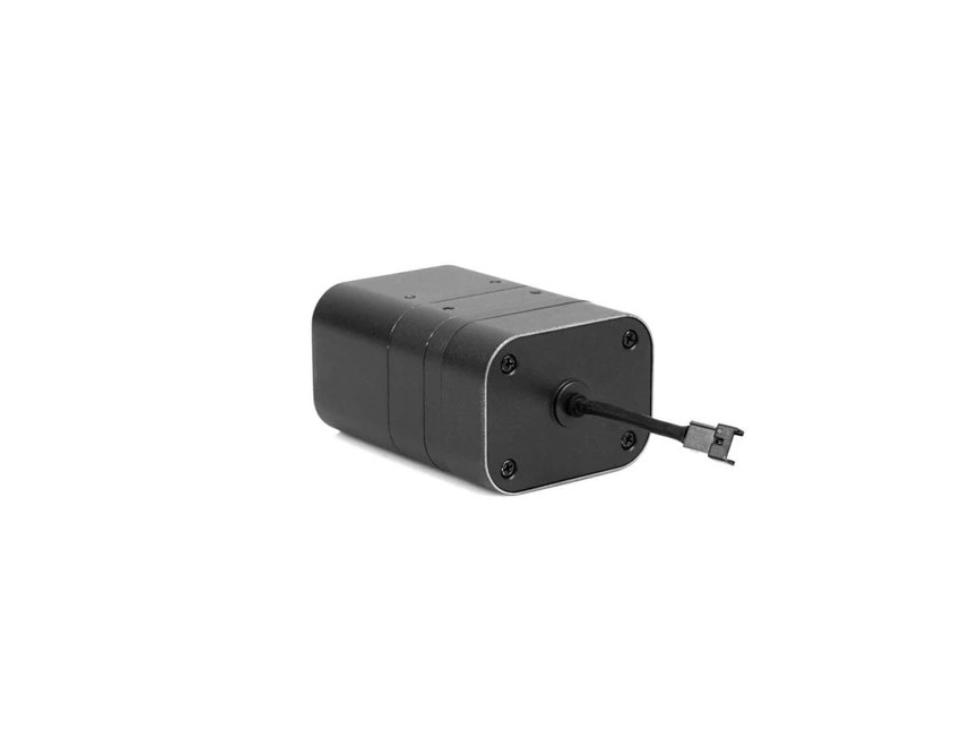

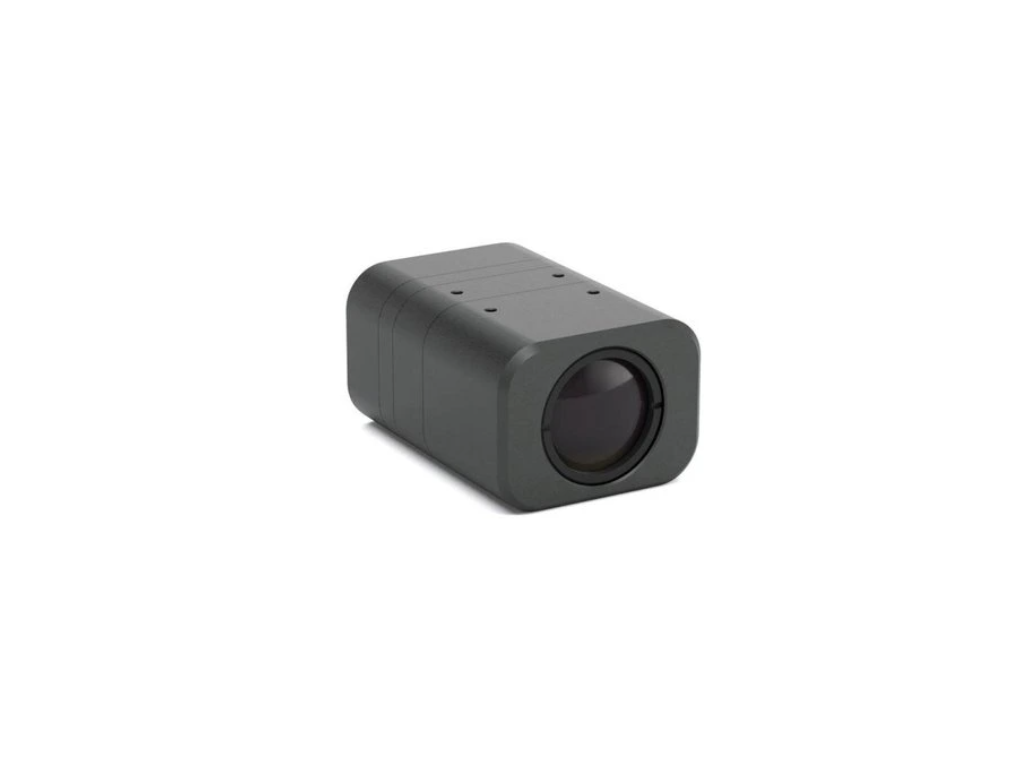

FPV thermal camera CADDXFPV Y0483 The CADDXFPV Y0483 is a lightweight, high-performance thermal imaging camera designed for FPV drones, search and rescue operations, and inspection missions. It is built on an uncooled vanadium oxide sensor with a resolution of 384×288 and provides real-time thermal images in the wide infrared spectrum of 7-14 μm. Its 4mm F1.0 lens provides an ultra-wide field of view of 65.5° (H) to ensure a wide overview of the surroundings, while <20ms latency and 50fps frame rate make it ideal for fast applications such as FPV flying or real-time monitoring. Specifications: Model: Y0483 Sensor: Uncooled vanadium oxide Resolution: 384 × 288 Wavelength: 7000 nm – 14000 nm Lens aperture: F1.0 Focal length: 4 mm Field of View (FOV): 65.5° (H) × 49.0° (V) × 115° (D) Instant Field of View (IFOV): 2.93 Frame rate: 50 fps Delay: < 20ms Power consumption: < 1.5 W Video output: PAL Supply voltage: 9V ~ 24V Operating temperature: -20 °C ~ 60 °C Weight: 74 g The package contains: 1x thermal FPV camera CADDXFPV Y0483
