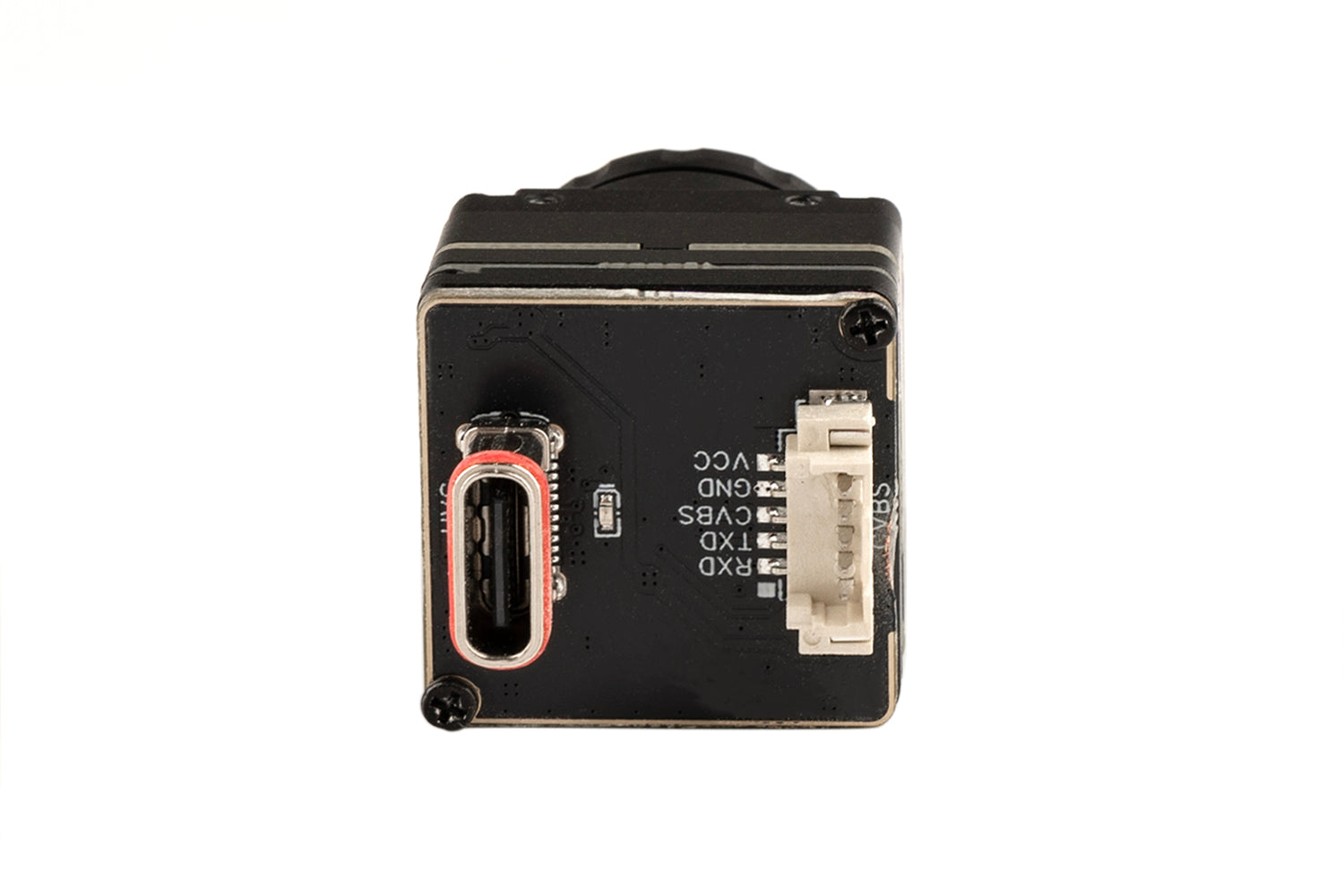

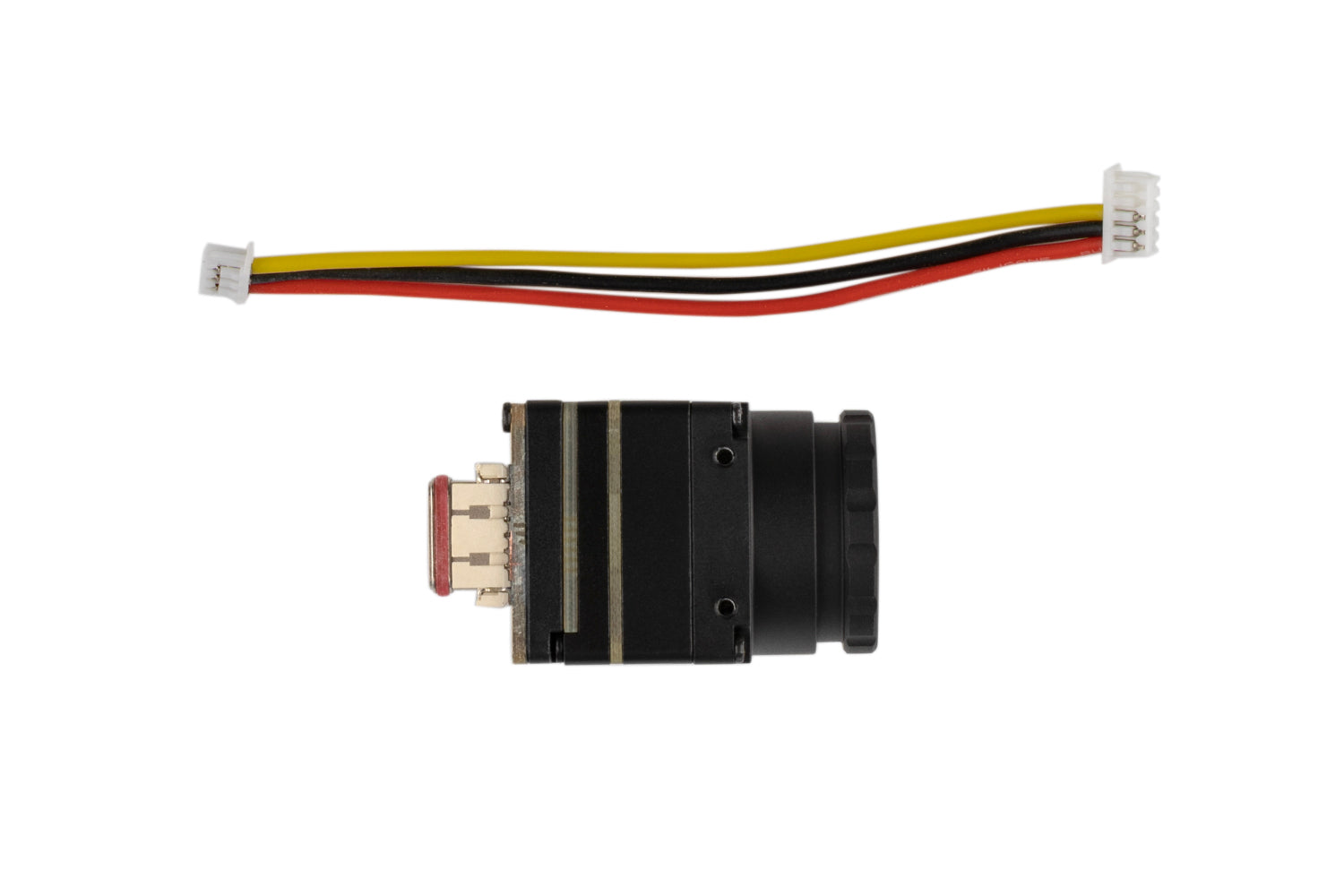

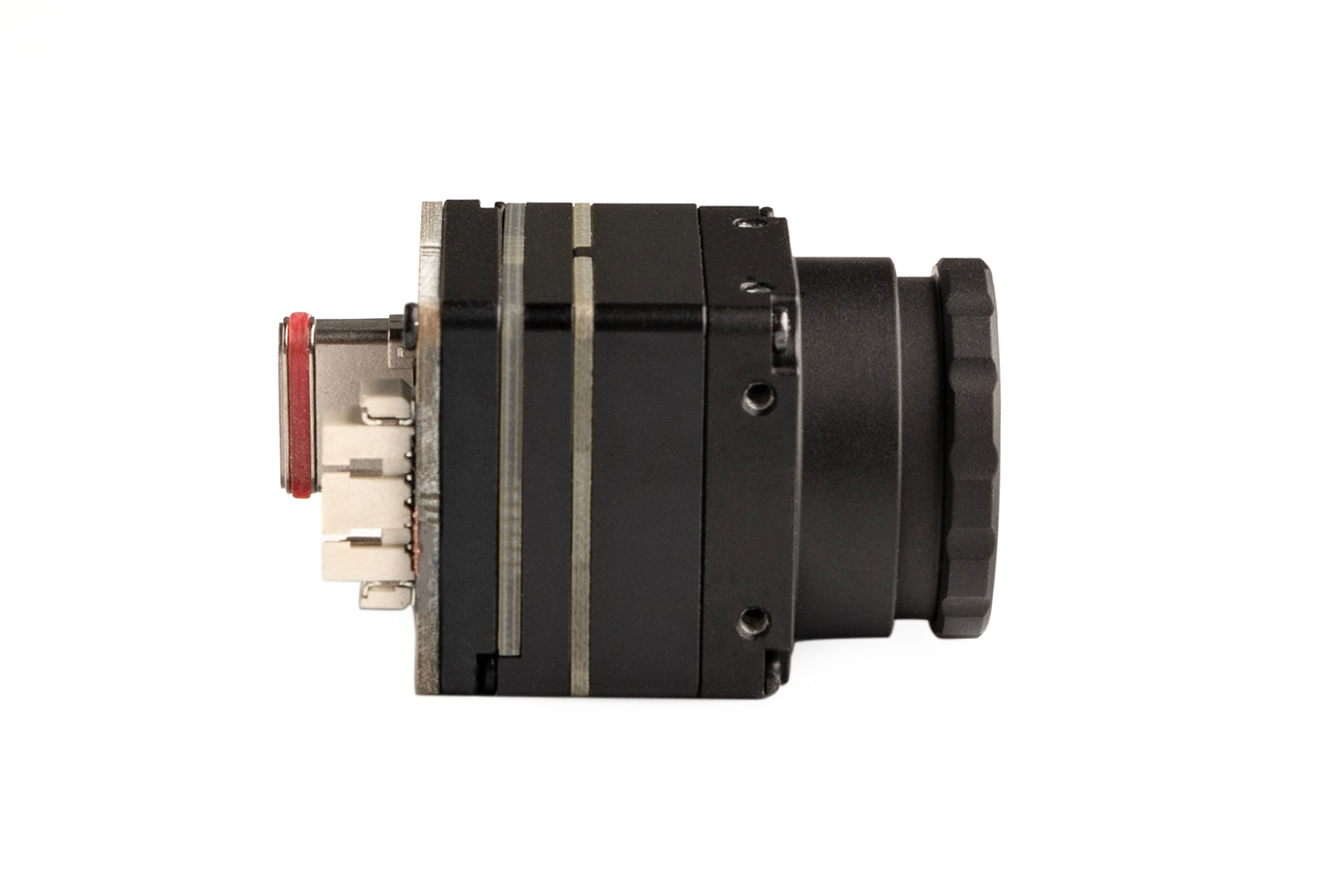

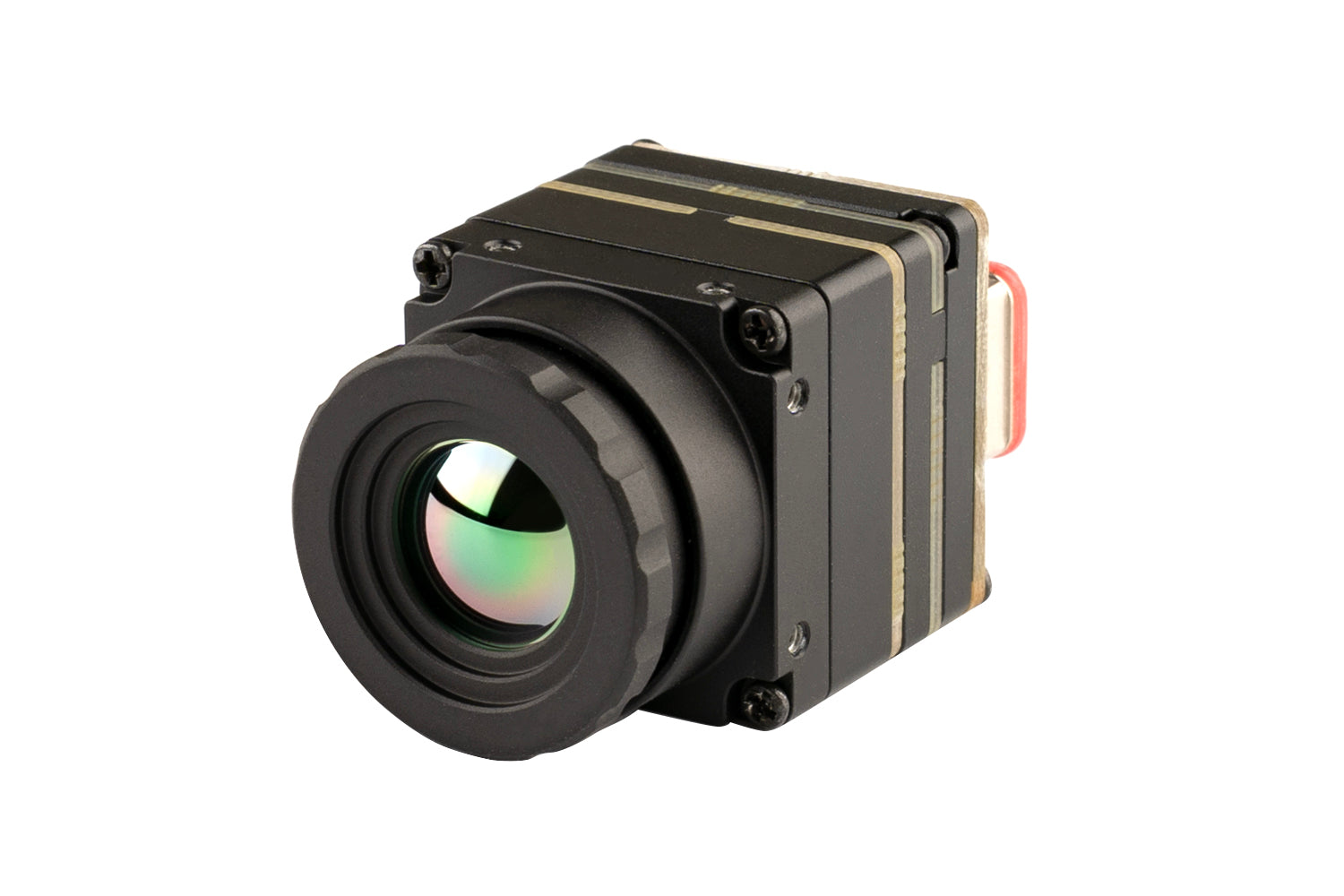

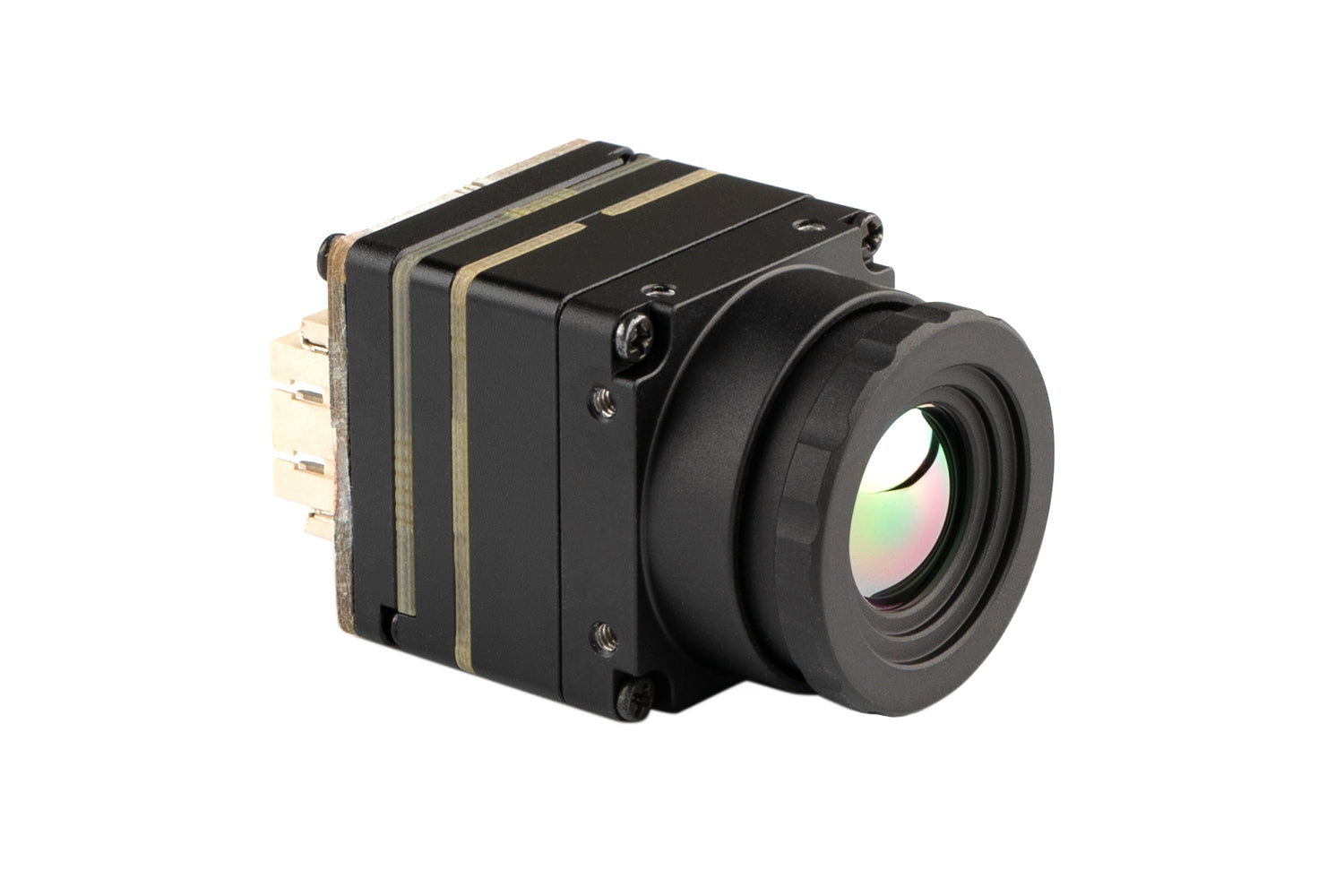

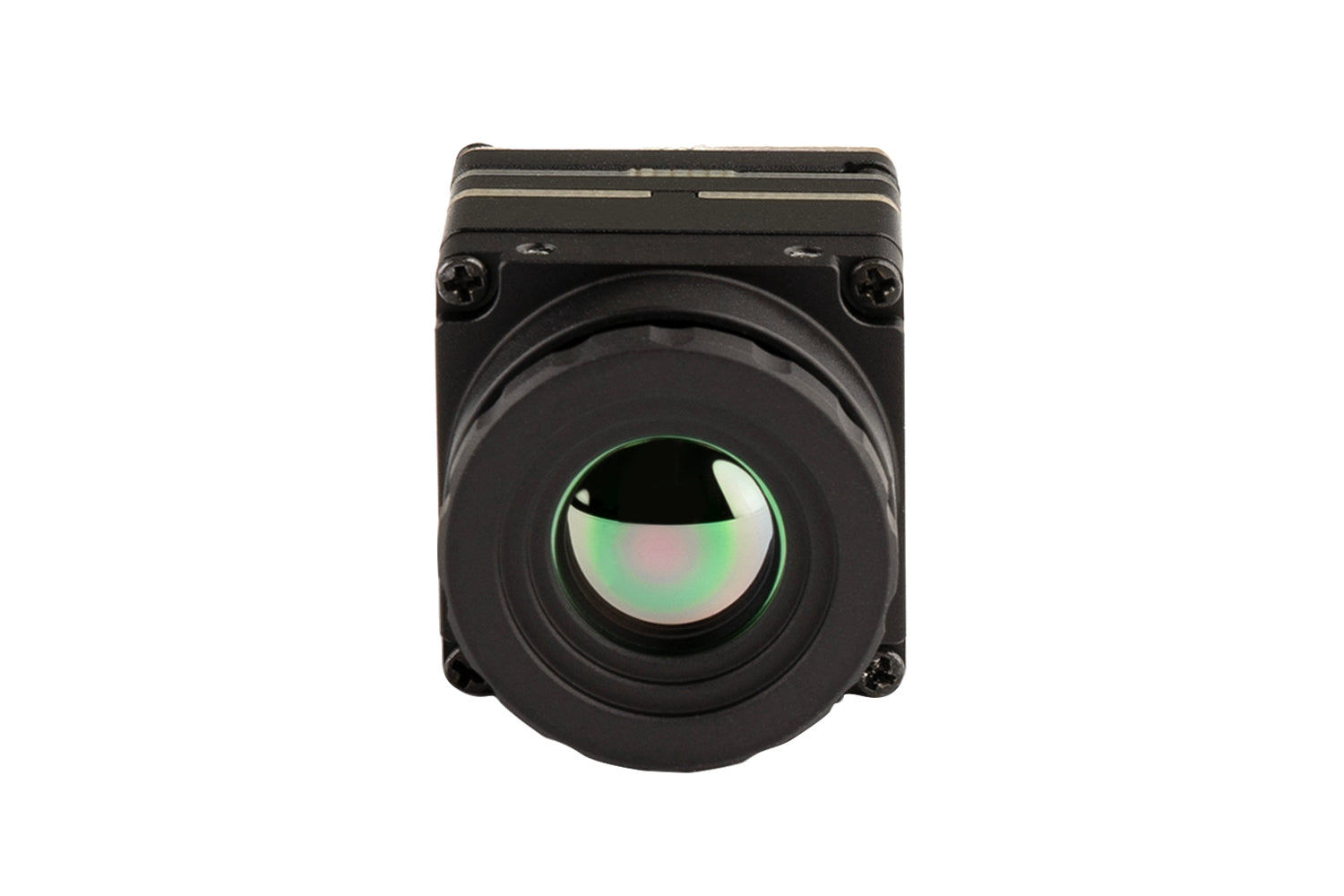

FPV Thermal Camera HobbyDrone Mini2 256x192 The HobbyDrone Mini2 is a compact uncooled infrared thermal camera module featuring a high-sensitivity vanadium oxide detector. With its 256x192 resolution and 25mK NETD, it delivers clear thermal imaging even in low-contrast environments. Designed for FPV and embedded applications, it offers smooth video output, multiple palettes, and excellent adaptability for demanding environments. Features: - Vanadium oxide uncooled IR focal plane array for stable thermal detection - High-resolution thermal imaging with 256x192 pixels and 12μm pixel pitch - Smooth 25/50Hz frame rate with fast <12ms response time - Supports white-hot, black-hot, and multiple color palettes - 1.0–8.0x continuous digital zoom and image mirroring options - Dual correction algorithms: shutter and shutter-less modes - Lightweight, compact module for flexible integration - Wide operating temperature range and high vibration/impact resistance Specifications: Overview: Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane Detector Resolution: 256x192 Effective Frame Rate: 25/50Hz Pixel Pitch: 12μm Spectral Band: 8~14μm Noise Equivalent Temperature Difference (NETD): 25mK@25 °C,F#1.0,25Hz Thermal Time Constant: <12ms Image Adjustment: Non-uniformity Correction: Shutter correction/shutter-less algorithm correction Brightness/Contrast Adjustment: 0~100, optional Polarity/Palette:White-hot/Black-hot/Various palettes supported Digital zoom: 1.0~8.0xcontinuous zoom (step size: 0.1) Image Mirroring: Vertical/Horizontal/Diagonal Electricity Parameters: Analog Video: PAL/NTSC Digital Video: DVP/BT656/USB2.0/MIPI Communication Interface: UART/12C/USB2.0 Power Supply Input: 5V Typical power consumption of USB output @25°C: <0.35W Physical Characteristics: Weight (without lens): <7g Dimensions (without lens): 21x21x10.3 mm Environment Adaptability: Operating Temperature: -40 °C~+80°C Storage Temperature: -50°C~+85°C Humidity: 5%-95%, non-condensing Vibration: 6.06g, random vibration, all axes Impact: 80g, 4ms, final peak sawtooth wave, three axes and six directions Package includes: 1x FPV Thermal Camera HobbyDrone Mini2 256x192 1x Interface Cable
