Frame BETAFPV Pavo Pico Brushless Whoop (HD Digital Version) Grey

Name: Frame BETAFPV Pavo Pico Brushless Whoop (HD Digital Version) Grey
Brand: Baltic Drones
SKU: 01090016_5
Price: 11.97 EUR
Availability: OutOfStock

Frame BETAFPV Pavo Pico Brushless Whoop (HD Digital Version) Grey

Brand: BETAFPV

€11,97

~~€11,97~~ €11,97

-0% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

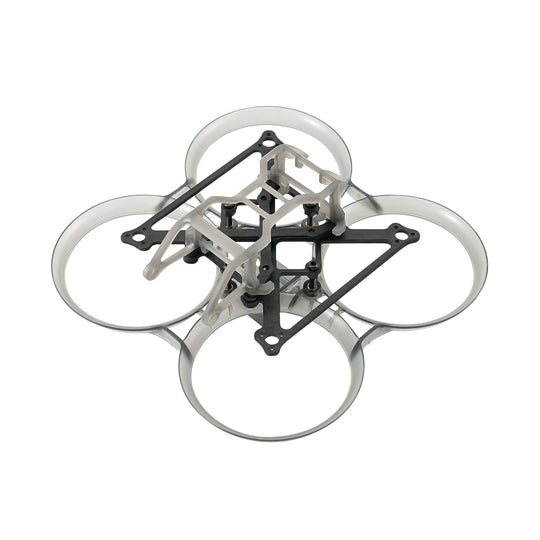

BETAFPV Pavo Pico Brushless Whoop Frame (HD Digital Version)

- HD digital VTX holder made of lightweight and strong injection-molded PP material with a modified structure to prevent the HD VTX from being moved or lost after a crash.
- Rubber Damper vibration dampening design reduces low-frequency vibrations
- To accommodate a wider range of battery sizes, the main body of the frame can be trimmed by custom methods. Additionally, larger batteries can be installed using battery straps or printed components.
- DJI O3 can be installed directly, while Avatar and Vista require a 20*20 mounting plate and screws (supplied) for fixing. The bare frame is suitable for users who remount and assemble the HD VTX themselves

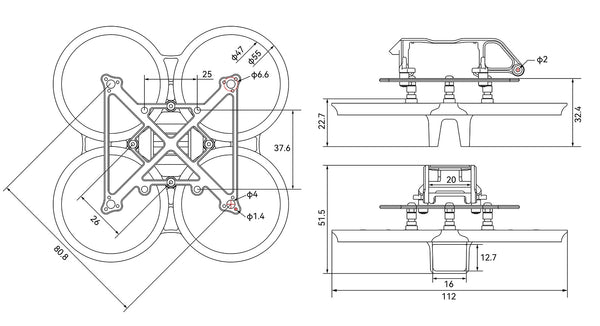

Specifications:

Item: Pavo Pico Brushless Frame with HD VTX Mount
Wheelbase: 80.8 mm
Battery slot size: 16mm * 12.7mm
Camera installation distance: 19mm/20mm
Color: Transparent gray
Weight: 13.80g/11.62g
Motor mounting hole position: 3-M1.4-φ6.6mm
FC pattern: 26×26mm, suitable for F4 1S 12A AIO Brushless FC V3

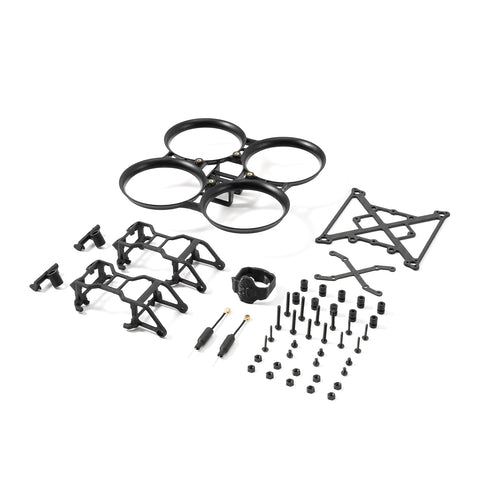

The package includes:
1x Pavo Pico Top Palte
1x channel Pavo Pico Whoop
1x Frame FC Screw Package
1x HD VTX screw holder
1x 20*20 HD VTX mounting plate
2x O3 HD VTX mounting bracket
2x O3 HD VTX antenna mounting base
2x 5.8g copper tube antenna
