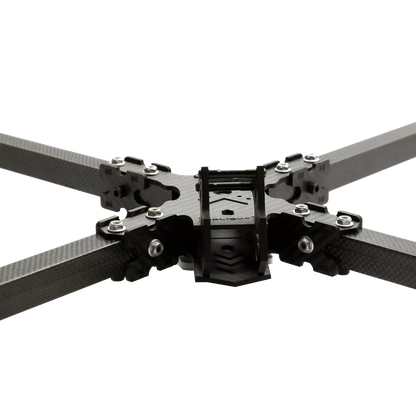

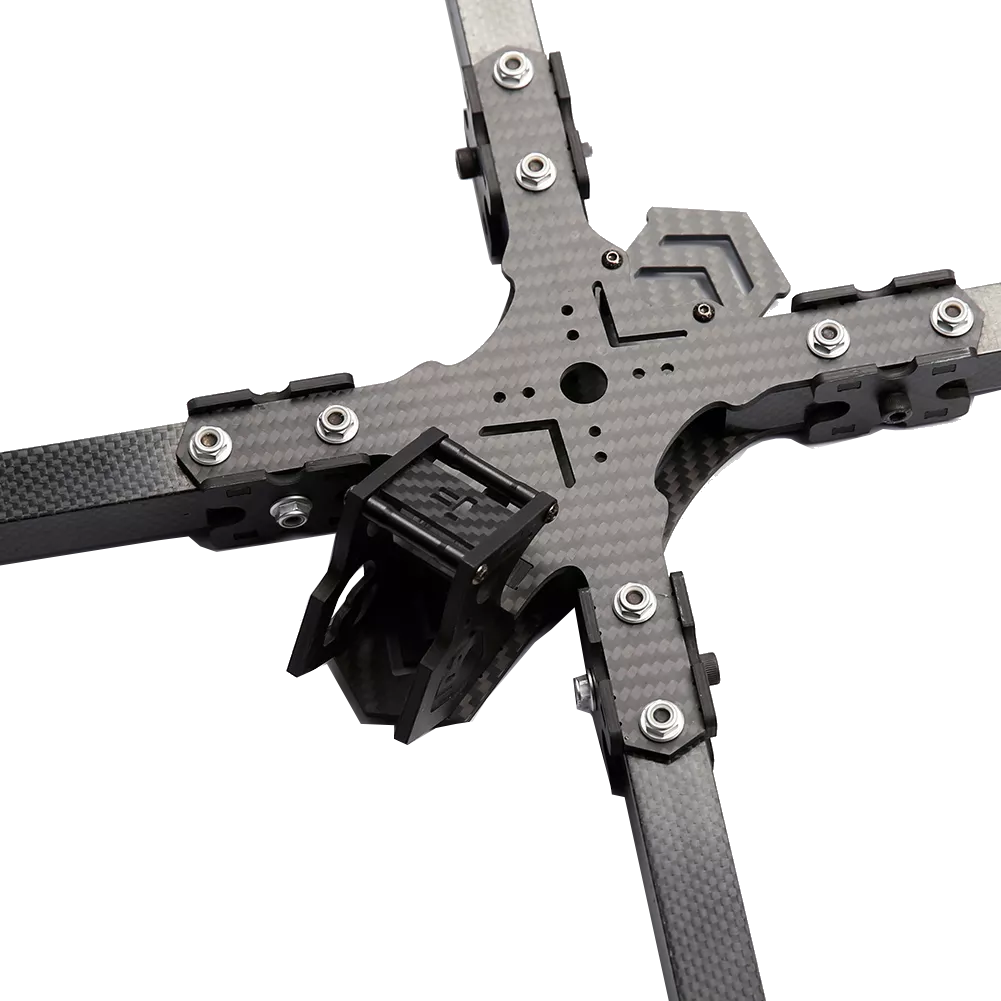

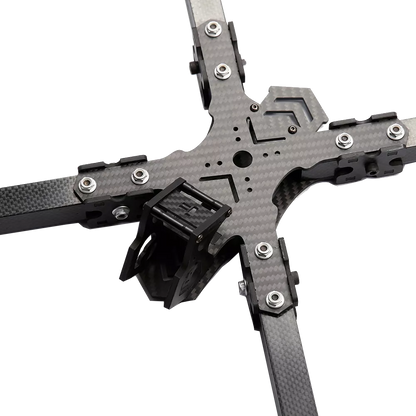

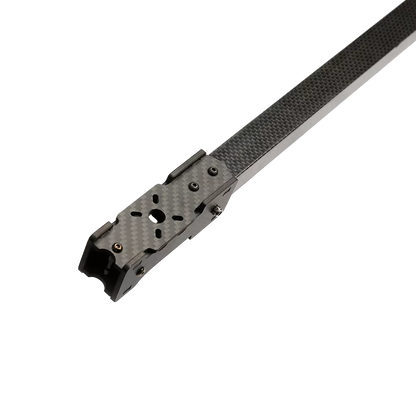

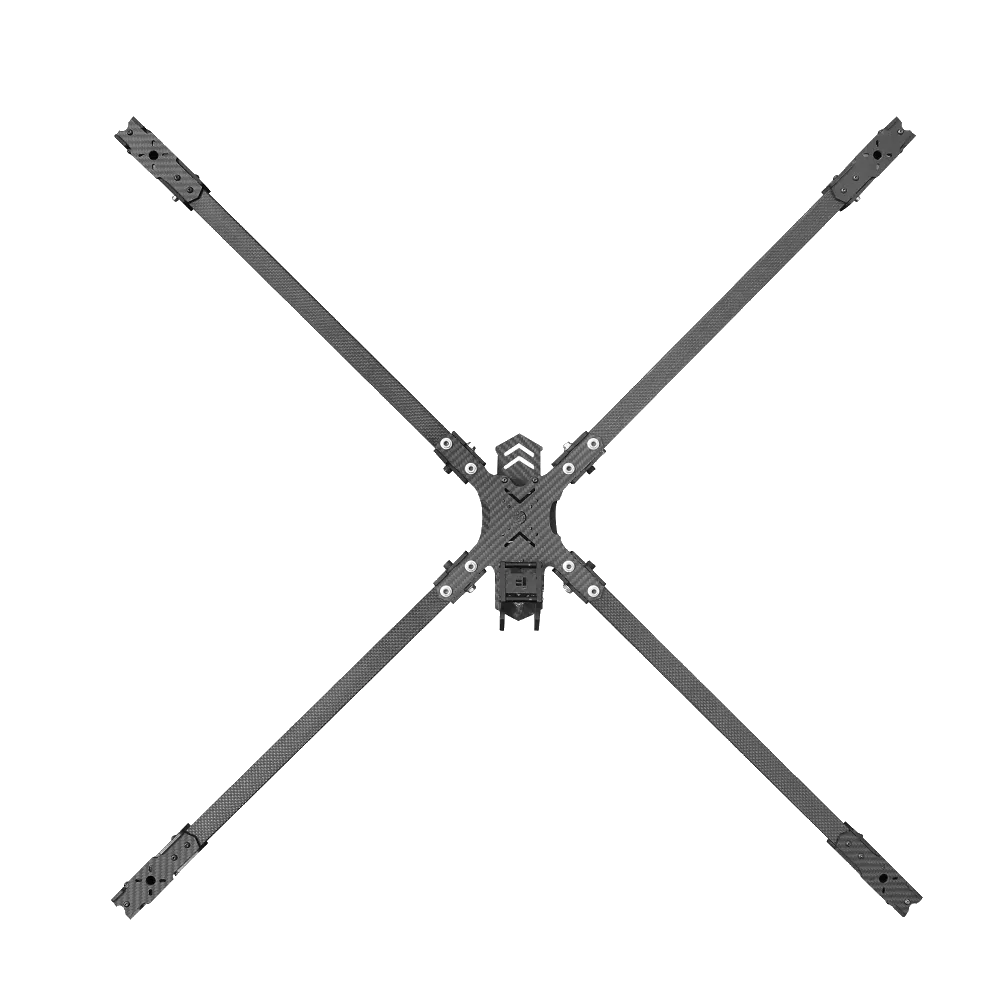

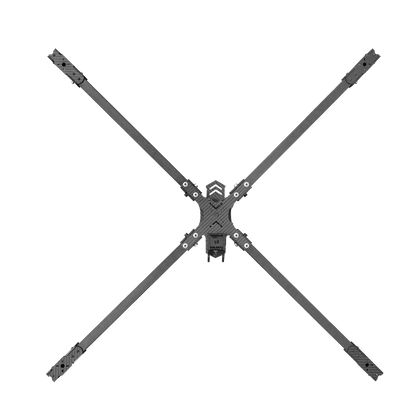

iXC15 X-CLASS frame kit The iXC15 is iFlight's first X-class drone. The mounting bolt pattern fits most motors on the market, making motor installation much easier and eliminating the need to add a motor adapter seat. It helps reduce front arm weight, improving frame flexibility. The motor base is attached to the arm using two criss-cross spacers, with the outer center reinforced, making the frame stable, reliable and easy to adjust. The arm and the frame body mounting part are fixed with two cross "Power-Lock" long M5 screws and an M5 nut. In addition, two vertical side plates are added to each arm to make the arms and body more secure. This method of fastening is not only reliable, but also facilitates the replacement and repair of arms on site. In addition, a flexible 3D printing antenna holder is used at the back of the body to secure the tail antenna for easy antenna installation. See the body of the frame, two simple but rigid 3mm thick upper and lower plates are used to provide a large space for equipment installation. The iXC15 has been improved in every part during development, from the first sample to the final series production. It took half a year - 6 times proofing - from round tube to square tube, constant improvement and testing, and finally it came out. Function: - Ture X design, pure 3K carbon fiber. - Comes with a GoPro mount, enough space to install the device. - Omni-directional locking structure of the arm to ensure the strength of the connection between the arm and the body. - The unique motor base design ensures quick installation and high strength. Specifications: Product Name: iXC15 X Class Frame Wheelbase: 950 mm Carbon tube arm size: 20mm * 20mm * 425mm Tube: 20mm (OD), 18mm (ID) Length of individual tube: 375 mm Arm thickness: 6 mm Bottom plate thickness: 3 mm Thickness of the top plate: 2 mm Thickness of the top plate: 3 mm Camera plate thickness: 3mm Motor mounting: 19x19mm - 25*25mm VTX mounting: 30.5*30.5mm / 20*20mm Weight: 643 ram (without TPU parts) The package includes: 1 x iFlight iXC13 850mm X CLASS race only frame
