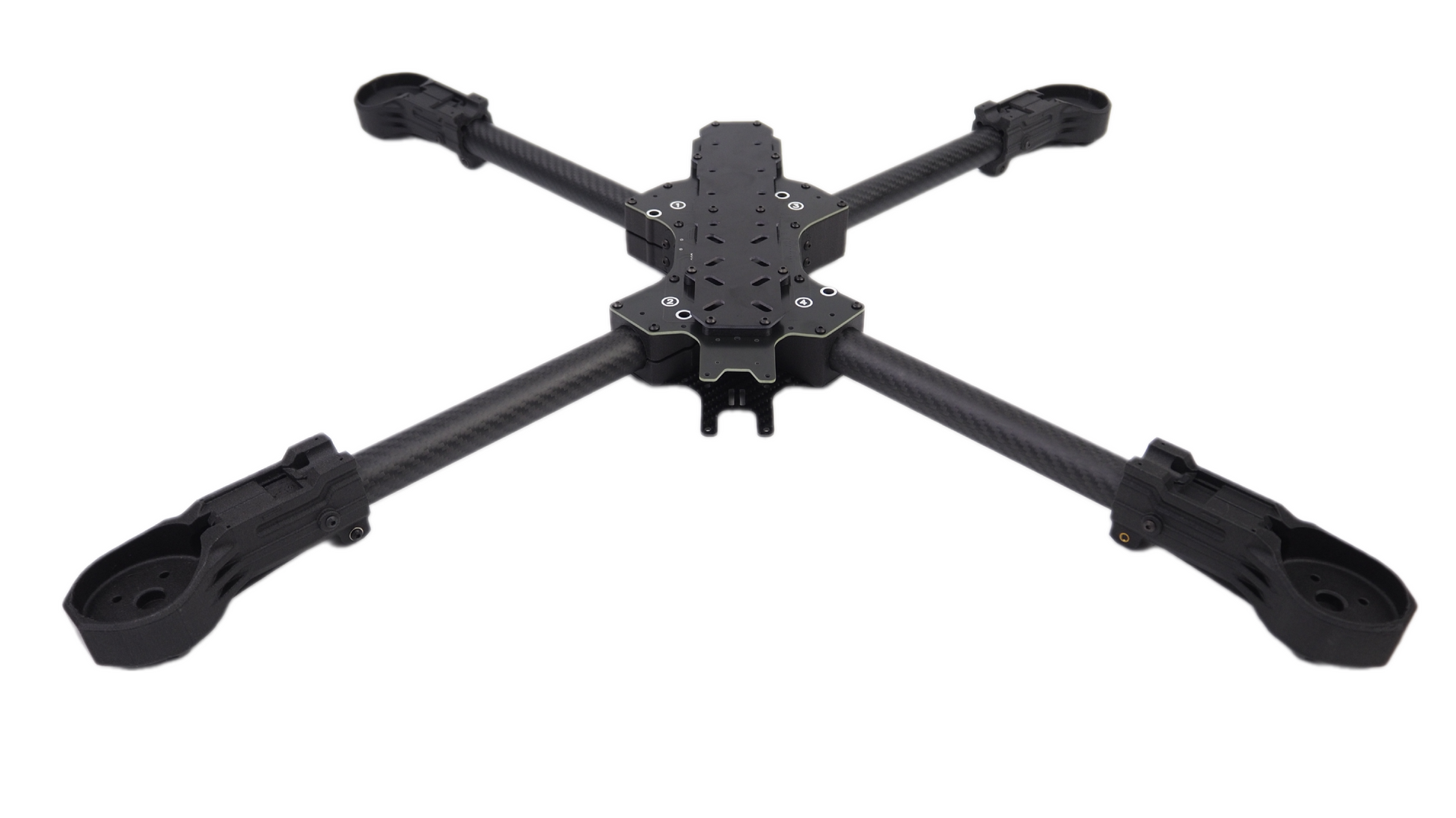

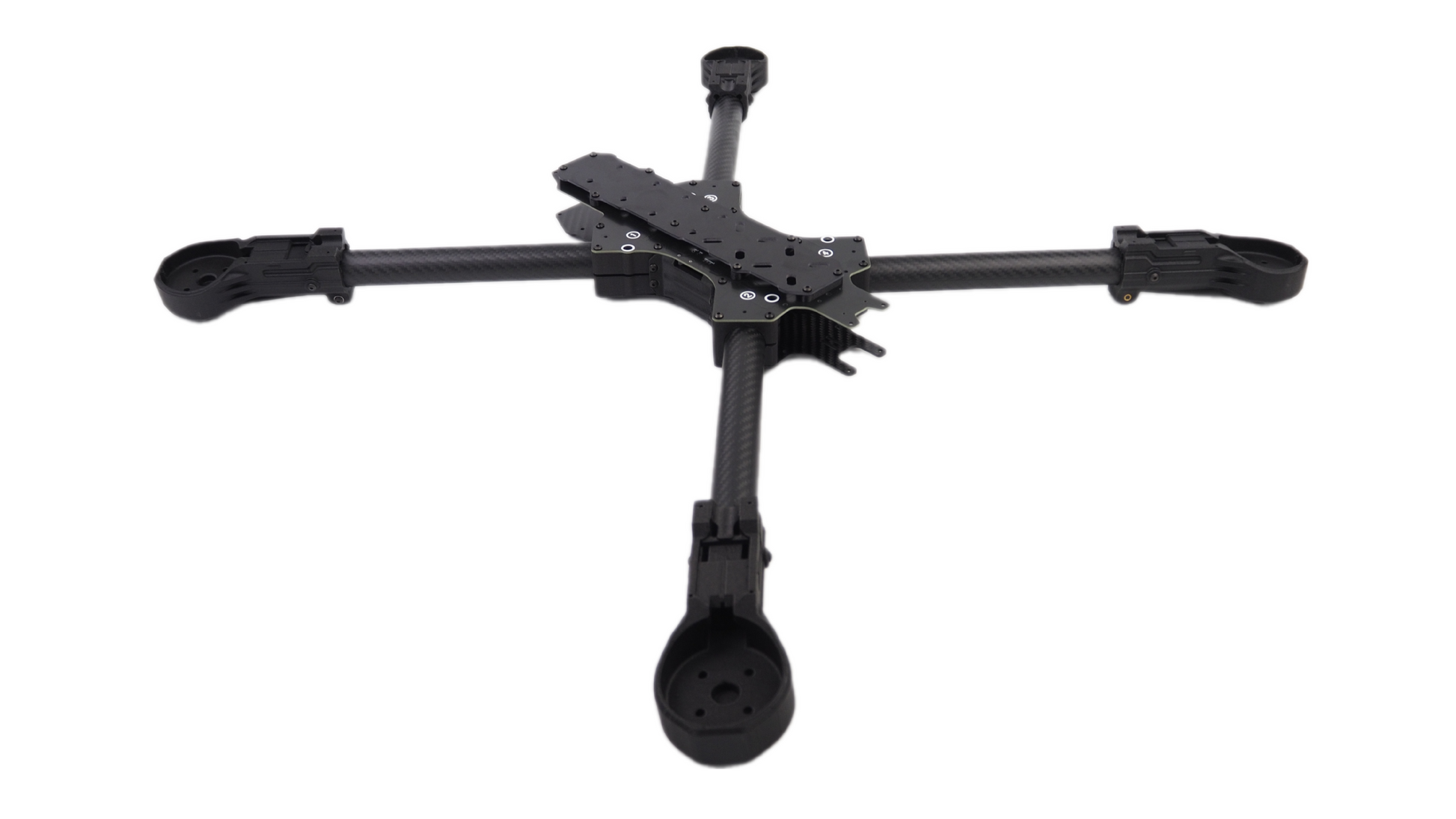

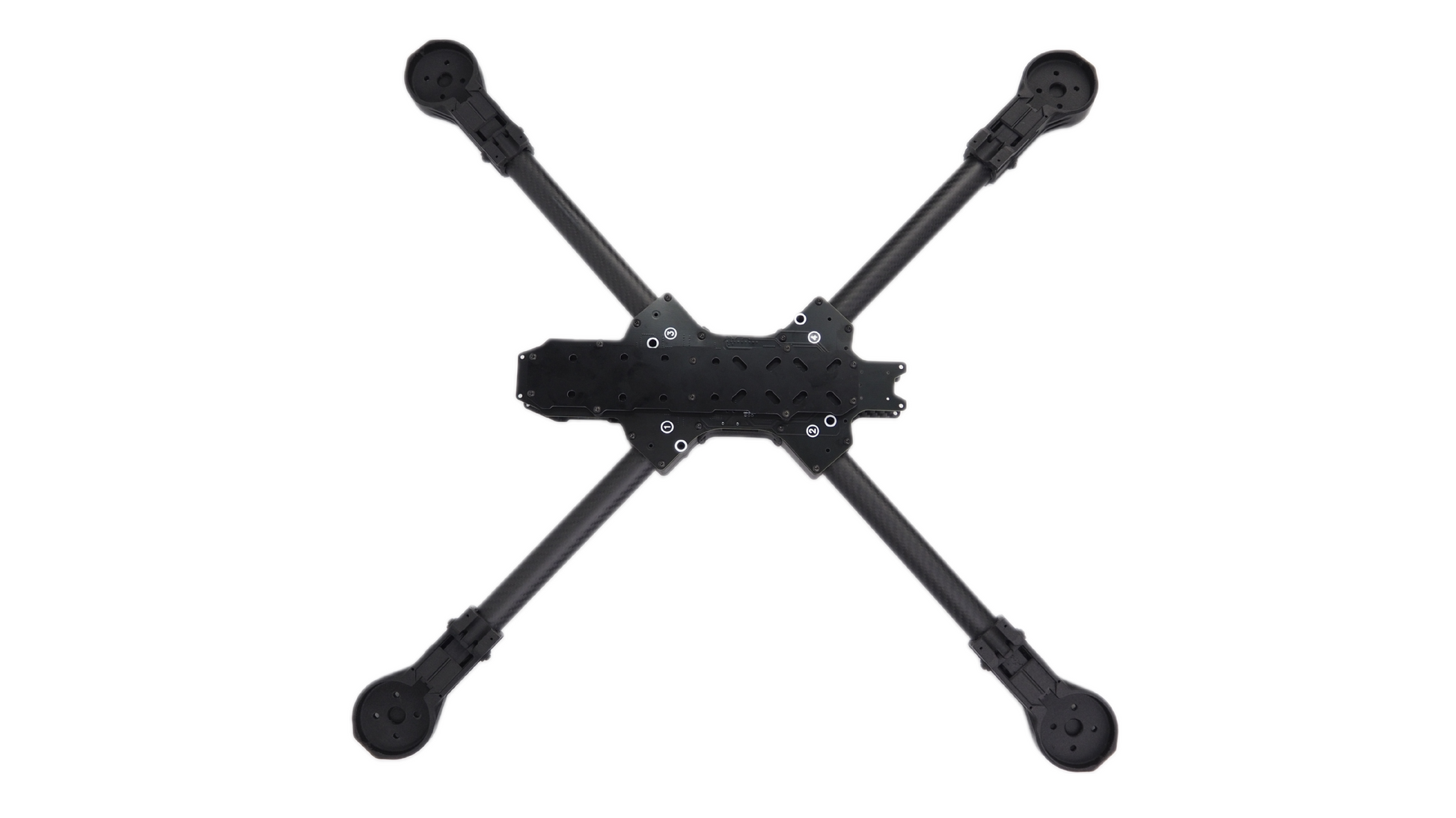

The Pilotix Rocky13 Xclass 13" frame is a premium carbon fiber frame designed for building 13" long range drones. This frame combines exceptional strength with a lightweight design, ensuring optimal performance for extended flights.
Specifications:
Model: Pilotix 13'' Xclass frame
Wheelbase: 590mm
Arm diameter: 25mm
Top plate width: 140mm
Top plate length: 300mm
Top plate thickness: 1.6mm
Bottom plate width: 140mm
Bottom plate length: 300mm
Bottom plate thickness: 2mm
Camera mounting: 19mm
Propeller size: 13 inch
FC mounting holes: 30.5x30.5mm
Compatible motor size: 4212
Width: 570mm
Length: 560mm
Weight: 1000g

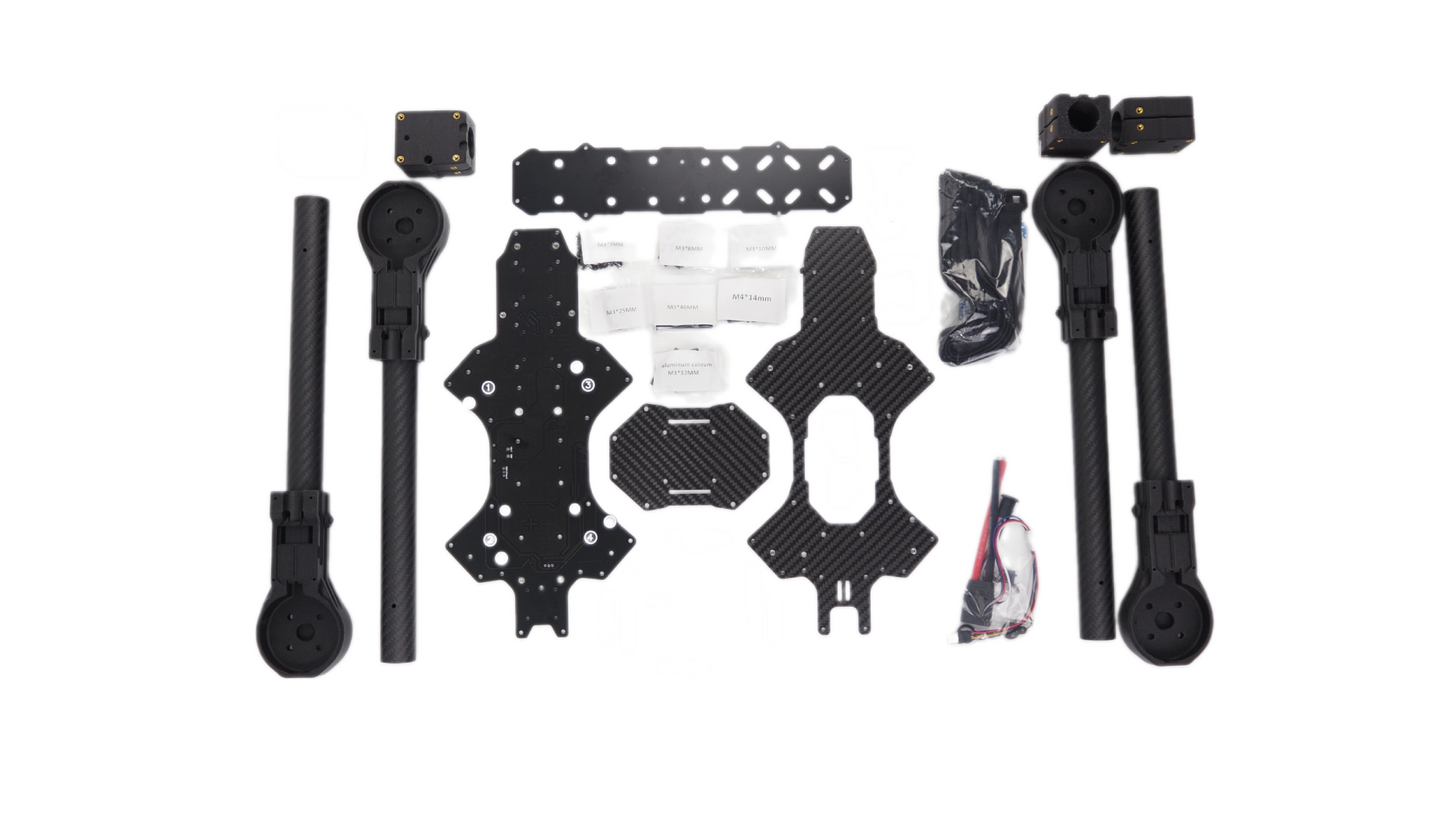

Package includes:
1x Frame Pilotix Rocky13 Xclass 13”
