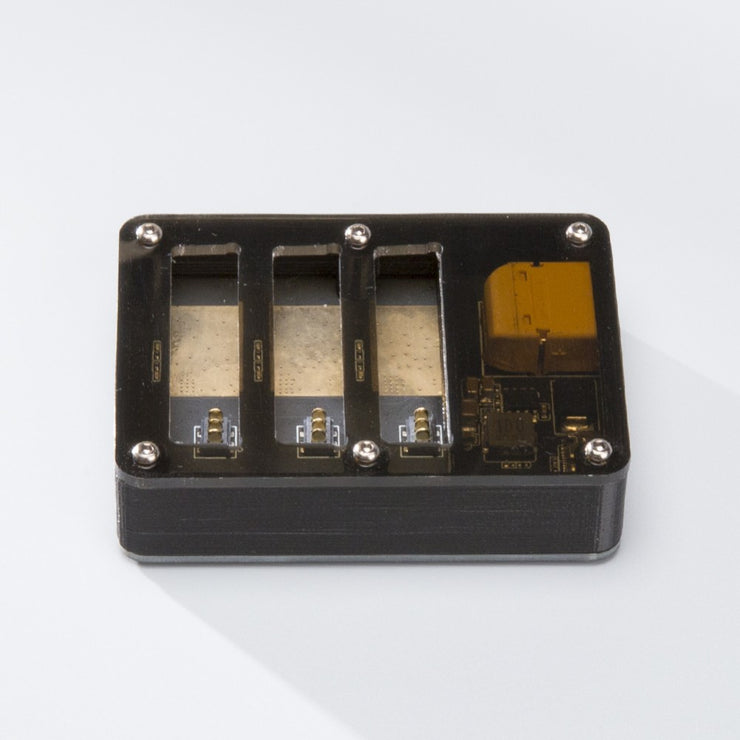

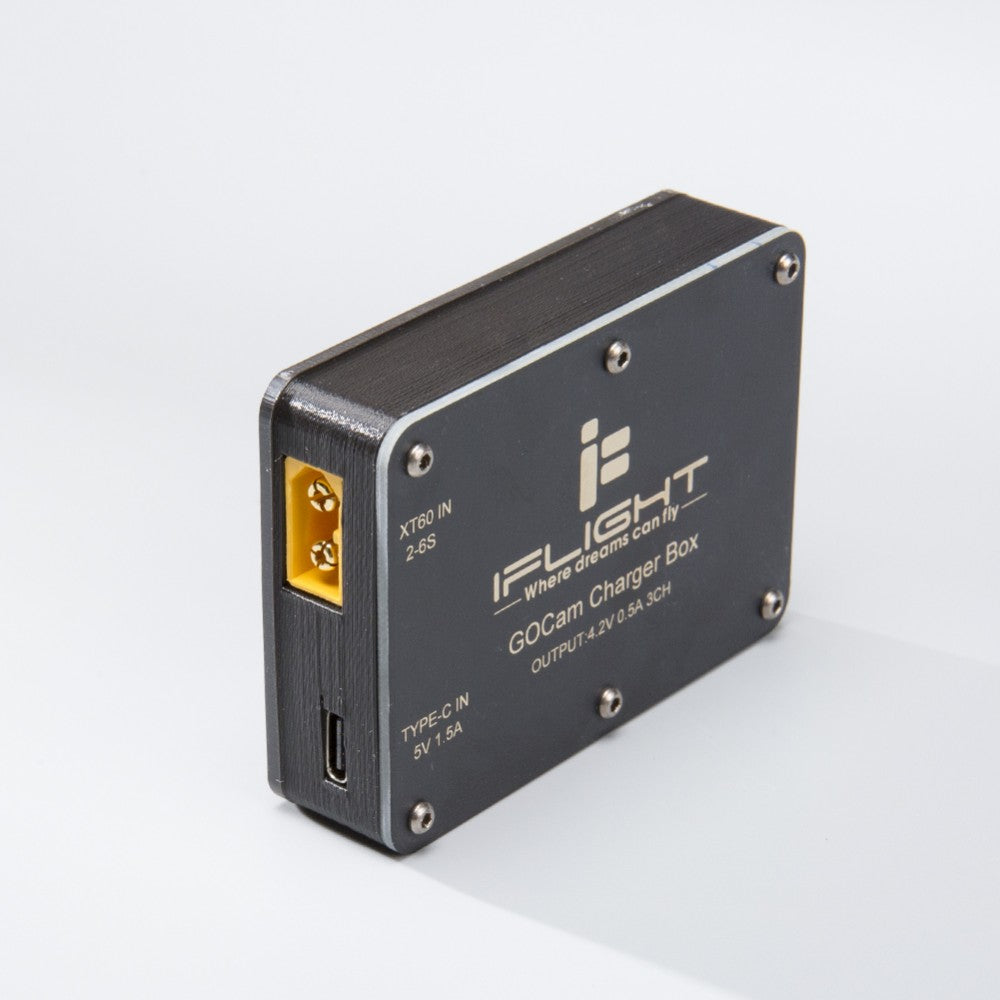

GOCam PM GR battery hub and charger combination

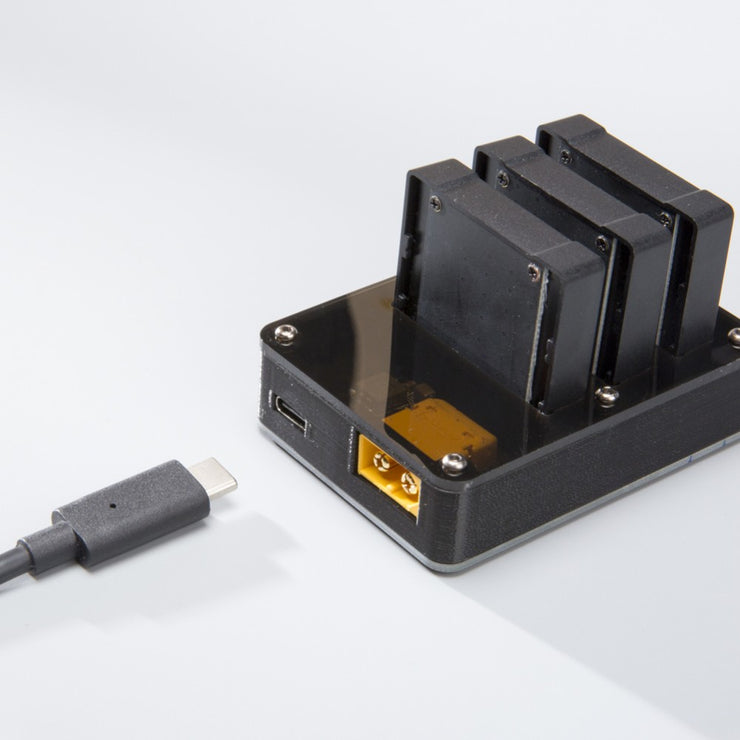

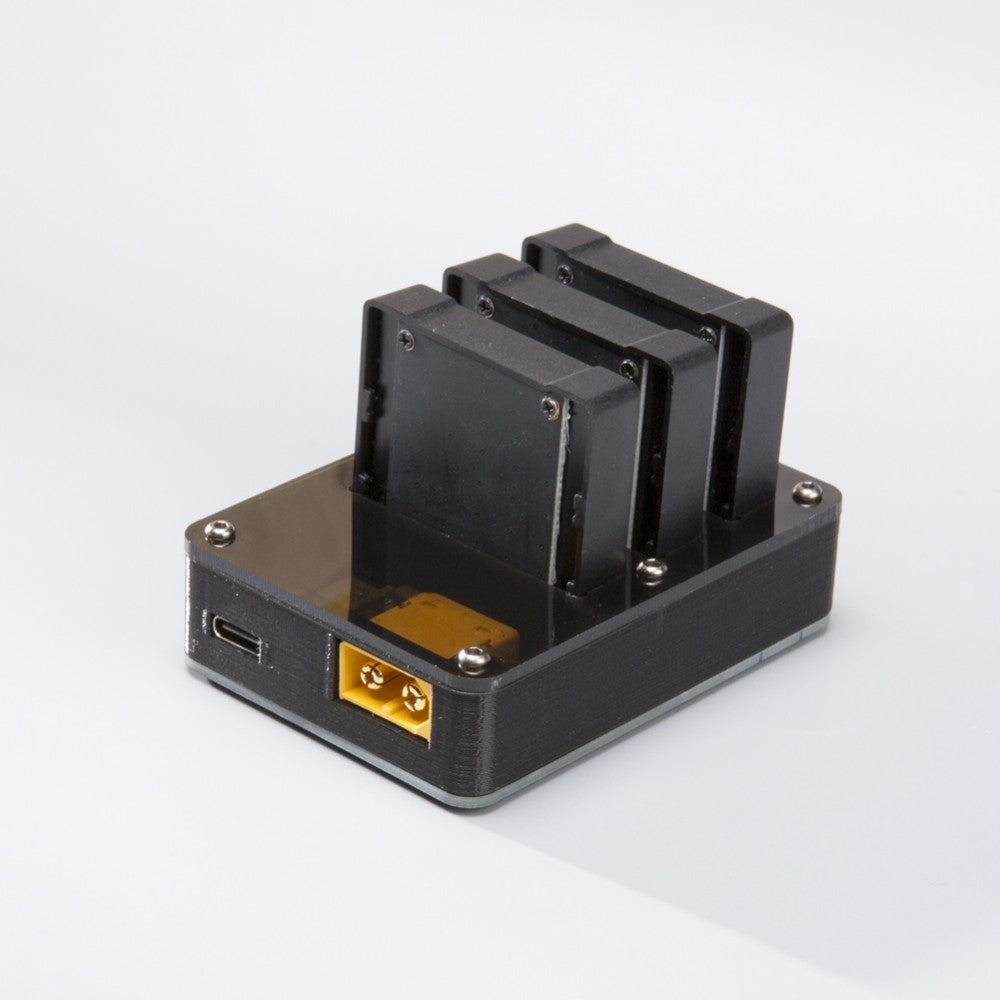

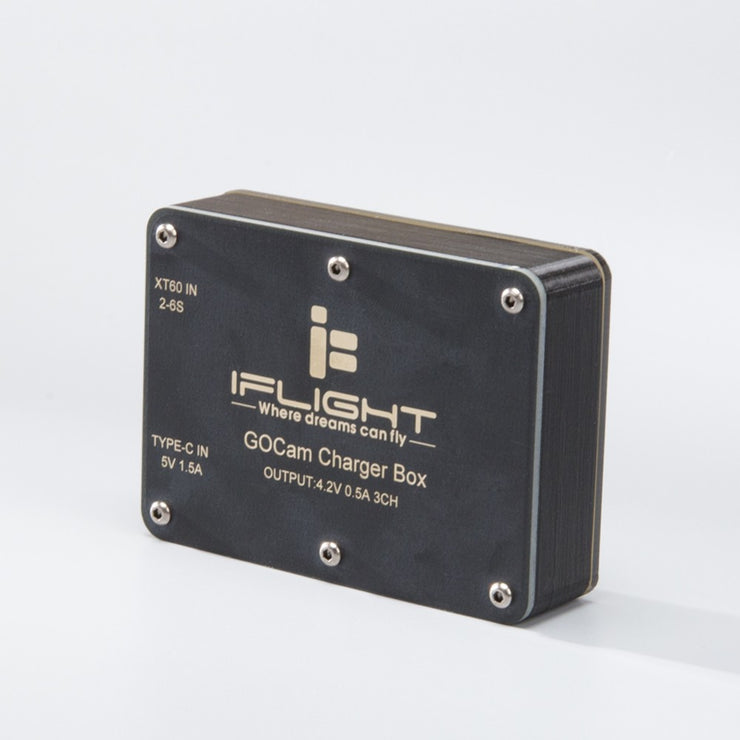

- Input voltage: The TYPE-C connector can have an input voltage of 4.6V-5.6V. Lower than 4.6V will result in insufficient input power and slower charging speed. The XT60 interface can supply 9-26V.
- Output voltage: Default 4.2V.
- Output current: one 500mA, three lines simultaneously total 1.5A.

Instructions for use and operation of the charger:

- When powering with Type-C, please make sure the output power of the charging head can satisfy the charger and use a good quality data cable to achieve the best performance.
- The charger has a single-line charging current of 500mA, and three lines can work simultaneously. It takes about 60 minutes to fully charge the three GOCam batteries.
- First turn on the charger and then connect the GOCam battery. It is forbidden to connect the battery before powering the charger, otherwise the charging head may not supply power.
- After turning on the charger, connect the battery that needs to be charged to start charging. The color of the LED during charging is red, and the color of the fully charged LED is green. When fully charged, charging will stop automatically.

Note:

1. When charging, keep a well-ventilated environment and keep away from flammable materials.
2. It is forbidden to power TYP-C and XT60 at the same time.
3. It is strictly forbidden to apply voltage higher than 5.8V to the TYPE-C connector, which will damage the product. It is recommended to use 5V for the best supply voltage. It is strictly forbidden to apply voltage higher than 26V to the XT60 connector, which will damage the product. It is recommended to use the best supply voltage of 9V-26V.
4. This charger can only charge GOCam batteries. It is forbidden to use this charger to charge other batteries

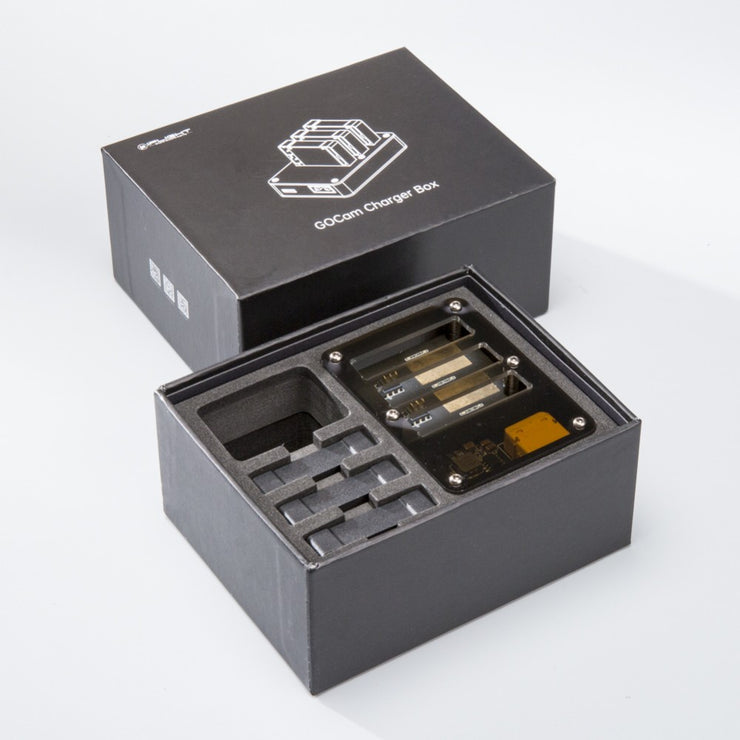

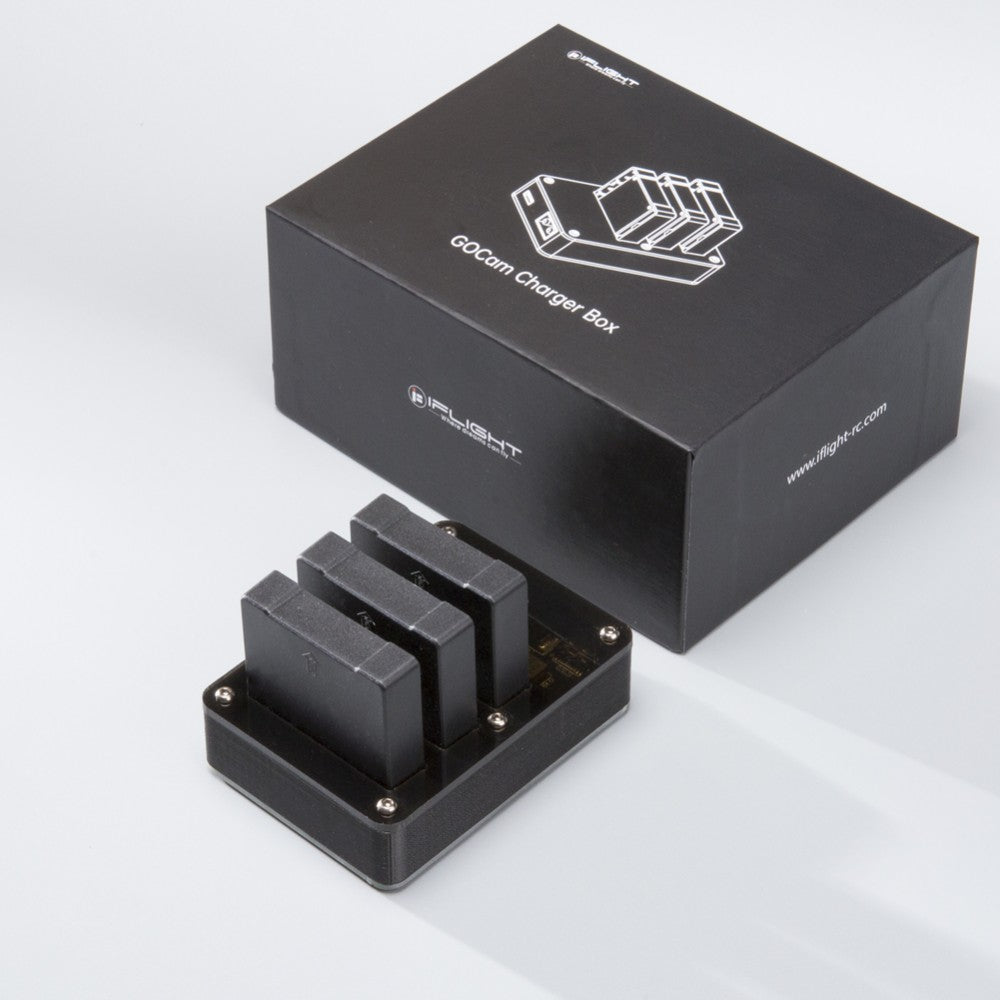

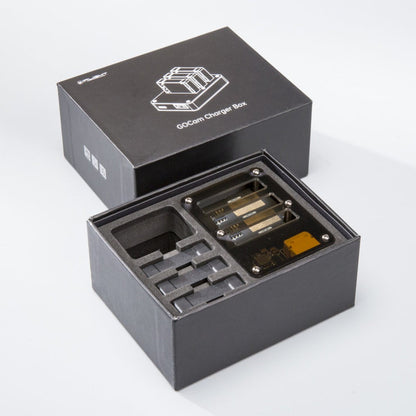

The package includes:
1 x GOCam PM GR charger
3 x batteries for iFlight GOCam PM GR action camera
