Goggles SKYZONE SKY04L

Name: Goggles SKYZONE SKY04L
Brand: Baltic Drones
SKU: 3037
Price: 483.15 EUR
Availability: OutOfStock

Goggles SKYZONE SKY04L

Brand: SKYZONE

€483,15

~~€483,15~~ €483,15

-0% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

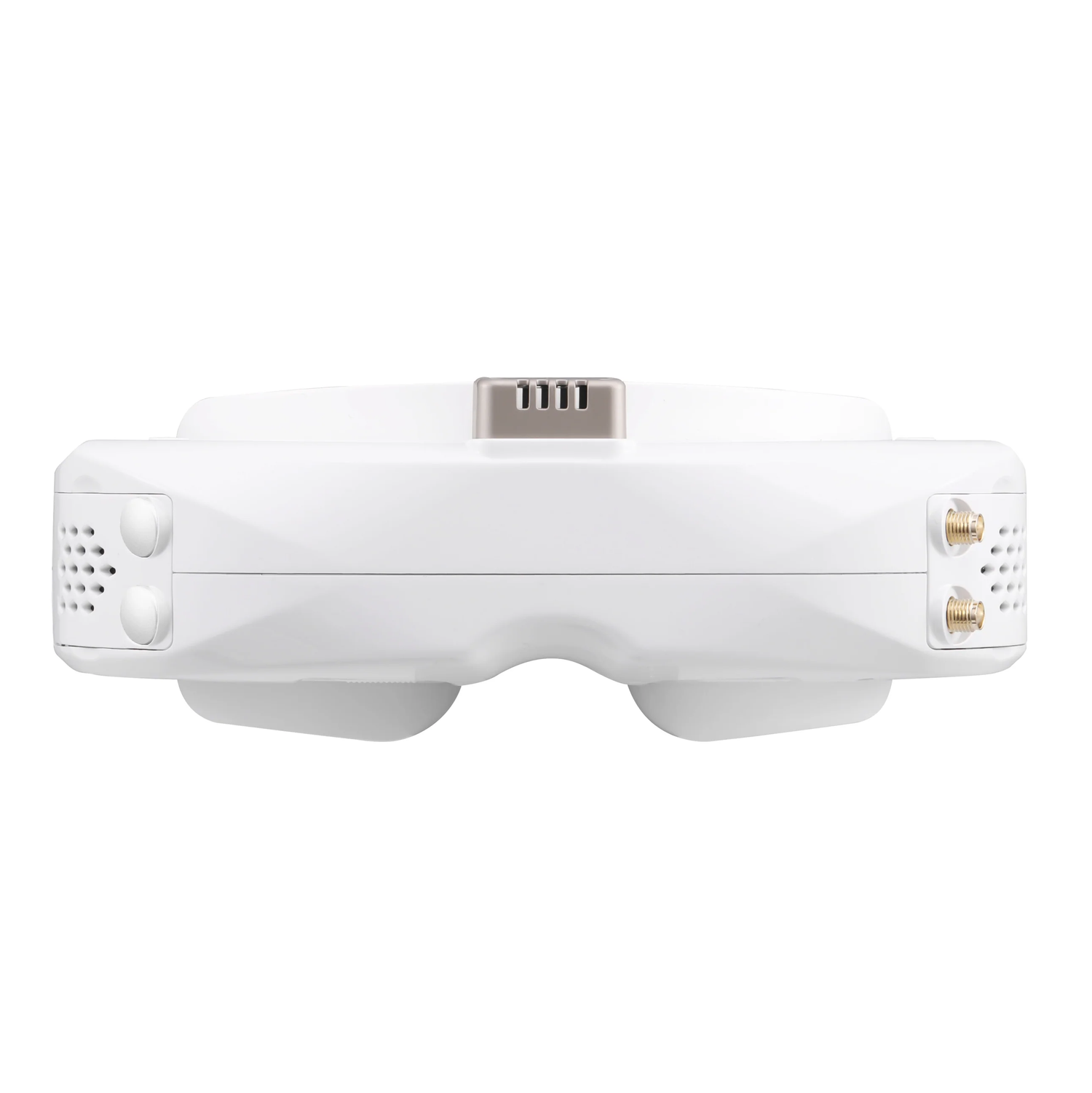

Analogue glasses SKY04L

Features:
- The SteadyView receiver combines two signals into one, making the image more stable and clear in challenging conditions.
- Module shaft. Glasses have more upgrade options.
- Focus settings. The new optics have a large field of view (37 degrees). and the optics have a focus adjustment function (-6~+2), you no longer need diopters.
- LCOS screen. The 1280*960 screen has high definition and vivid colors, high contrast ratio, so pilots can see more details.
- Advanced screen settings. Aspect ratio can be switched and 4 x reset screen settings and 3 customized settings for indoor and outdoor flights or different weather.
- Pendulum wheel control.
- New user interface with 10 languages, new user interface with pendulum wheel, easy navigation, 10 languages to choose for local users.
- Built-in DVR.

SKY04L Specifications:
Screen: LCOS
Resolution: 1280 x 960
FOV (diagonal): 37°
Aspect ratio: 4:3/16:9
Focus: -6 +2 adjustable
Interpupillary distance (IPD): 58-71 mm
Receiver: 5.8GHz 48CH V3.3 Steadyview receiver
Language: 10 Language
Power supply: DC6.5-25.2V/USB5V
Power consumption: 720mAat12V
DVR: V2, H264, 60fps, MOV6Mbps, SD card support up to 128Gb
Head Tracker: 3-axis accelerometer, 3-axis gyroscope
Dimensions: 185*75*67mm
Weight: 267g

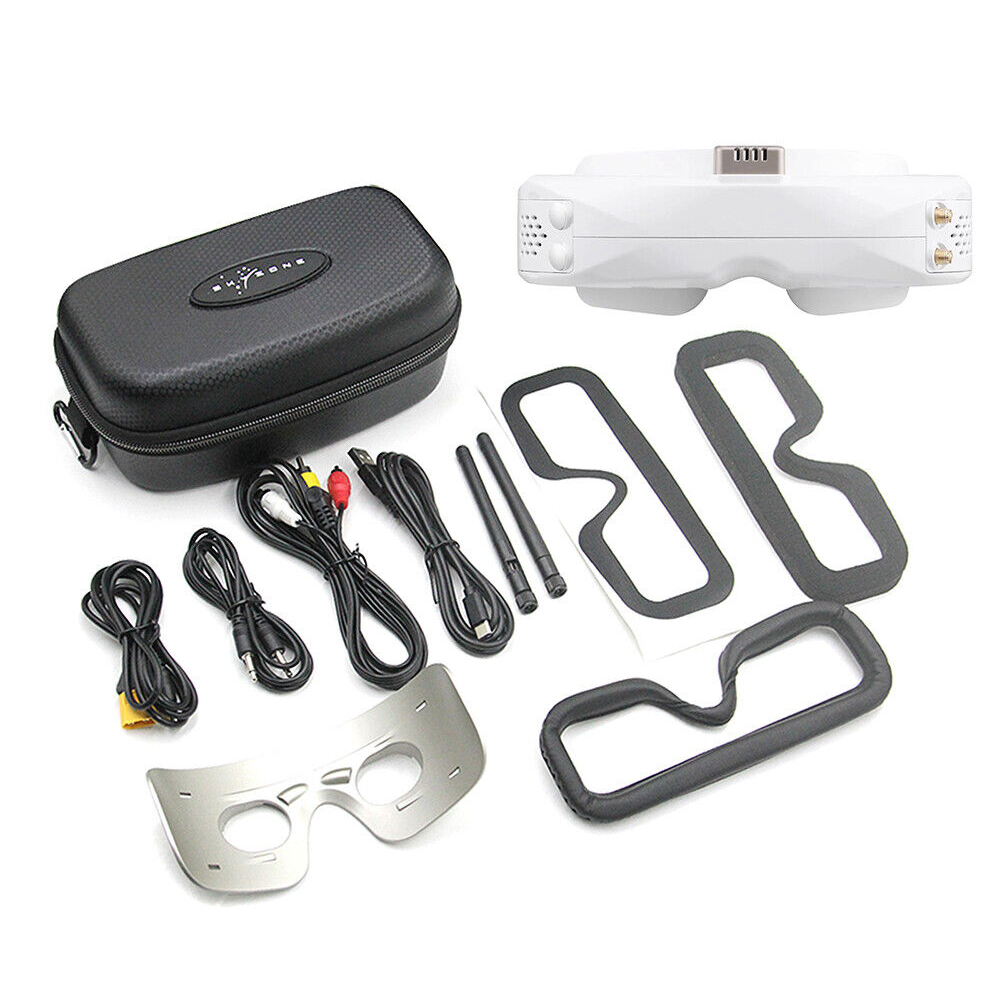

The package includes:
--1x SKY04L V2 glasses
--1x V3.3 Steadyview receiver module
--2x front panel (wide and narrow)
--1x Sponge with Velcro
--1x zipper case
--1x power cord
--1x Headtracker cable
--2x 5.8GHz 2dB antennas
--1x Video/Audio cable
--1x USB-C cable
--1x User manual
