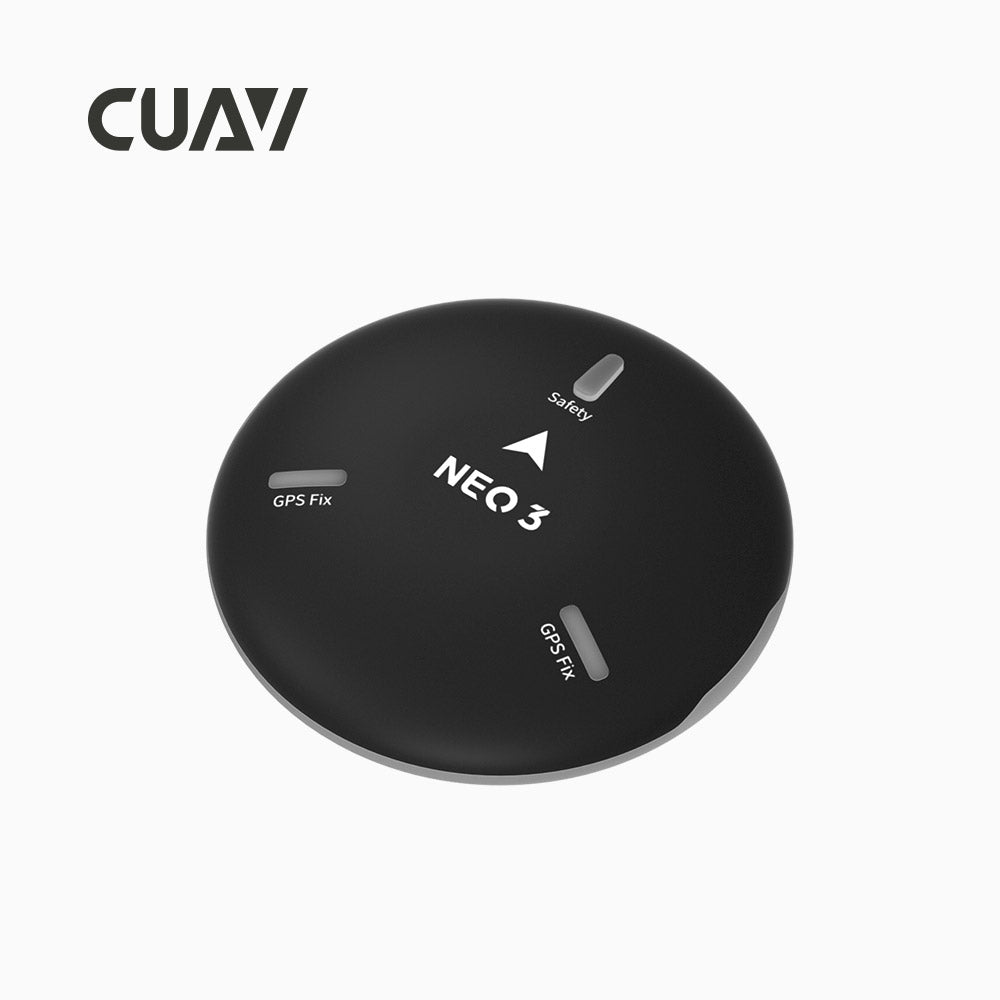

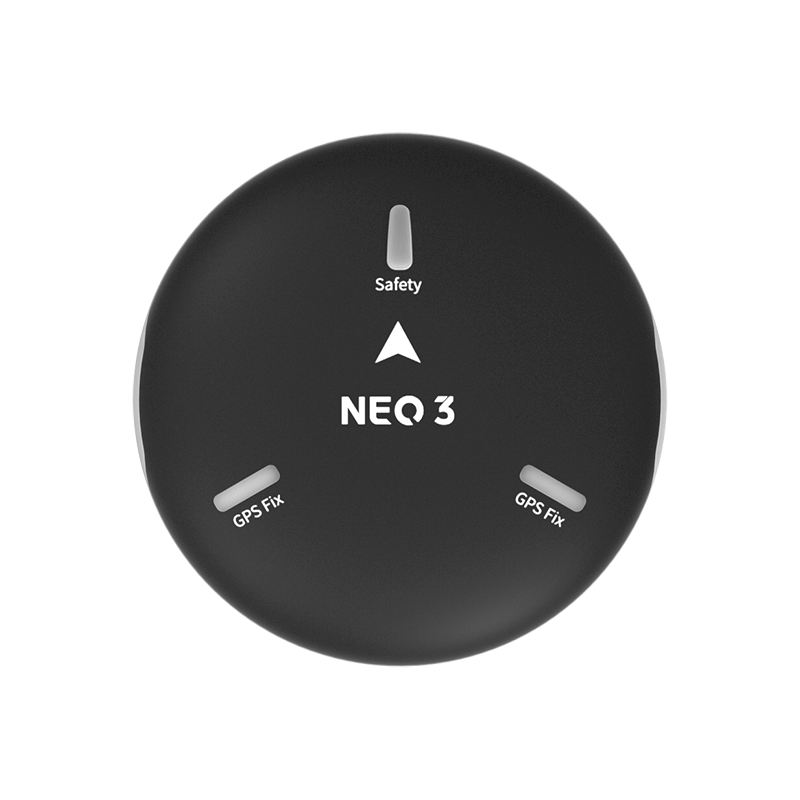

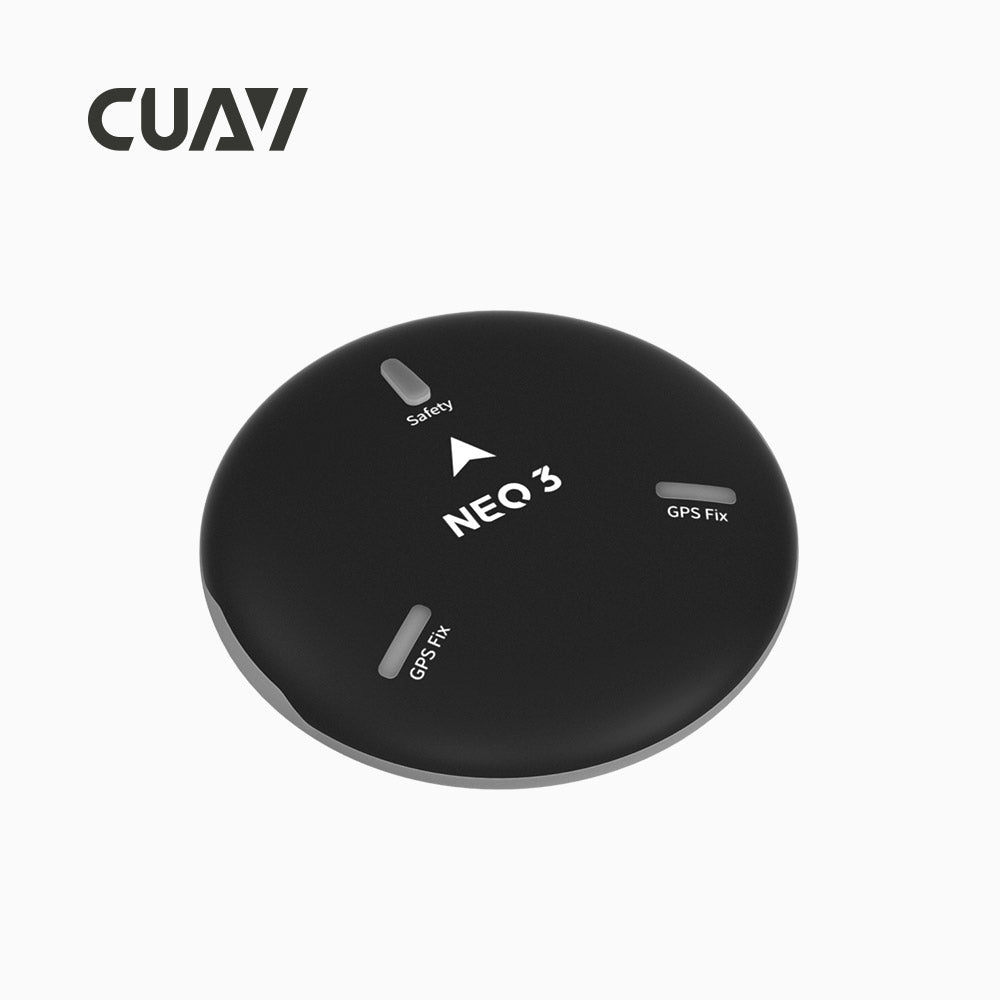

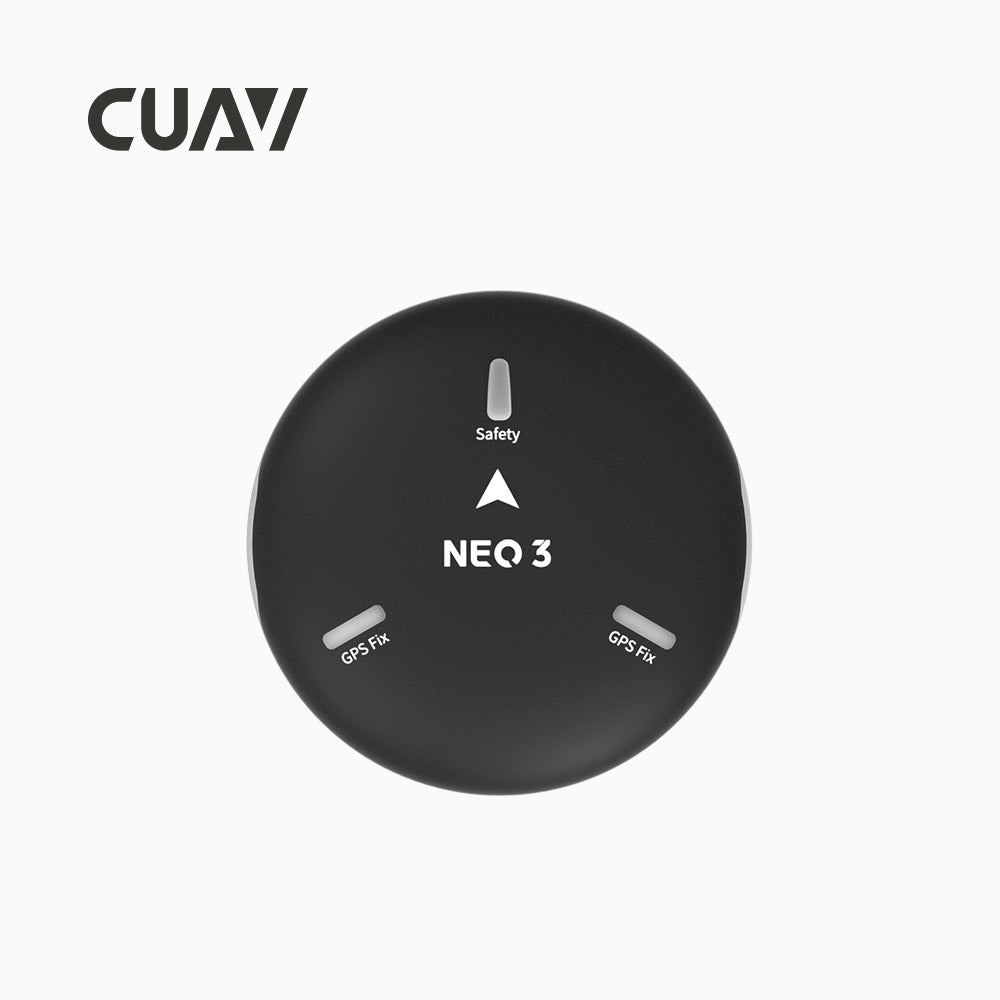

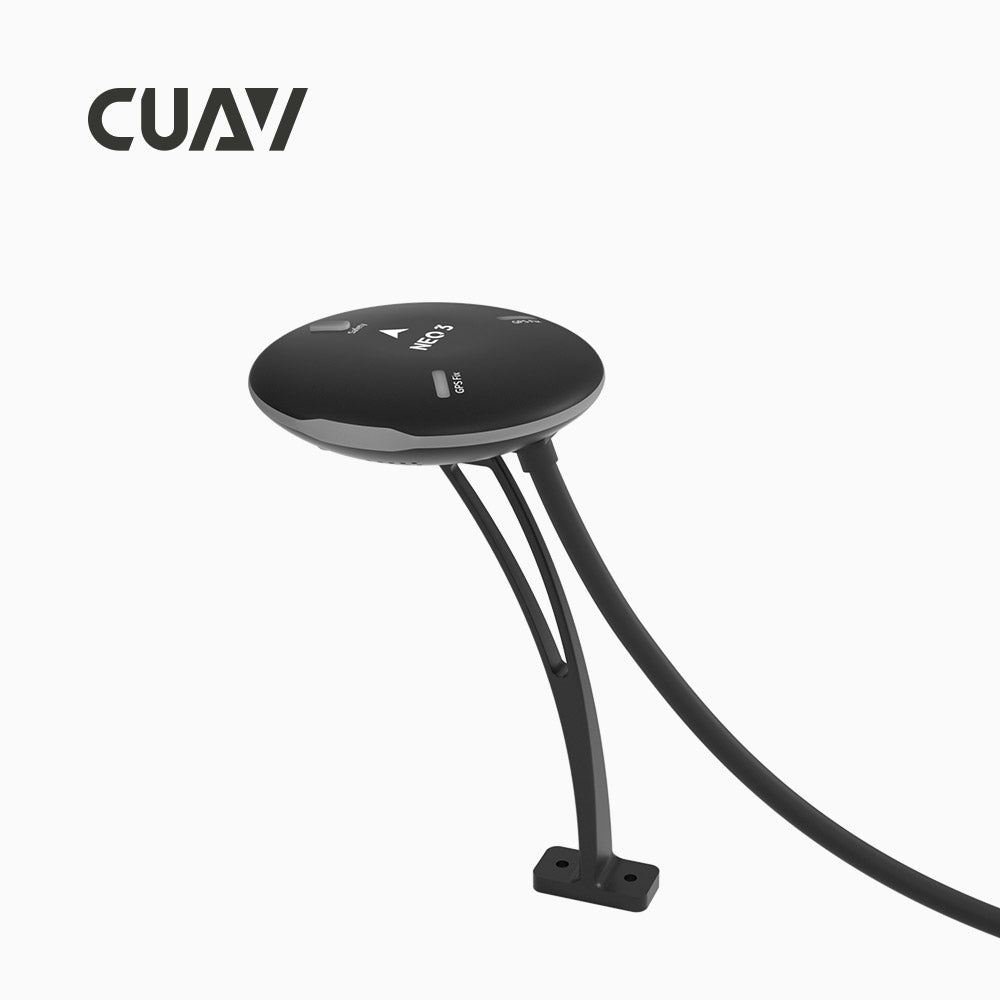

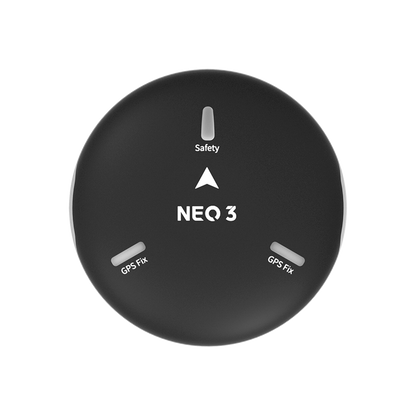

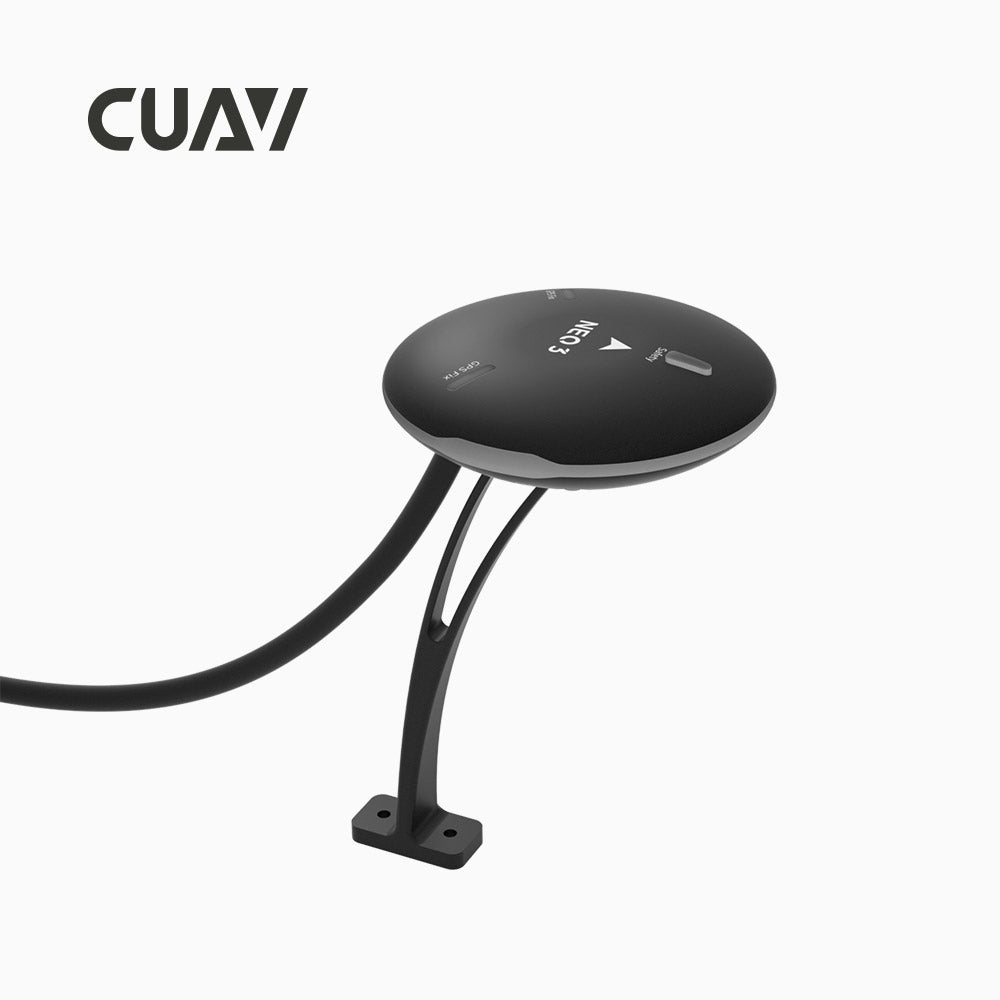

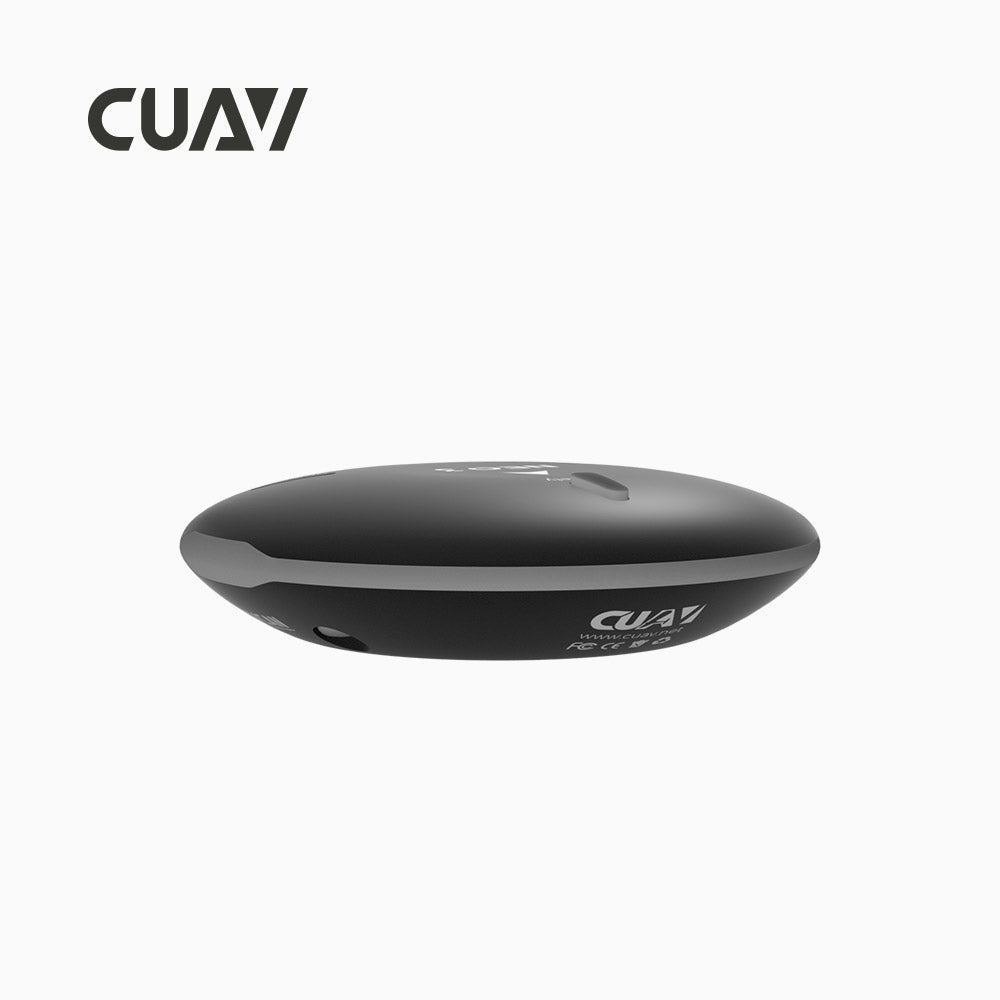

GPS module CUAV NEO 3
Description
CUAV NEO 3 GNSS U-Blox M9N GPS module for Pixhawk Compass, Ardupilot PX4 support with open-source UAV 4, navigation by stars.

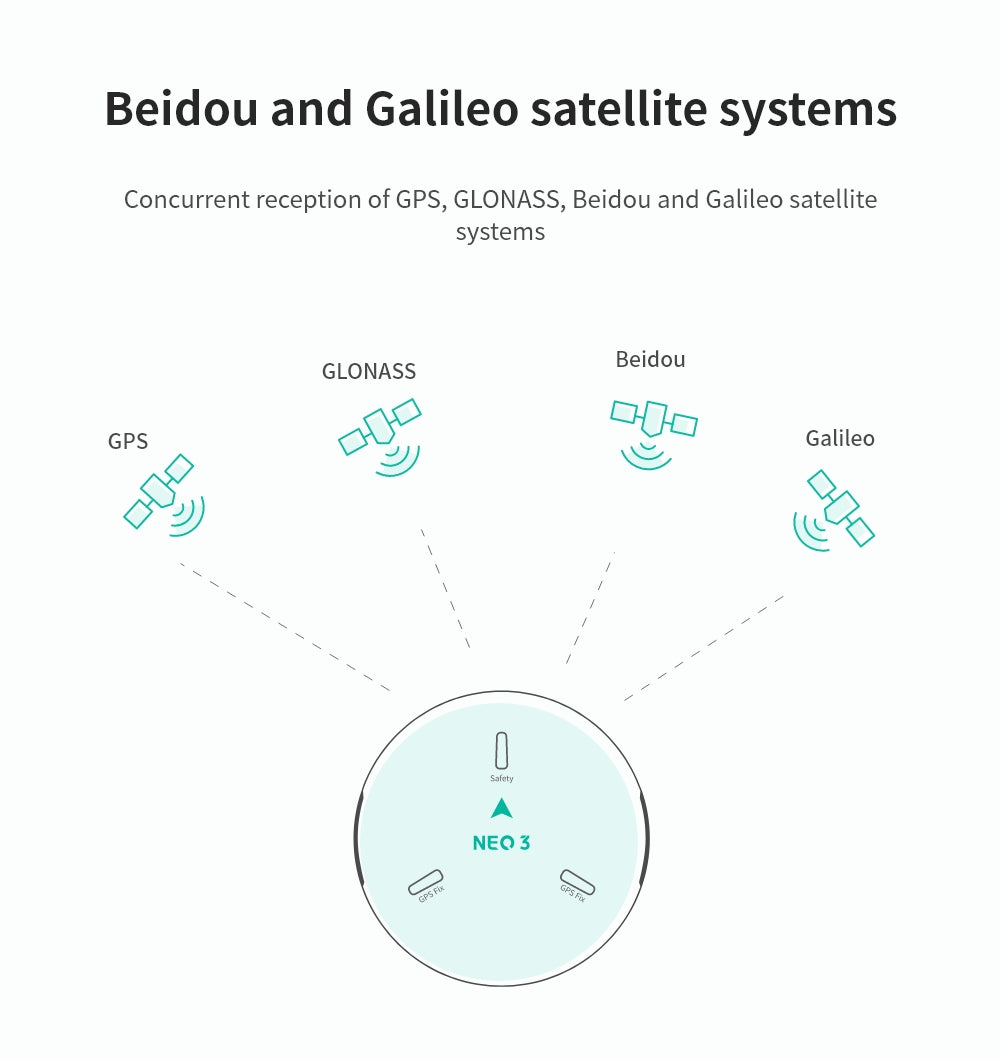

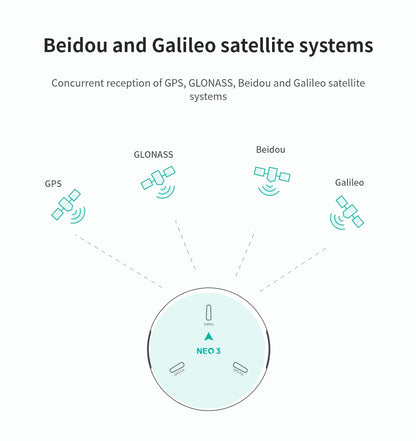

NEO continues the NEO V2 hardware design, with an upgrade of the GNSS module to the Ublox NEO M9N. It supports simultaneous reception of Beidou, Galileo, GLONASS and GPS, with a horizontal positioning accuracy of up to 0.7m. It has an integrated safety switch, buzzer and RGB indicator.
Specifications
- Model Number: CUAV-NEO3
- Brand Name: Feetech
- Processor: STM32F412
-
Sensors:
- Compass: IST8310
- Barometer: MS5611
- RTK receiver: Ublox M9N
GNSS Ranges:
- GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1I, Galileo E1B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
- Number of simultaneously active GNSS: 4 (Simultaneous reception of satellite information)
- Maximum number of satellites: Up to 32
- RTK update frequency: Up to 25 Hz
Positioning accuracy: Up to 1.5m
- Cold start: 24 seconds
- Auxiliary start: 2 seconds
- Recovery: 2 seconds
- Tracking and navigation sensitivity: -167 dBm
- Cold start sensitivity: -148 dBm
- Recovery sensitivity: -160 dBm
Protocol: UART+I2C+IO
Interface Type: GHR-10V-S
Input Voltage: 5V
Operating Temperature: -10~70°C

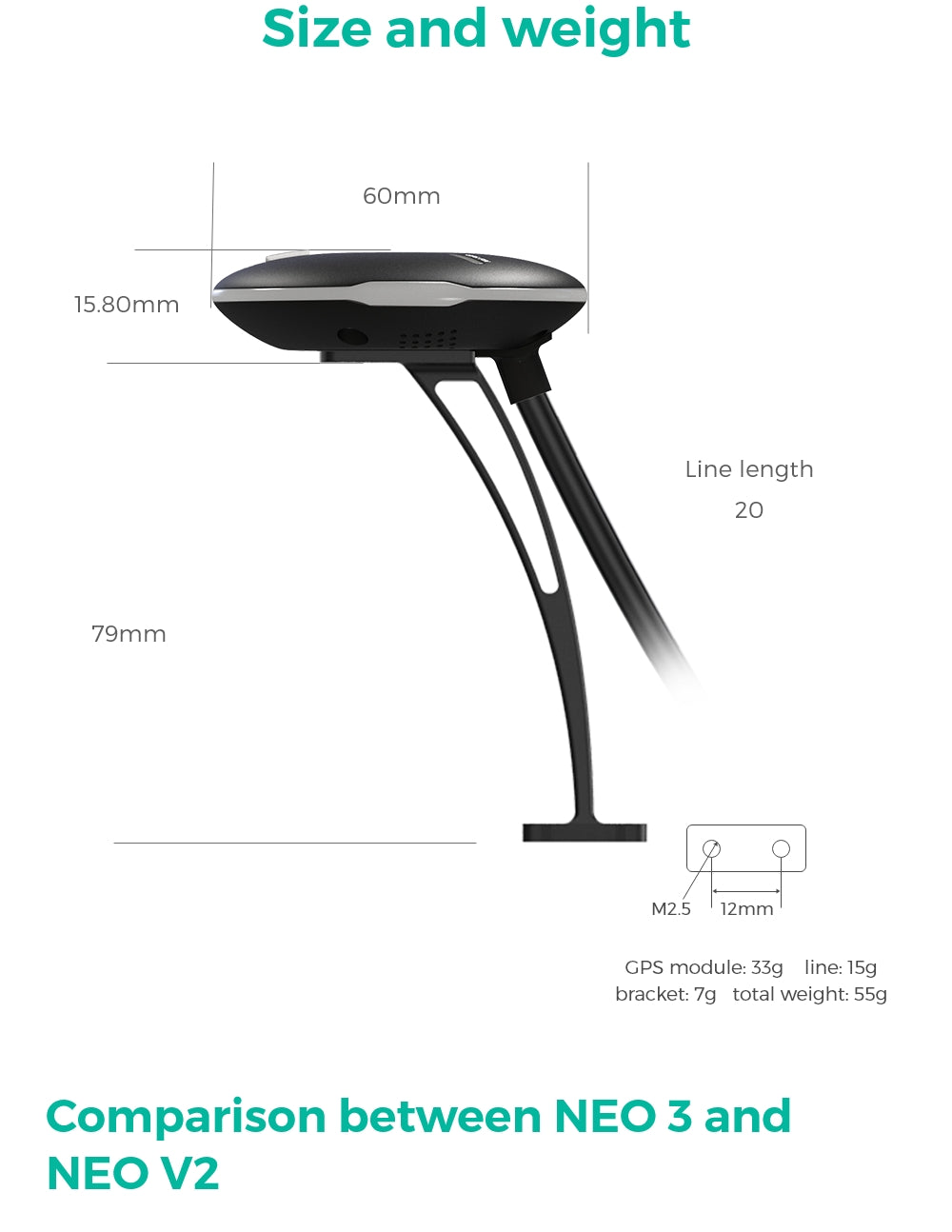

Dimensions: 60x60x16mm
Weight: 33 g
