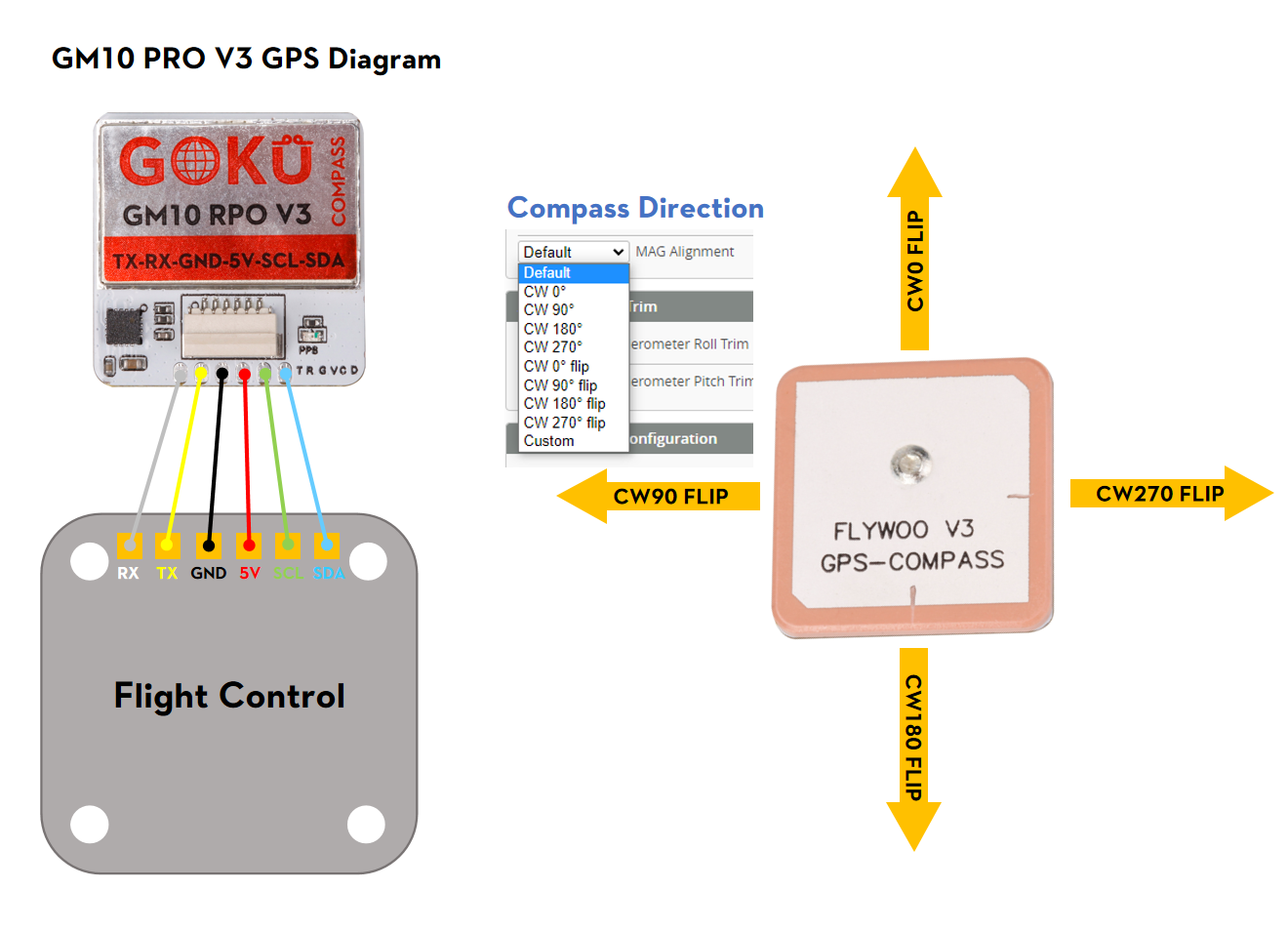

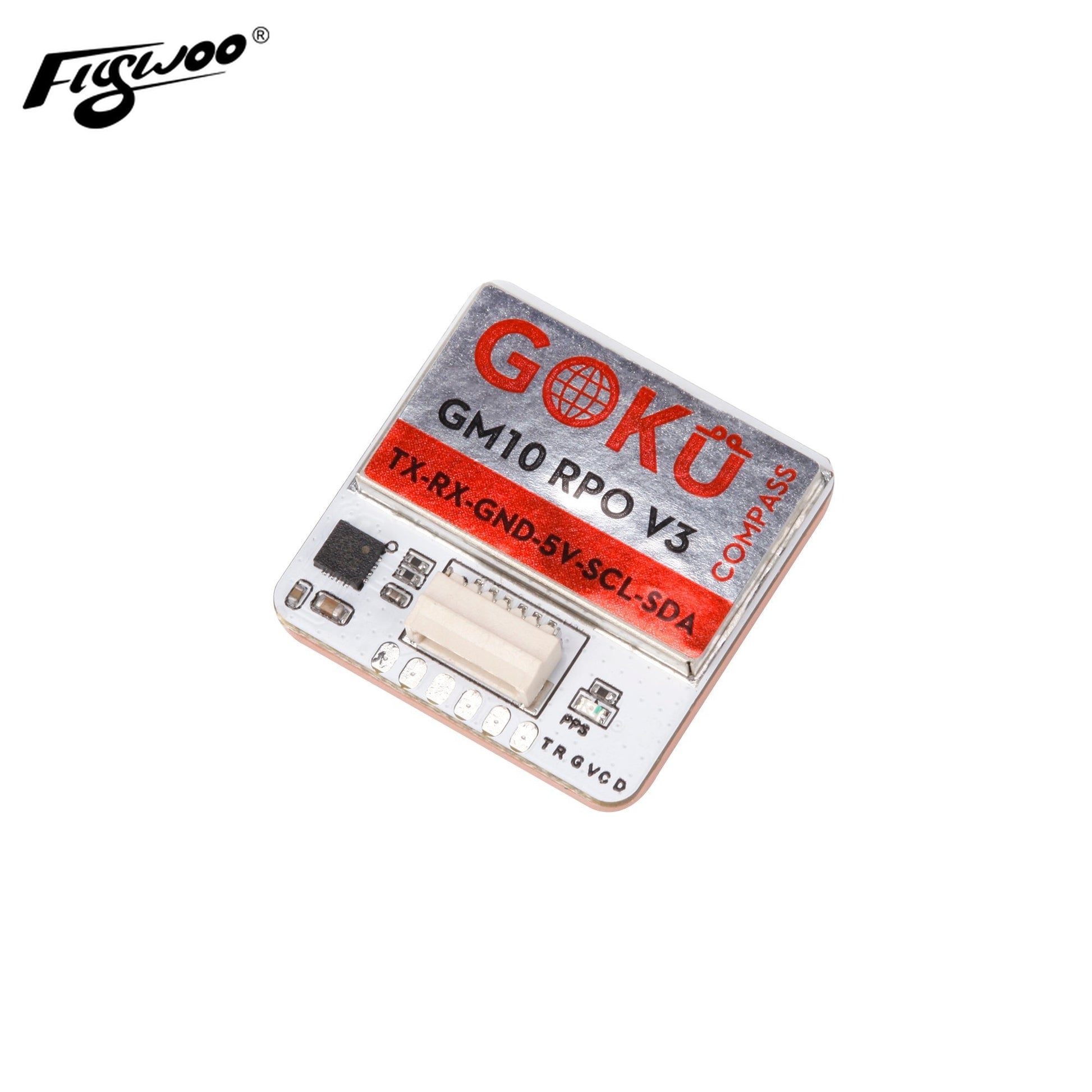

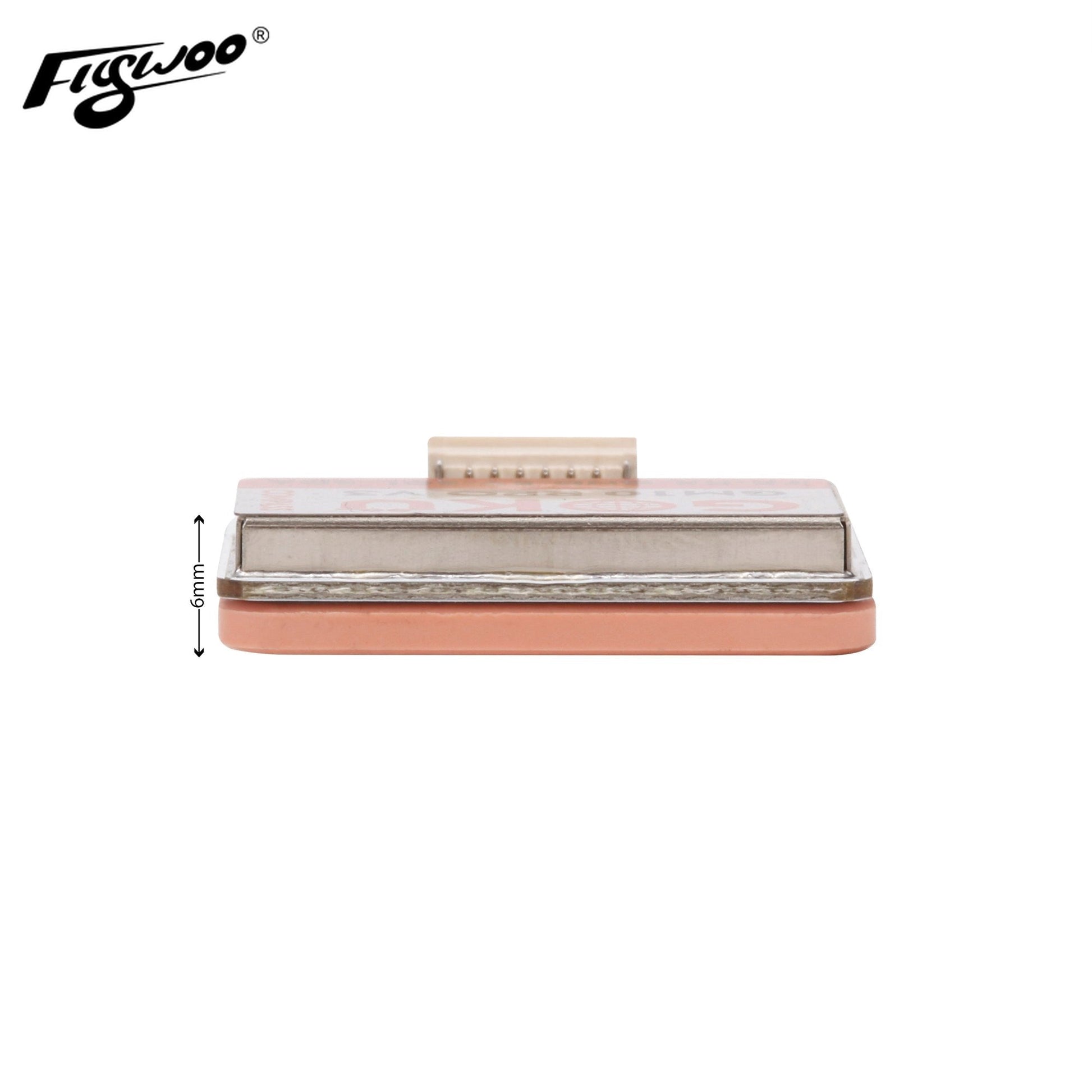

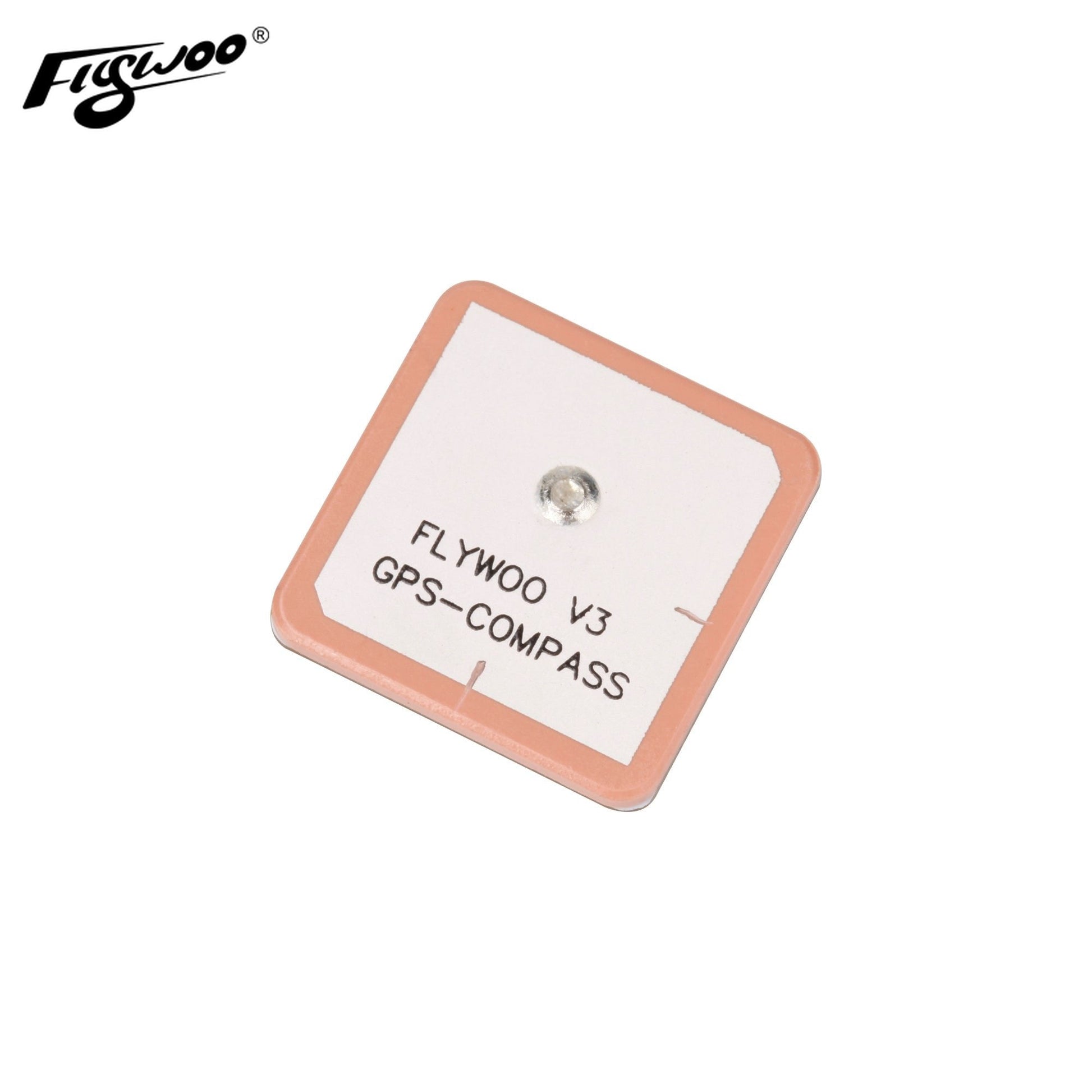

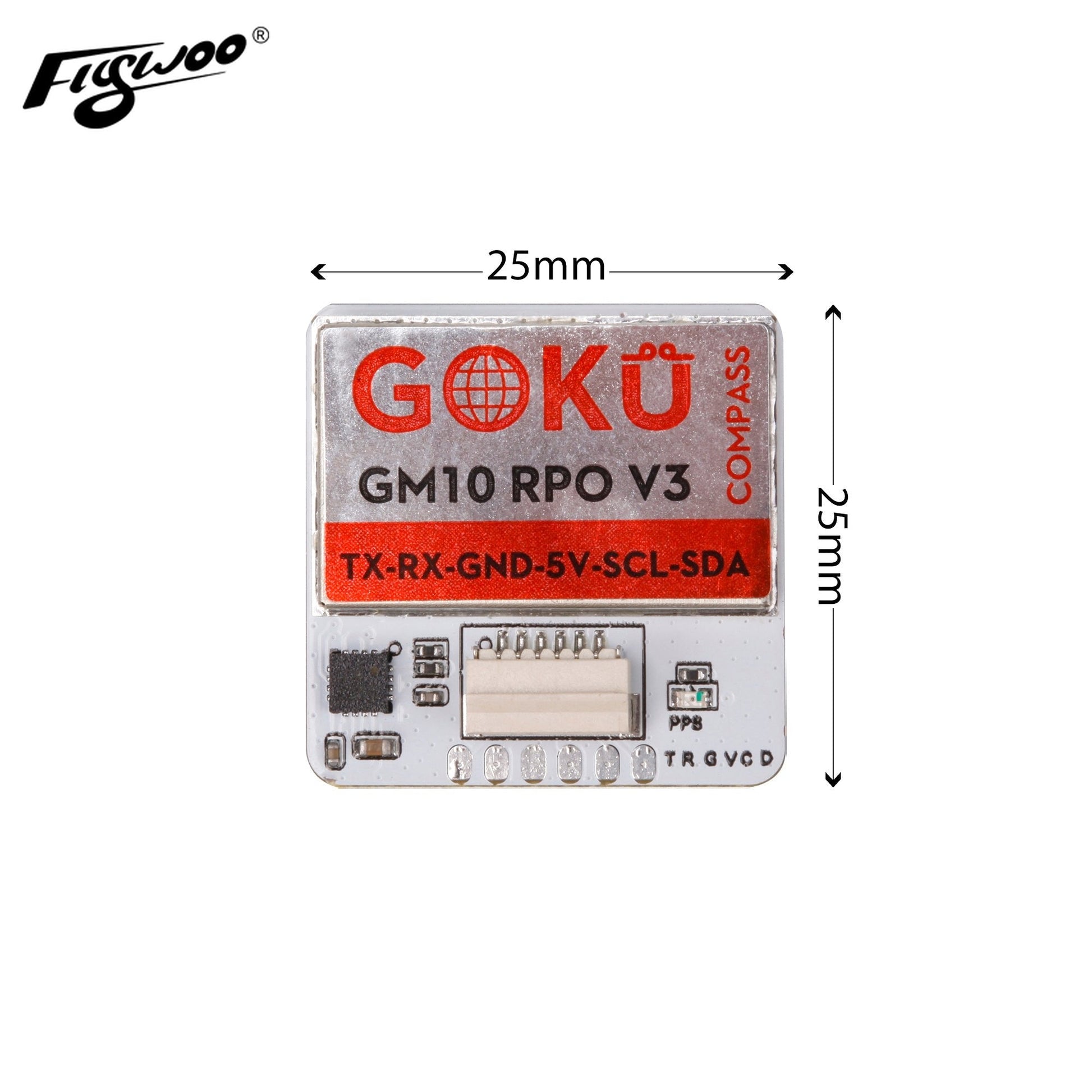

GPS module Flywoo GOKU GM10 Pro V3 Compass Flywoo GOKU GM10 Pro V3 GPS module with QMC5883L integrated compass offers high-precision navigation and orientation for FPV drones and robotics. With the advanced M10050 chipset, this compact 25 x 25 x 6 mm module supports multiple satellite systems, including GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS, for faster and more reliable positioning. With a refresh rate of 10 Hz, 72 tracking channels and a tracking sensitivity of -162 dBm, it ensures excellent response and accuracy. It is designed for demanding conditions and works in the temperature range from -40 °C to +85 °C. This GPS module is compatible with Betaflight 4.2-4.3 and has a TTL output, making it a plug-and-play solution for modern UAV systems. Specifications: Chipset: M10050 (10th generation) Compass: Integrated electronic compass QMC5883L Supported GNSS systems: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1 Watch channels: 72 Sensitivity: Tracking -162 dBm / Reacquiring -160 dBm Data protocols: BF4.3.X (UBLOX), BF4.2.X (NMEA) Refresh rate: 1-10Hz (default 10Hz) Baud Rate: 4800-921600 bps (Default 115200 bps) Data level: TTL (default), RS-232 optional Operating voltage: 5 V DC Current consumption: Low power consumption Operating temperature: -40 °C to +85 °C Storage temperature: -40 °C to +105 °C Maximum altitude: 50,000 m Maximum speed: 500 m/s Maximum acceleration: < 4 g Dimensions: 25 x 25 x 6 mm Weight: 7.3 g Connector: 6-pin, pitch 1.00 mm LED indicator: yellow PPS LED (off = no position, flashing = position determined) Connections: TX, RX, GND, 5V, SCL, SDA The package contains: 1× GM10 Pro V3 GPS module with compass 1x cable 150 mm 1x copper foil
