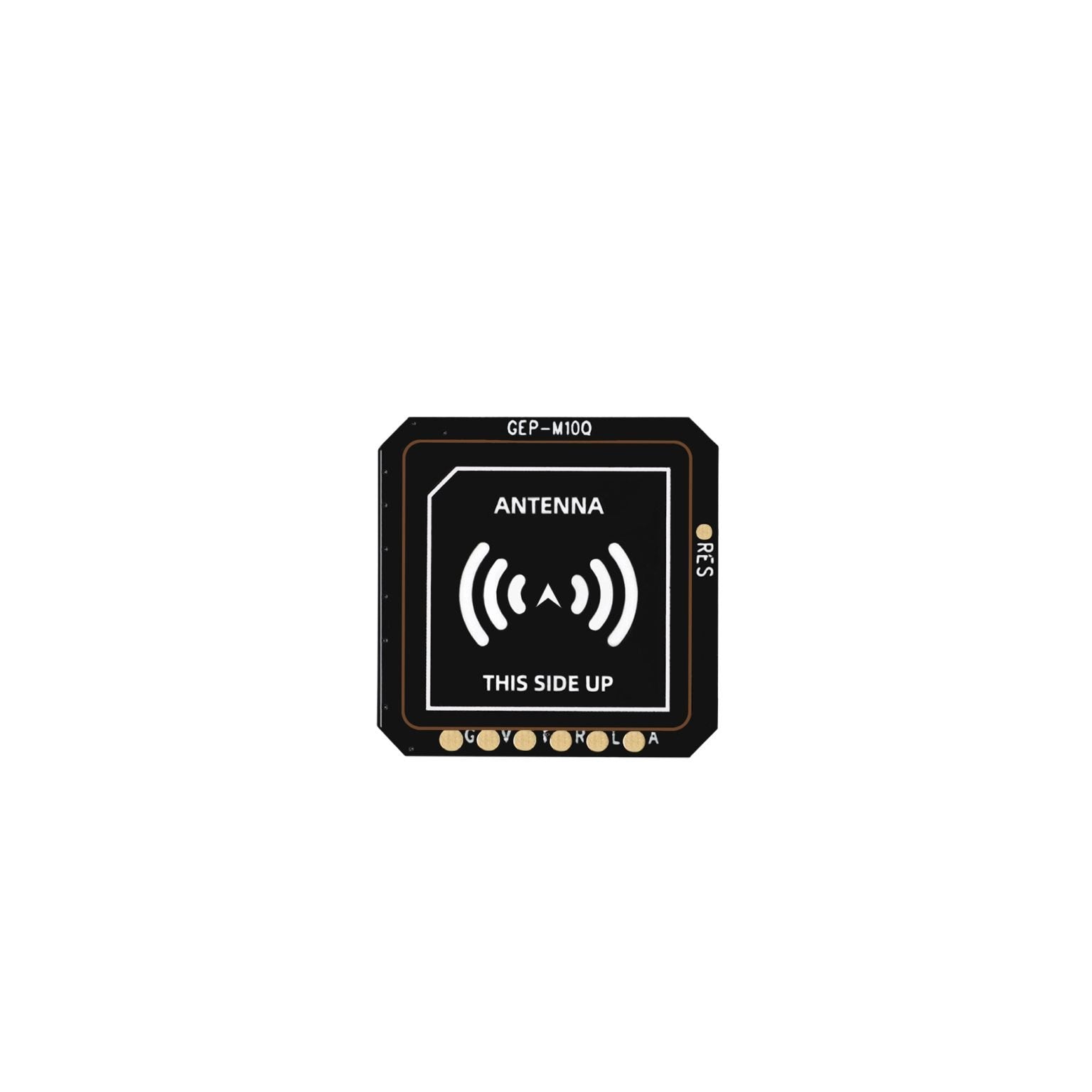

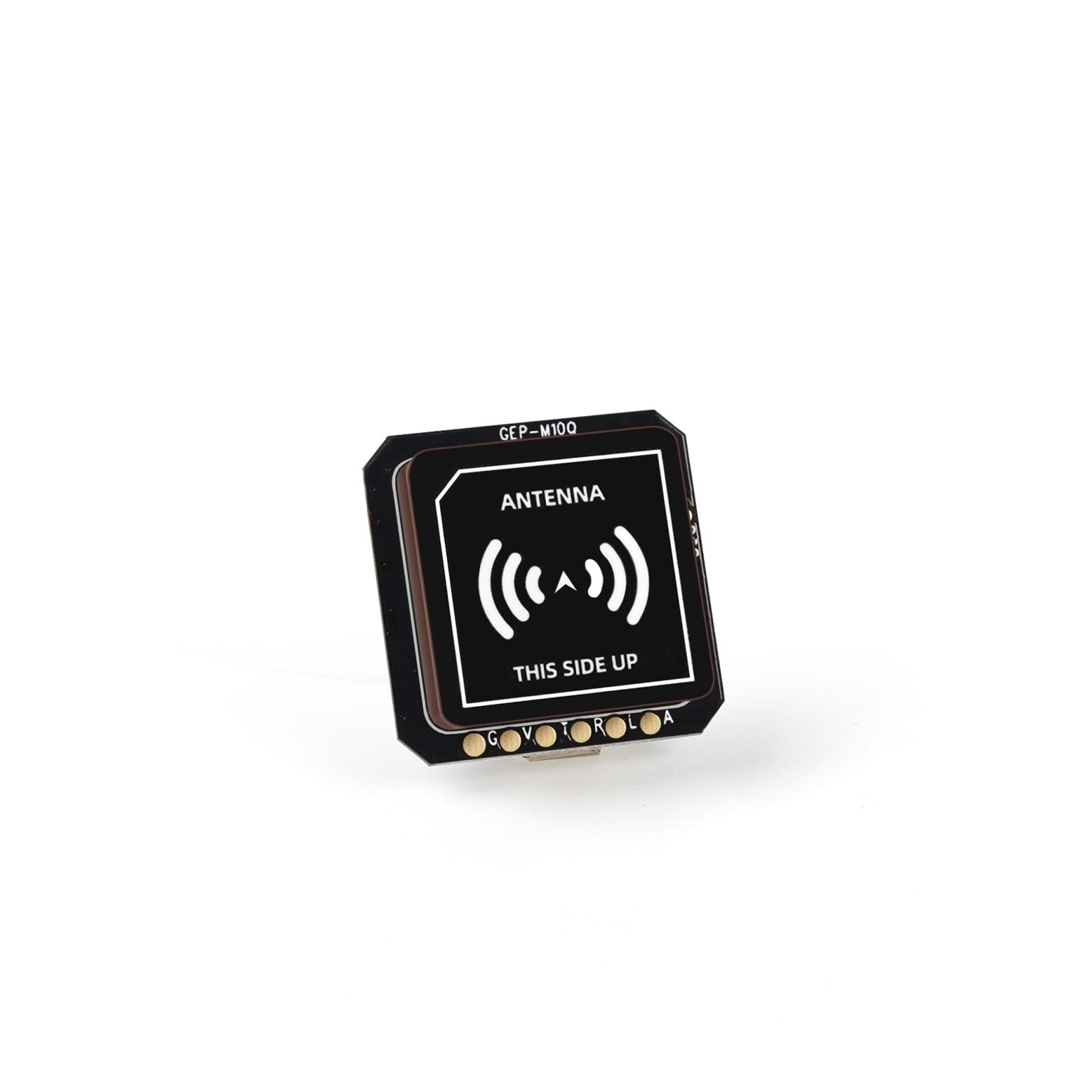

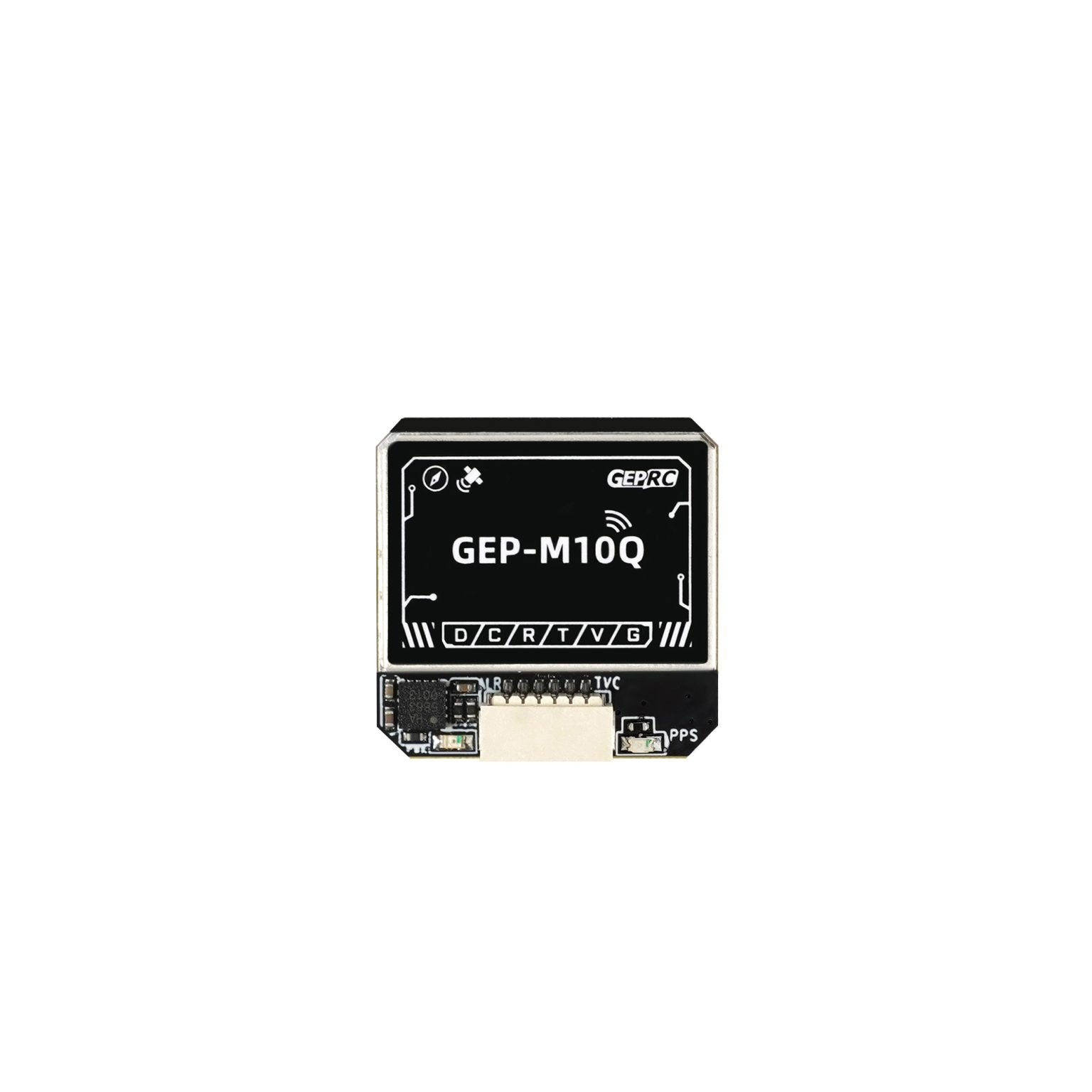

GPS GEP-M10Q

The GEP-M10 series GPS positioning module is designed for use in FPV drones, multi-rotors, fixed-wing aircraft and other model products. It offers fast and stable positioning, supports multiple satellite systems, and provides additional features such as magnetometer and barometer integration.

Key Features:
1. Uses u-blox M10 series chip for reliable performance.
2. Offers quick positioning capabilities.
3. Supports GPS, BDS, Galileo, QZSS and SBAS joint positioning.
4. Can connect to a maximum of 32 satellites for higher accuracy.
5. Provides stable and reliable connection quality.
6. Compact and lightweight design.
7. Includes built-in Flash chip and farad capacitor for configuration and quick hot starts.
8. Built-in indicator light for easy use.
9. Integrated magnetometer and barometer (available in model GEP-M10-DQ).

Specifications:

Models: GEP-M10-Q
GPS chip: u-blox M10
Magnetometer GEP-M10Q: QMC5883L
GEP-M10Q Barometer: None
Input voltage: 3.3V-5V
Reception frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
Operating mode: GPS + BDS + GALILEO + QZSS + SBAS joint positioning
Channel: 72 channels
Navigation satellites: up to 32
Output protocol: UART (ublox) for GEP-M10nano, GEP-M10, GEP-M10Q and I2C for GEP-M10Q and GEP-M10-DQ
Baud rate: 115,200 bps
Output frequency: 10Hz
Speed accuracy: 0.05 m/s
Horizontal positioning accuracy: 2D ACC 1.5 m (weather)
Timing accuracy: 30 ns
Receiver sensitivity: Trace-162dBm, Capture-160dBm
Dynamic characteristics: Maximum height: 50,000 m, Maximum speed: 500 m/s, Maximum acceleration: 4G
Dimensions: 22 x 22 x 8.2 mm
Weight: 7.9g
