Pilotix module with 30km roll of optical fibers SE V2

Fiber optic communication is a reliable and efficient solution for land, underwater and aerial systems where large amounts of image data need to be transmitted with minimal loss or in the absence of radio communication. The Pilotix optical communication kit includes a 30-kilometer optical cable and the Sky End SE V2 communication module, which ensures fast and stable data transmission.

Features:
- Low latency, which is critical for real-time control.
- Immunity to radio interference, ensuring 100% uninterrupted communication quality.
- High bandwidth, enabling HD video transmission and large data transfers.
- No additional drone receiver or video transmission system required.
- Secure connection that makes it difficult to intercept the signal.

This kit is an ideal choice for professional applications of continuous communication and video surveillance, especially in demanding environments.

Important notes:

- For reliable communication at a distance of 5 km, 10 km or 15 km, we recommend choosing a transmitter with a range of up to 20 km. For communication systems with a range of 20 km and more, a transceiver with a range of 40 km is recommended.

- Pilotix optical communication modules are only compatible with transceivers of the same series. We do not guarantee compatibility or take responsibility for correct operation when using devices from other series.

Specifications:

Optical cable
Model: 30km Optic Fiber Roll SE V2
Optical fiber type: G657A2
Fiber diameter: 0.28 mm ±0.01
Fiber length: 20 km
Fiber weight: 80 g/km
Optical attenuation:
- 1310 nm: ≤0.35 dB/km, WT 0.329
- 1550 nm: ≤0.25 dB/km, WT 0.185
Optical interface: FC
Shell Material: Resin
Working temperature: -40 ~ +85 °C
Material: ABS
Color: black
Size: 147 x 276 mm
Weight: 2950 g

Digitization module with optical fibers
Device Name: Air Unit SE V2
Power supply: 5.5V~26V
Body size: 63x37x23mm
Body weight: 31±2g

Optical interface: FC interface
Fiber type: Single mode fiber
Data interface: SH1.0
Video format: NTSC/PAL/SECAM
Data direction: Bi-directional
Data format: TTL/SBUS
Speed: 0~1Mbps
Single wavelength mode: 1310 (9/125 μm) +1550
Transmission distance: single-mode fiber up to 20 km

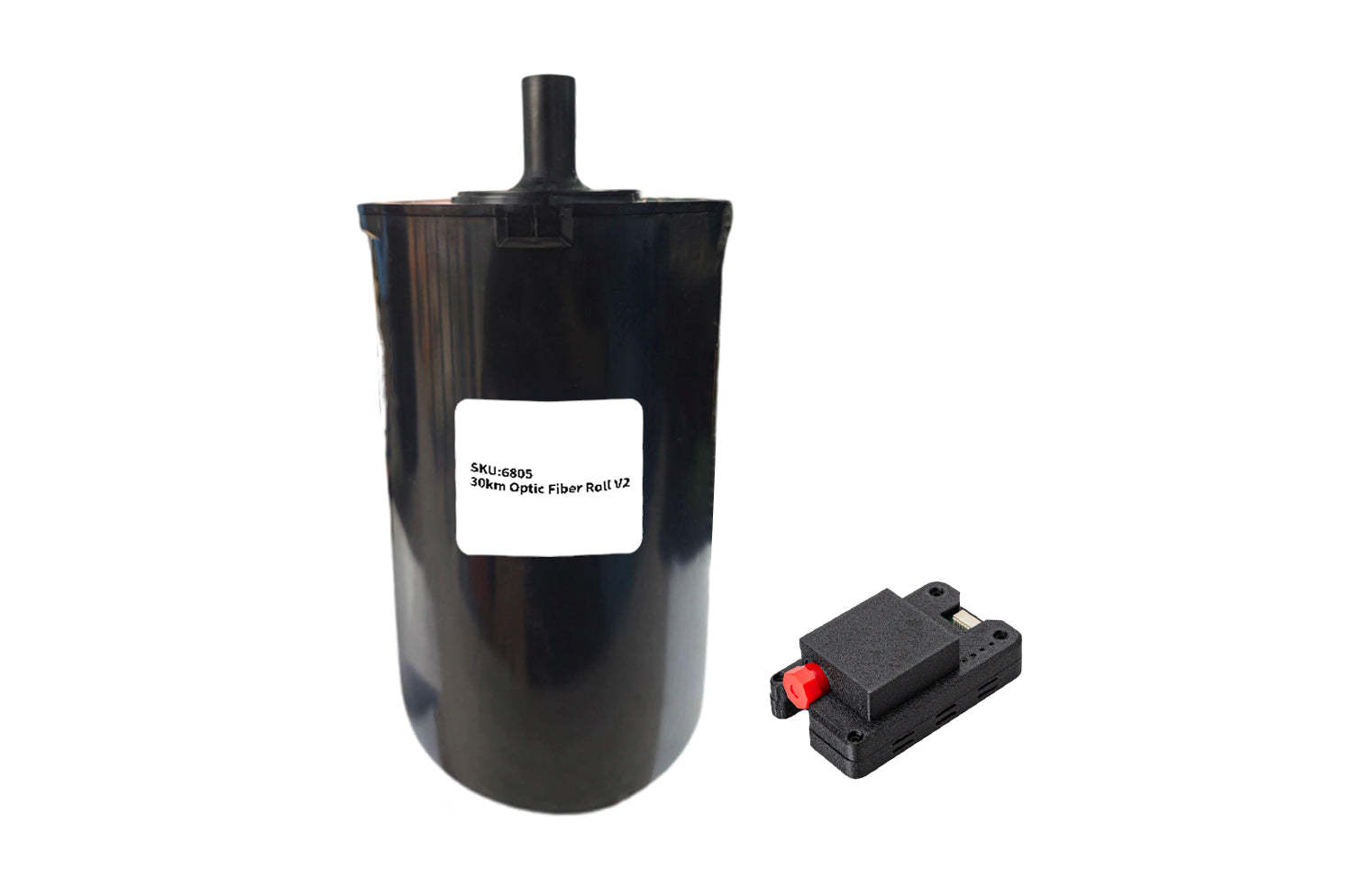

The package contains:
1x Sky End SE V2 fiber optic module
1x 30km roll of optical fiber SE V2
