Motor BETAFPV 0702SE 25000KV(4PCS)

Name: Motor BETAFPV 0702SE 25000KV(4PCS)
Brand: Baltic Drones
SKU: 01050010_1
Price: 58.55 EUR
Availability: InStock

Motor BETAFPV 0702SE 25000KV(4PCS)

Brand: BETAFPV

€58,55

~~€58,55~~ €58,55

-0% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

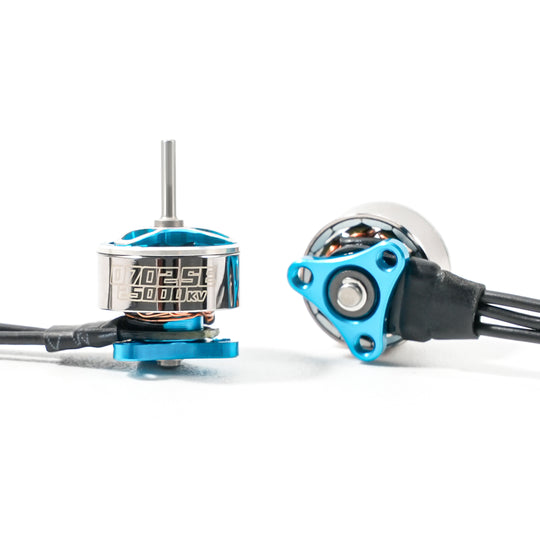

0702SE 25000KV brushless motors (4pcs)

Function

- 0702SE motors are designed for lightweight 65mm drone drones

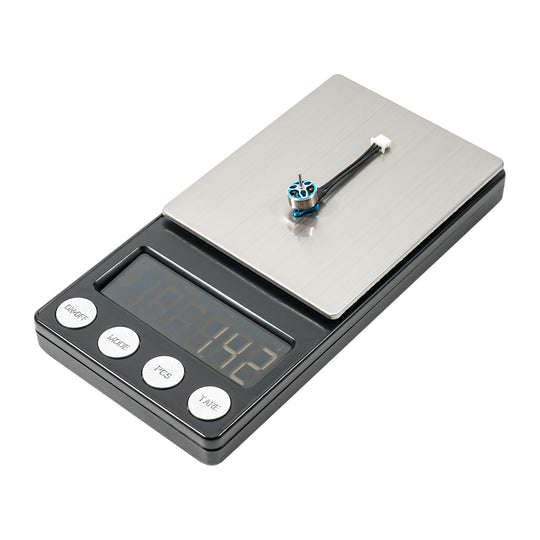

- Weighs only 1.42g, making them the lightest motors available.

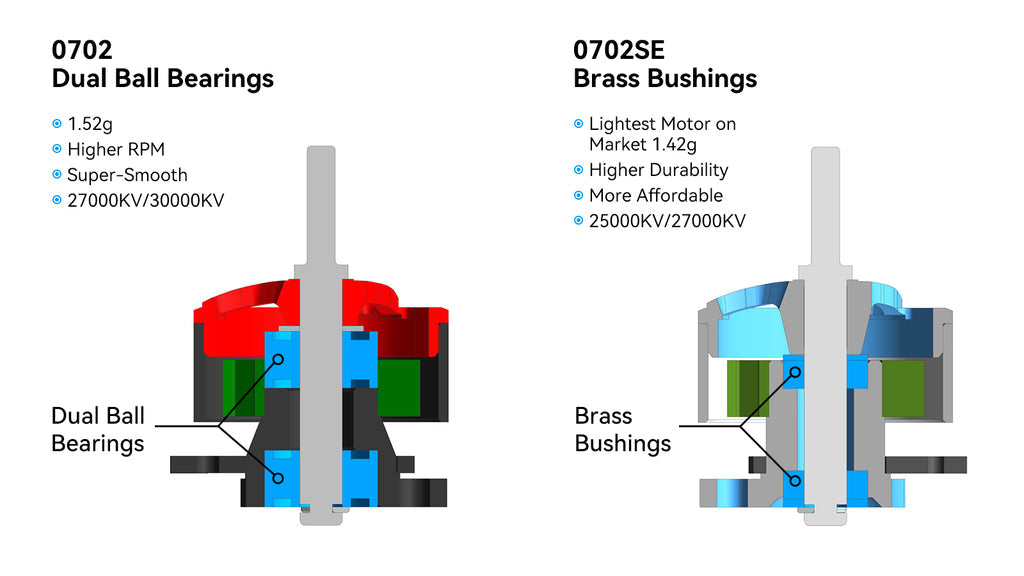

- The 0702SE motor with brass bushings is more affordable and durable.
- Despite the availability of larger engines achieving similar thrust, the 0702 engines are preferred for their ability to reduce off-center weight, thereby increasing agility.
- Weighing only 0.10 grams/12pcs, PEEK screws contribute to weight saving and offer heat resistance, friction resistance, shock resistance and fatigue resistance.
- Combined with Gemfan 1210 2-blade or 1208 3-blade propellers, these motors provide robust performance and responsiveness to meet the demands of light drone installations.

Specifications

Item: 0702SE AC motors
Bearing: brass bushings
KV: 25,000 KV
Weight: 1.42g±0.03g
Weight without connector: 1.35 g
Color: Ice blue
Shaft diameter: 1mm
Shaft length: 4.2 mm
Hole distance: 6.6 mm
Motor mounting holes: M1.4
Input voltage: 1S
Cables: 35mm including connector, 30AWG cables
Dimensions: 12.75*φ9mm

Recommended parts

Propellers: GF 1210 2B Props, GF 1208 3B Props
Frame: Meteor65 frame, Meteor65 Pro frame
FC: F4 1S 5A AIO Brushless Flight Controller
Battery: BT2.0 300mAh 1S 30C Battery (8PCS)
Bolts: A set of bolts for fixing the Meteor series motor

Package

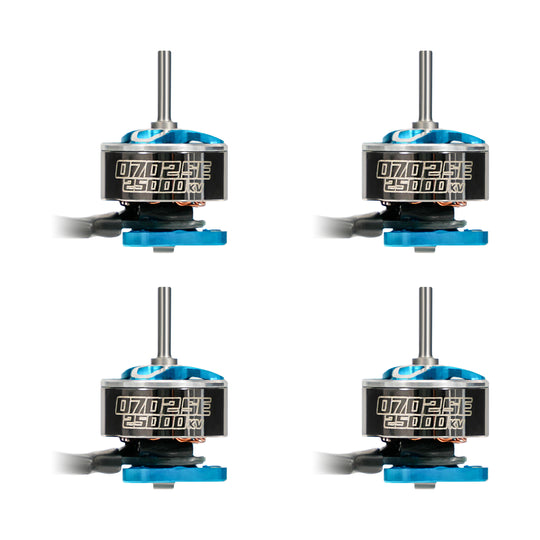

4 * 0702SE brushless motor 25000KV
15 * M1.4*3 PEEK screws
12 * M1.4*3 metal screws
