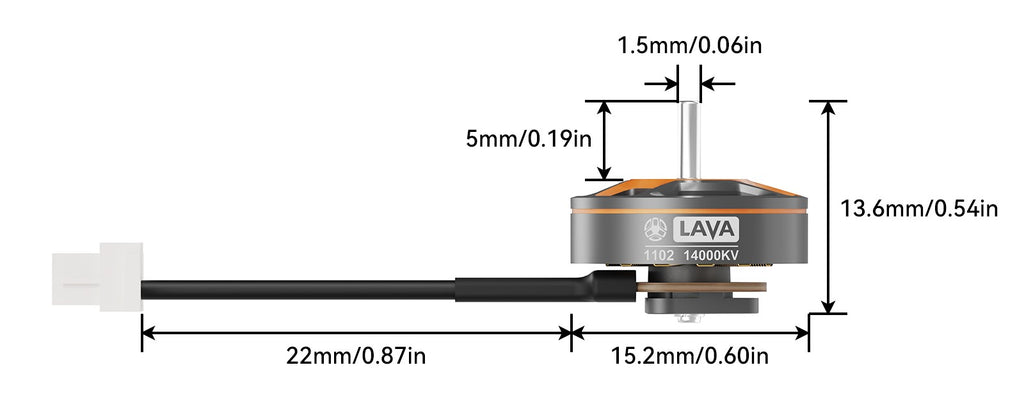

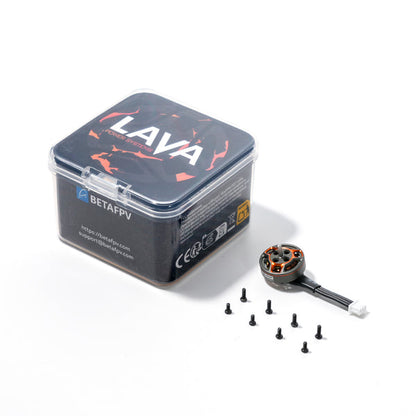

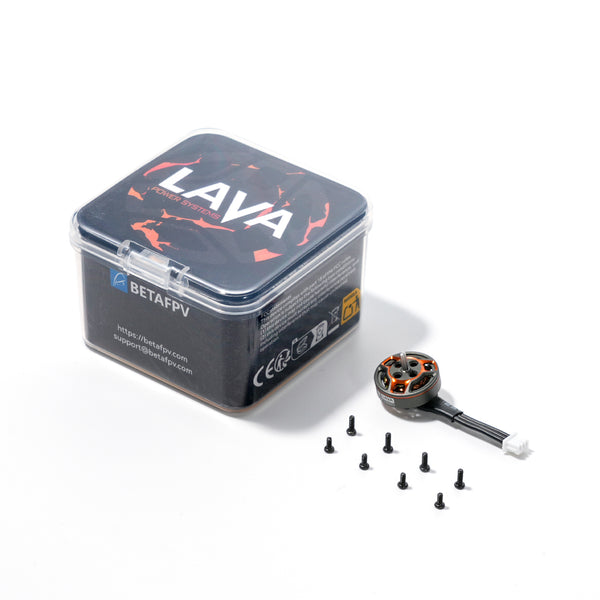

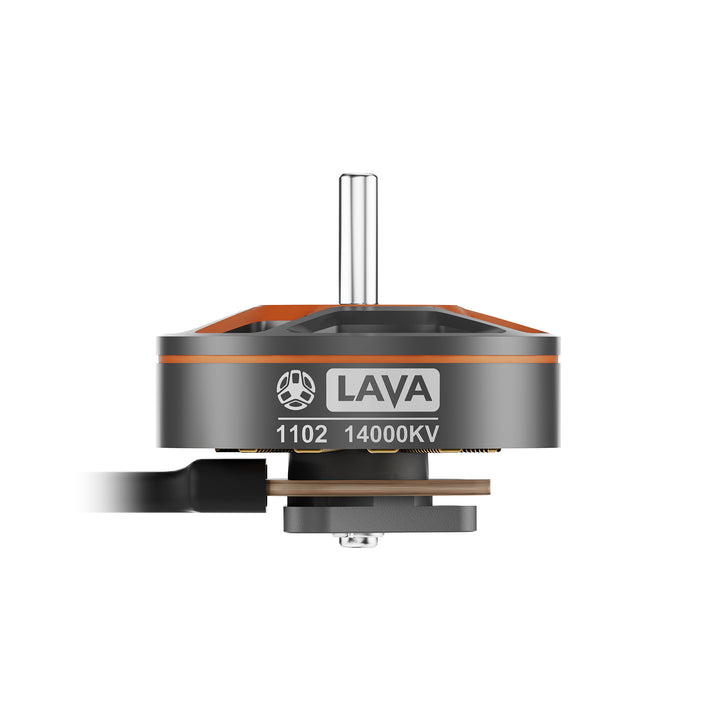

Motor BetaFPV LAVA 1104 14000KV Brushless 1pc Built for the Pavo Femto, the LAVA 1102 series AC motor achieves nearly 130g of peak thrust thanks to advanced tile-shaped magnets, optimized magnetic circuit and improved coil fill ratio. Coupled with a whoop channel, the Pavo Femto boasts a thrust-to-weight ratio in excess of 6.75:1. Designed for versatile use, it features four M2 propeller mounting holes for compatibility with a variety of propellers and whoops, making it ideal for a variety of DIY projects. The LAVA 1102 prioritizes performance, efficiency and extended flight time, ensuring robust performance for any pilot. Features: - Designed for Pavo Femto: Tuned 14000KV motors coupled with channel whoop gain allow the Pavo Femto to achieve an impressive 6.75:1 thrust to weight ratio. - Excellent efficiency: Advanced tile-shaped magnets and optimized coil design ensure an efficiency of more than 1.5g/W at a peak pull of 130g. - Lightweight construction: Weight of only 3.4g/3.6g minimizes overall payload for better maneuverability. - DIY Ready: Includes 4 M2 mounting holes to fit a wide variety of props and drone constructions. Specifications: - KV: 14000KV - Maximum power: 84.1 W - Maximum current: 10.51 A - Nominal voltage: 2S - Weight: 3.4 (±0.1) g (cable length 22 mm), 3.6 (±0.1) g (cable length 44 mm) - Shaft diameter: ø1.5 mm - Shaft length: 5 mm - Wire diameter: 28AWG - Wire length: 22mm/44mm - Connector: JST1.25-3Pin - Motor mounting hole size: 3*M1.4 EQS ø6.6 - Propeller mounting hole size: 4*M2 EQS ø5 The package contains: - 1 x LAVA Series 1102 Brushless Motor - 4 x M1.4 * 3 Phillips screws with flat head - 4 x M1.4 * 4 screws with flat head cross threads
