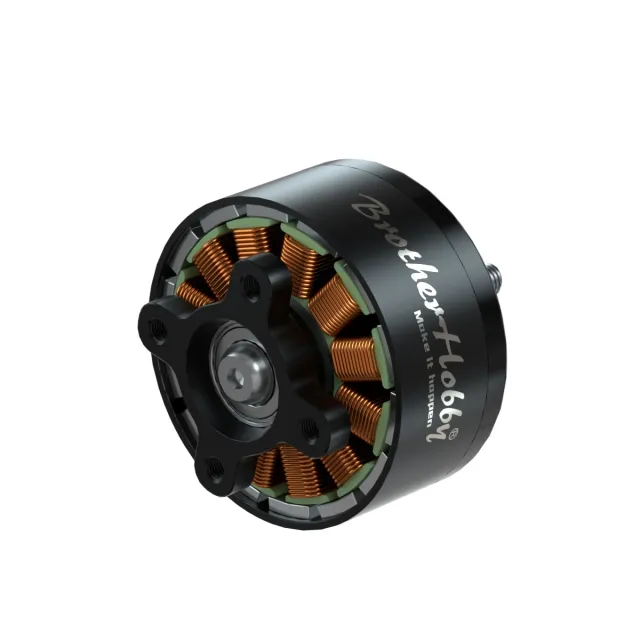

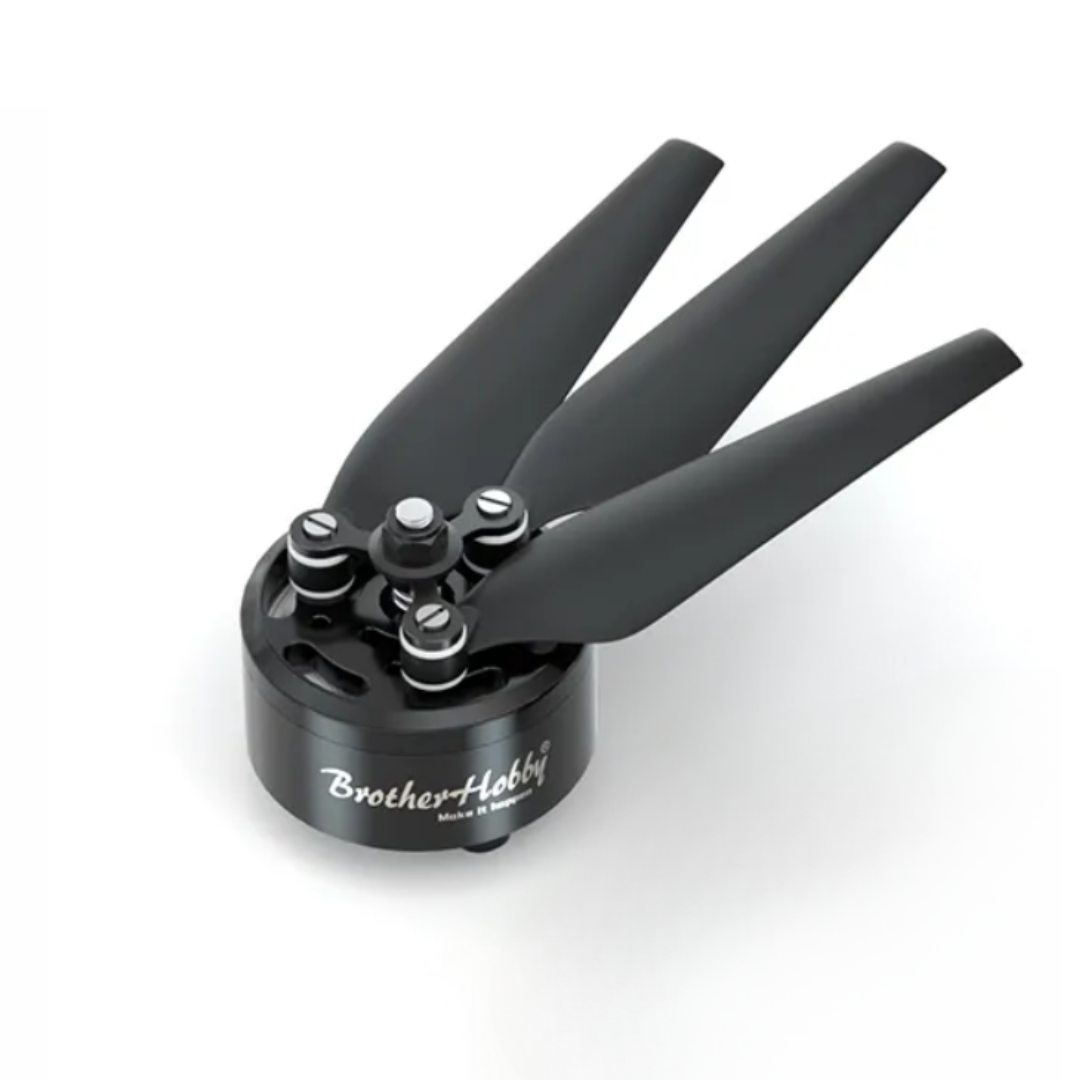

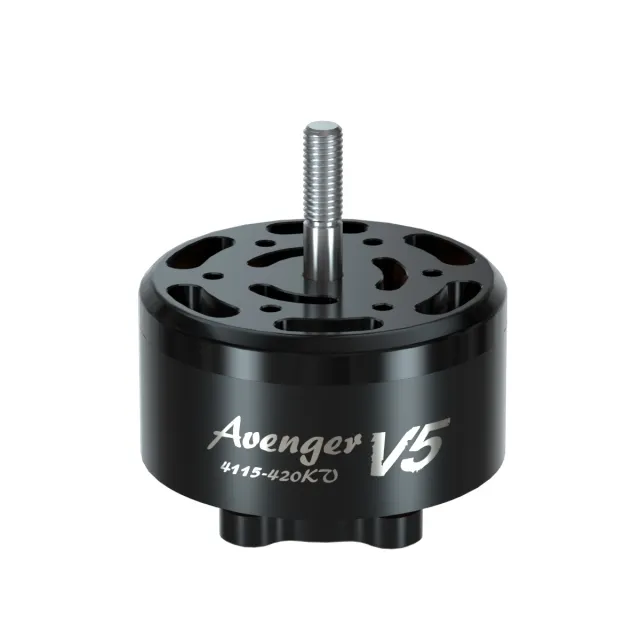

Brotherhobby Avenger 4115 V5 490KV Engine
The Brotherhobby Avenger 4115 490KV brushless motor is compact and powerful. Its high torque and efficiency ensure stable performance, making it reliable for various RC models.
Specifications:
KV: 490KV
Base Case: Al 7075
Stator: 15mm
Configuration: 12N14P
Propeller Adapter Shaft Thread: M5
Shaft: SUS420
Number of Cells (Lipo): 6-8S
Bolt Spacing: M3 (25X25mm)
Bearing: 12X6X4
Rotor: N52H arc magnets
Weight: 193g with 30cm SR wires
AWG conductor: 16# length 30cm
Bell cover: Al 7075
Max. thrust: 6731 g
Propeller: folding 1865 Triblade
ESC: 6S 80A
Throttle: 100
Max. current: 67.8 A
Max. power: 1708 W
Voltage: 25.2 V
Speed: 7281 rpm
Traction efficiency: 3.94

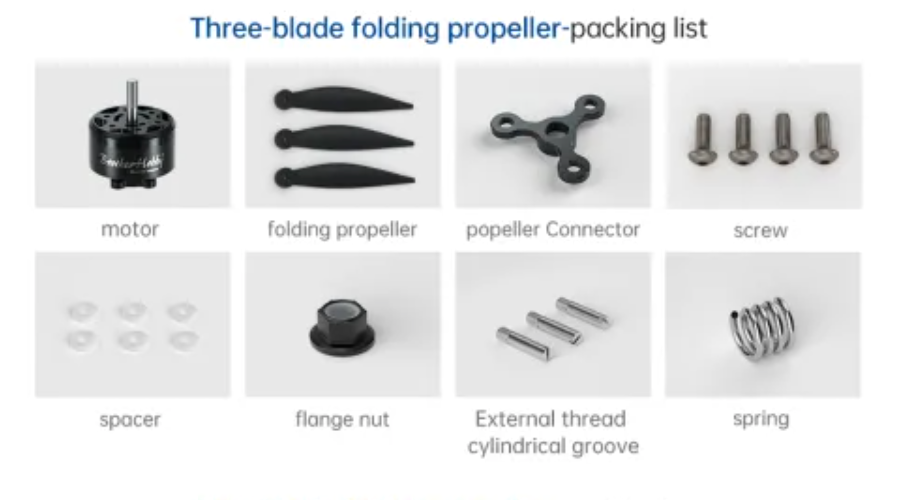

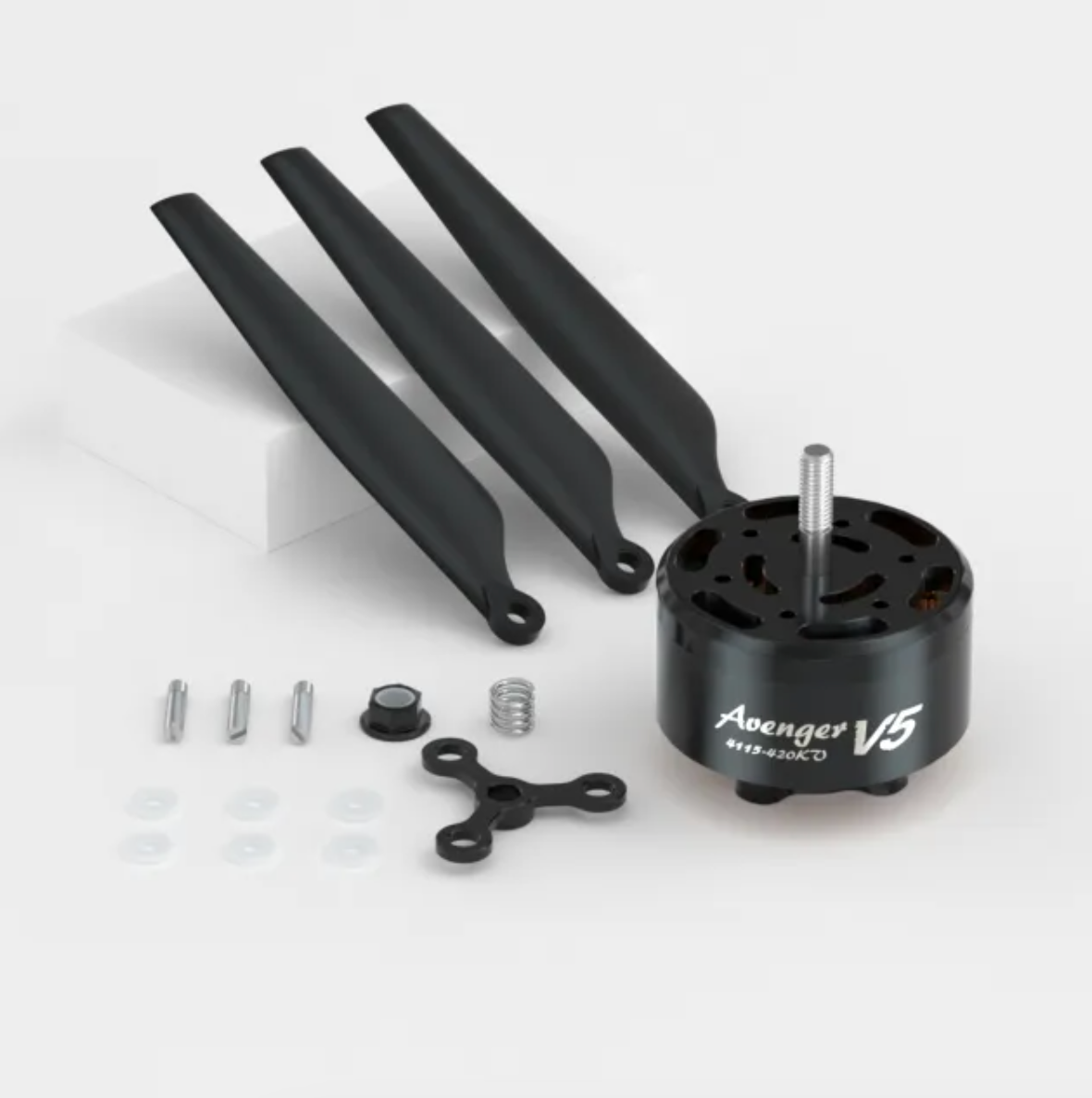

Package includes:
1x Brotherhobby Avenger 4115 V5 490KV Motor
1 x Folding 3-blade Propeller
1 x Propeller Connector
4 x Screw
4 x Spacer
1 x Flange Nut
3 x External Threaded Cylindrical Groove
1 x Spring
