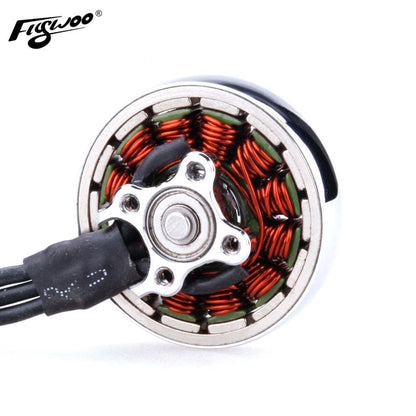

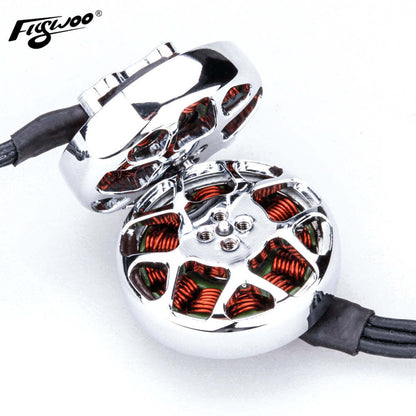

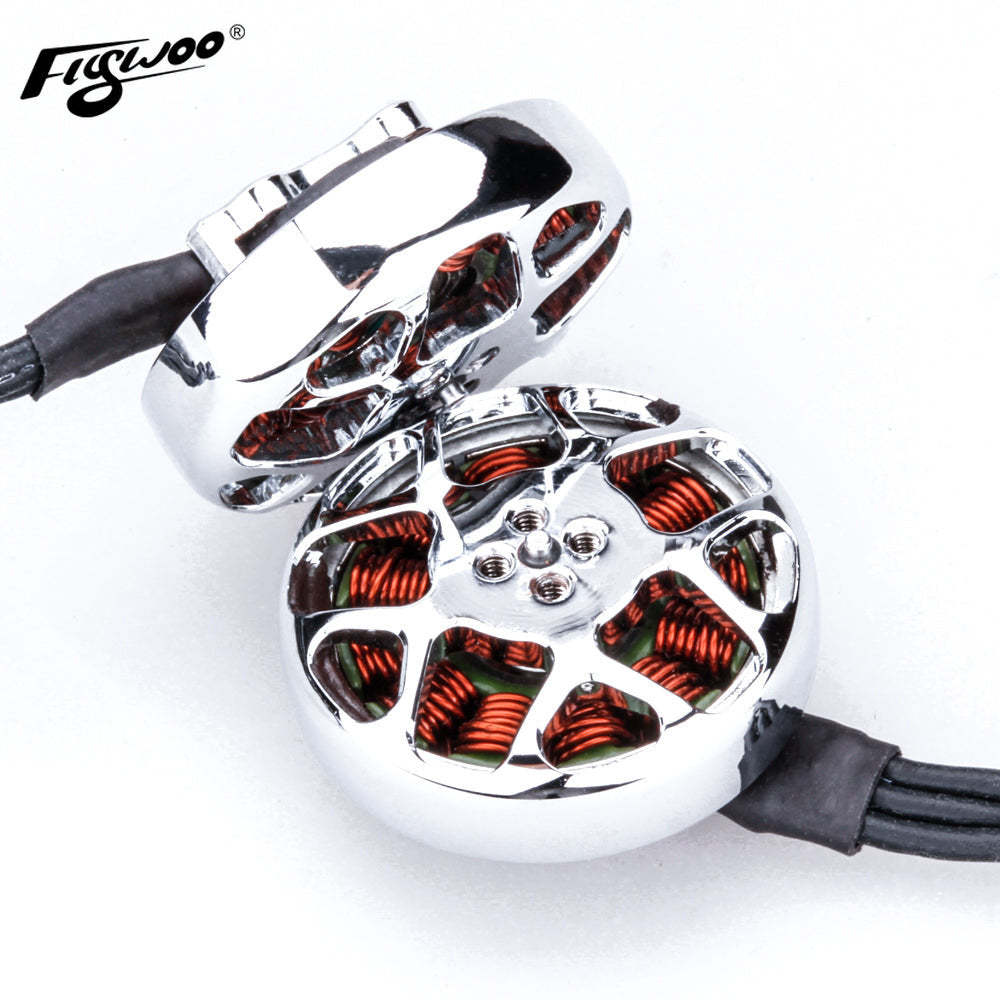

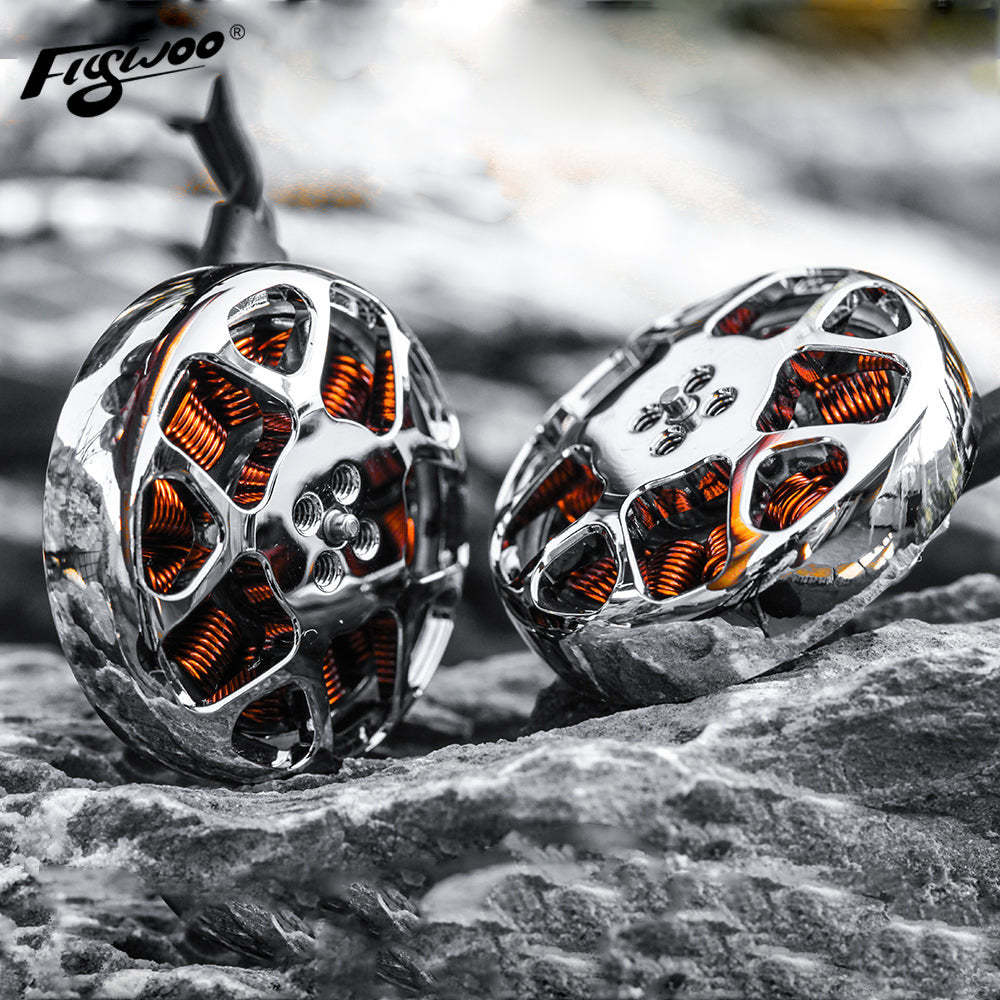

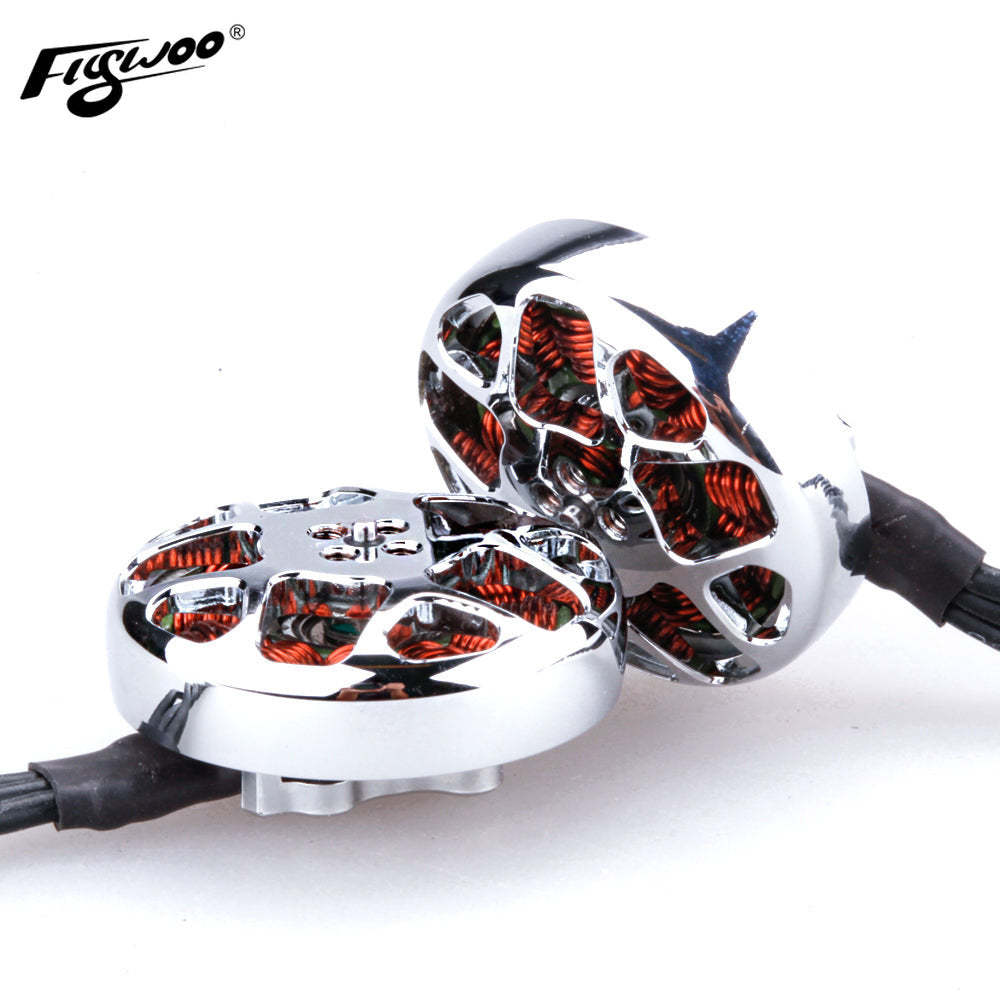

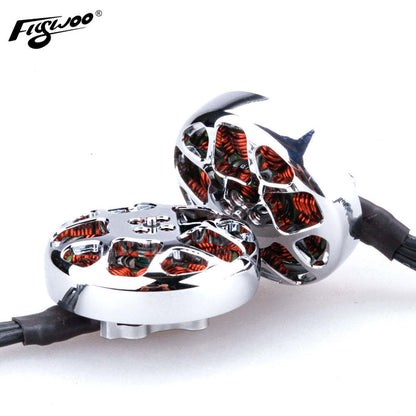

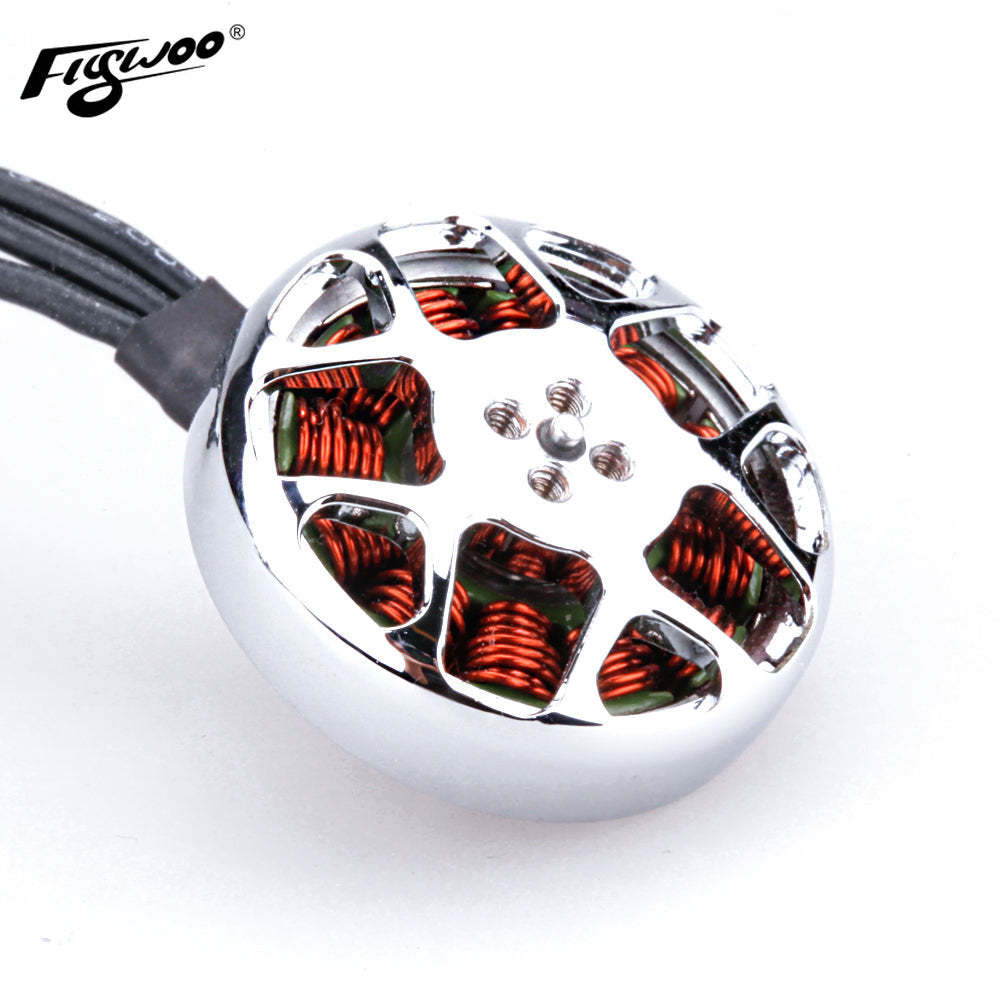

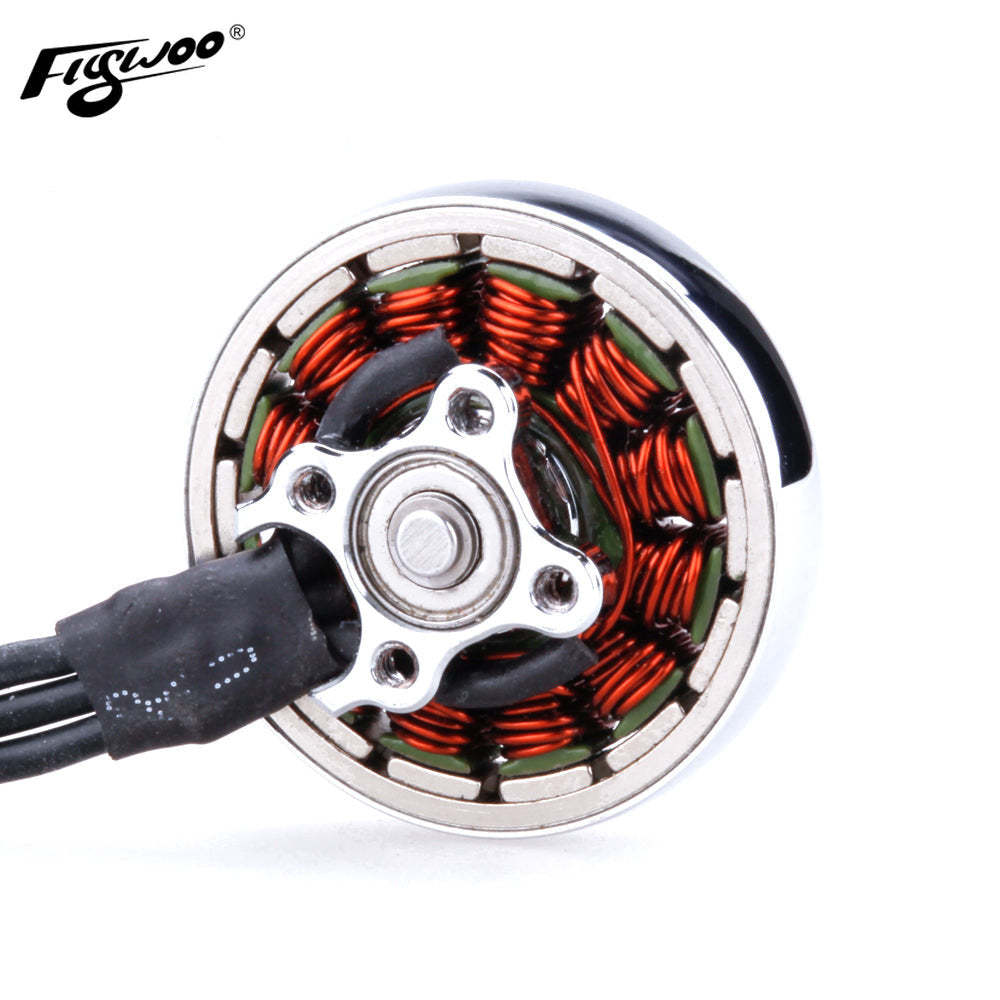

Flywoo Nin V2 2303.5 1750KV engine The Flywoo NIN V2 2303.5 1750KV motor is a premium ultralight variant designed for high efficiency 5-6S FPV drone configurations. With a large 23mm diameter and 3.5mm high stator, this motor provides strong torque and smooth throttle control, ideal for cinematic and freestyle flying. Featuring high performance curved N52H magnets, precision Japanese NSK bearings and an attractive galvanized finish, the NIN V2 2303.5 is durable and efficient. Weighing just 21.5g including wires, it provides a good balance between agility and performance. Whether you're cruising or diving, it offers consistent performance and longer flight time. Specifications: KV rating: 1750KV Configuration: 12N14P Stator diameter: 23 mm Stator length: 3.5 mm Shaft diameter: 3mm (inner), 1.5mm (outer) Motor dimensions: 29.1 x 13.5 mm Weight: 21.5g (with 3cm wire) Quiescent current at 10 V: 0.58 A Input Voltage: 5-6S LiPo Maximum continuous power (3S): 559 W Maximum current (3S): 23.3 A Maximum current efficiency: 1.5-3 A (>85%) Internal resistance: 173 mΩ Bearings: NSK (Japan) Magnet: Curved N52H The package contains: 1 × Flywoo Nin V2 2303.5 1750KV motor
