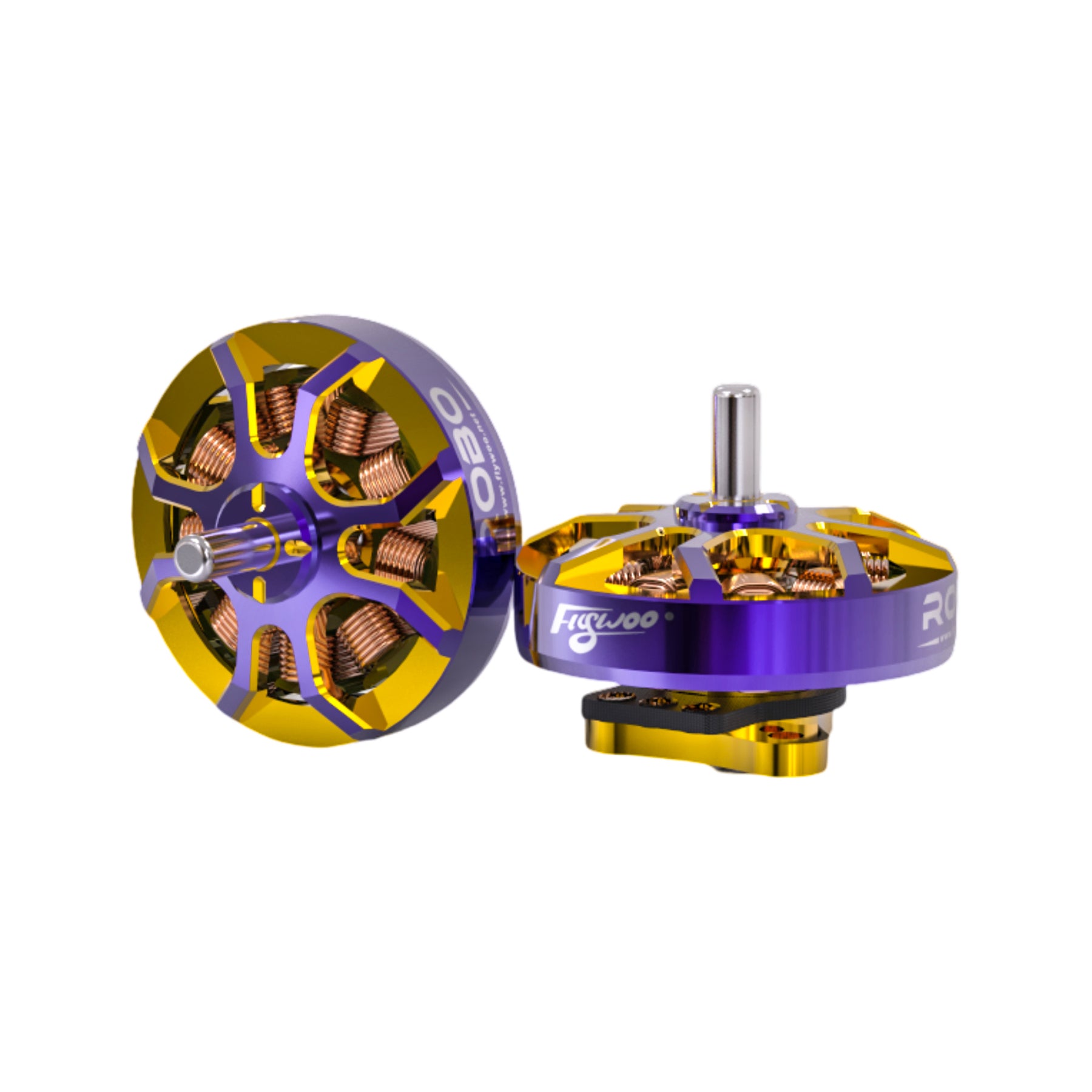

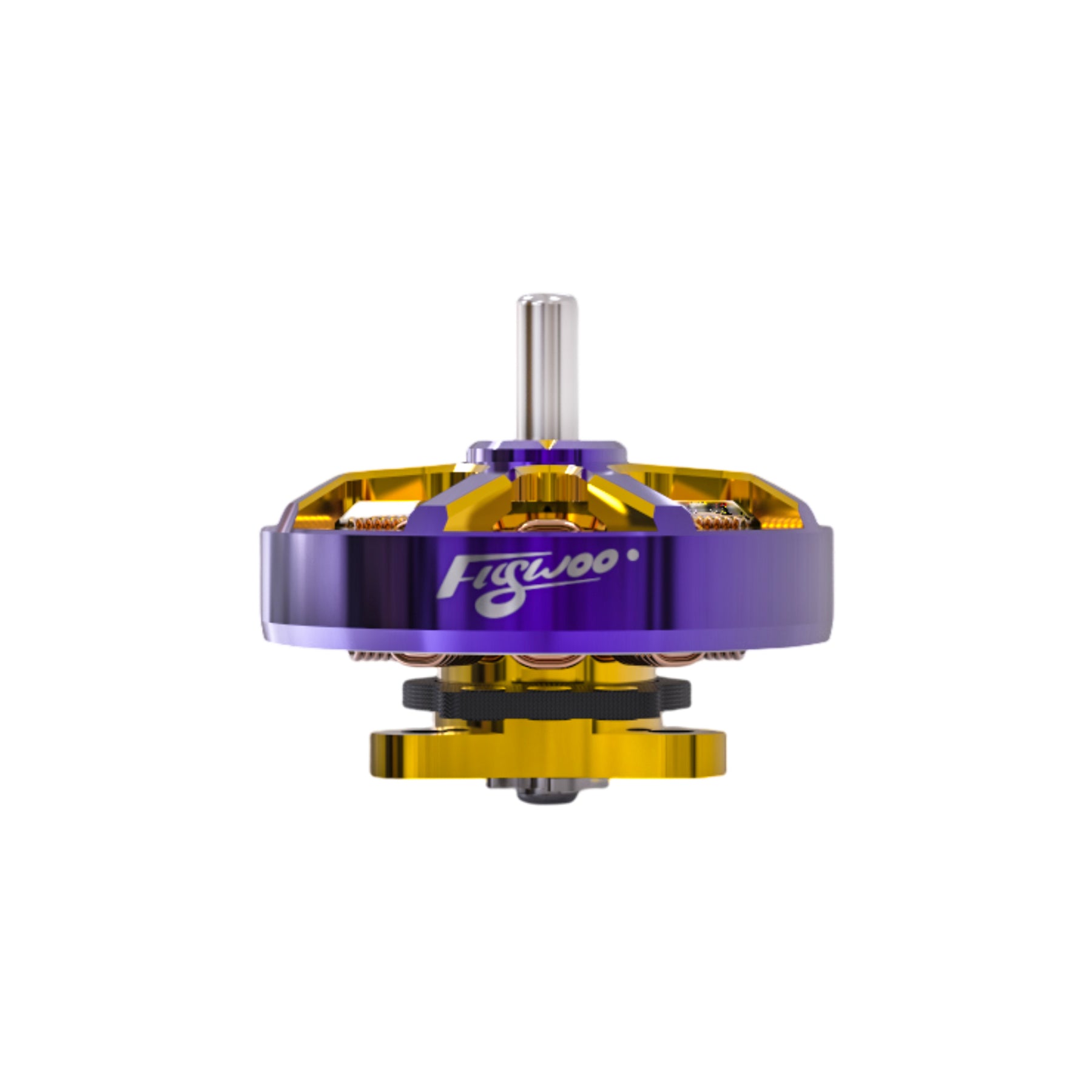

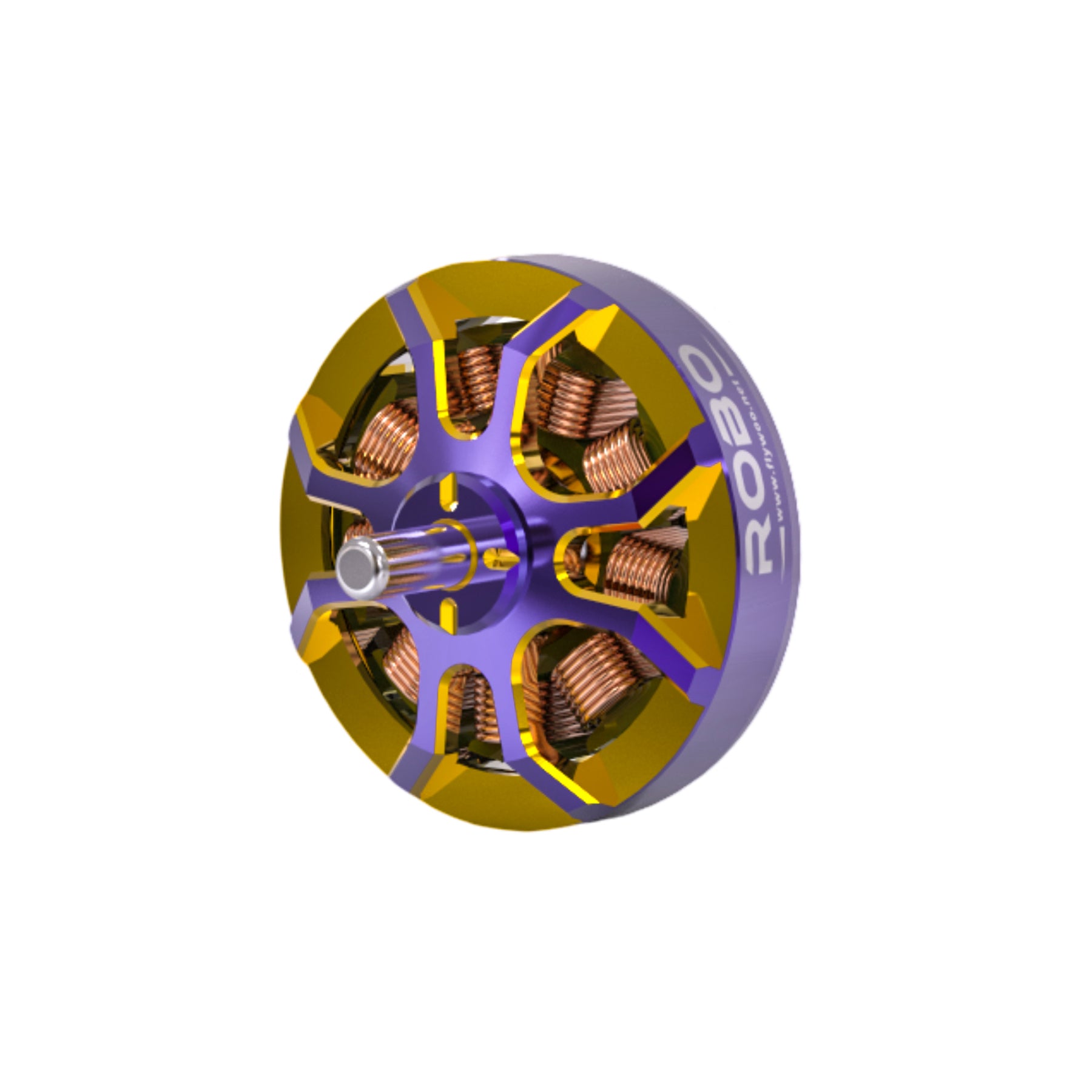

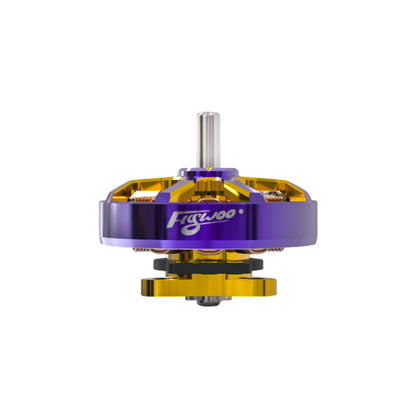

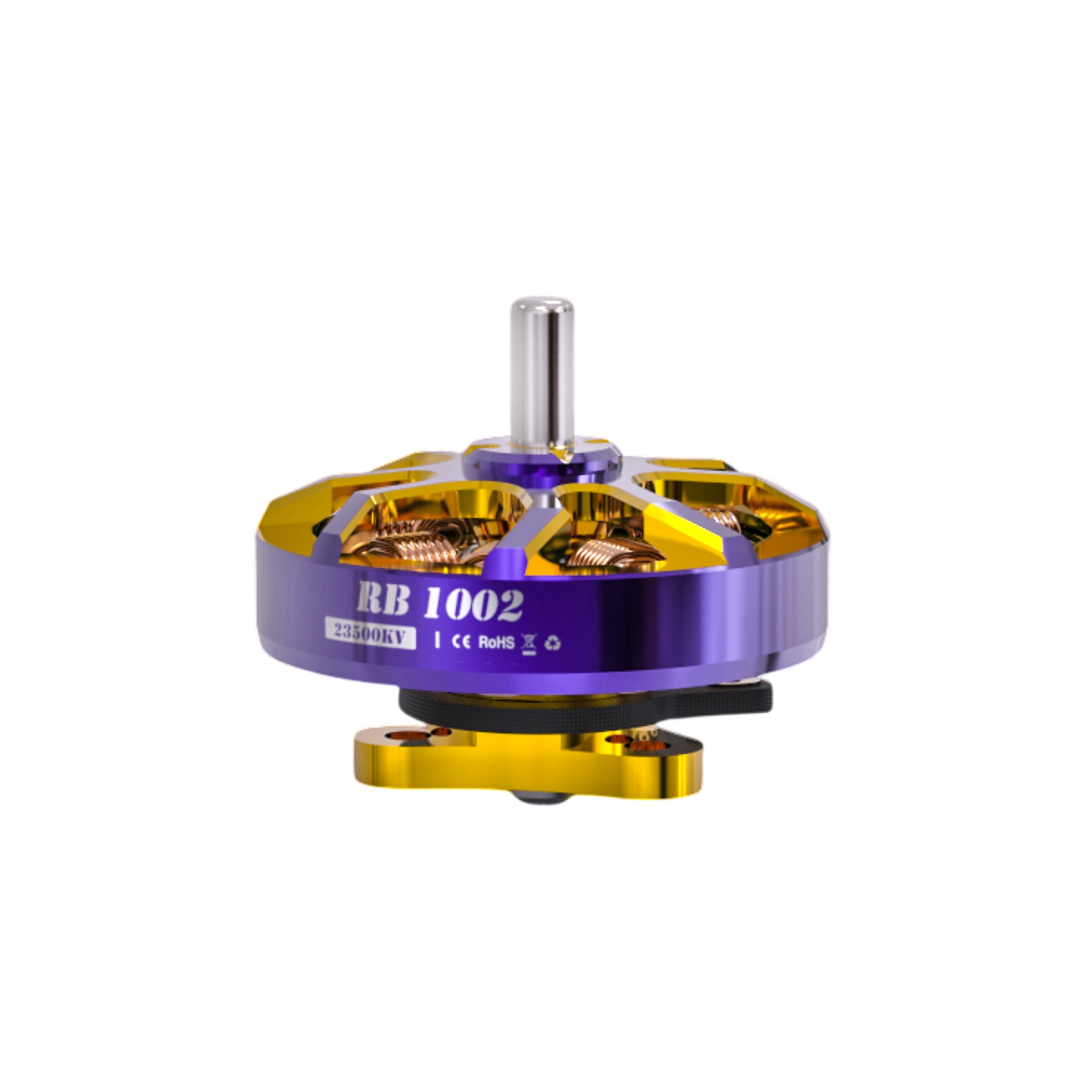

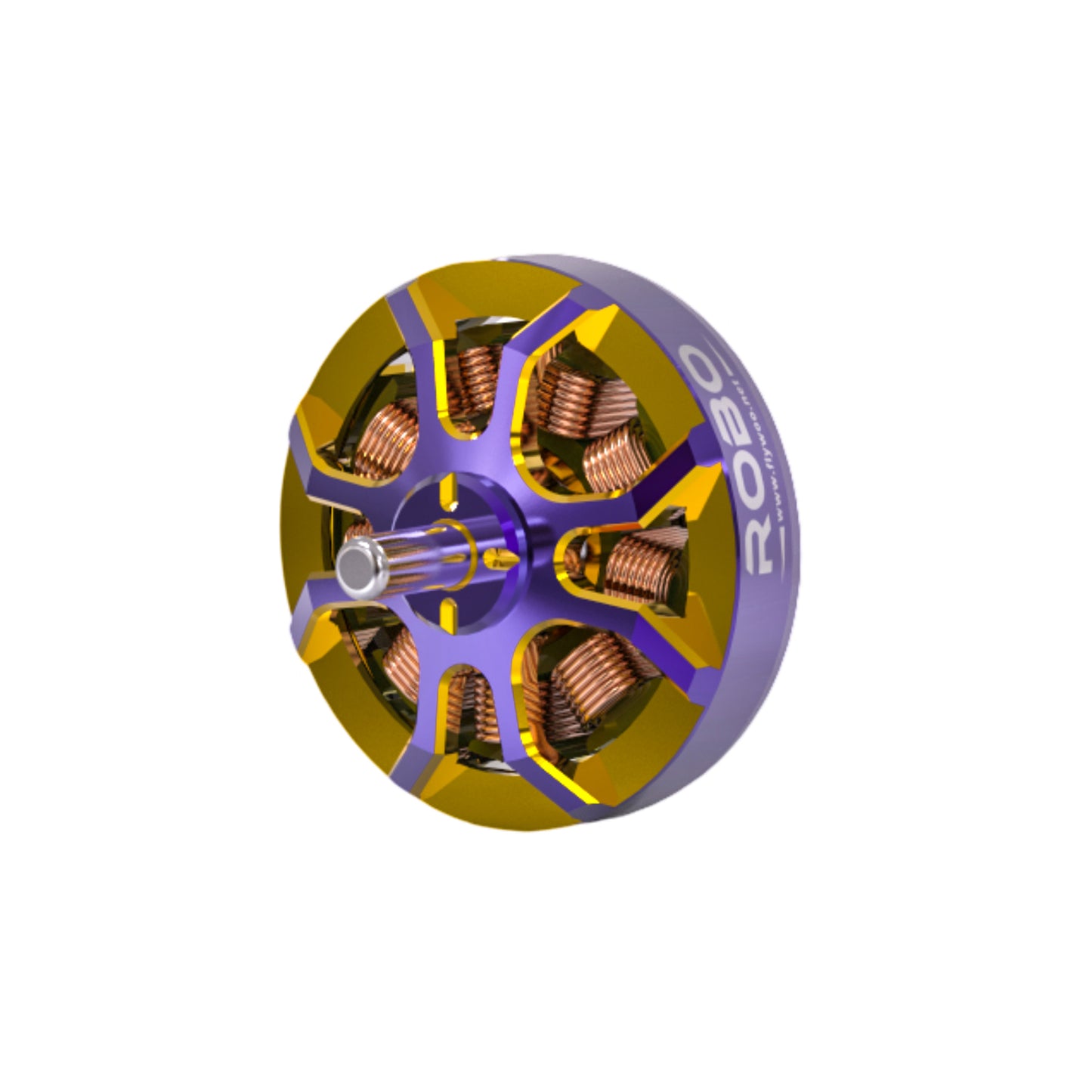

Flywoo ROBO 1002 23500KV motor The Flywoo ROBO 1002 23500KV motor is a high-speed, ultra-compact brushless motor designed for 1S FPV whoops and toothpick drones. Its double bearing design ensures minimal shaft play, reduced vibration and smoother, quieter operation. It is made of 7075 grade aluminum which gives it durability and lightness, weighing only 2.5 grams including wires. With a highly efficient magnetic circuit, 23500KV output and optimized current draw, this motor excels in high-speed flight and aerobatic handling. It supports a peak current of up to 14A and maintains over 84% efficiency in the 2-4A range, making it ideal for aggressive micro drone designs. Specifications: KV rating: 23500KV Configuration: 9N12P Stator diameter: 10 mm Stator length: 2 mm Shaft diameter: 1.5 mm Engine dimensions: 13.5 x 7.75 mm Weight: 2.5g (with 5cm wire) Quiescent current at 5 V: 1.5 A Rated voltage: 1S LiPo Maximum continuous power (3S): 52 W Maximum current (3S): 14 A Maximum current efficiency: 2-4 A (>84%) Internal resistance: 75 mΩ Construction: Aluminum 7075, double bearing, high efficiency magnetic construction The package contains: 1 × Flywoo ROBO 1002 23500KV motor
