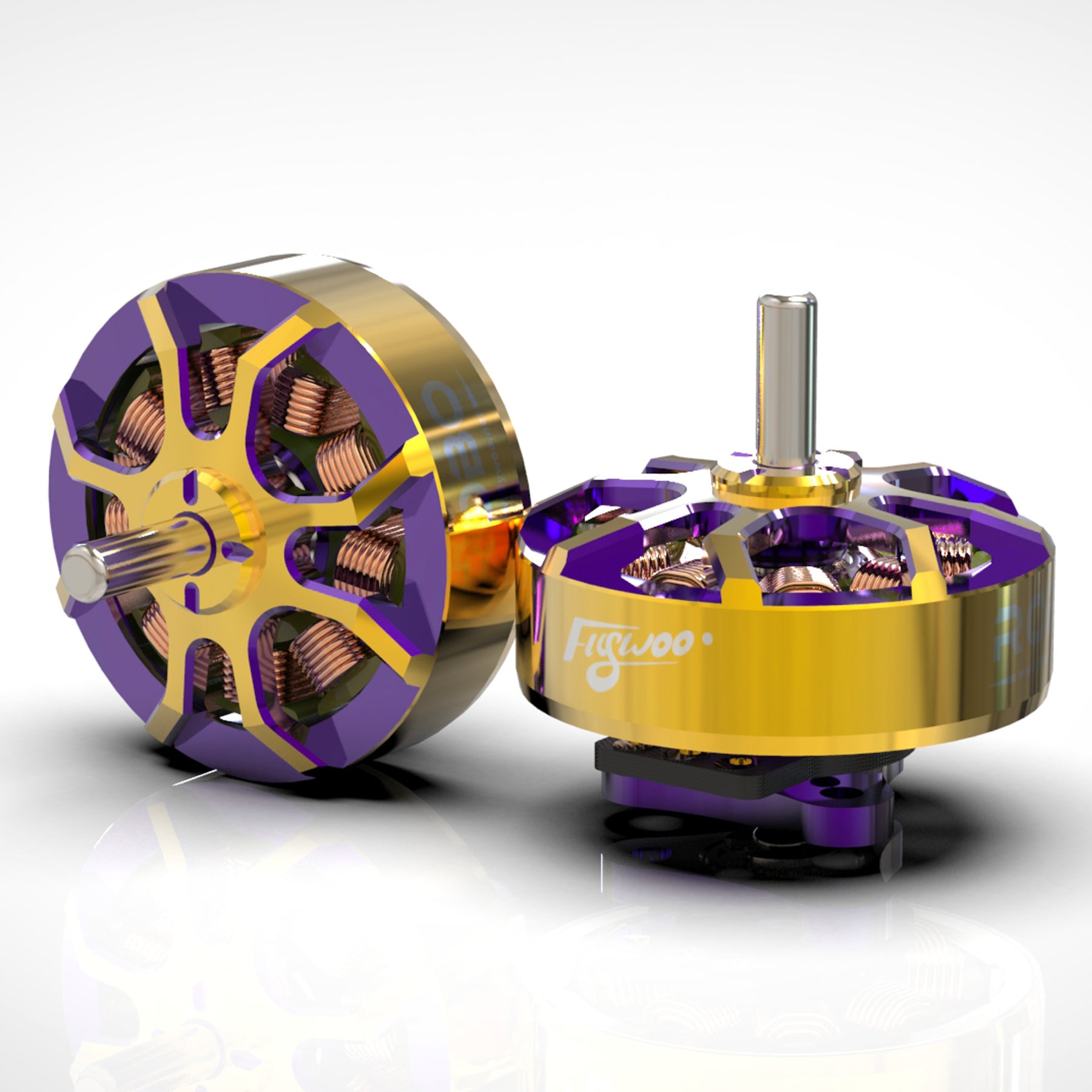

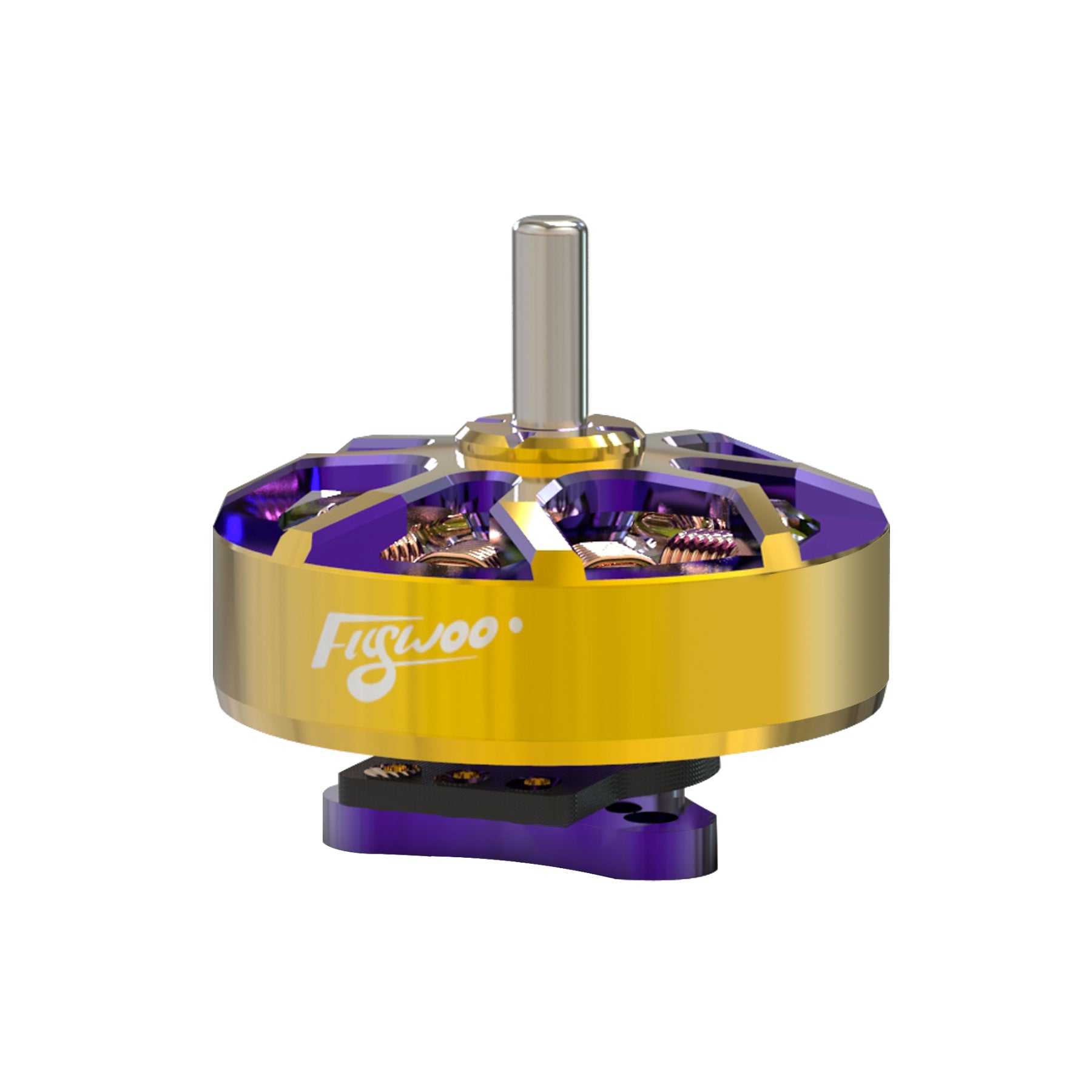

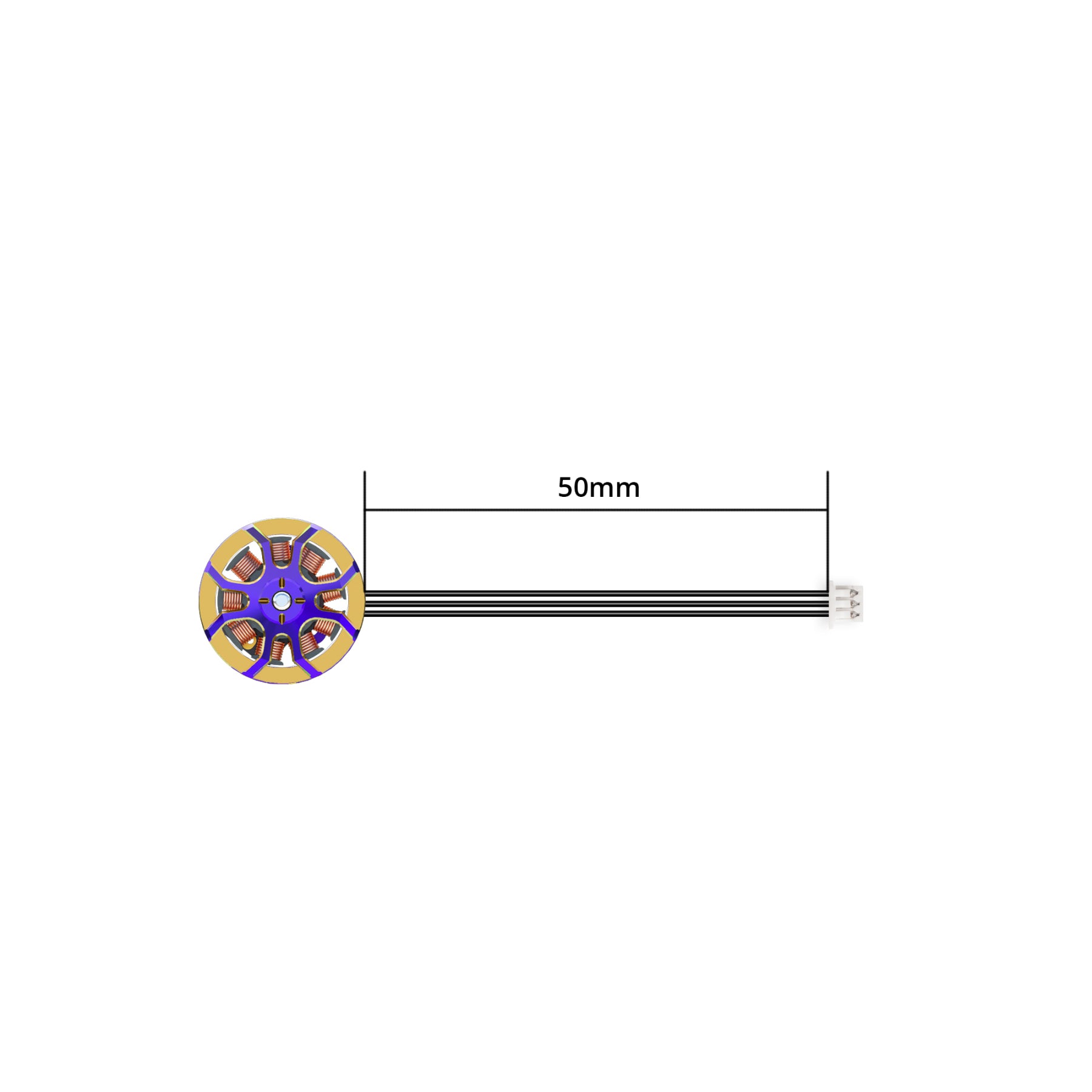

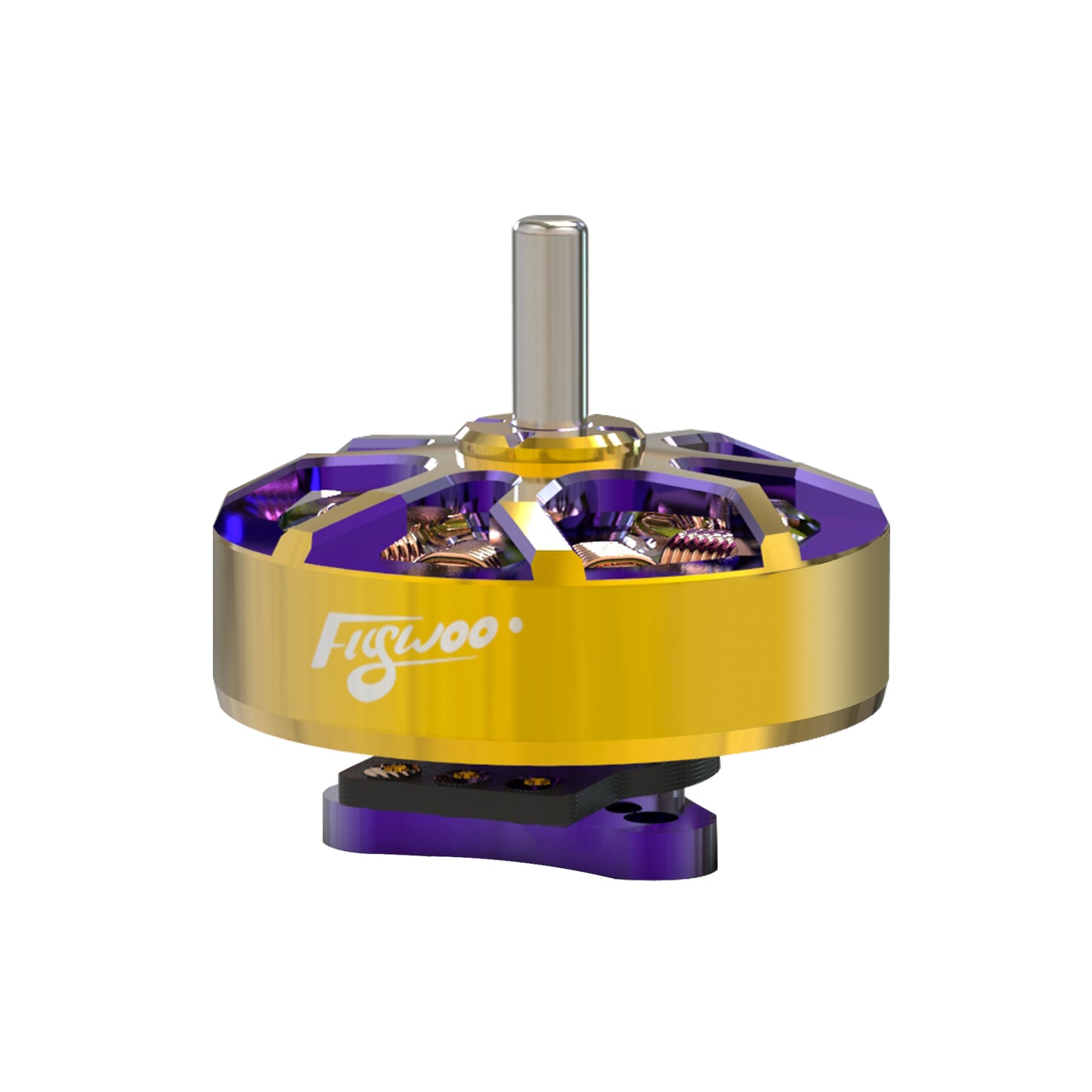

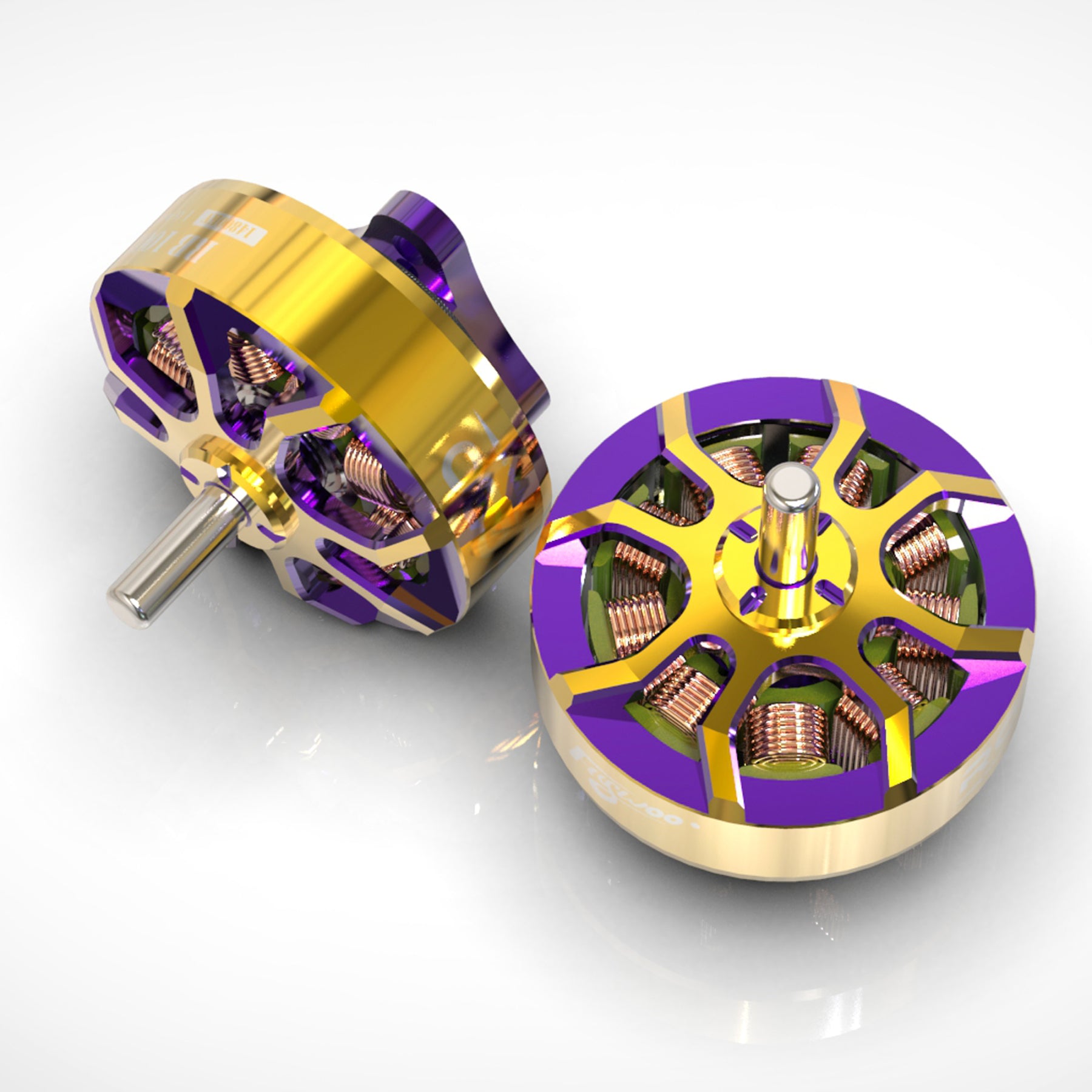

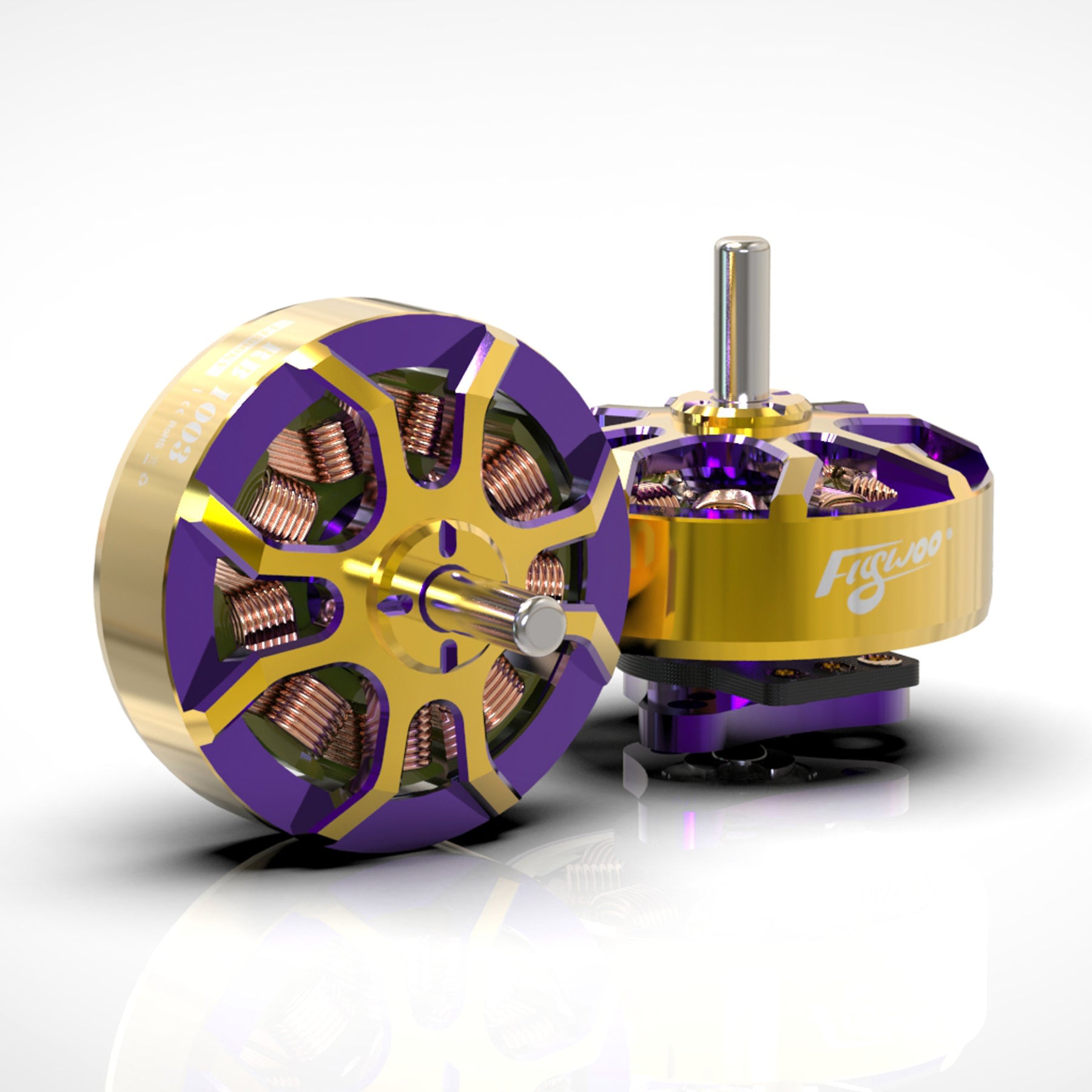

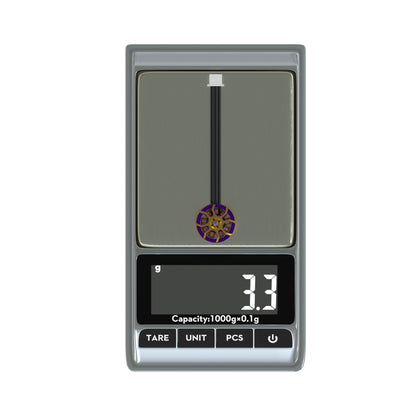

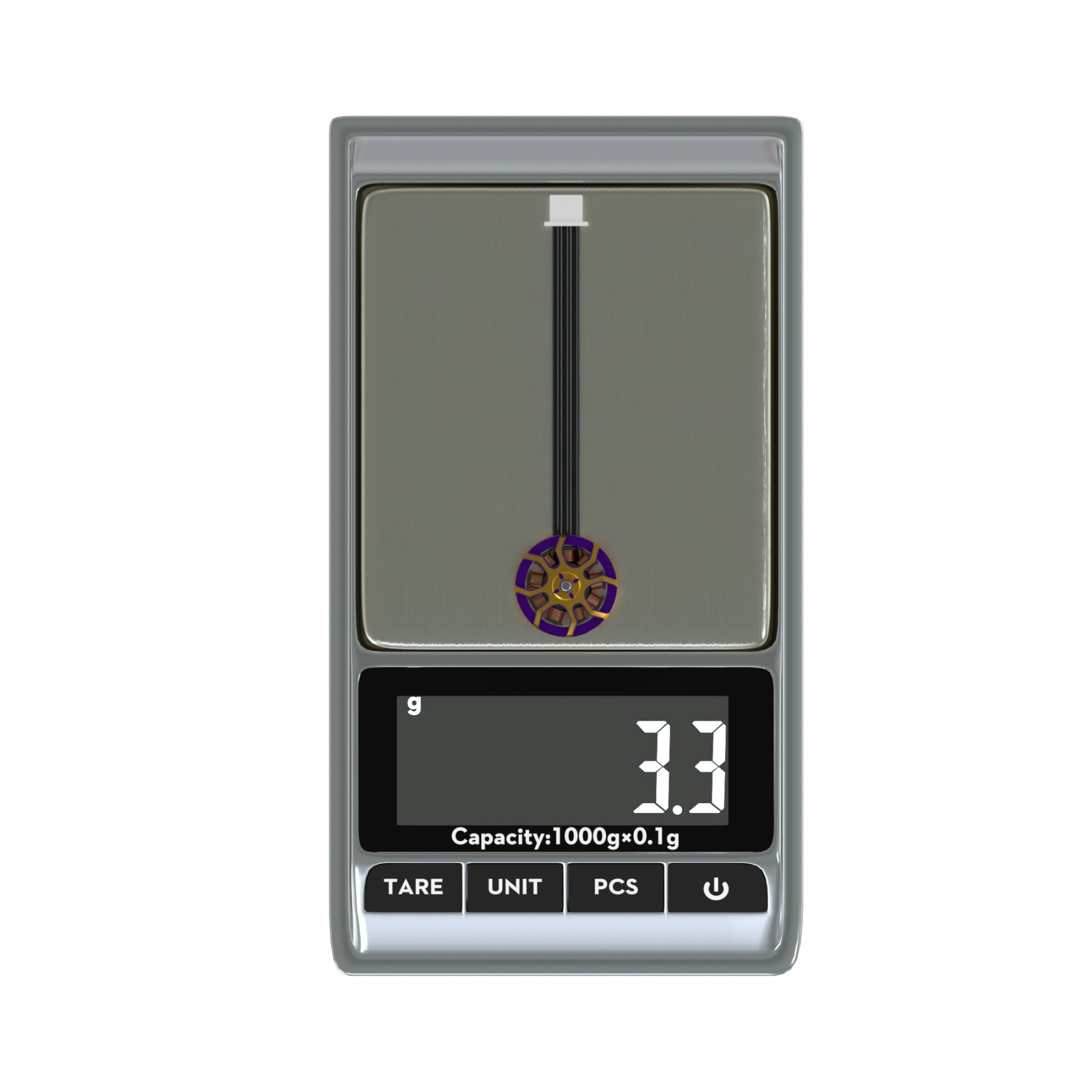

Flywoo ROBO 1003 14800KV motor The Flywoo ROBO 1003 14800KV motor is an ultra-lightweight high-speed brushless motor that was designed specifically for micro FPV drones such as whoops and toothpicks. Thanks to its double bearing design, it offers better shaft stability, reduced vibration and quieter operation. This motor is made of durable 7075 aircraft aluminum and features a high efficiency magnetic circuit with N52H magnets. It provides exceptional performance in a compact design weighing 3.3 g. It supports 1-2S LiPo configurations and is ideal for lightweight designs requiring maximum efficiency and responsiveness. The ROBO 1003 ensures smooth and stable flight performance, while its two-tone anodized finish adds visual appeal. Specifications: Model: RB1003 KV: 14800KV Configuration: 9N12P Magnet type: N52H Stator diameter: 10 mm Stator height: 3 mm Output shaft diameter: 1.5 mm Rated voltage: 1-2S LiPo Motor Dimensions: 13.5mm x 9.2mm Pitch of mounting holes: 3 × M1.4 – D6.6 mm Motor weight: 3.3g (with 4cm cable) Material: 7075 aluminum alloy The package contains: 1 × Flywoo ROBO 1003 14800KV motor
