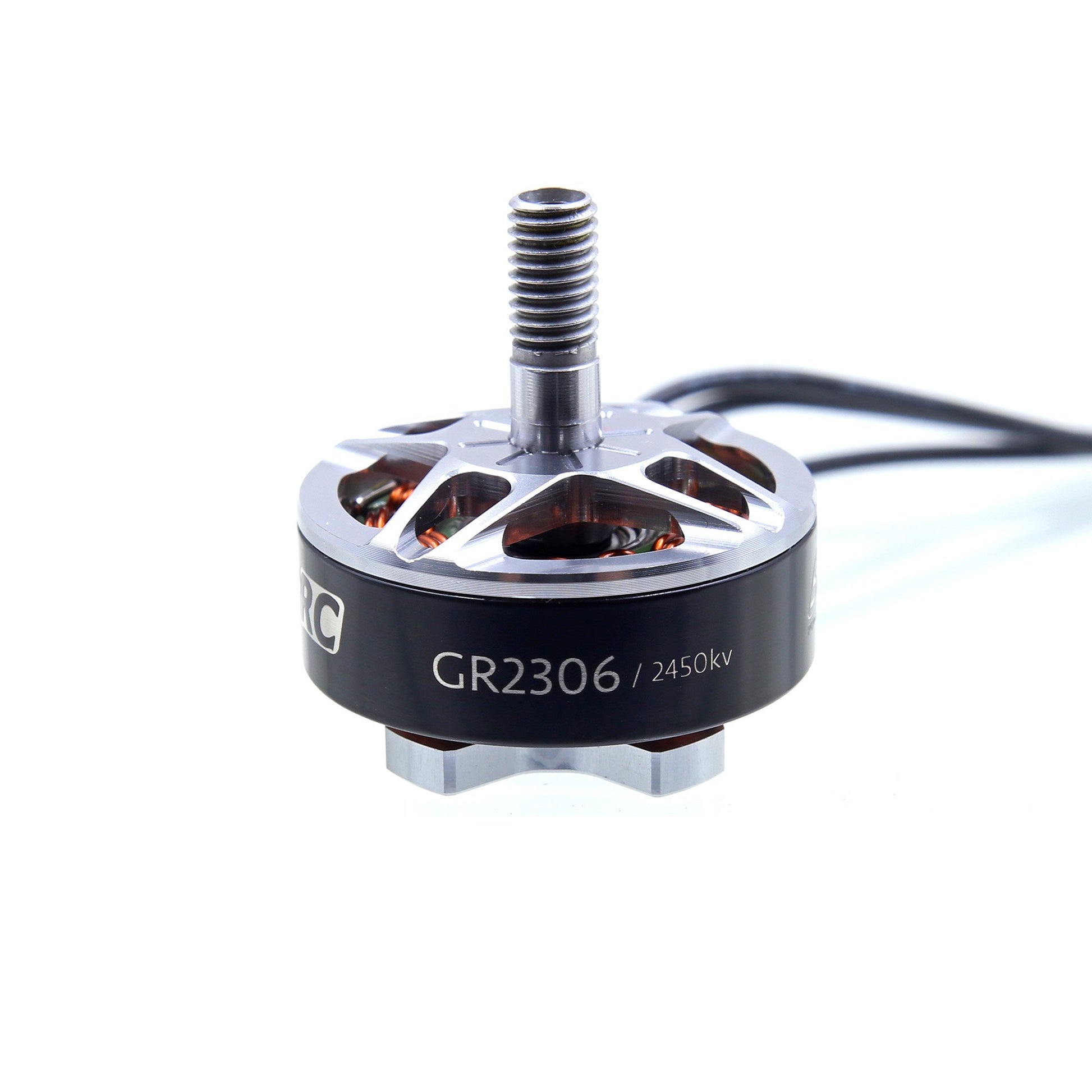

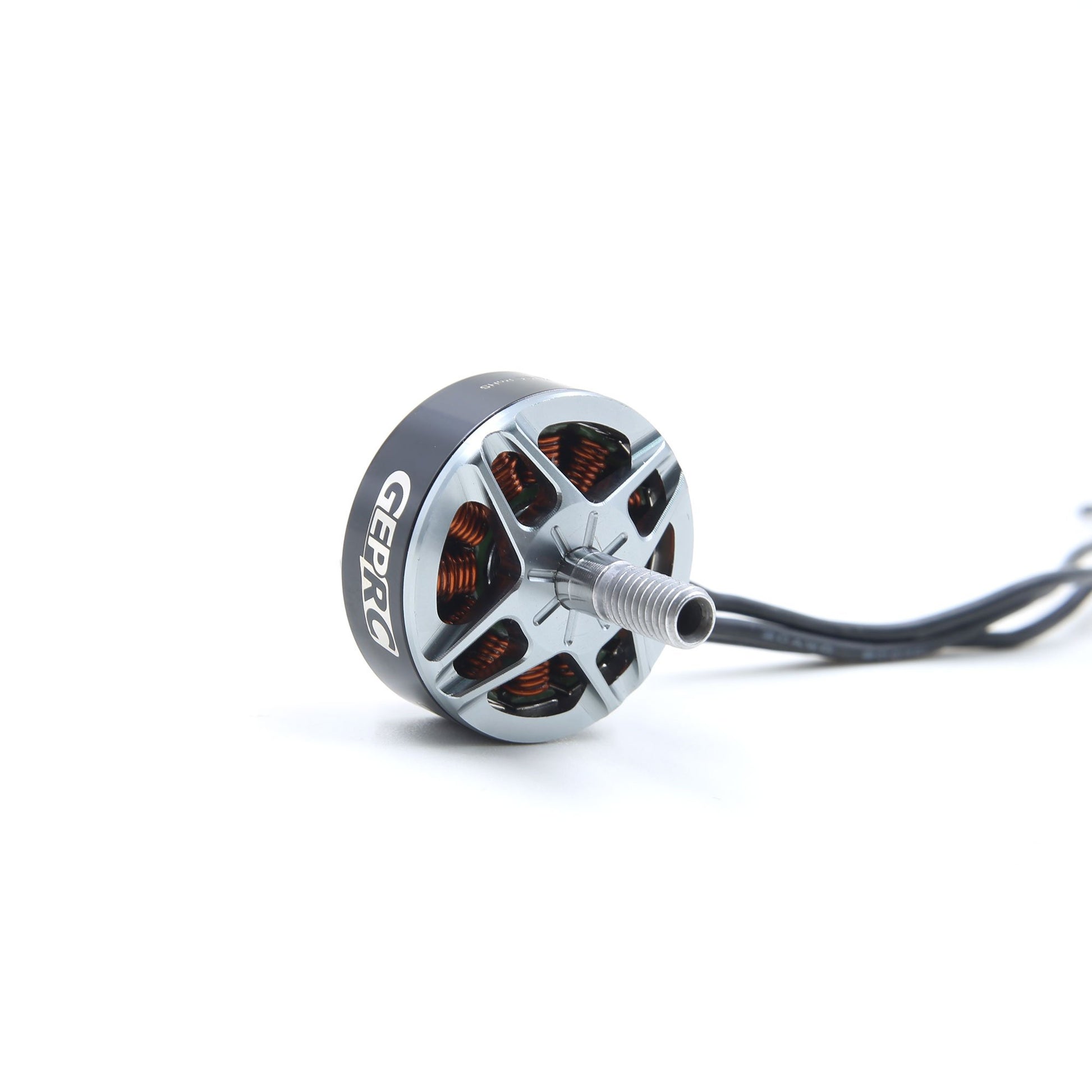

GEP-GR2306 (2450 KV) The 2450KV model is optimized for freestyle with low power consumption and high efficiency. The design minimizes coil vibrations during operation. The motor boasts N52H arc magnets with a gap of just 0.15mm between stator and magnet, ensuring exceptional torque and maximum efficiency. The body is made of 7075 aluminum, which guarantees high performance and minimal impact damage. Japanese NSK bearings are engineered to withstand high-speed impacts and ensure consistently smooth operation. GEP-GR2306 is compatible with 3-5S batteries and 5-6 inch propellers such as Gemfan51523, DAL50503 or GEP5040*3. Specifications: Item name: GEP-GR2306 KV: 2450 Configuration: 12N14P Stator diameter: 23 mm Stator length: 6 mm Shaft diameter: 4 mm (hollow) Motor dimensions (diameter x length): 28.49mm x 30mm No load current (10) @ 10 V (A): 2.1 Number of cells (LiPo): 3-5S Maximum continuous power (W) 15S: 950 Internal resistance: 33mΩ Maximum current (15S): 45A Efficiency current (4-8A): >81% Rotor: Arc magnets N52H Bearings: NSK Base case: Al 7075 Wire AWG: 20AWG Weight: 32g
