Features:
- The color red and black looks very luxurious.
- Using bearings with excellent performance and strong wear resistance.
- Light profile, powerful performance.
- Suitable for 2 to 4 inch lightweight chassis.
Specifications:
- Model: SPEEDX2 1404 4600KV motor
- Maximum power: 180W
- Peak current: 14.3A/3"
- Resistance between phases: 0.19Ω
- Magnet: N52H
- Bearing type: NSK/NMB
- Configuration: 9N12P

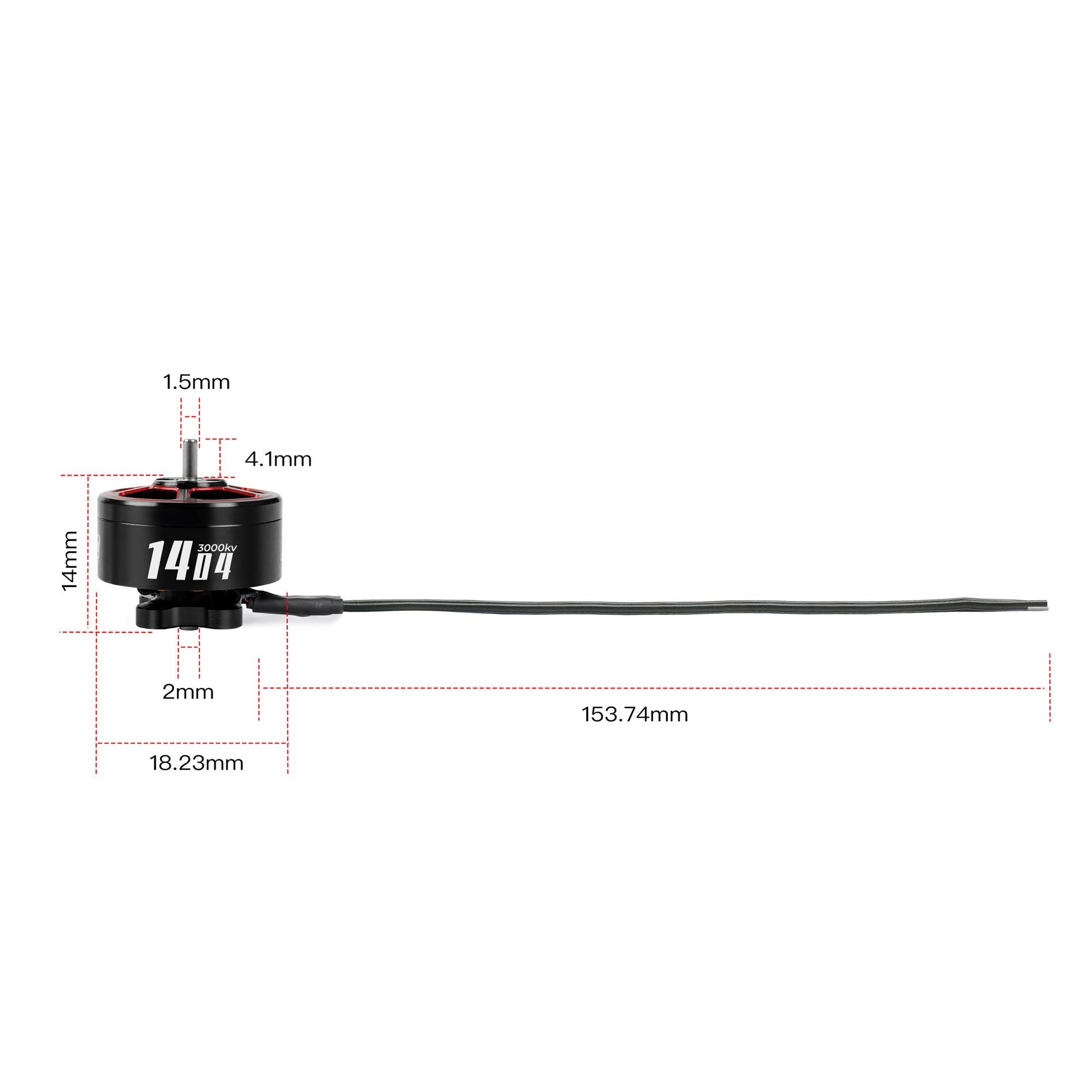

- Dimensions: φ18.2mm * 13.8mm
- Shaft diameter: φ1.5mm
- Length of protruding shaft: 4 mm
- Mounting holes: 9 mm x 9 mm (M2)
- Wire: 160mm / 26AWG
- ESC: 20A/2-4S (7.4V-14.8V)
- Input voltage: 11.1V – 14.8V (3S – 4S LiPo)
- Winding: Single-strand copper winding

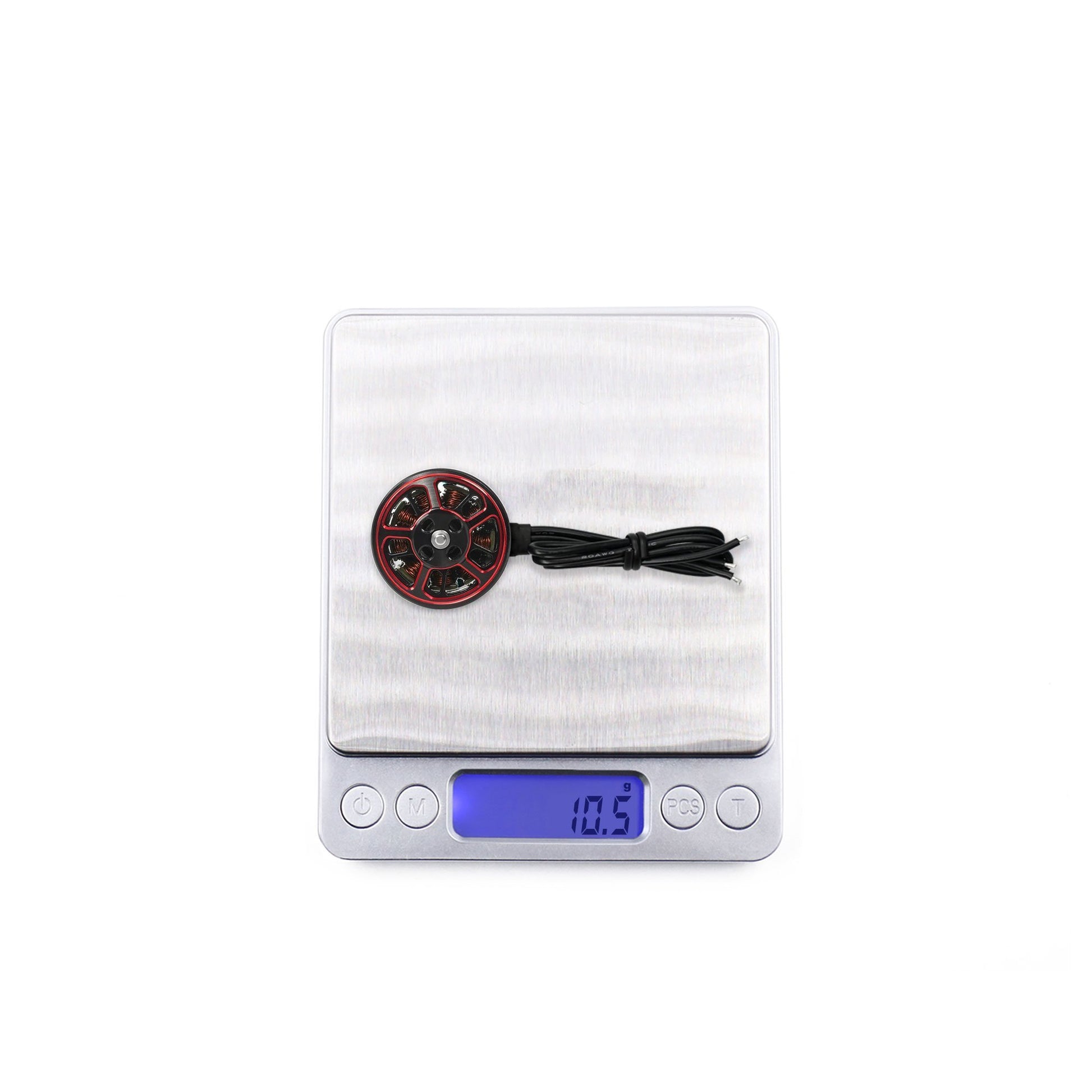

- Weight: 10.5 g (including wire)
- Suitable for: 2 to 3 inch lightweight models
