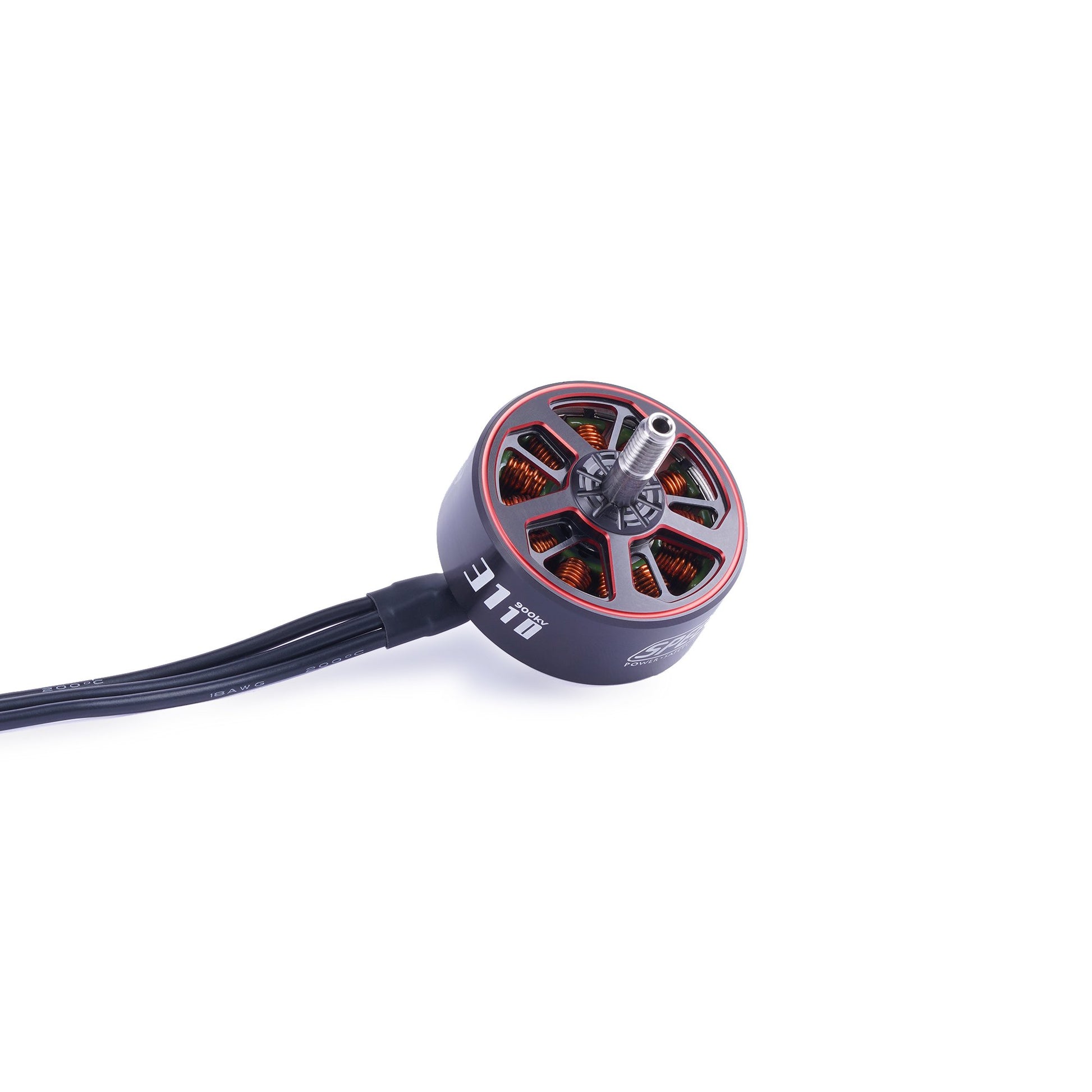

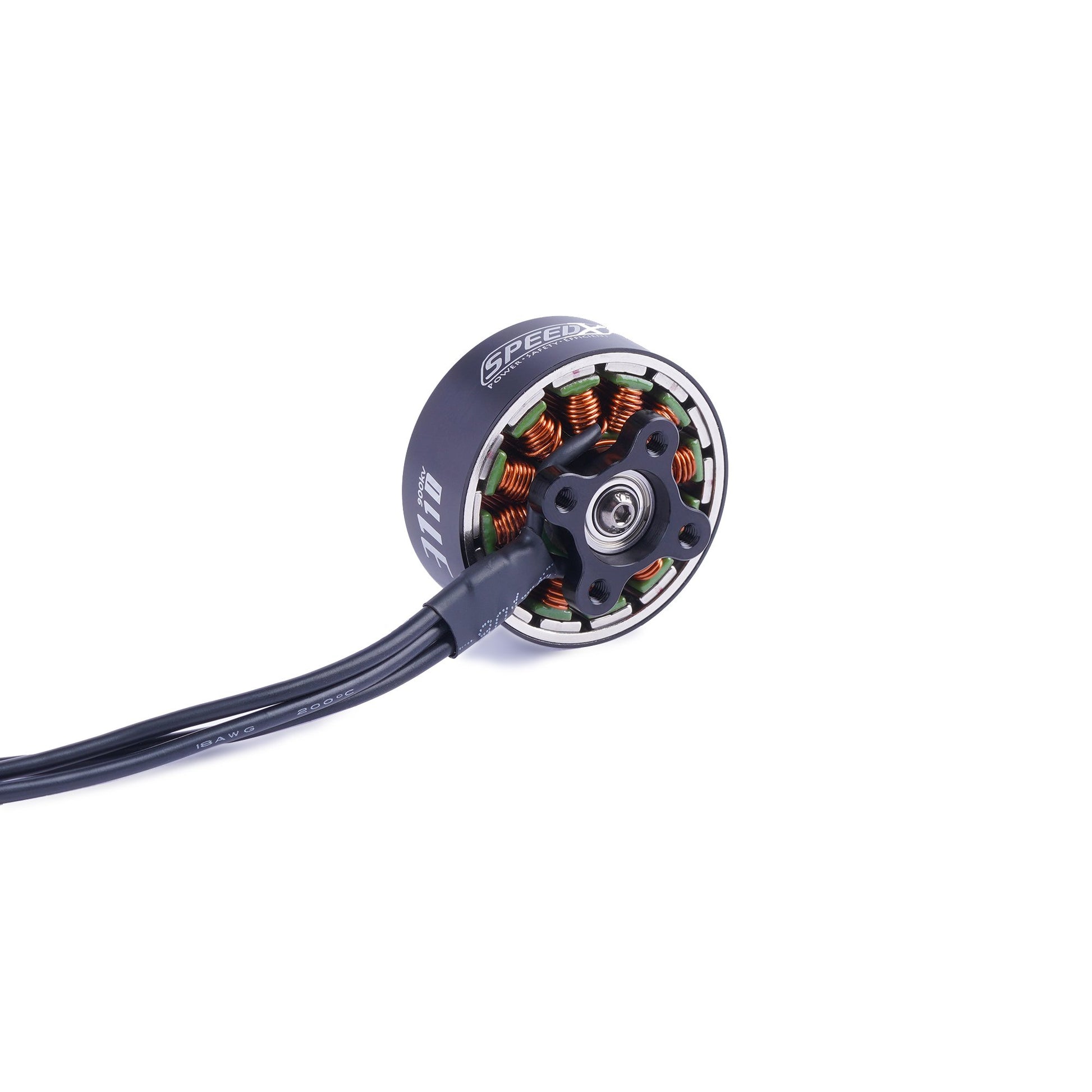

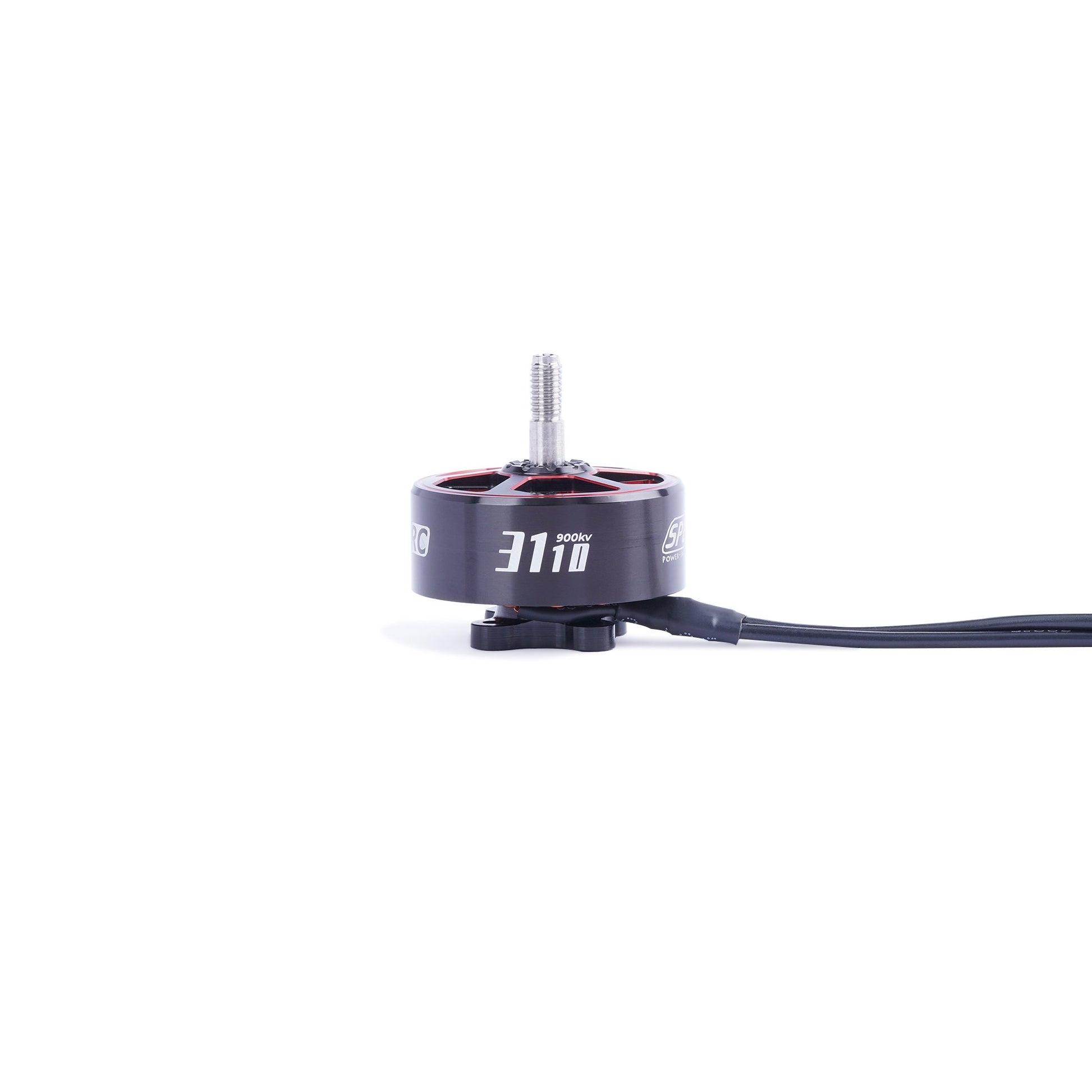

Motor GEPRC SPEEDX2 3110 (900KV)

Name: Motor GEPRC SPEEDX2 3110 (900KV)
Brand: Baltic Drones
SKU: GP105987
Price: 53.23 EUR
Availability: OutOfStock

Motor GEPRC SPEEDX2 3110 (900KV)

Brand: GEPRC

€53,23

~~€53,23~~ €53,23

-0% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

SPEEDX2 3110 (900 KV)

The SPEEDX2 series engines are characterized by cutting-edge design with innovative aesthetics. The SPEEDX2 3110 motor is available in two KV variants: 900KV and 1250KV.

Function:
1. The design of the motor's magnetic circuit is highly efficient, resulting in 10% energy savings compared to motors of the same class.
2. The surface of the engine is treated with a fine CD texture, which provides protection against scratches and preserves its appearance.
3. Made of 7075 aircraft aluminum alloy with high precision integrated CNC stamping.

Specifications:

SPEEDX2 3110 900KV motor
KV: 900 KV
Configuration: 12N14P
Magnet: N52H ARC
Rotor material: aircraft aluminum alloy 7075-T6
Stator diameter: 31 mm
Stator height: 10 mm
Output shaft diameter: 5 mm
Dimensions: 39.58mm x 37.85mm
Output specification: 18AWG 265mm
Rated voltage: 25.2V LiPo 6S
Maximum power: 1863.68W
Maximum current: 58.52A
Mounting hole: 19x19mm (M3)
Color: Black with red accents
Weight: 79.3g (including wire)
Applicable models: suitable for 7-10 inch long range FPV drones / 7 inch X8 models
