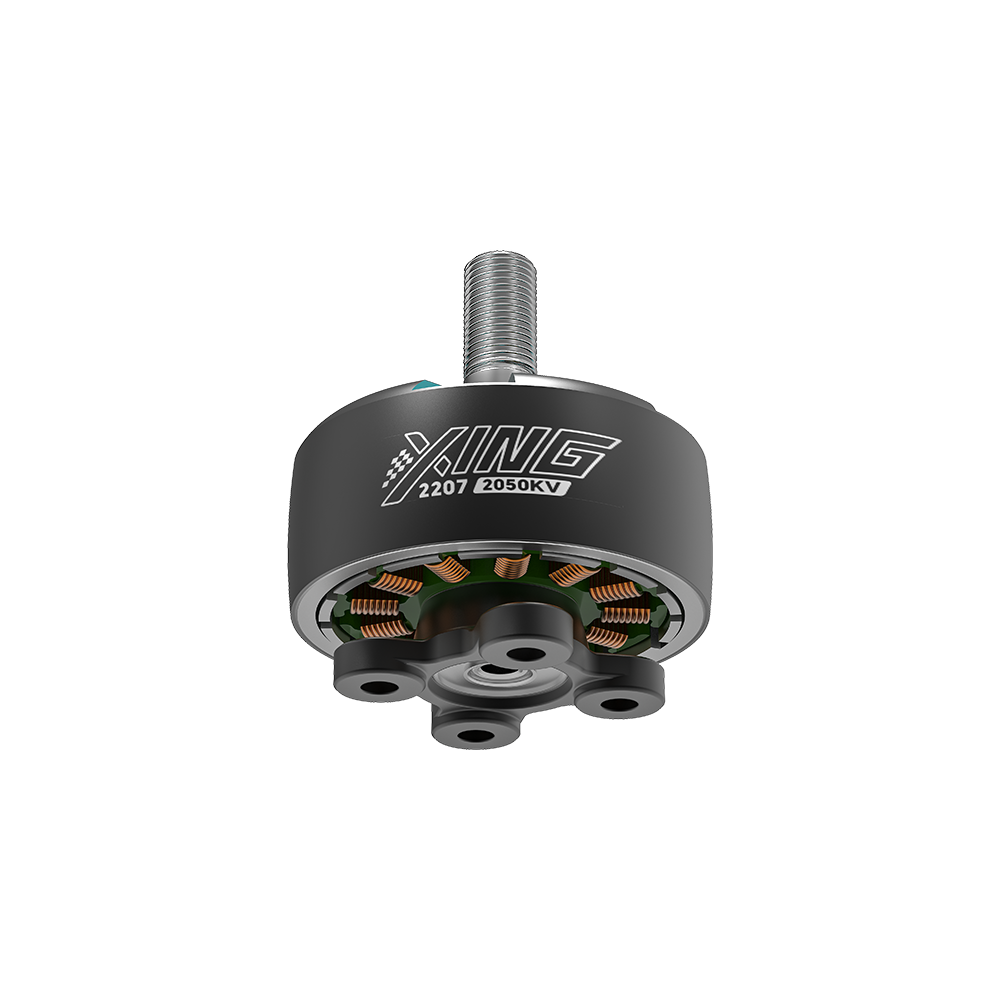

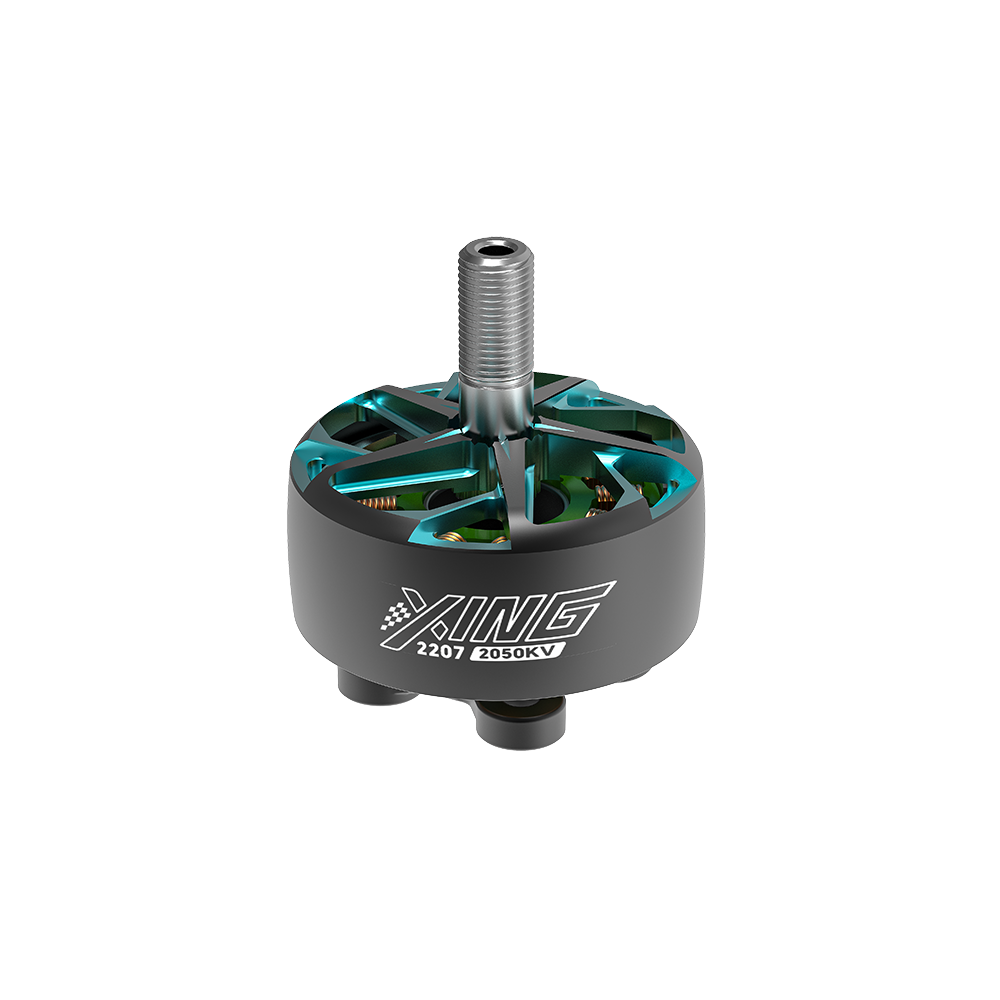

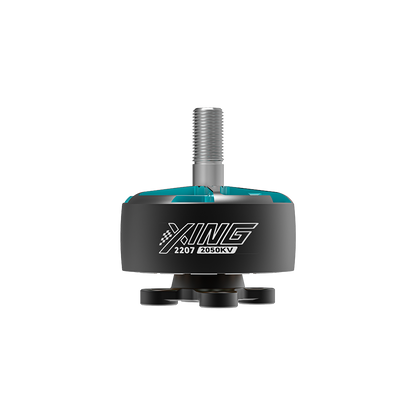

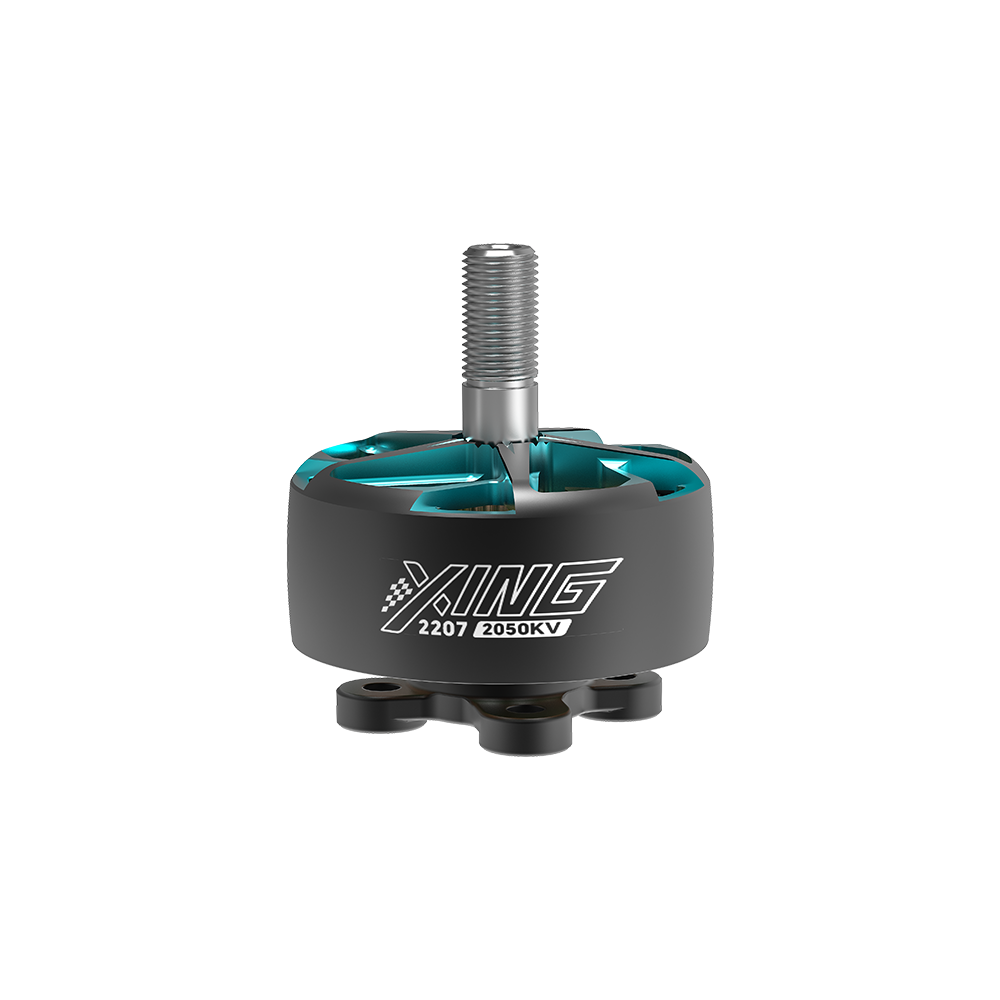

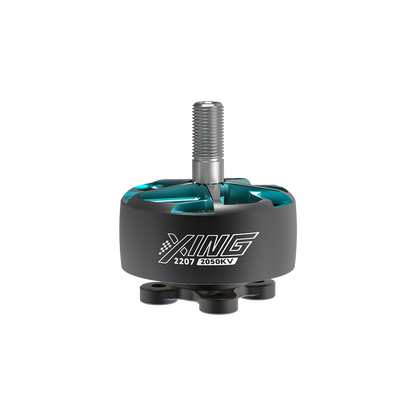

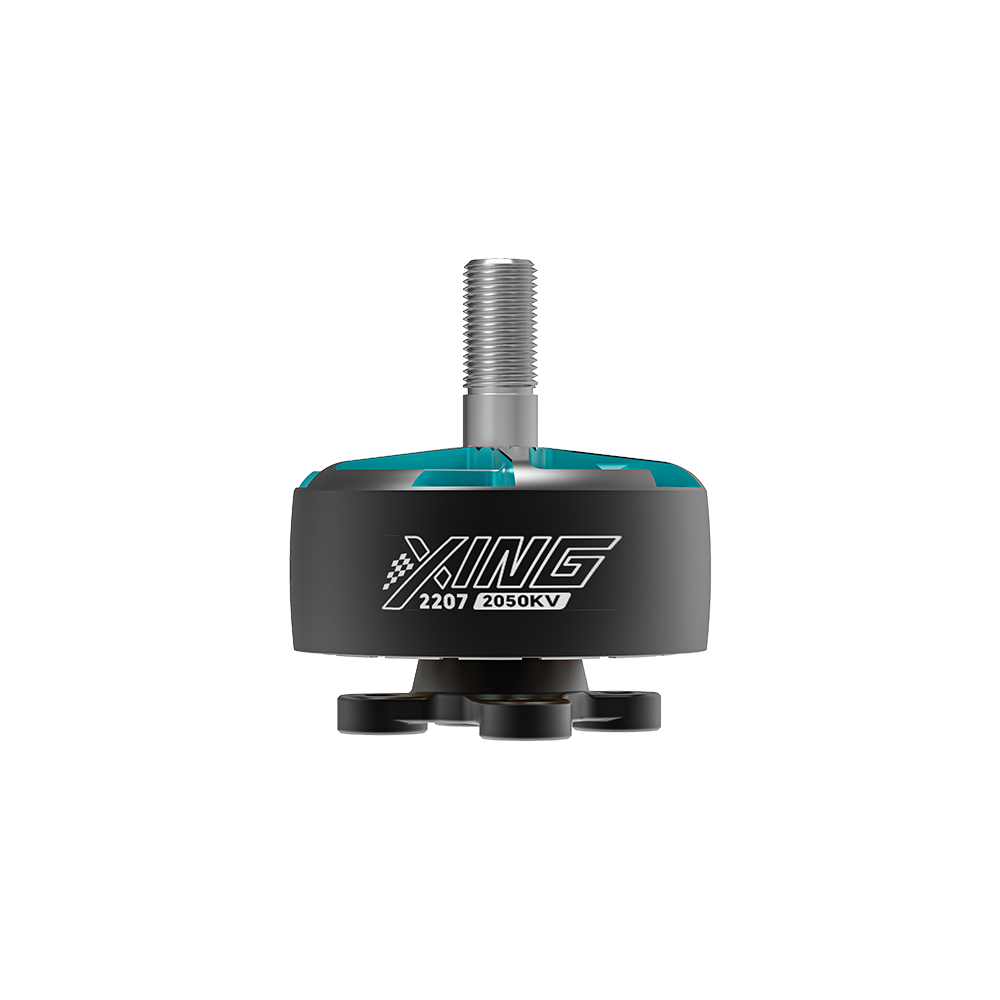

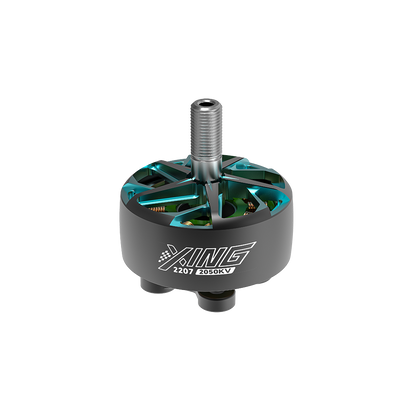

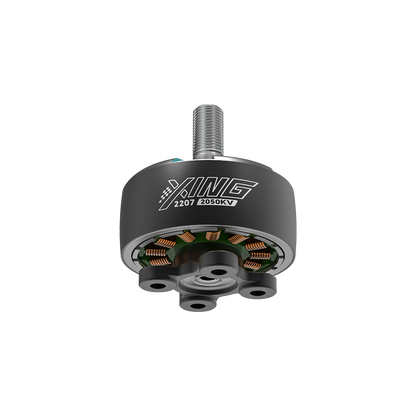

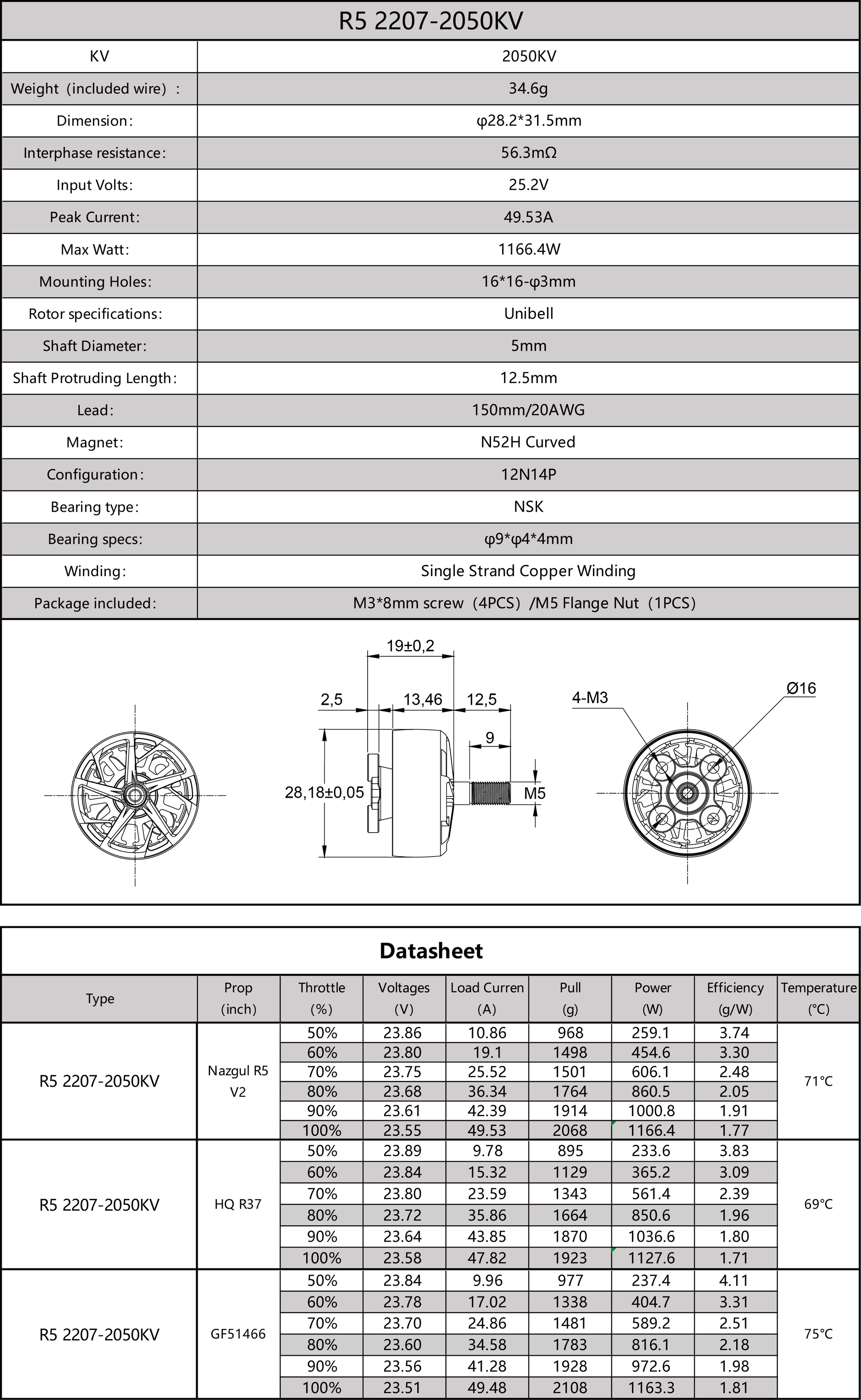

R5 2207 2050KV FPV Motor This motor is designed specifically for racing drones like the Mach R5 Racing drone. Enhanced with new N52H center groove curved arc magnets, it delivers smoother, more reliable and more powerful performance than ever before. Using high-quality materials and a durable bell-shaft connection, the motor minimizes magnet air gap and stator lamination, maximizing efficiency and power. Specifications: Model: R5 2207 engine KV: 2050 KV Weight (including wire): 34.6 g Size: 28.2*31.5mm Interphase resistance: 56.3 mΩ Input voltage: 25.2V Peak current: 49.53A Maximum wattage: 1166.4W Mounting holes: 16*16 φ3mm Shaft diameter: 5 mm Length of protruding shaft: 12.5 mm Lead: 150mm/20AWG Magnet: N52H Curved Configuration: 12N14P Bearing type: NSK Bearing specifications: φ9*φ4*4 Winding: Single-core copper winding The package includes: 1 x Xing 2207 2050KV brushless motor 4 x M3*8 screws 1 x M5 flanged nylon lock nut
