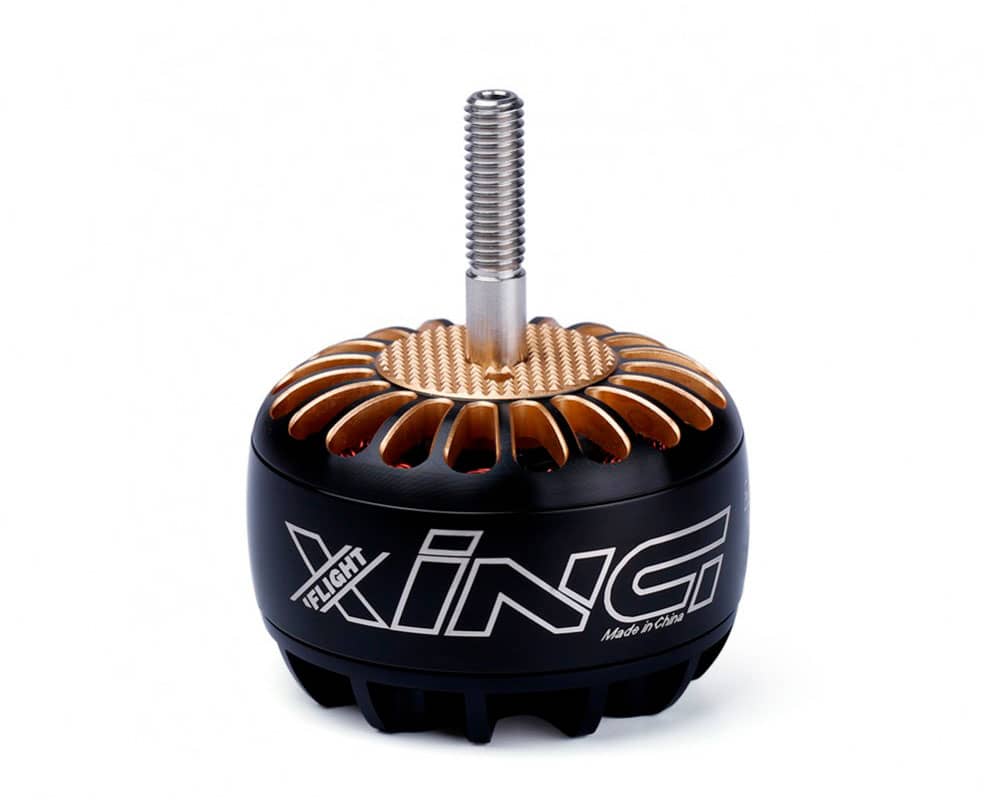

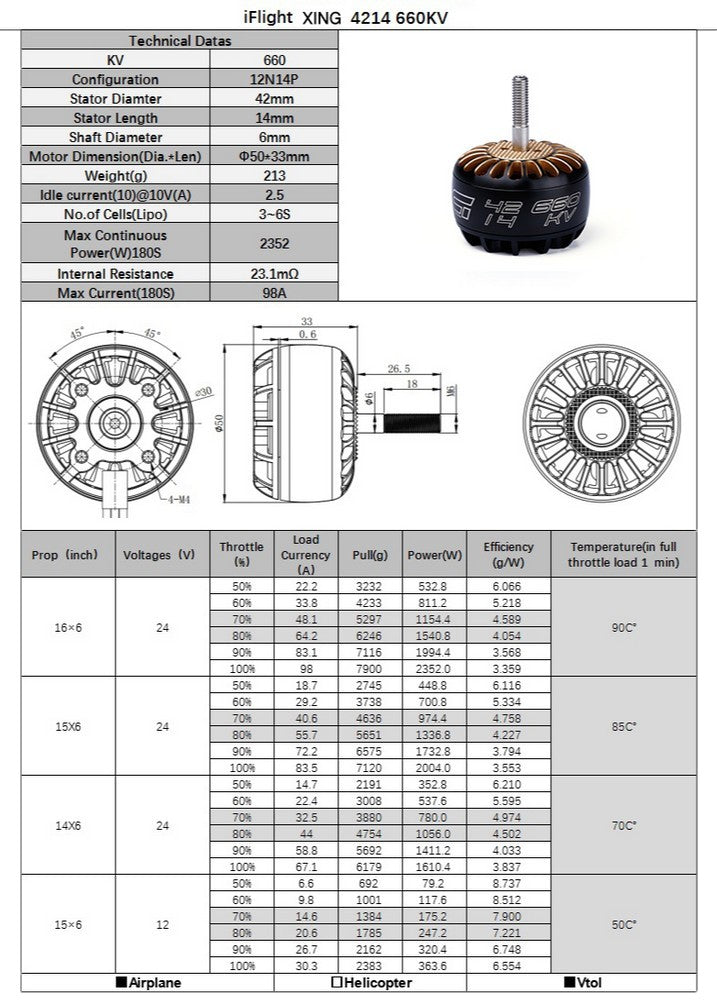

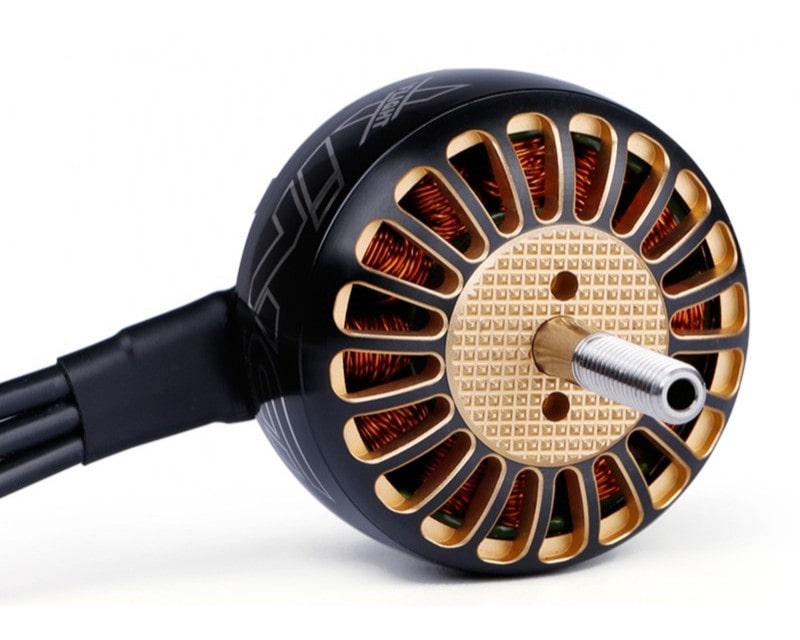

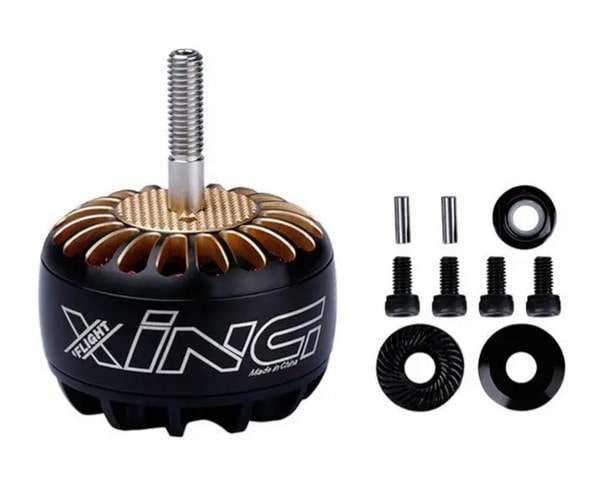

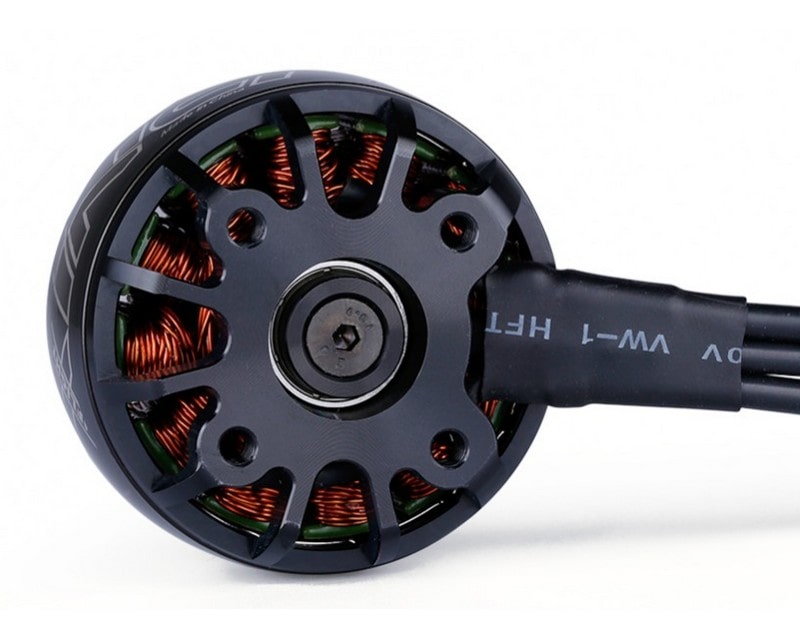

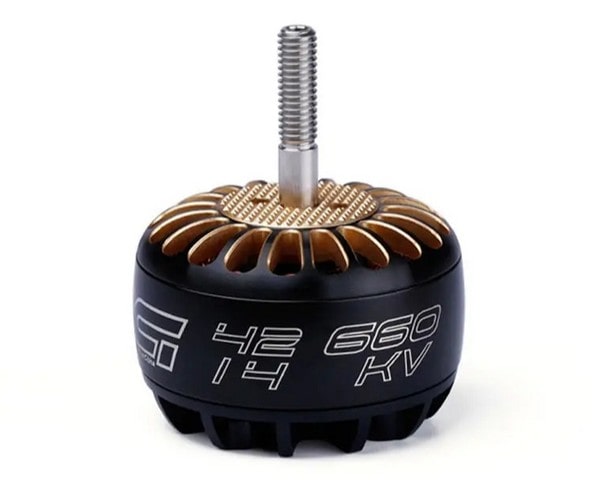

XING 4214 Class X 660KV Motor The iFlight XING 4214 motor is tailored for sensitive power delivery at low KV, making it ideal for 6S 15" X-class racing drones such as the iX15. Featuring a robust stator, Pacific copper wires, N45SH magnets and a minimal air gap, it offers exceptional flight performance. Function: - Specially designed for X-Class Racing - Oxidation color 7075 T6 milled aluminum bell and base - 420 stainless steel - Japanese iron core Kawasaki 1200 - Solid pacific 220℃ heat resistant copper wire and winding - Japanese EZO bearings with long service life - N45SH High temperature tegular magnets, small air gap - Electromagnetically matched magnets and stator - Optimized heat dissipation structure design, heat reduction by 20%. - Max 7.9 kg pull 660kv - 50%-90% maximum efficiency and thrust - One-piece 6mm shaft runs through the entire motor to prevent bell deformation during hard impacts - Shaft set screw with hex head for easy maintenance - Dynamically balanced - Motor cable protected Specifications: Model: XING 4214 Engine KV: 660KV Weight (including wire): 213 g Size: φ50*33mm Interphase resistance: 23.1 mΩ Peak current: 98A Maximum wattage: 2352W Shaft diameter: 6mm Length of protruding shaft: 14 mm Configuration: 12N14P The package includes: 1 x XING 4214 Class X Racing Engine 1x screws and nuts
