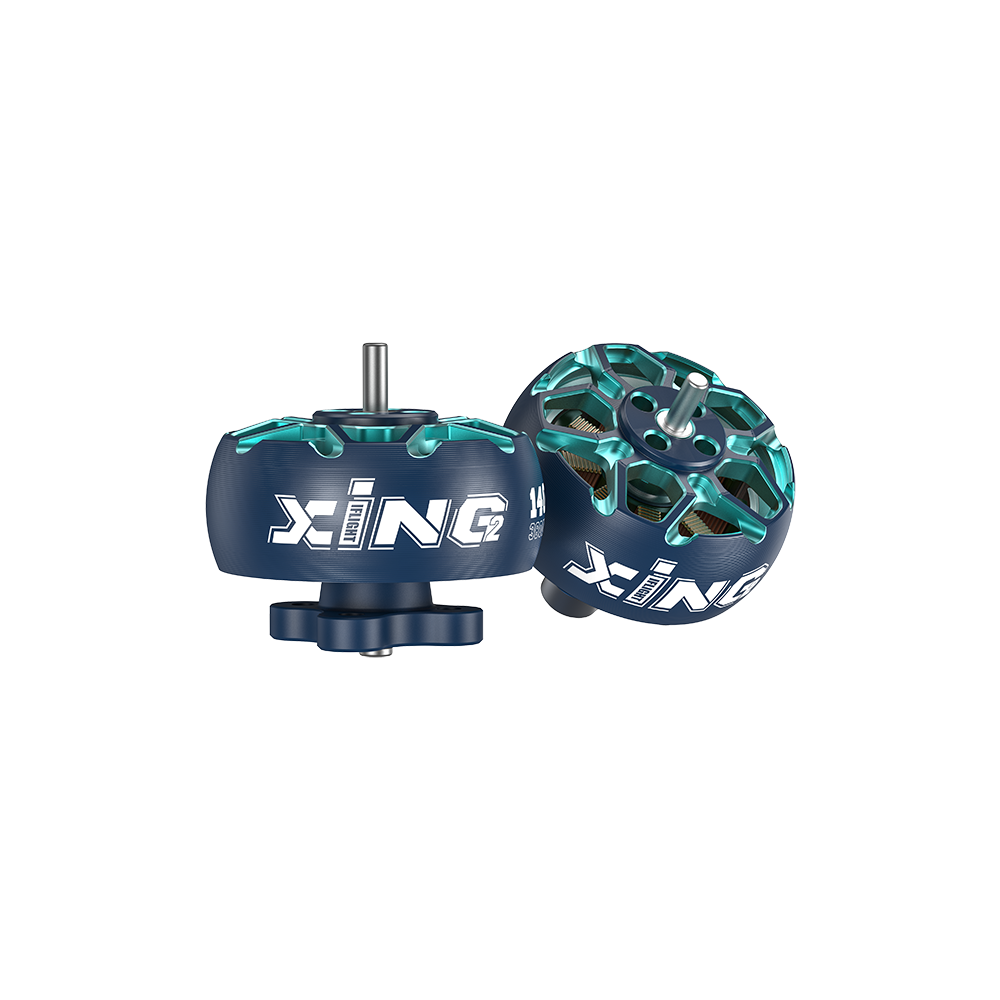

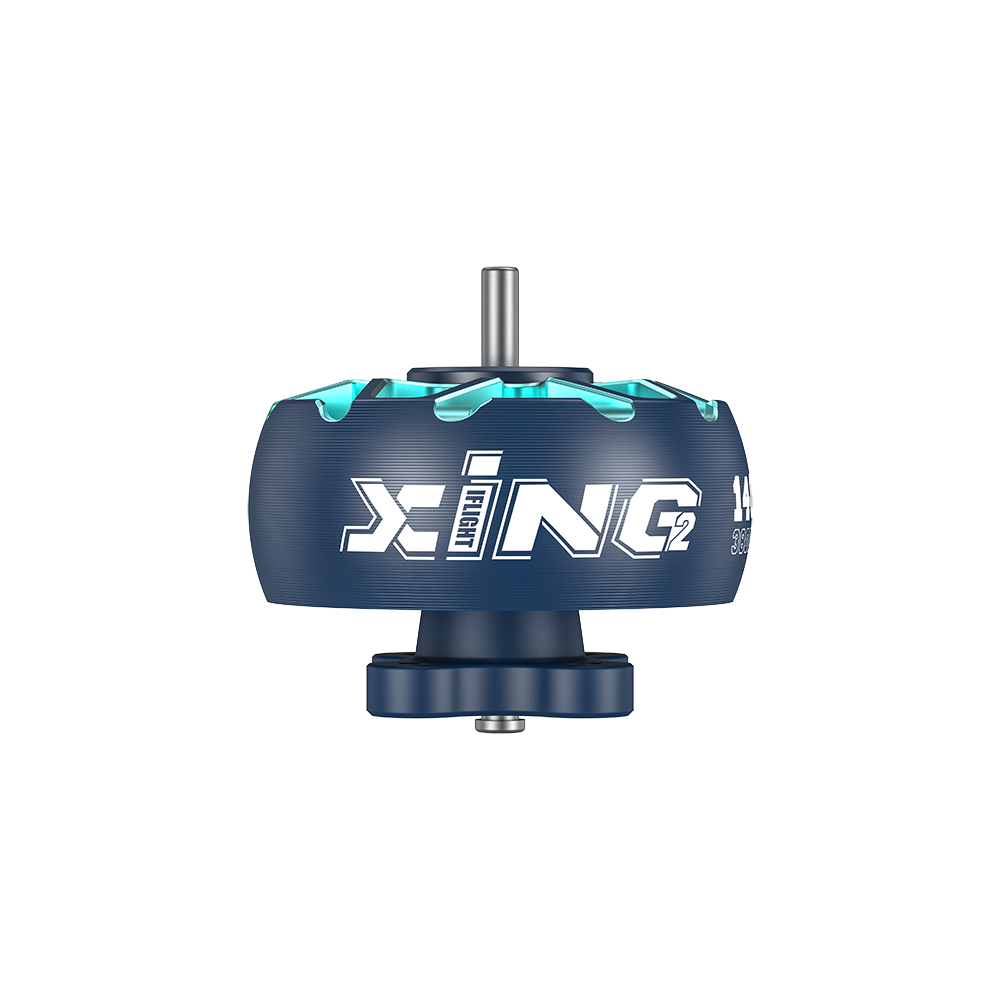

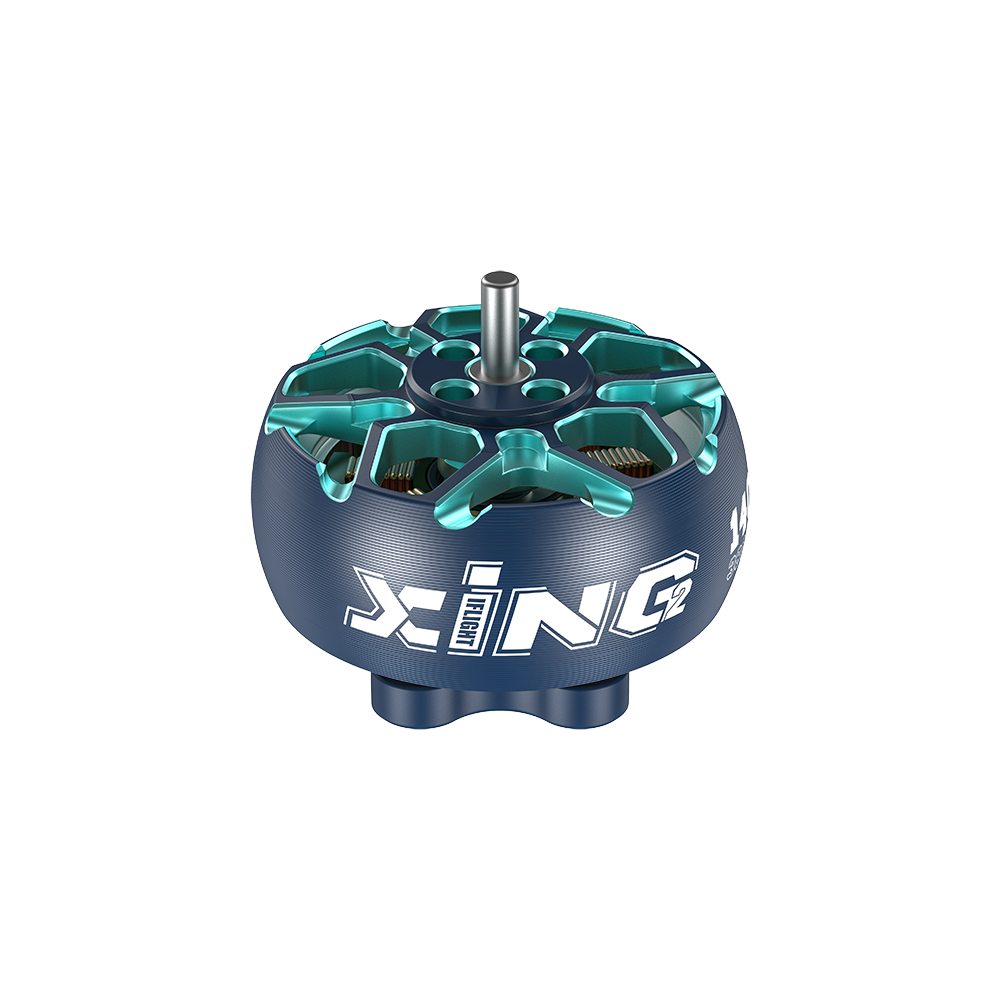

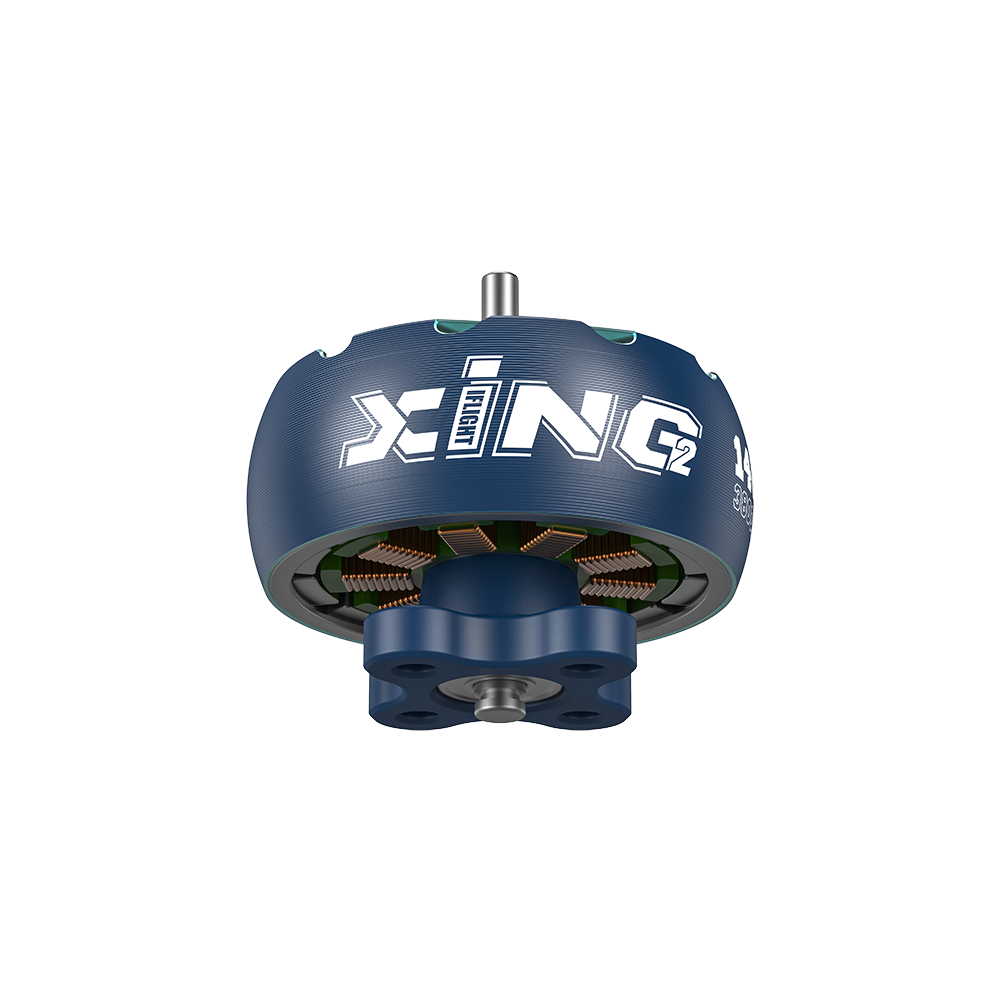

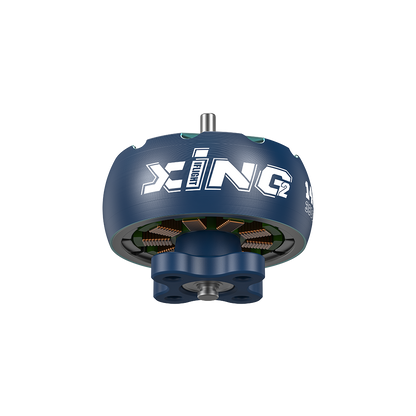

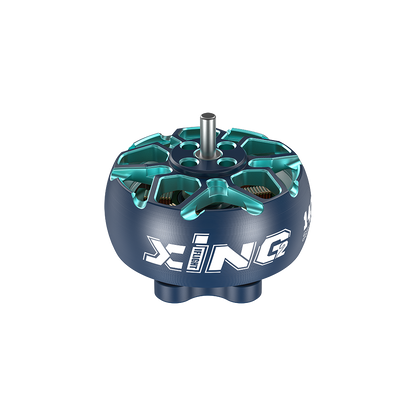

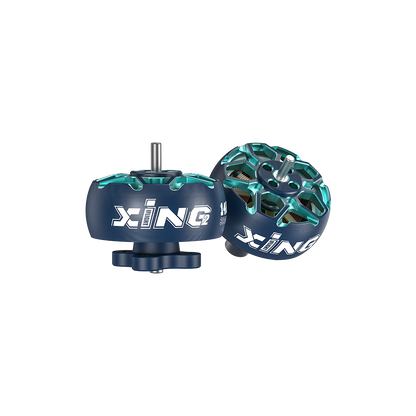

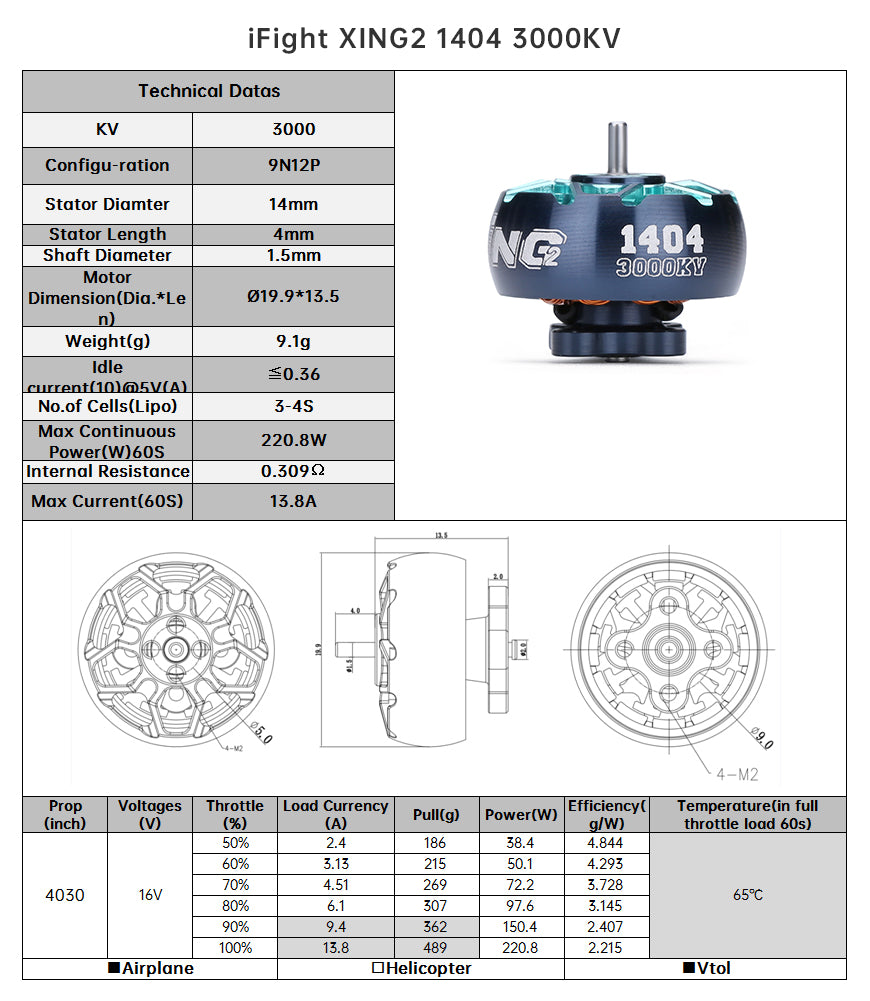

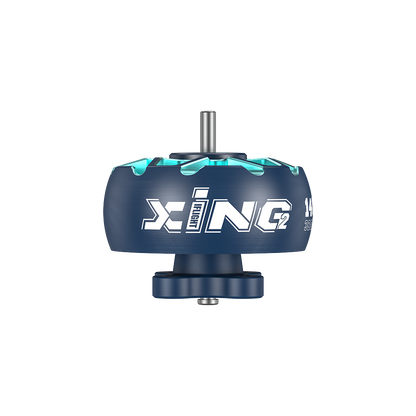

XING2 1404 FPV Motor Unibell 3000KV The new XIN2 X1404 MOTOR is designed for ultralight drones with toothpicks. Featuring N52H curved arc magnets with a center groove, these motors provide a faster response time, reducing shift lag during braking and acceleration. This improvement ensures faster PID loop conversion and gives FPV pilots a greater sense of lock-in. In addition, with high-quality materials and a durable bell-shaft connection, we have minimized magnet air gap and stator lamination, resulting in increased efficiency and performance. Specifications: KV: 3000 KV Weight (including wire): 9.1 g Size: φ19.9*13.5mm Phase-to-phase resistance: 0.309Ω Input voltage: 3S-4S Peak current: 13.8A Maximum wattage: 220.8W Mounting holes: 9*9 φ2mm Rotor specifications: Unibell Lead: 120mm/26AWG Magnet: N52H Curved Configuration: 9N12P Bearing type: NSK Winding: Single-core copper winding The package includes: 1 x XING2 1404 Motor Unibell 4x M2x7 mounting screws
