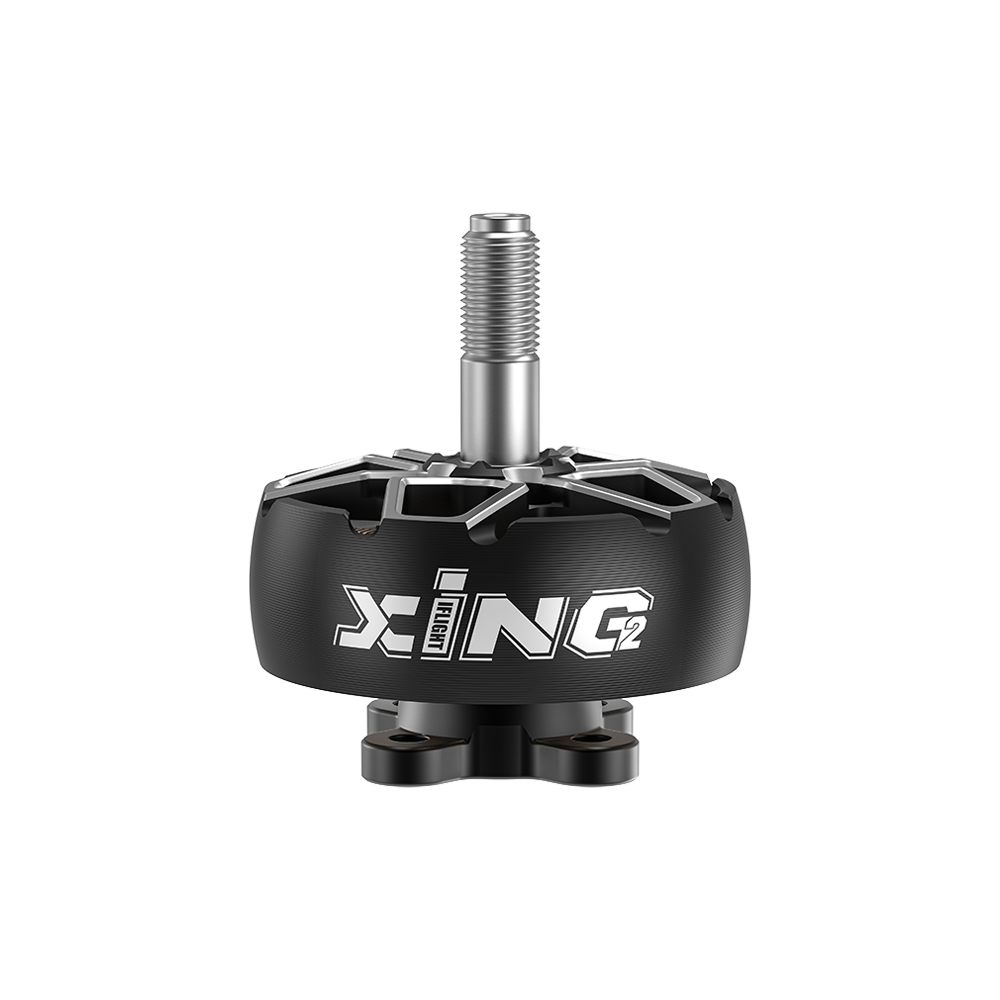

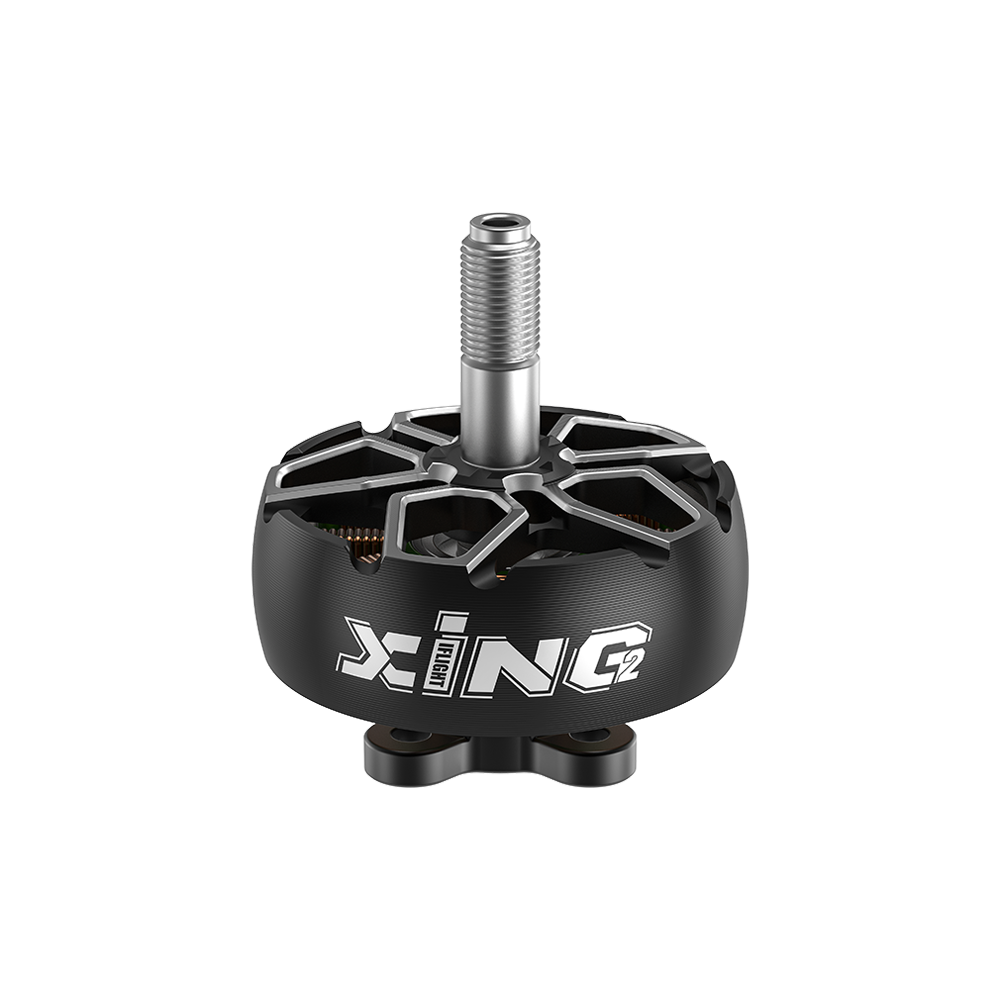

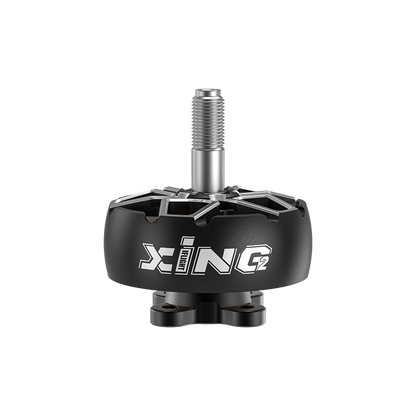

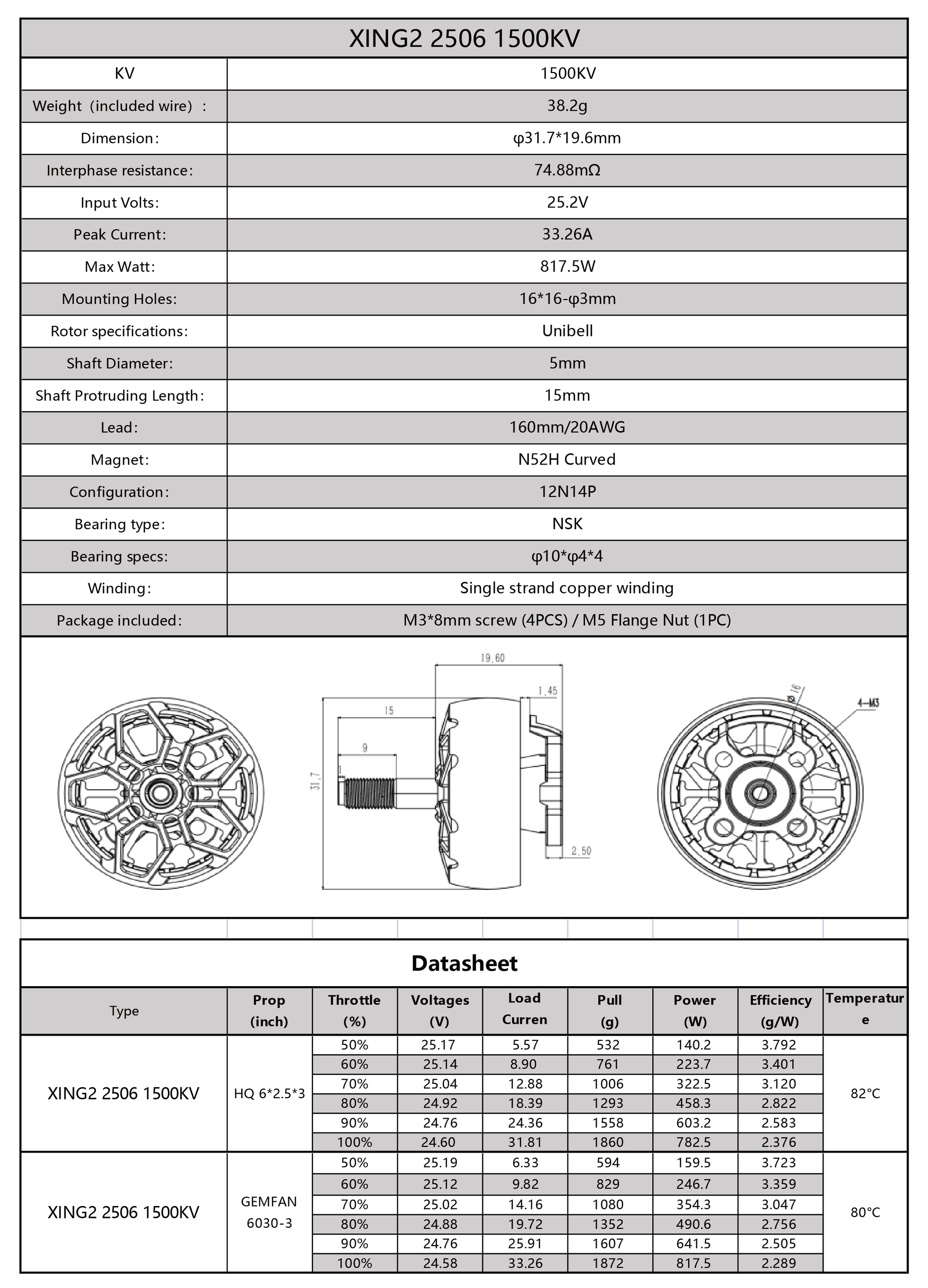

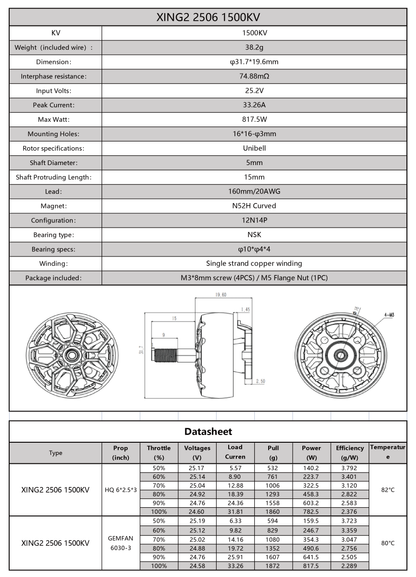

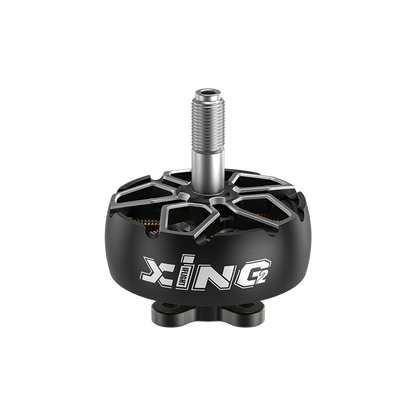

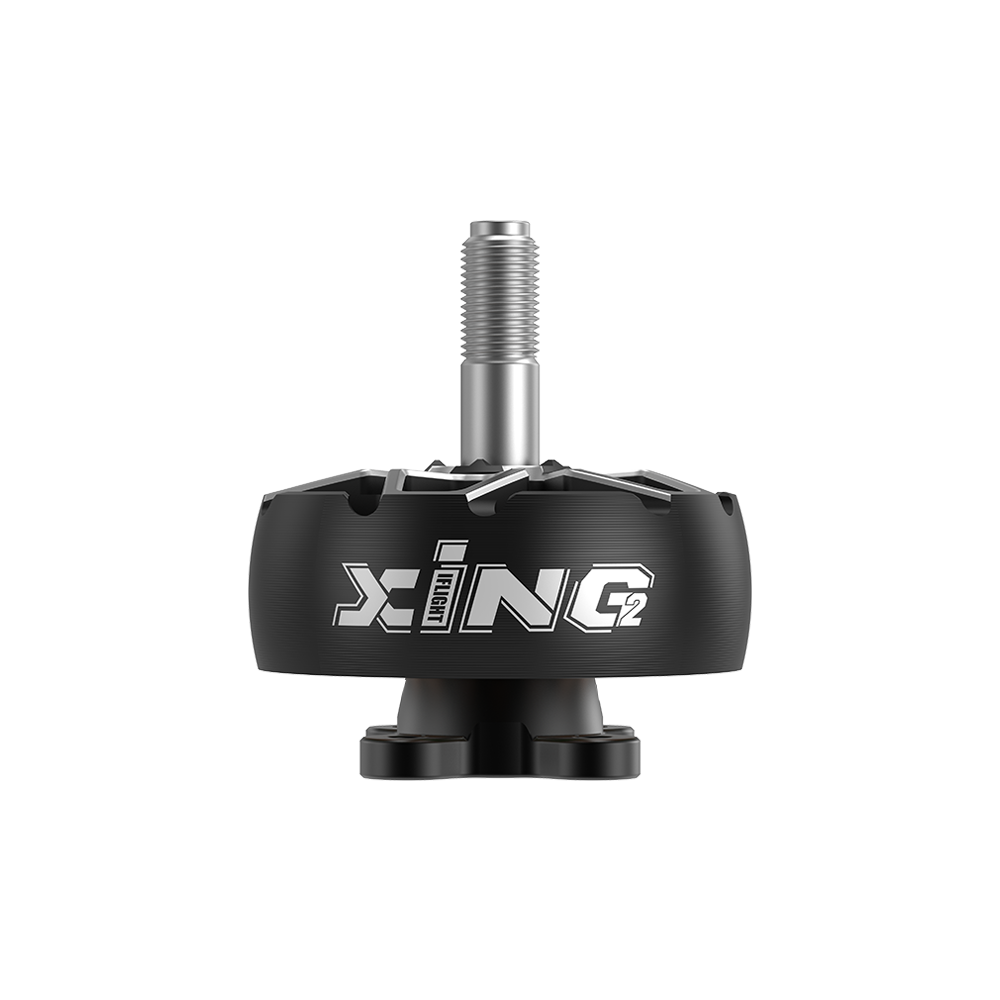

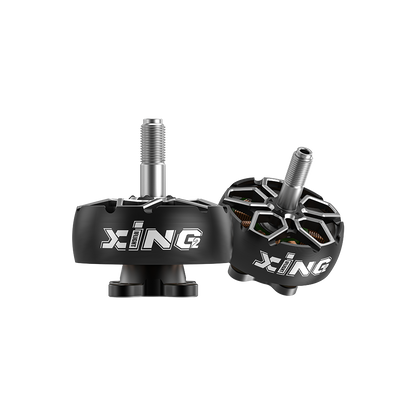

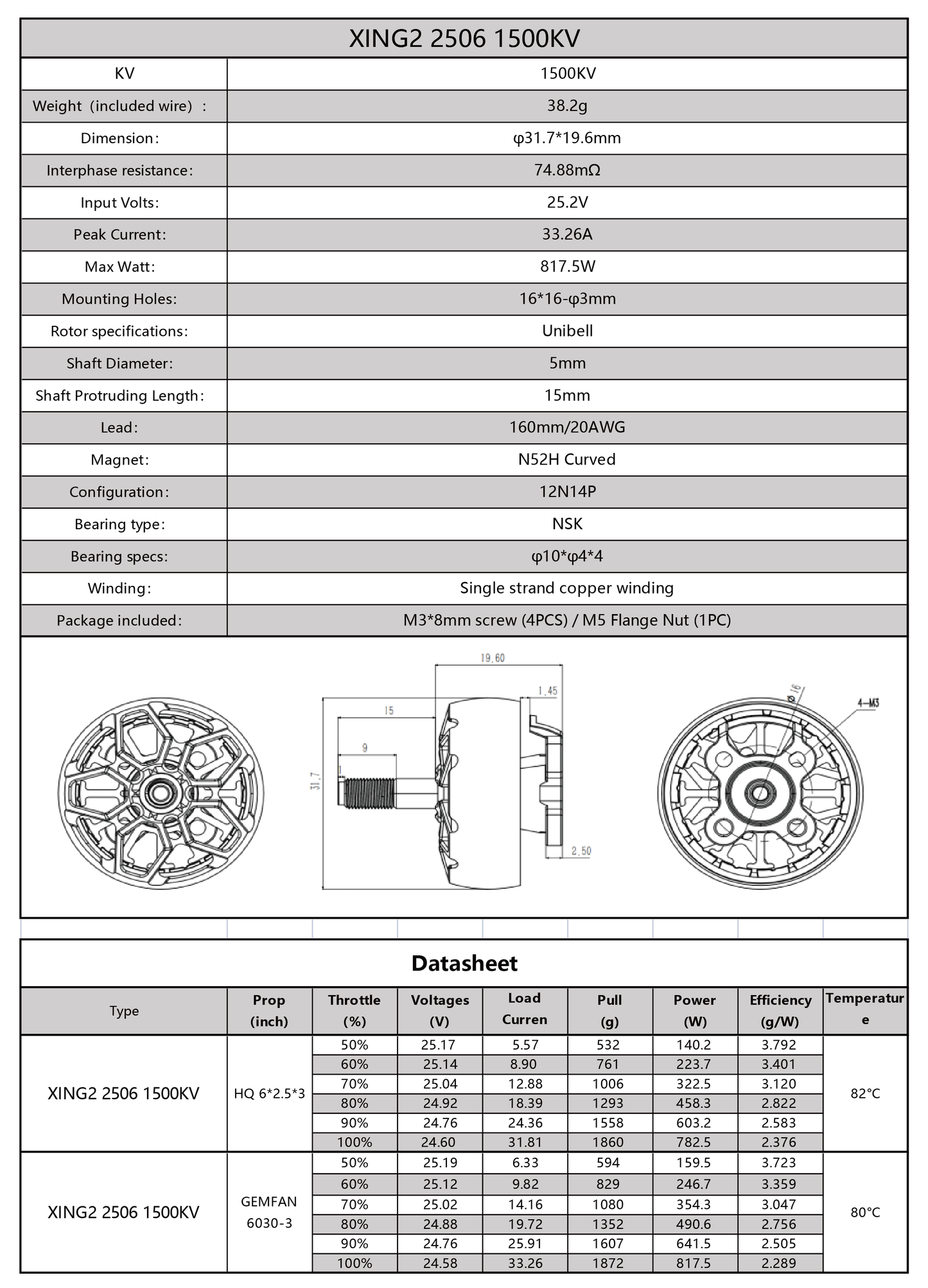

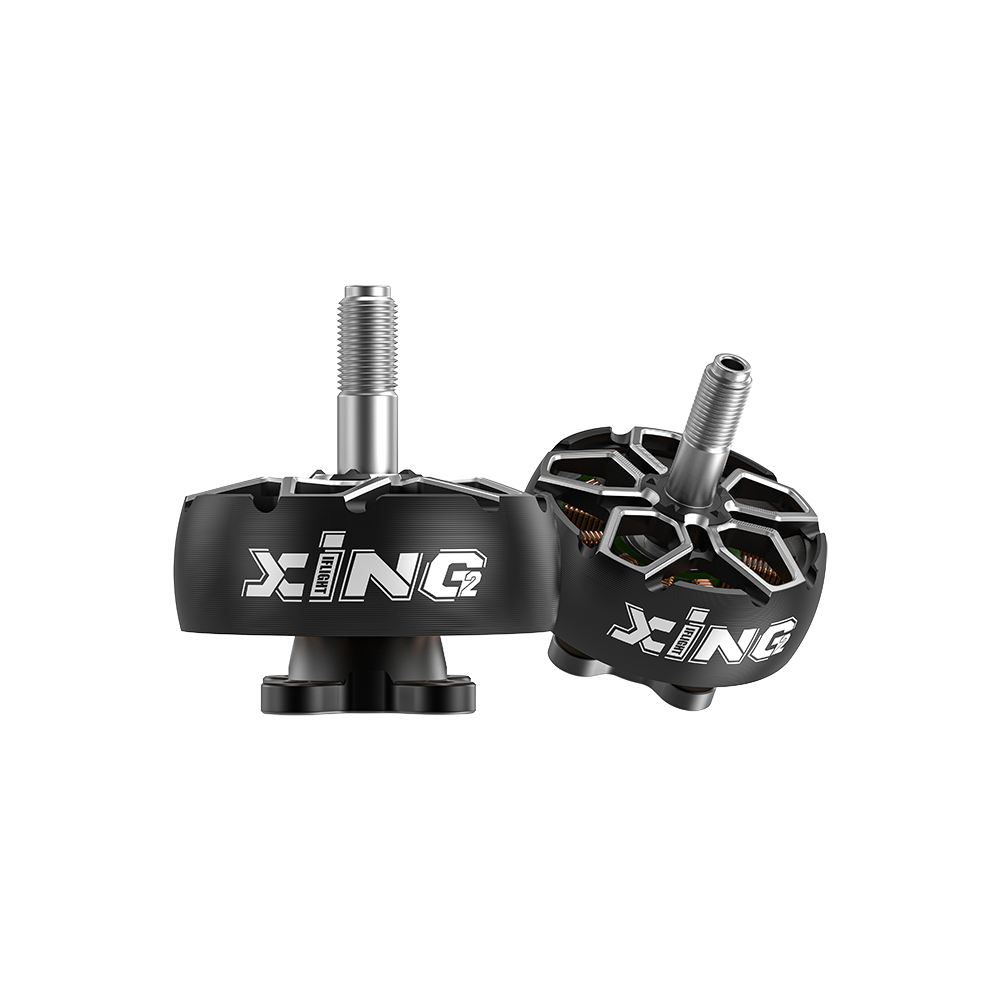

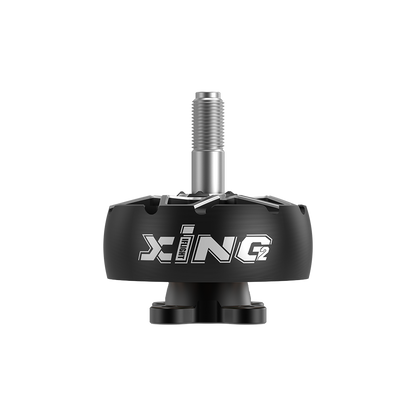

XING2 2506 FPV Motor Unibell 1500KV Function: - 5mm titanium alloy shaft, our strongest propeller shaft ever! - NSK 10x4x4 smooth bearings with long service life - N52H Curved Arc Magnets with Center Groove - Bearing gap protection with XING O-ring - Impact resistant 7075 aluminum bell - Motor wire protector - Dynamically balanced Specifications: Model: XING2 2506 Black Motor KV: 1500 KV Weight (including wire): 38.2g Size: φ31.7*19.6mm Interphase resistance: 74.88 mΩ Input voltage: 25.2V Peak current: 33.26A Maximum wattage: 817.5W Mounting holes: 16*16 φ3mm Rotor specifications: Unibell Shaft diameter: 5 mm Length of protruding shaft: 15 mm Lead: 160mm-20AWG Magnet: N52H Curved Configuration: 12N14P Bearing type: NSK Bearing specifications: φ10*φ4*4 Winding: Single-core copper winding The package includes: 1 x M5 flanged nylon lock nut 1 x XING2 2506 motor black 4x M3*8mm screws
